Model 5698 -
Universal Adapter Kit
Model 5749 -
Universal Adapter Cable

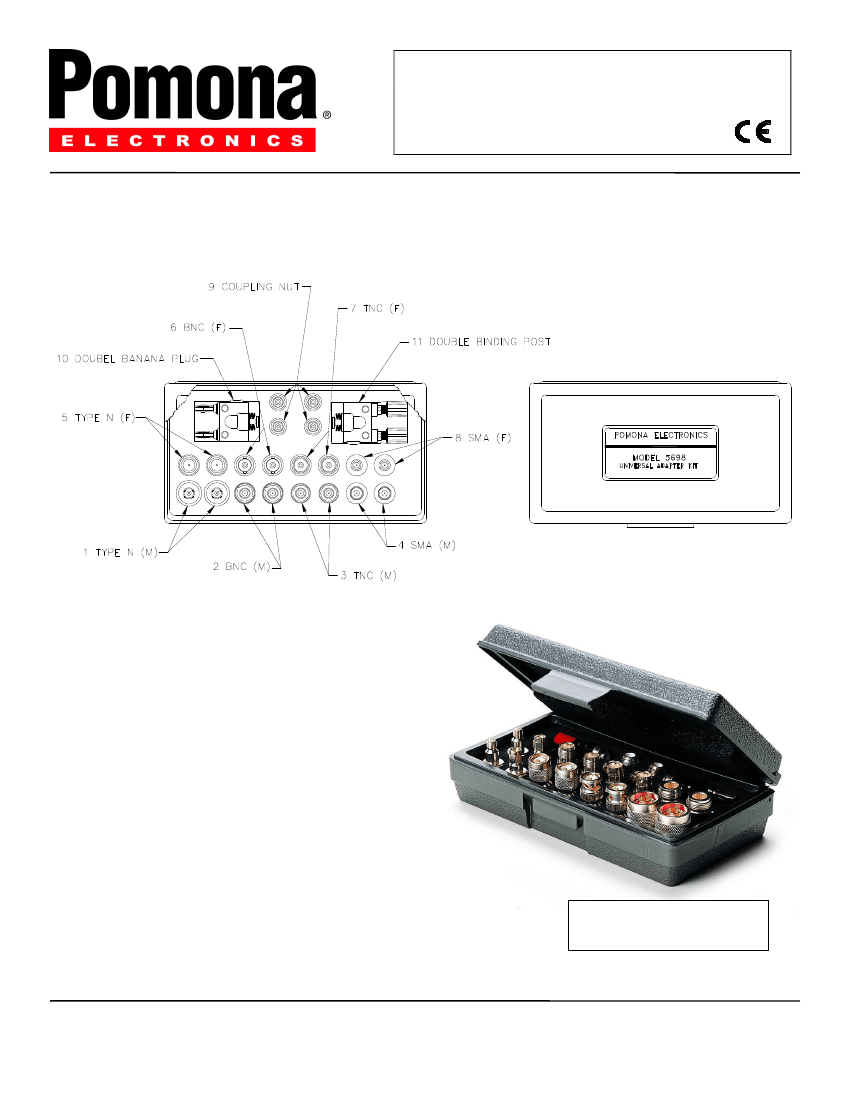

FEATURES:
Kit allows users to make their own adapters combinations, such as SMA to BNC or BNC to double banana
plugs. Adapter’s ends are joined with coupling nuts. Simply choose your combination. All connectors feature
gold plated center contacts and silver plated bodies
RATINGS:
Operating Temperature:
Items 1 through 9:
-67°F to +302°F (-55°C to +150°C).
Items 10 and 11:
+122°F (+50°C)
Nominal Impedance:
Items 1 through 9: 50 Ohms.
VSWR:
Items 1 through 9: 1.2:1 (DC-1GHz)
Frequency Range:
Items 1 through 9: DC-1GHz
Items 10 and 11: DC-300 MHz
Order Example: 5698
(Universal Adapter Kit)
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies.
Sales: 800-490-2361
Rev: 101
D1094623, D1094540
Fax: 425-446-5844
Technical Support: technicalsupport@pomonatest.com
Page 1 of 3
For “Where to Buy” information, visit the Pomona web site at www.pomonaelectronics.com
Model 5698 -
Universal Adapter Kit
Model 5749 -
Universal Adapter Cable
Item
1
2
3
4
5
6
7
8
9
Description
“N” male
BNC male
TNC male
SMA male
“N” female
BNC female
TNC female
SMA female
Coupler
Model
5734
5735
5736
5737
5738
5739
5740
5741
5742
10
Double
Banana Plug
5743
11
Double
Binding Post
5744
Material
Center Contact: Gold Plated Brass, Dielectric: Teflon, Shell: Sliver Plated Brass
Center Contact: Gold Plated Phosphor Bronze, Dielectric: Teflon, Shell: Sliver Plated Brass
Center Contact: Gold Plated Phosphor Bronze, Dielectric: Teflon, Shell: Sliver Plated Brass
Center Contact: Gold Plated Phosphor Bronze, Dielectric: Teflon, Shell: Sliver Plated Brass
Center Contact: Gold Plated Phosphor Bronze, Dielectric: Teflon, Shell: Sliver Plated Brass
Center Contact: Gold Plated Phosphor Bronze, Dielectric: Teflon, Shell: Sliver Plated Brass
Center Contact: Gold Plated Phosphor Bronze, Dielectric: Teflon, Shell: Sliver Plated Brass
Center Contact: Gold Plated Phosphor Bronze, Dielectric: Teflon, Shell: Sliver Plated Brass
Center Contact: Gold Plated Phosphor Bronze, Dielectric: Teflon, Shell: Sliver Plated Brass
Spring:
Beryllium copper ASTM B194, alloy 172 cond. Ht.
Plug Body:
Brass per QQ-B-626, alloy 360, ½ hard.
Finish:
Nickel plated per QQ-N-290, class2, 200/300 microinches
Insulation:
ABS. Color: Black
Center Contact: Gold plated brass
Dielectric:
Teflon
Shell:
Silver plated brass
Body:
Brass per QQ-B-626, alloy 360, ½ hard
Finish:
Nickel plated per QQ-N-290, class 2, 200/300 microinches
Insulation:
Polycarbonate. Color: one black, one red
Insulation, Body: ABS. Color: Black
Center Contact: Gold plated phosphor bronz
Dielectric:
Teflon
Shell:
Silver plated brass
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies.
Sales: 800-490-2361
Rev: 101
D1094623, D1094540
Fax: 425-446-5844
Technical Support: technicalsupport@pomonatest.com
Page 2 of 3
For “Where to Buy” information, visit the Pomona web site at www.pomonaelectronics.com
Model 5698 -
Universal Adapter Kit
Model 5749 -
Universal Adapter Cable

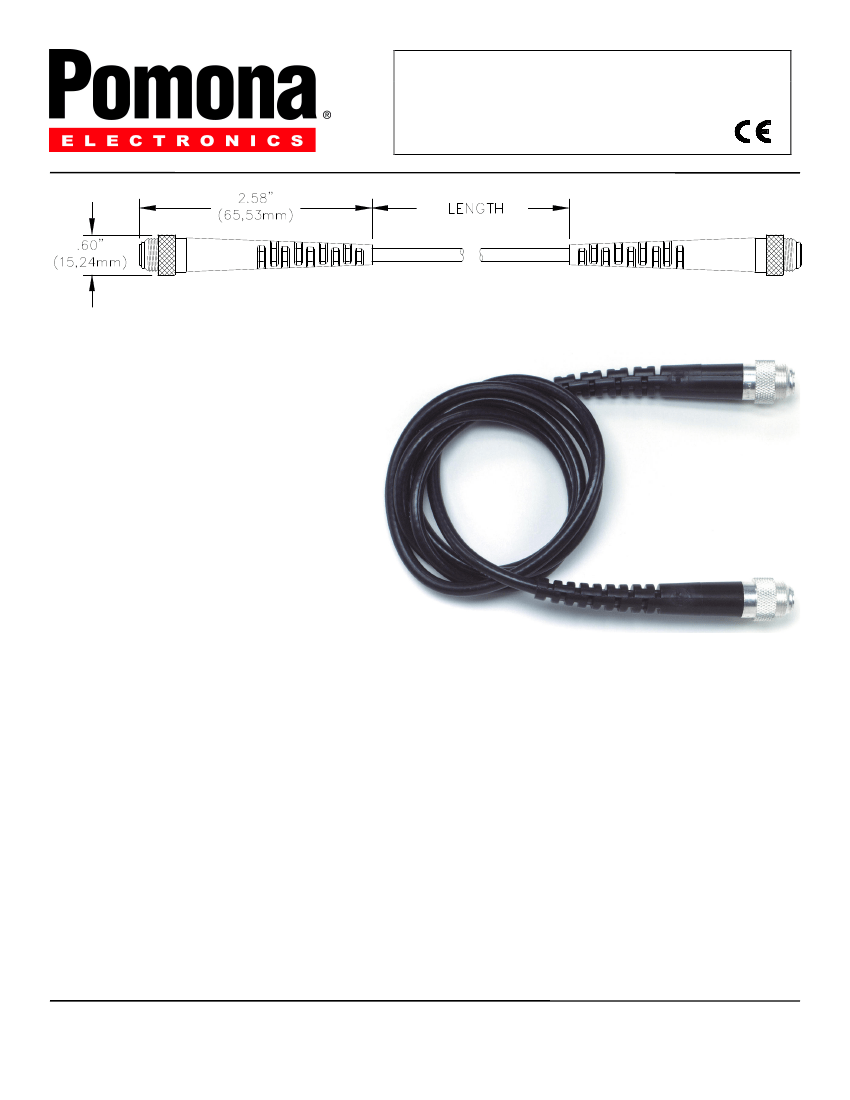

FEATURES:
•
Universal Adapter Cable used with
Pomona Universal Adapter Kits,
models 5698 and 5748.
MATERIALS:
Coupler Shell (each end):
Brass, Nickel
Plated
Coupler Conductor:
Phosphor Bronze, Gold
Plated
Strain Relief Boot:
PVC Black
Cable:
RG58C/U, O.D.: 0.195”
Frequency:
DC – 1.2GHz.
Impedance:
50 Ohms
RATINGS:
Operating Voltage: Hands free usage in controlled voltage environments: 500 Vrms maximum.
For CE compliance:
not
intended for hand-held use at voltages above 33 Vrms/70 Vdc.
Operating Temperature: +122°F (+50°C) Max.
ORDERING INFORMATION:
Model 5749-Length
Length
=: 24” (60,96cm), 36” (91,44cm), 48” (121,92cm), 60” (152.40cm) & 72” (182,88cm)
Order Example: 5749-48 (Cable ONLY, 48”)
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies.
Sales: 800-490-2361
Rev: 101
D1094623, D1094540
Fax: 425-446-5844
Technical Support: technicalsupport@pomonatest.com
Page 3 of 3
For “Where to Buy” information, visit the Pomona web site at www.pomonaelectronics.com
