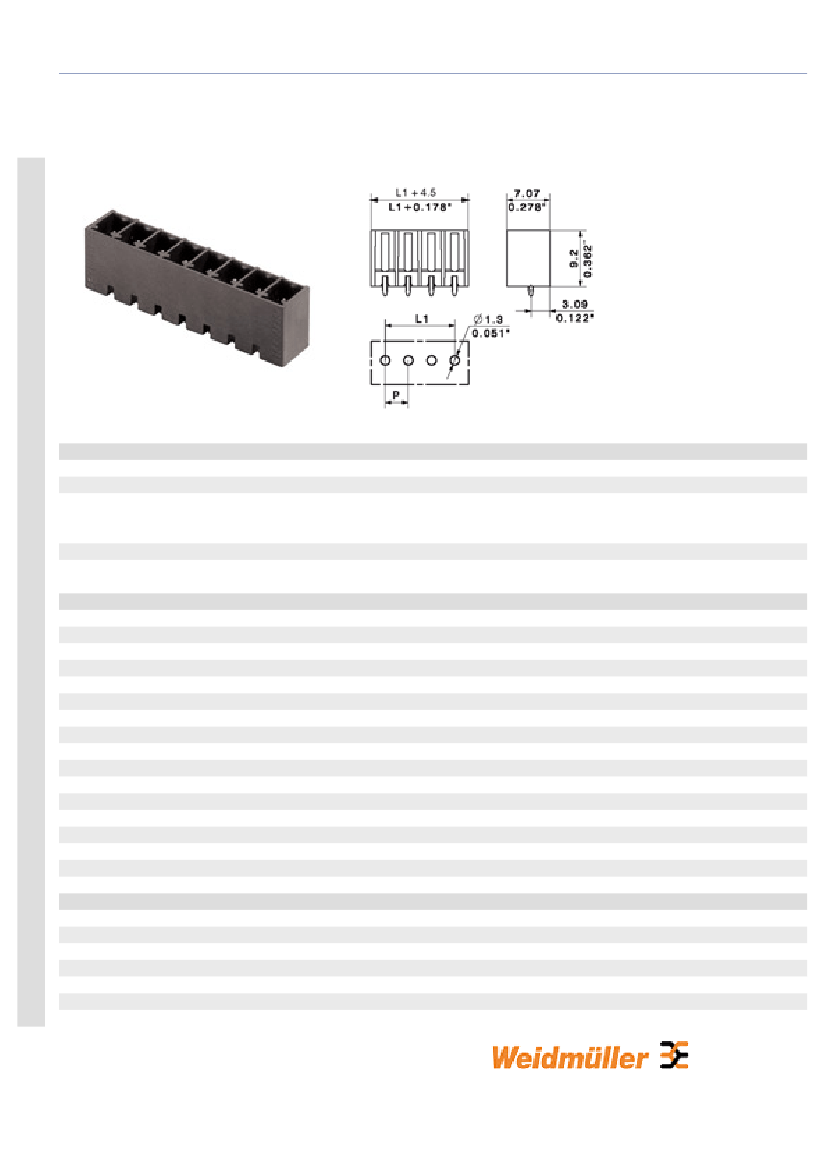

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.81 mm (0.150 inch) | Male connectors,
THR solder connection, 3.81 mm pitch | SC-SMT 3.81/180G SN | SC-SMT 3.81/180G SN Box
Material data
Contact surface
Constant operating temp., min.
Constant operating temp., max.
Storage temperature, min.
Storage temperature, max.
Max. relative humidity during storage
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Rated voltage for overvoltage class/pollution
severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated voltage for overvoltage class/pollution
severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group D)
Rated current (Use group D)
UL 1059 rating data
Rated voltage (Use group D)
Rated current (Use group D)
Approvals
Approvals institutes
tinned
-25 °C
120 °C
-25 °C
55 °C
85 %
16 A
14 A
160 V
2.5 kV
160 V
2.5 kV
320 V
2.5 kV
3 x 1s with 76 A
300 V
10 A
300 V
10 A
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
NK
EC001284
27-26-07-01
27-26-07-01
27-26-07-04
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.81 mm (0.150 inch) | Male connectors,
THR solder connection, 3.81 mm pitch | SC-SMT 3.81/180G SN | SC-SMT 3.81/180G SN Box
Classifications
Similar products
Order No.
1863720000
1862920000
1863730000
1862940000
1863750000
1862950000
1863780000
1863010000
1863830000
1863020000
1863880000
1863030000
1863900000
1863240000
1863910000
1863270000
1863920000
1863290000
1863930000
1863320000
1863940000
1863330000
Part designation
SL-SMT3.81/2/180G1.5SN
SL-SMT3.81/2/180G3.2SN
SL-SMT3.81/3/180G1.5SN
SL-SMT3.81/3/180G3.2SN
SL-SMT3.81/4/180G1.5SN
SL-SMT3.81/4/180G3.2SN
SL-SMT3.81/5/180G1.5SN
SL-SMT3.81/5/180G3.2SN
SL-SMT3.81/6/180G1.5SN
SL-SMT3.81/6/180G3.2SN
SL-SMT3.81/7/180G1.5SN
SL-SMT3.81/7/180G3.2SN
SL-SMT3.81/8/180G1.5SN
SL-SMT3.81/8/180G3.2SN
SL-SMT3.81/9/180G1.5SN
SL-SMT3.81/9/180G3.2SN
SL-SMT3.81/10/180G1.5SN
SL-SMT3.81/10/180G3.2SN
SL-SMT3.81/11/180G1.5SN
SL-SMT3.81/11/180G3.2SN
SL-SMT3.81/12/180G1.5SN
SL-SMT3.81/12/180G3.2SN
Version
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 2, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 2, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 3, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 3, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 4, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 4, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 5, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 5, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 6, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 6, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 7, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 7, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 8, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 8, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 9, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 9, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 10, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 10, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 11, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 11, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 12, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 12, 180°, Box
-3-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.81 mm (0.150 inch) | Male connectors,
THR solder connection, 3.81 mm pitch | SC-SMT 3.81/180G SN | SC-SMT 3.81/180G SN Box
1863950000
1863350000
1863960000
1863370000
1863400000
1864040000
1863420000
SL-SMT3.81/13/180G1.5SN
SL-SMT3.81/13/180G3.2SN
SL-SMT3.81/14/180G1.5SN
SL-SMT3.81/14/180G3.2SN
SL-SMT3.81/15/180G3.2SN
SL-SMT3.81/16/180G1.5SN
SL-SMT3.81/16/180G3.2SN
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 13, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 13, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 14, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 14, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 15, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 16, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 16, 180°, Box
