1200860119: DescriptionCORD 3POS FEMALE RA M8 2M 24AWG; CategoryWire/cable; File Size89KB，1 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

1200860119 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1200860119	-	-	View	Buy Now

1200860119 Overview

CORD 3POS FEMALE RA M8 2M 24AWG

1200860119 Parametric

Parameter Name	Attribute value
first connector	M8 female, right angle
Number of pins in connector 1	3
Number of mounting pins for the 1st connector	all
Second connector	Wire leads
length	6.56'（2.00m）
Cable type	round
color	yellow
shield	No shielding
use	Industrial environment - IP68

Preview

Download Datasheet

View All

10

9

8

7

6

5

4

3

2

1

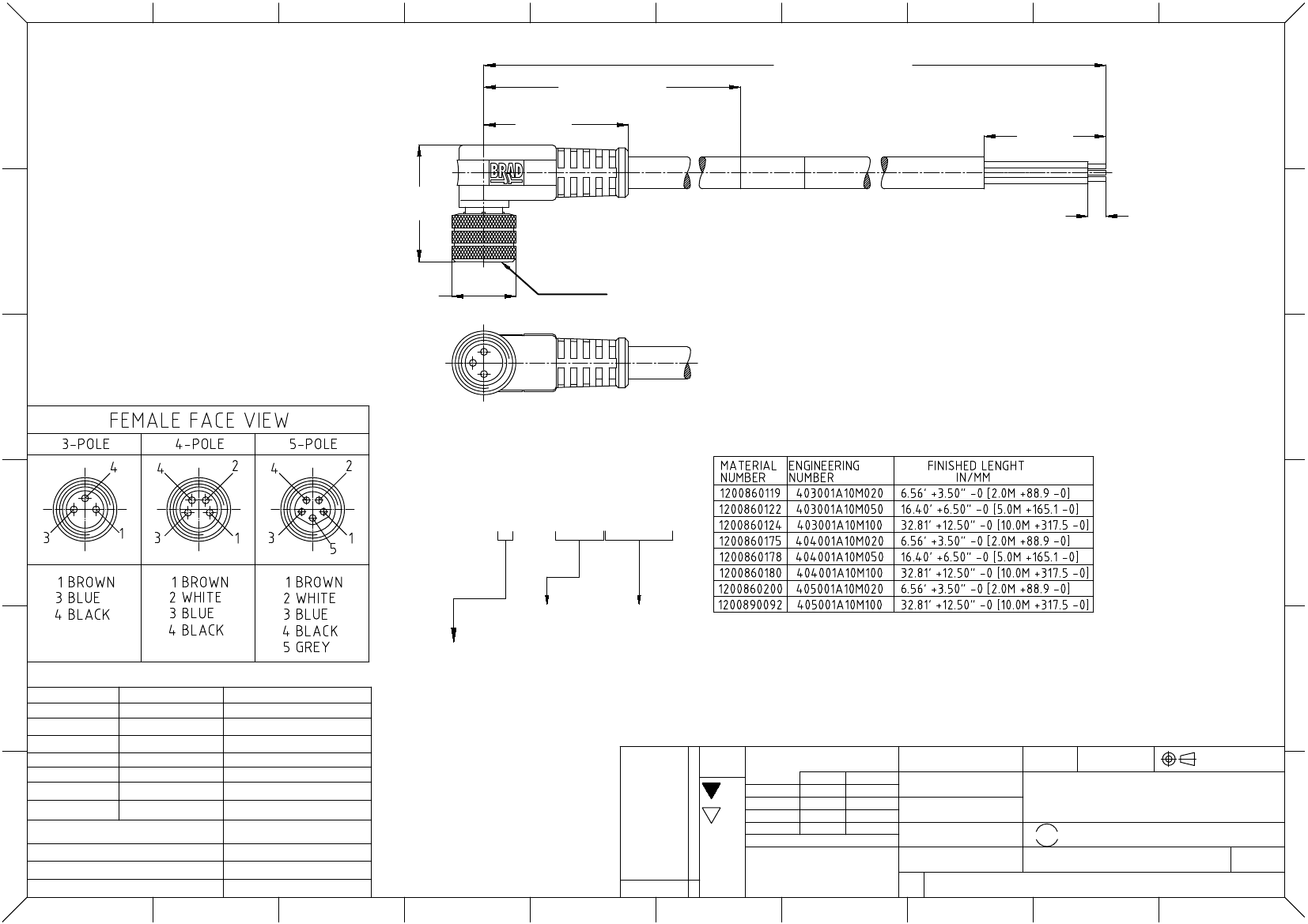

F

12.0/14.0" REF.

[304/355mm]

.9" REF.

[23mm]

FINISHED LENGTH

F

.7" REF.

[19mm]

LABEL

WRAP

.1" REF.

[3mm]

E

.7" REF.

[18mm]

E

M8 x 1

[10mm]

D

C

403001A10M020

cable type

#24/3-5

PVC YELLOW

cable length

020----2 Meters

100----10 Meters

C

No Pole

3-5 Pole

B

UPDATED FOR PART NUMBER MATRIX

EC NO: IPG2014-0989

11/27/13

DRWN:

GGUSTAFS

----

CH'KD:

BARDEN

APPR:

BWOODMAN 2010/01/28

DESCRIPTION

SPECIFICATION DATA

COMPONENT MATERIAL

FINISH

LABEL

MYLAR

BLACK/YELLOW

COUPLER

BRASS

NICKEL PLATED

CONTACT

COPPER ALLOY

Au OVER Ni

O-RING

VITON

RED

INSERT

PUR

BLACK

OVERMOLD

TPE

YELLOW

CABLE #24 /3-5

PVC

VOLTAGE RATING:

AMPERAGE RATING:

PROTECTION CLASS:

10

9

B

QUALITY

SYMBOLS

=

C

A

YELLOW

3-4POL:60V/AC 75V/DC

5-POL: 30V/AC 36V/DC

3A

IP 68

8

7

6

=

GENERAL TOLERANCES

(UNLESS SPECIFIED)

mm

INCH

0

4 PLACES

---

3 PLACES

---

.005

0

2 PLACES

.13

.010

1 PLACE

.25

.020

DIMENSION STYLE

SCALE

DESIGN UNITS

IN/MM

DRAWN BY

DATE

NTS

INCH

THIRD ANGLE

PROJECTION

RE

CHECKED BY

2010/01/20

DATE

FP

APPROVED BY

2010/01/20

DATE

NC 3/4/5P FE 90

24AWG PVC

----

molex

.5

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

NSTAUDIG

MATERIAL NO.

2010/01/28

MOLEX INCORPORATED

SHEET NO.

A

DOCUMENT NO.

SEE TABLE

SIZE

SD-120086-026

1 OF 1

2

REV

A3

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX

INCORPORATED AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

5

4

3

2

1
