APPLICATION SHEET

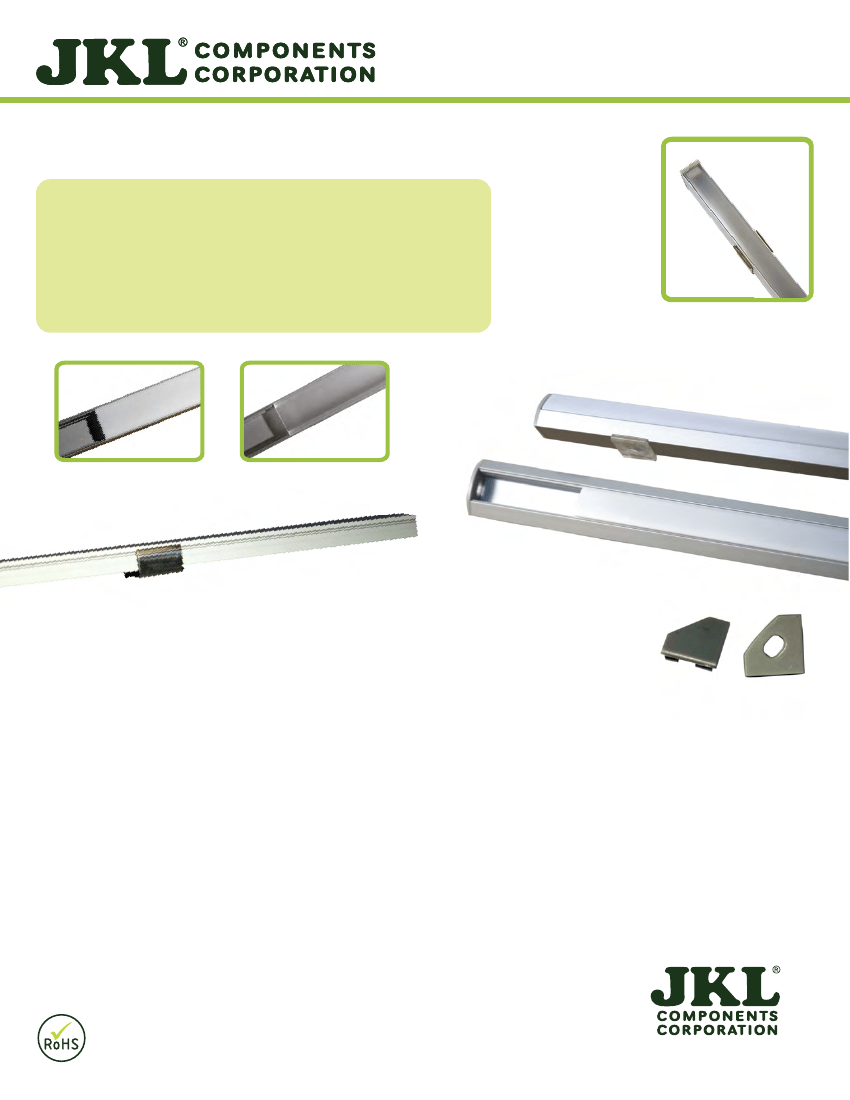

alumiLINE channel rails
®
Wide Variety of Profile Shapes & Diffuser Lenses:
ZFC- series
ZFC-11WR-MULTI
ZRC-17-PC-MULTI
ZFC-18C-PC-MULTI
ZFC-20BP-MULTI
ZFC-21-MULTI
ZFC-17 SERIES
Milk White Lens
ZFC-17 SERIES
Semi-Clear Lens
ZFC-18C SERIES - CORNER MOUNT
ZFC-17 SERIES - SIDE VIEW
APPLICATIONS
•
•
•
•
•
CABINETRY
VANITY MIRROR
DISPLAY CASE
STAIRWAYS & RAILINGS
WINE RACKS
•
•
•
•
•
CLOSETS
RETAIL SPACE
BOOKSHELVES
KICKBOARDS
WORK BENCHES
ZFC-18C END CAPS
The JKL Alumiline
®
Channel Rails can be used anywhere a continuous band of light would be
wanted without the appearence of hotspots. The JKL Alumiline
®
Channel Rails add a professional
look to the application of LED lighting with different types of diffusers and lens covers.
Lighting hand rails, closets, stairs, tables and undercabinets can be completed quickly with a
refined apperance using the Alumiline
®
Channel Rails. A variety of lengths are available and JKL
Components also offers custom lenghts to meet your project needs.
a
Lighti
ng
Solu
y
ti
lit
on
Qu
s
WWW.JKLLAMPS.COM
ROHS COMPLIANT
ISO9001 CERTIFIED
SALES@JKLLAMPS.COM
800-421-7244
Since 1972
APPLICATION SHEET p.2
ZFC- SERIES

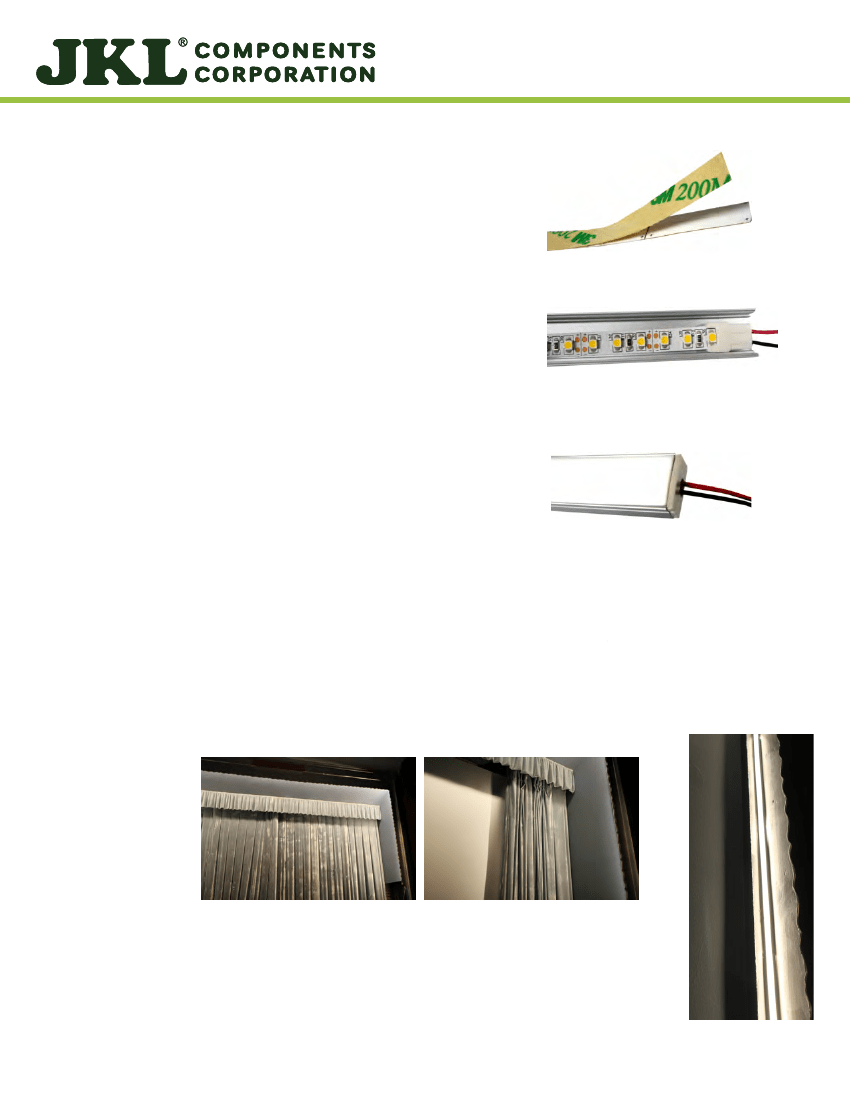

ASSEMBLY
1) Clean the inside surface of rail to remove any
grease or dirt.
2) Peel protective paper off of the flex ribbon. Make
sure you remove the paper but not the double-sided
adhesive.
3) Place the start of the flex ribbon 1/4 inch (6 mm)
away from the inside edge of the Alumiline
®
rail.
Additional space may be needed to accomodate your
connection method (wires or solderless connectors).
4) Slowly peel the paper off the ribbon and press the
ribbon into the inside surface of the rail.
5) With the flex ribbon attached to the rail, place the
end caps onto the ends of the rail. The end cap with
the hole should be placed where the wires will come
out.
6) The diffused/lens cover can be snapped onto the
rail by catching one side of the lens cover on the rail
and pushing down-and-in towards the rail on the other
side.
STEP 2
STEP 3 + 4
STEP 5 + 6
MOUNTING
HOW TO MOUNT
7) Mark the location of where the Alumiline
®
rail with flex LED will be mounted, making sure there is
enough space for wiring and that the wires are long enough to reach the next component.
8) Mark two spots 1/3 of the way in from each rail end. Using a number 6 screw, anchor a mounting clip
at each spot.
9) Snap the Alumiline
®
rail (with your LED ribbon mounted inside) into the clips. Center the rail on the
clips and proceed with the electrical connections.
I
CONNECTING UP THE POWER SUPPLIES, DIMMERS AND CONTROLS
Power up the ribbons as needed.
See JKL-AS-ZFS-LED-FLEX.pdf for more specific information on the use of
LED flex ribbons, connectors, joiner cables and electrical connection tips.
