820B009-203RF01 datasheet, PDF

Datasheet> All Categories > The connector> 820B009-203RF01

820B009-203RF01: DescriptionCONN RCPT FMALE 9POS GOLD SOLDER; CategoryThe connector; File Size89KB，1 Pages; ManufacturerNorComp; Websitehttps://www.norcomp.net; Environmental Compliance

Download Datasheet Parametric Compare View All

820B009-203RF01 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	820B009-203RF01	-	-	View	Buy Now

820B009-203RF01 Overview

CONN RCPT FMALE 9POS GOLD SOLDER

820B009-203RF01 Parametric

Parameter Name	Attribute value
Connector type	socket, female socket
Number of pins	9
Housing Dimensions - Plug-in	-
Housing size, MIL	-
Installation type	Panel mount, bulkhead style (rear nut)
Termination	solder cup
Fastening type	push-pull
towards	Marked
Intrusion protection	IP50 - Dustproof
Housing material, plating	Brass, nickel plated
Contact plating	gold
characteristic	shield
Rated current	-
Voltage - Rated	200V
Contact plating thickness	7.00µin（0.178µm）
Operating temperature	-40°C ~ 200°C

Preview

Download Datasheet

View All

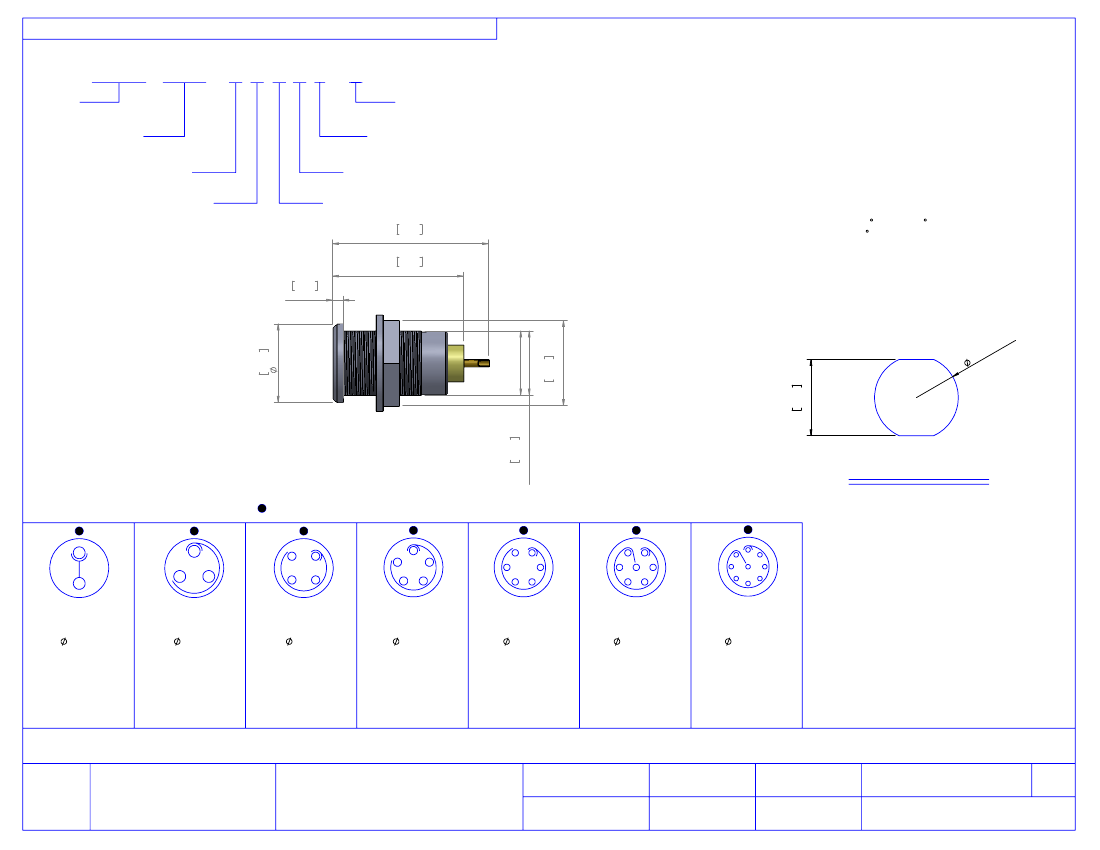

DESCRIPTION: QUIK-LOQ - FEMALE - SOLDER CUP - PANEL MOUNT - FIXED FRONT NUT

UNITS = MM [INCHES]

CHARACTERISSTICS

MATERIALS

SHELL : BRASS

SHELL PLATING : NICKEL

NUT : BRASS

NUT PLATING : NICKEL

LATCH SLEEVE : BRASS

LATCH SLEEVE PLATING : NICKEL

CONTACTS : COPPER ALLOY

CONTACT PLATING : 7µ" GOLD PLATED OVER 196µ" NICKEL MIN.

INSULATOR : PPS (HIGH TEMPERATURE)

MECHANICAL

DURABILITY: 5000 CYCLES

OPERATING TEMP. RANGE: -40 C ~ +200 C

PROCESS TEMPERATURE : 260 C FOR 5 SECONDS

MAX. TORQUE VALUE : 2.5 Nm [22.1 IN/lbs]

SHIELDING: 75dB @ 10MHz

40dB @ 1GHz

IP RATING: 50

820B YYY - 2 0 3 R F0 1

SERIES

9.50 [0.374]

# OF POSITIONS

(Ex. 002)

**SEE CHART A**

2= FEMALE

SOLDER CUP (PANEL MOUNT)

1 = GOLD FLASH

FIXED FRONT NUT

RoHS COMPLIANT

NICKEL/CHROME PLATED SHELL

0.780

19.81

0.655

16.64

0.052

1.32

0.392

9.94

M9*0.5

0.425

10.80

9.1

0.3

]

0.323

8.20

(ACROSS FLATS)

0.327

8.30

PANEL CUTOUT

TOLERANCE = +0.10, -0.0

[+0.004, -0.00]

MAX PANEL THICKNESS = 5.50 [0.217]

CHART A

= KEY LOCATION

**VIEW FROM TERMINATION END**

2 POSITION

22 AWG MAX.

10 AMP MAX.

= 0.90 [0.035]

CONTACT

RESISTANCE

= 6 mΩ

TEST VOLTAGE

= 1300V

WORKING VOLTAGE

= 430V

3 POSITION

22 AWG MAX.

8 AMP MAX.

= 0.90 [0.035]

CONTACT

RESISTANCE

= 6 mΩ

TEST VOLTAGE

= 1200V

WORKING VOLTAGE

= 400V

4 POSITION

24 AWG MAX.

7 AMP MAX.

= 0.70 [0.028]

CONTACT

RESISTANCE

= 7.5 mΩ

TEST VOLTAGE

= 850V

WORKING VOLTAGE

= 280V

5 POSITION

24 AWG MAX.

6.5 AMP MAX.

= 0.70 [0.028]

CONTACT

RESISTANCE

= 7.5 mΩ

TEST VOLTAGE

= 850V

WORKING VOLTAGE

= 280V

6 POSITION

28 AWG MAX.

2.5 AMP MAX.

= 0.50 [0.020]

CONTACT

RESISTANCE

= 10 mΩ

TEST VOLTAGE

= 850V

WORKING VOLTAGE

= 280V

7 POSITION

28 AWG MAX.

2.5 AMP MAX.

= 0.50 [0.020]

CONTACT

RESISTANCE

= 10 mΩ

TEST VOLTAGE

= 800V

WORKING VOLTAGE

= 260V

9 POSITION

28 AWG MAX.

2 AMP MAX.

= 0.50 [0.020]

CONTACT

RESISTANCE

= 10 mΩ

TEST VOLTAGE

= 600V

WORKING VOLTAGE

= 200V

RoHS COMPLIANT

THESE DRAWINGS AND SPECIFICATIONS

ARE THE PROPERTY OF NorComp AND

SHALL NOT BE REPRODUCED, COPIED

OR USED AS THE BASIS FOR THE

MANUFACTURE OR SALE OF APPARATUS

WITHOUT WRITTEN PERMISSION.

NorComp

DRAWN:

B. BRIDGES

DATE:

01-12-18

SCALE:

N.T.S.

SHEET

REV:

CHECKED:

DATE:

DWG NO.

820BYYY-203RF01
