PolarTEC™ Series PT4-12-F2-3030
Thermoelectric Modules

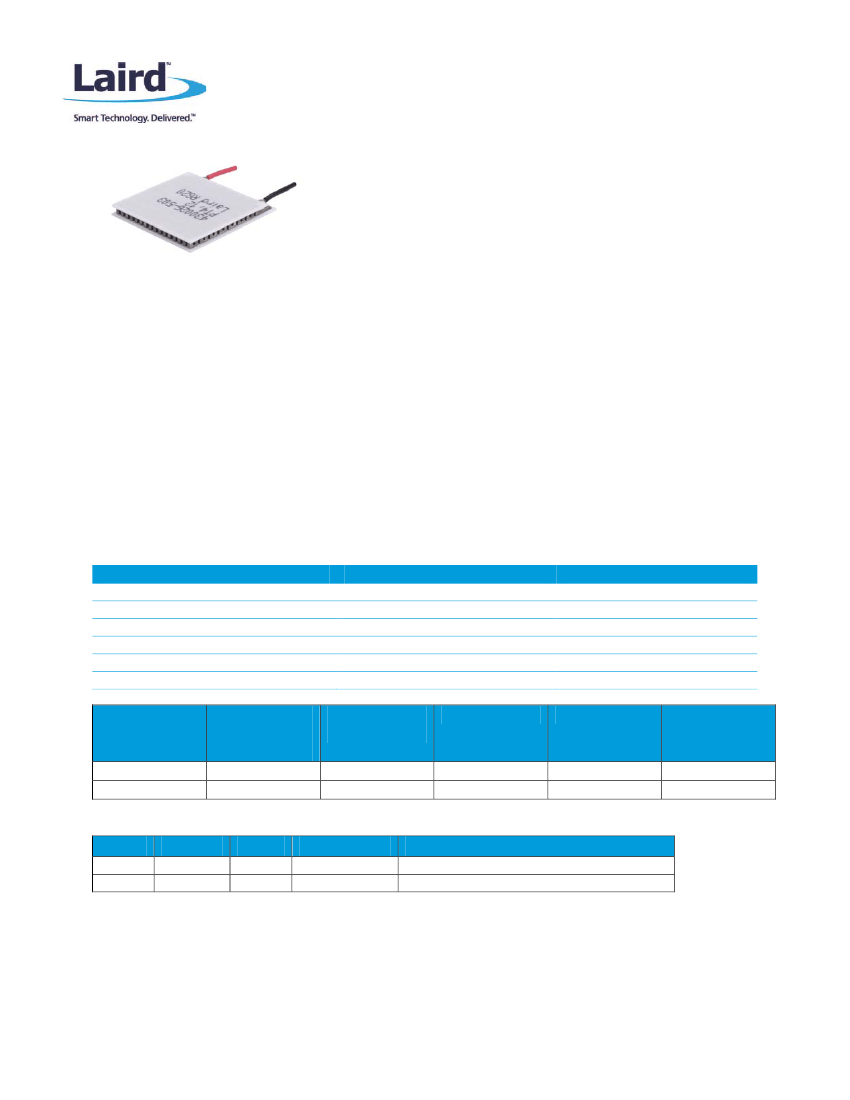

The PolarTEC™ Series consists of porch-style thermoelectric
modules (TEMs). The hot side of the ceramic has an extended edge
that allows strong lead attachment to accommodate the wiring of
multiple TEMs into an array.
This product line is available in 4, 6, and 8 Amp configurations and is
ideal for high-volume production. Assembled with Bismuth
Telluride semiconductor material and thermally conductive
Aluminum Oxide ceramics, the PolarTEC Series is designed for
higher current and larger heat-pumping applications.
Americas: +1.919.597.7300
Europe: +46.31.420530
Asia: +86.755.2714.1166
ets.sales@lairdtech.com
www.lairdtech.com
FEATURES
•
•
•
•
•
•
Strong lead attachment
Precise temperature control
Reliable solid state operation
No sound or vibration
DC operation
RoHS compliant
•
Analytical instrumentation
•
Photonics laser systems
•
Electronic enclosure cooling
•
Food & beverage cooling
•
Chillers (liquid cooling)
•
Consumer appliances
APPLICATIONS
SPECIFICATIONS
TECHNICAL
Hot Side Temperature (°C)
Qmax (Watts)
Delta Tmax (°C)
Imax (Amps)
Vmax (Volts)
Module Resistance (Ohms)
25°C
34.3
65
4.0
14.5
3.36
50°C
37.6
75
4.0
16.4
3.78
SUFFIX
TA
TB
THICKNESS
(PRIOR TO
TINNING)
FLATNESS &
PARALLELISM
0.001”/0.001”
0.0005”/0.0005”
HOT FACE
Lapped
Lapped
COLD FACE
Lapped
Lapped
LEAD LENGTH
6.0”
6.0”
0.126”±0.001”
0.126”±0.0005”
SEALING OPTIONS
SUFFIX SEALANT COLOR TEMP RANGE DESCRIPTION
RT
EP
RTV
Epoxy
White
Black
-60 to 204 °C
-55 to 150 °C
Non-corrosive, silicone adhesive
Low density syntactic foam epoxy encapsulant
Page
1
of
3

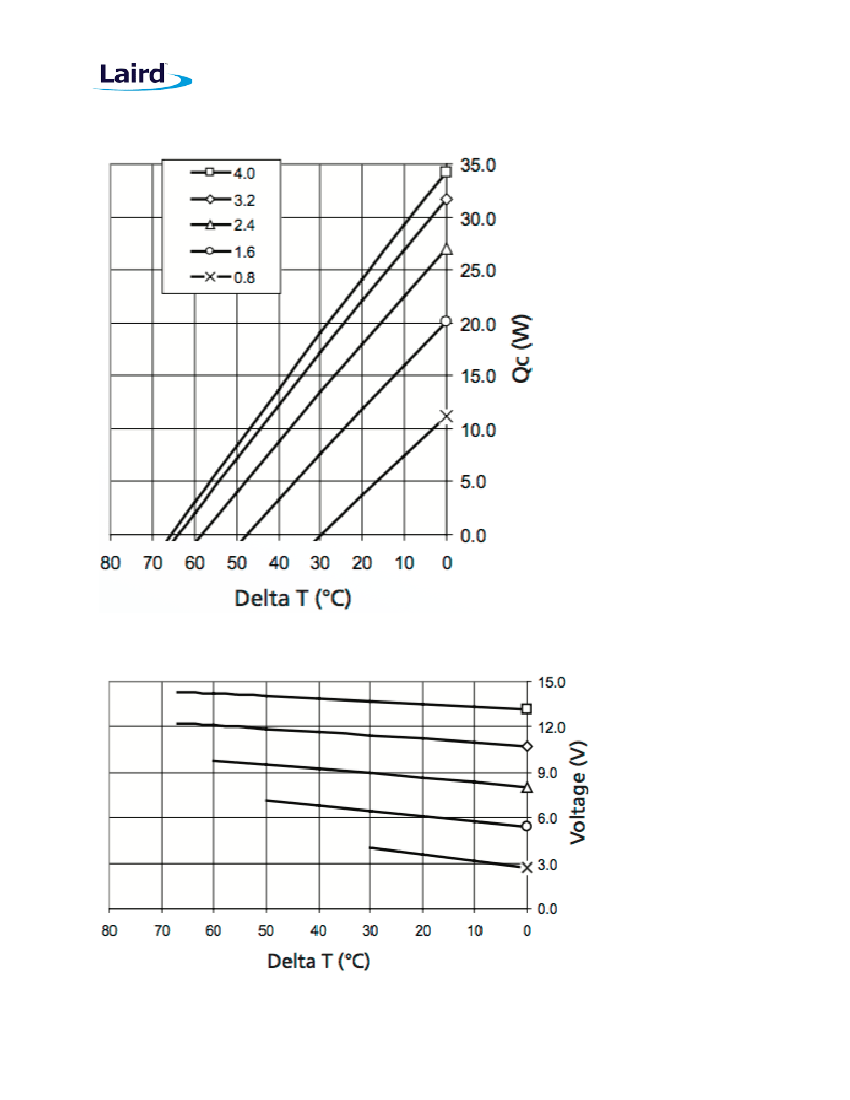

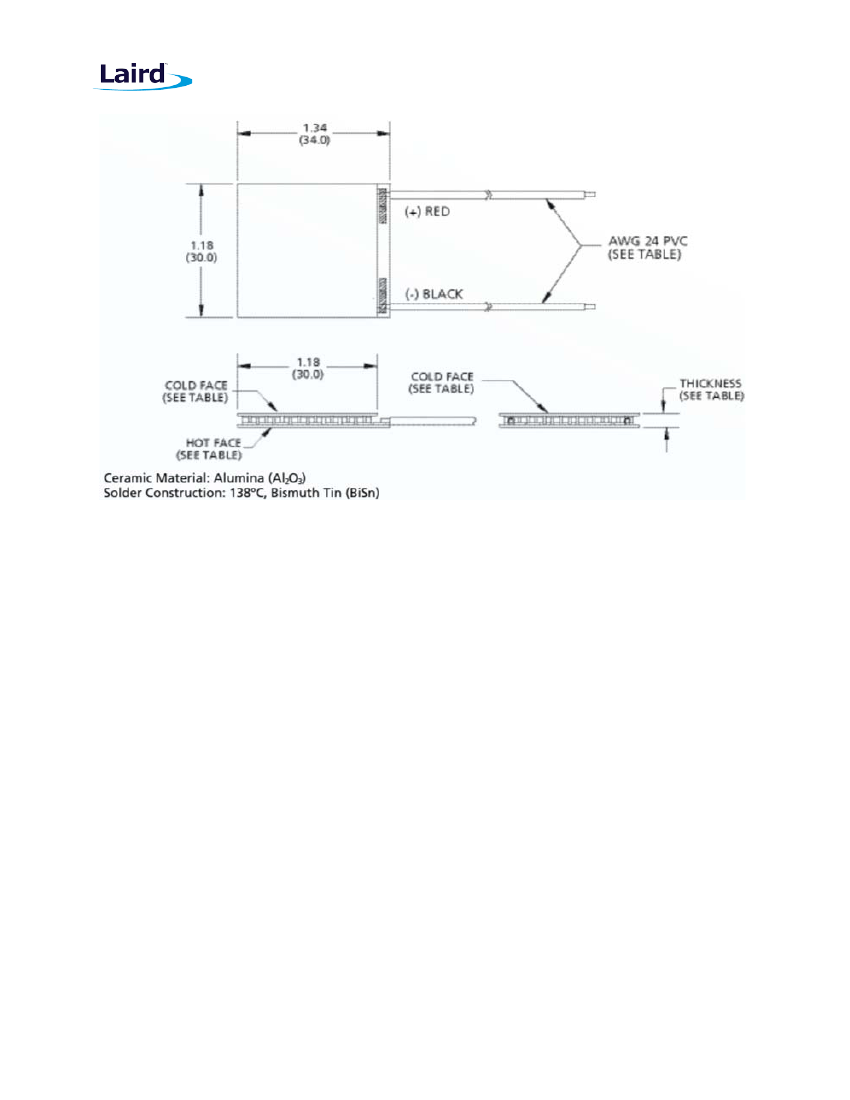

PT4-12-F2-3030
NOTES
1. Max operating temperature: 80°C
2. Do not exceed Imax or Vmax when operating module
3. Reference assembly guidelines for recommended installation
LAIRD-ETS-PT4-12-F2-3030-DATA-SHEET-101416
Any information furnished by Laird Technologies, Inc. and its agents is believed to be accurate and reliable. All specifications are subject to
change without notice. Responsibility for the use and application of Laird Technologies materials rests with the end user. Laird Technologies
makes no warranties as to the fitness, merchantability, suitability or non- infringement of any Laird Technologies materials or products for any
specific or general uses. Laird Technologies shall not be liable for incidental or consequential damages of any kind. All Laird Technologies
products are sold pursuant to the Laird Technologies’ Terms and Conditions of sale in effect from time to time, a copy of which will be furnished
upon request. © Copyright 2016 Laird Technologies, Inc. All Rights Reserved. Laird, Laird Technologies, the Laird Technologies Logo, and other
marks are trademarks or registered trademarks of Laird Technologies, Inc. or an affiliate company thereof. Other product or service names may
be the property of third parties. Nothing herein provides a license under any Laird Technologies or any third party intellectual property rights.
Page
3
of
3
