Sensor/actuator cable - SAC-4P-MS/ 2,0-186/FS SCO - 1555716
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

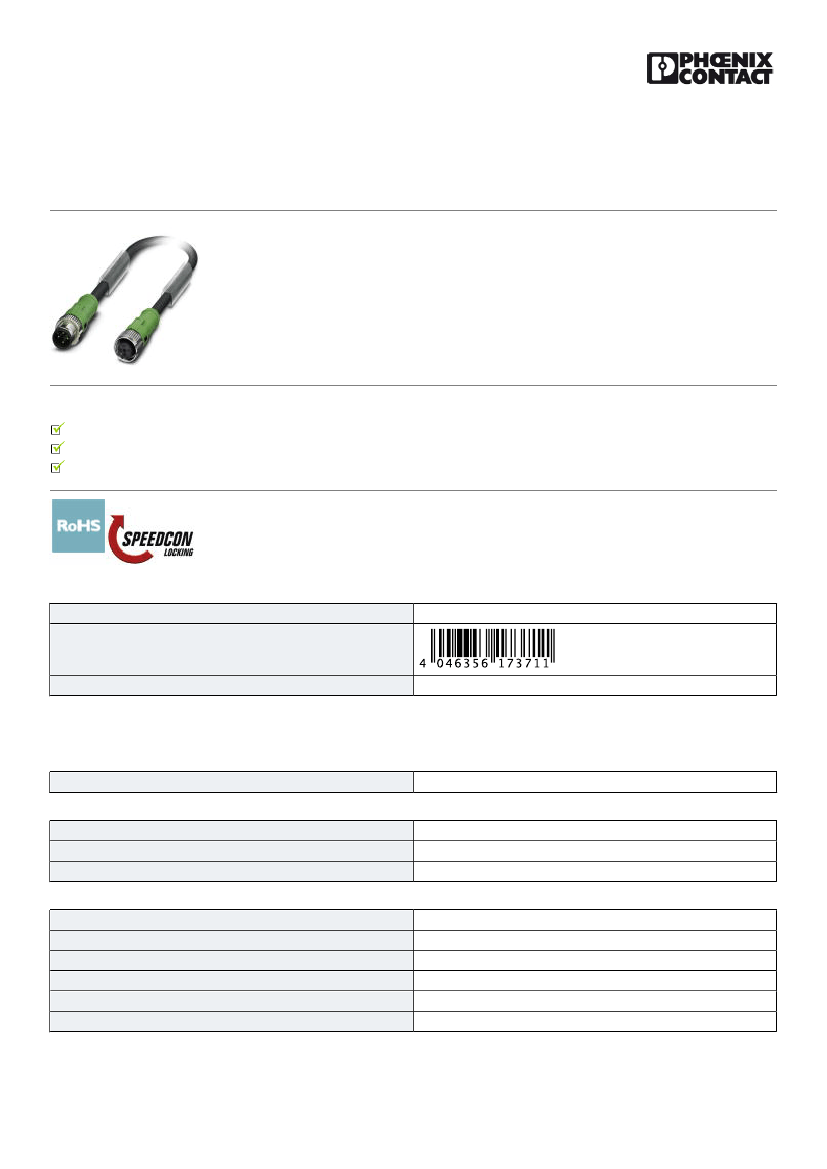

Sensor/actuator cable, 4-position, PUR, black-gray RAL 7021, Plug straight M12 SPEEDCON, A-coded, on
Socket straight M12 SPEEDCON, A-coded, cable length: 2 m
Your advantages
Easy and safe: 100% electrically tested plug-in components
Save time, thanks to installation with SPEEDCON fast locking system
High-performance: connectors and cables with a large conductor cross section for power supply
Key Commercial Data
Packing unit
GTIN
GTIN
4046356173711
1 pc
Technical data
Dimensions
Length of cable
2m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 90 °C (Plug / socket)
IP65
IP67
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
Coding
4A
250 V AC
250 V DC
4
≥ 100 MΩ
A - standard
12/01/2018 Page 1 / 5
https://www.phoenixcontact.com/pi/products/1555716
Sensor/actuator cable - SAC-4P-MS/ 2,0-186/FS SCO - 1555716
Technical data
General
Status display
Protective circuit/component
Overvoltage category
Degree of pollution
Insertion/withdrawal cycles
No
Unwired
II
3
≥ 100
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
HB
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
NBR
Standards and Regulations
Flammability rating according to UL 94
HB
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
UL AWM style
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Wire colors
Overall twist
External sheath, color
External cable diameter D
Smallest bending radius, movable installation
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Acceleration
Cable weight
PUR POWER 0.75 mm² black
186
LiY11Y
20549 / 1061 (80°C/300 V)
4x 0.75 mm² (power line)
18
42x 0.15 mm
1.75 mm ±0.05 mm
≥ 0.23 mm (Core insulation)
≥ 0.76 mm (Outer cable sheath)
brown, white, blue, black
4 wires, twisted
black-gray RAL 7021
5.9 mm ±0.15 mm
59 mm
5xD
10 x D
2000000
59 mm
5m
3 m/s
5 m/s²
57 kg/km
12/01/2018 Page 2 / 5
https://www.phoenixcontact.com/pi/products/1555716
Sensor/actuator cable - SAC-4P-MS/ 2,0-186/FS SCO - 1555716
Technical data
Cable
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Flame resistance
Resistance to oil
Other resistance
PUR
PVC
Bare Cu litz wires
≥ 1 MΩ*km (at 20 °C)
max. 26 Ω/km (at 20 °C)
≤ 300 V
≥ 3000 V
according to UL 758/1581 (horizontal)
in accordance with UL 758/1581 FT2
According to DIN EN 60811-2-1, 168 h at 100°C
hydrolysis and microbe resistant
Low adhesion
abrasion-resistant
Resistant to salt water
Ambient temperature (operation)
-25 °C ... 80 °C (cable, fixed installation)
-5 °C ... 80 °C (cable, flexible installation)
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Schematic diagram
4
3
Schematic diagram
3
4
1
2
2
1

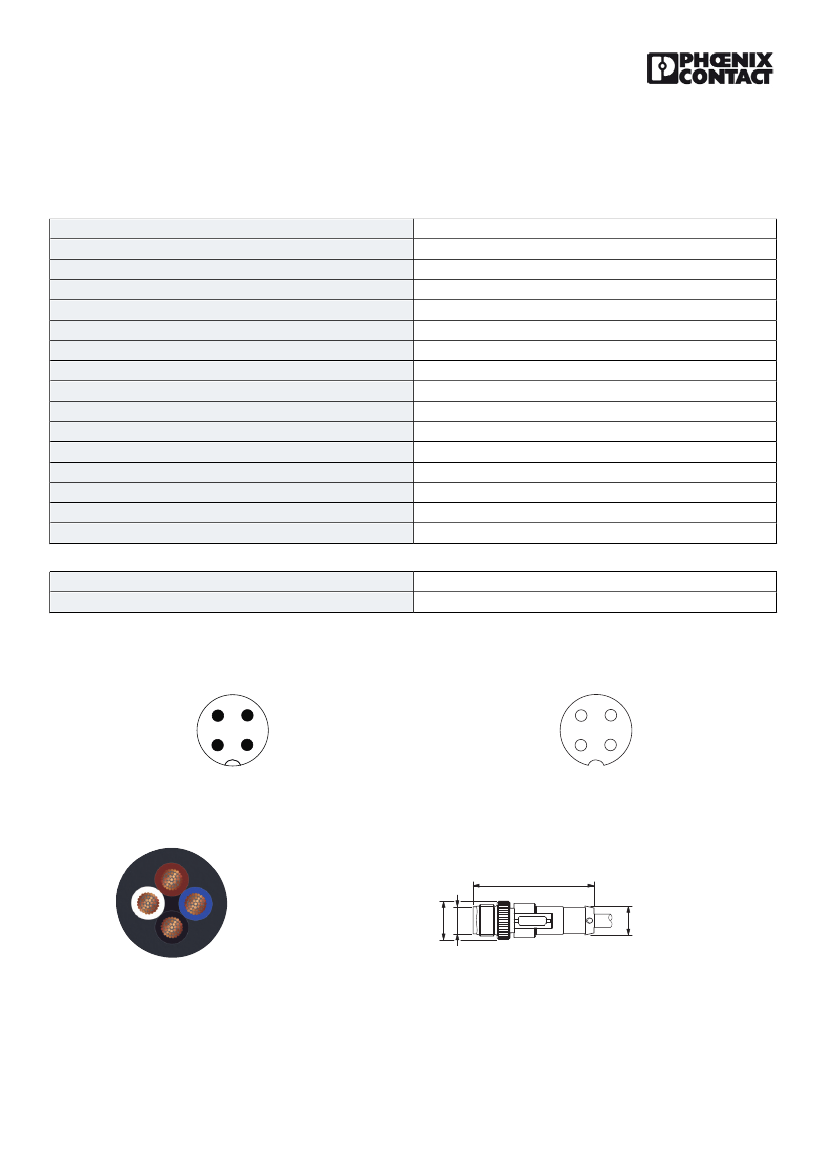

Pin assignment M12 plug, 4-pos., A-coded, view plug side
Pin assignment M12 socket, 4-pos., A-coded, view female side
Cable cross section
Dimensional drawing
46,8
Ø14,8
PUR POWER 0.75 mm² black [186]
M12 SPEEDCON plug, straight
M12
Ø11
12/01/2018 Page 3 / 5
https://www.phoenixcontact.com/pi/products/1555716
Sensor/actuator cable - SAC-4P-MS/ 2,0-186/FS SCO - 1555716
Dimensional drawing
Circuit diagram
44
1
4
1
4
3
2
Ø14,8
Ø11
M12
3
2
M12-SPEEDCON socket, straight
Contact assignment of the M12 plug and the M12 socket
Approvals
Approvals
Approvals
UL Listed / cUL Listed / EAC / EAC / cULus Listed
Ex Approvals
Approval details
UL Listed
Nominal voltage UN
Nominal current IN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
300 V
4A
FILE E 221474
cUL Listed
Nominal voltage UN
Nominal current IN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
300 V
4A
FILE E 221474
EAC
EAC-Zulassung
EAC
RU C-
DE.AI30.B.00767
12/01/2018 Page 4 / 5
https://www.phoenixcontact.com/pi/products/1555716
Sensor/actuator cable - SAC-4P-MS/ 2,0-186/FS SCO - 1555716
Approvals
cULus Listed
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
12/01/2018 Page 5 / 5
