CONB14NF-S5W Overview

IP69K 5M STRAIGHT CABLE

CONB14NF-S5W Parametric

Parameter Name	Attribute value
first connector	M12 female connector
Second connector	Wire leads
length	16.40'（5.00m）
Cable type	round
color	black
shield	No shielding
use	Industrial environment - IP69K

Preview

Download Datasheet

View All

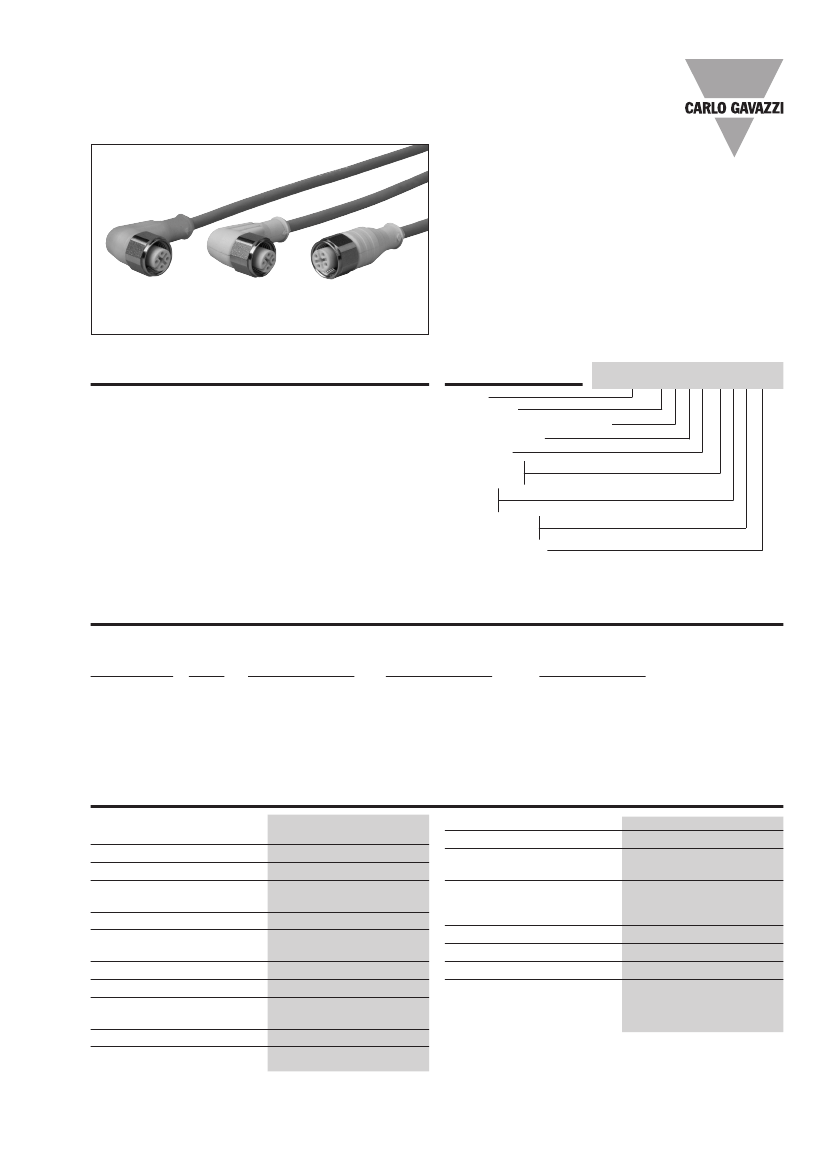

General Accessories

IP69K Connector Cables

Type CONB1...W

•

IP69K version

Straight or 90° connector

M12 version

4-wire

Good resistance against chemicals

High temperature - up to 105°C (UL 90°C)

UL and ECOLAB approved

LED version also available

Product Description

Highly robust IP69K connec-

tion cables for harsh environ-

ments. Especially suitable for

use in washdown industries

such as food & beverage,

chemical and pharmaceutical

industries thanks to the high

standards of UL and ECOLAB.

Featuring UL certified temper-

atures of up to 90°C, ECOLAB

certification and IP69K protec-

tion class, the CONB IP69K

connectors offer a guaranteed

long term reliability even in the

harshest environments. More-

over, the connectors are resist-

ant to aggressive chemicals

and cleaning agents adher-

ing to high Ecolab standards

which make them very suitable

to be used in Food & Beverage

industry.

For maximum flexibility, the

connectors are available in

straight or angled versions as

well as with or without LED in

M12 connector, 4 wires.

Ordering Key

CONB14NF-AP2W

CONB

1 = M12 DC

4 = 4 wire (BN, BU, BK, WH)

N= Not shielded

F= Female

A = Angled

S = Straight

P= PNP

N= NPN

2 = 2 metres

5 = 5 metres

W = Washdown

Type Selection

Plug type

Cable

length

Ordering number

TPE

CONB14NF-A2W

CONB14NF-A5W

CONB14NF-S2W

CONB14NF-S5W

Ordering number

TPE

LED PNP

CONB14NF-AP2W

CONB14NF-AP5W

CONB14NF-SP2W

CONB14NF-SP5W

Ordering number

TPE

LED NPN

CONB14NF-AN2W

CONB14NF-AN5W

CONB14NF-SN2W

CONB14NF-SN5W

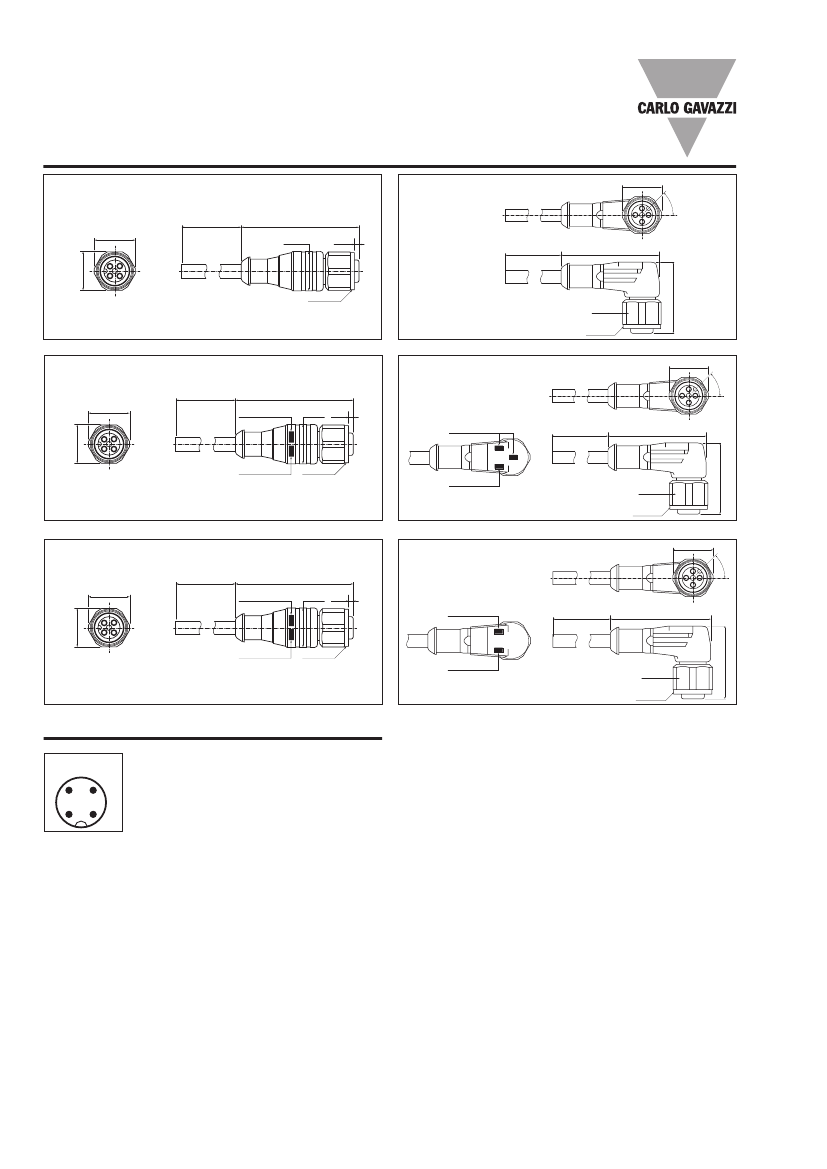

4-Wire Angled

4-Wire Straight

Specifications

Rated operating voltage

)

LED versions

Output current

Contact resistance

Contact material

Coating

Contact bearer material

Temperature

Degree of protection

O-ring sealing

Rated Impulse Voltage

Insulation resistance

Moulded body material

Union Locking nut

250 V ac/dc (30V UL)

30 VDC

≤4A

≤ 5 mΩ

Cu/Sn

Cu/Au

PP white

-40° to +105°C (90°C UL)

-40° to +221°F (194°F UL)

IP69K

EPDM

2.5 kV

> 10ˆ9 Ohm

PP white

V4A

Tightening torque

Connection cable

Wire cross section

Weight

2 m version

5 m version

Pollution degree

Overvoltage category

Insulation group

LED colour*

Power

Output**

0.5 Nm

TPE orange

4 x 0.25 mm

(jacket Ø 4.7 mm)

approx 63 g

approx 109 g

lll

Green LED

1 Yellow LED

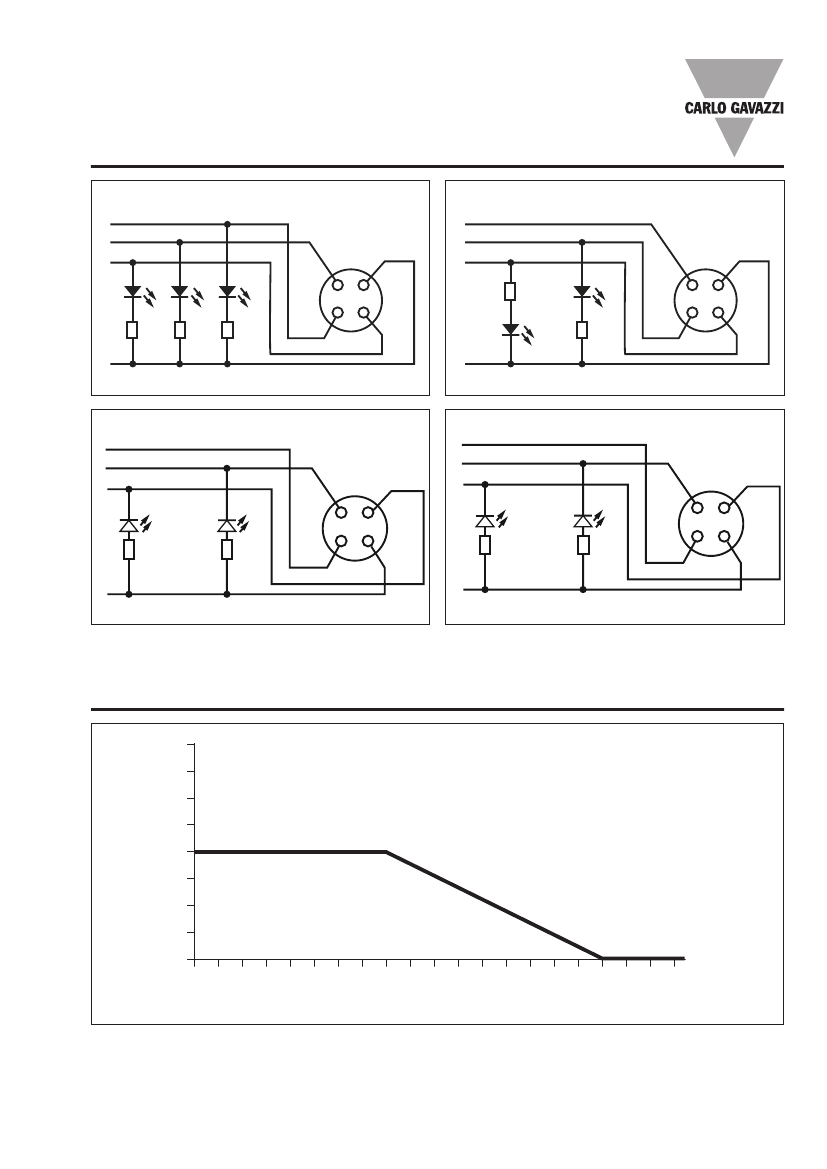

* Please refer to wiring diagram section

**CONB14NF-AP.W: 2 Yellow LEDs

Specifications are subject to change without notice (02.11.2017)
