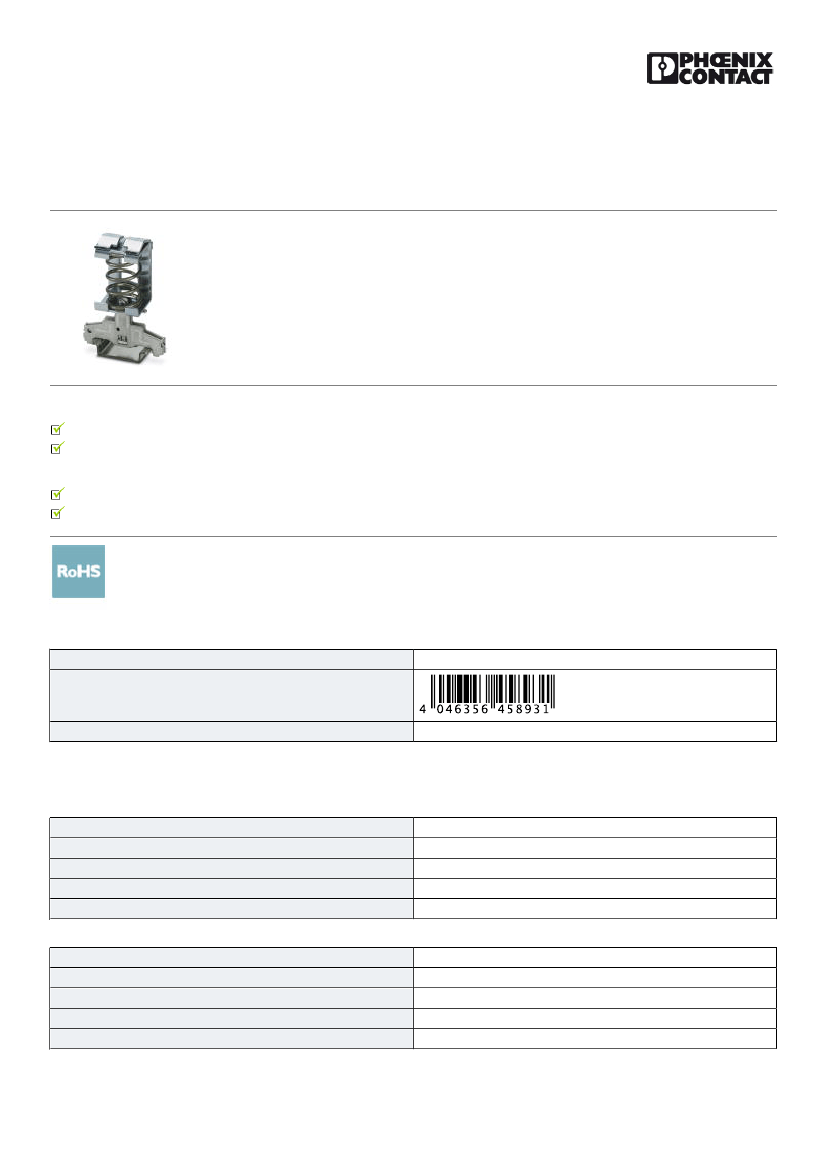

https://www.phoenixcontact.com/pi/products/3240218
Shield connection terminal block - SKS 20-NS35 - 3240218
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Shield connection terminal block, for applying the shield to busbars
Your advantages
The SKS ... spring shield connection clamps are available for cable and conductor diameters of 3 to 20 mm
According to the requirements of the directive and standards for electrical equipment in potentially explosive areas, as components, shield
connections are not able to gain certification. As such, shield connection clamps of type SKS can be used in the Ex area even without appropriate
approval and identification.
The SKS ... spring shield connection clamps are available for cable and conductor diameters of 3 to 20 mm
Three different mounting types supported: on NS 35 DIN rails, on busbars or directly on conductive mounting plates
Key Commercial Data
Packing unit
GTIN
GTIN
4046356458931
10 pc
Technical data
General
Number of levels
Number of connections
Cable diameter
Color
Open side panel
1
1
5 mm ... 20 mm
silver
No
Dimensions
Length
Width
Height
Height NS 35/7,5
Height NS 35/15
53.2 mm
24.7 mm
65.3 mm
68.4 mm
75.9 mm
12/01/2018 Page 1 / 2
https://www.phoenixcontact.com/pi/products/3240218
Shield connection terminal block - SKS 20-NS35 - 3240218
Technical data
Connection data
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Screw thread
Tightening torque, min
Tightening torque max
Spring-cage connection
10 mm²
20 mm²
10 mm²
20 mm²
8
4
M3,5
1 Nm
1.2 Nm
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Approvals
Approvals
Approvals
EAC
Ex Approvals
Approval details
EAC
7500651.22.01.00246
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
12/01/2018 Page 2 / 2
