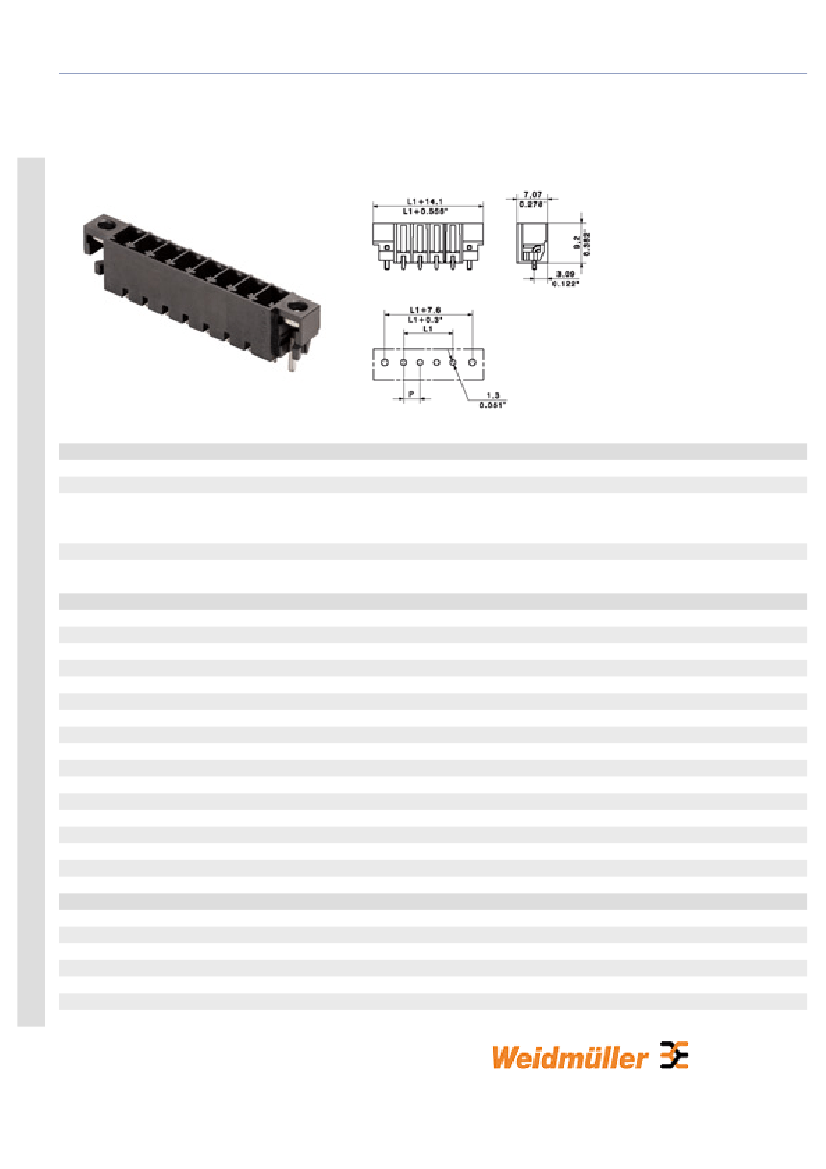

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.81 mm (0.150 inch) | Male connectors,
THR solder connection, 3.81 mm pitch | SC-SMT 3.81/180LF SN | SC-SMT 3.81/180LF SN Box
Material data
Contact surface
Constant operating temp., min.
Constant operating temp., max.
Storage temperature, min.
Storage temperature, max.
Max. relative humidity during storage
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Rated voltage for overvoltage class/pollution
severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated voltage for overvoltage class/pollution
severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group D)
Rated current (Use group D)
UL 1059 rating data
Rated voltage (Use group D)
Rated current (Use group D)
Approvals
Approvals institutes
tinned
-25 °C
120 °C
-25 °C
55 °C
85 %
16 A
14 A
160 V
2.5 kV
160 V
2.5 kV
320 V
2.5 kV
3 x 1s with 76 A
300 V
10 A
300 V
10 A
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
NK
EC001284
27-26-07-01
27-26-07-01
27-26-07-04
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.81 mm (0.150 inch) | Male connectors,
THR solder connection, 3.81 mm pitch | SC-SMT 3.81/180LF SN | SC-SMT 3.81/180LF SN Box
Classifications
Similar products
Order No.
1864070000
1863230000
1864080000
1863250000
1864090000
1863260000
1864100000
1863280000
1864110000
1863300000
1864120000
1863310000
1864130000
1864140000
1863360000
1864150000
1863380000
1864160000
1863390000
1864170000
1863410000
1864180000
Part designation
SL-SMT3.81/2/180LF1.5SN
SL-SMT3.81/2/180LF3.2SN
SL-SMT3.81/3/180LF1.5SN
SL-SMT3.81/3/180LF3.2SN
SL-SMT3.81/4/180LF1.5SN
SL-SMT3.81/4/180LF3.2SN
SL-SMT3.81/5/180LF1.5SN
SL-SMT3.81/5/180LF3.2SN
SL-SMT3.81/6/180LF1.5SN
SL-SMT3.81/6/180LF3.2SN
SL-SMT3.81/7/180LF1.5SN
SL-SMT3.81/7/180LF3.2SN
SL-SMT3.81/8/180LF1.5SN
SL-SMT3.81/9180LF1.5SN
SL-SMT3.81/9/180LF3.2SN
SL-SMT3.81/10/180LF1.5SN
SL-SMT3.81/10/180LF3.2SN
SL-SMT3.81/11/180LF1.5SN
SL-SMT3.81/11/180LF3.2SN
SL-SMT3.81/12/180LF1.5SN
SL-SMT3.8112/180LF3.2SN
SL-SMT3.81/13/180LF1.5SN
Version
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 2, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 2, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 3, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 3, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 4, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 4, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 5, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 5, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 6, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 6, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 7, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 7, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 8, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 9, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 9, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 10, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 10, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 11, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 11, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 12, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 12, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 13, 180°, Box
-3-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.81 mm (0.150 inch) | Male connectors,
THR solder connection, 3.81 mm pitch | SC-SMT 3.81/180LF SN | SC-SMT 3.81/180LF SN Box
1863430000
1864190000
1863440000
1864200000
1863460000
1864210000
1863480000
SL-SMT3.81/13/180LF3.2SN
SL-SMT3.81/14/180LF1.5SN
SL-SMT3.81/14/180LF3.2SN
SL-SMT3.81/15/180LF1.5SN
SL-SMT3.81/15/180LF3.2SN
SL-SMT3.81/16/180LF1.5SN
SL-SMT3.81/16/180LF3.2SN
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 13, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 14, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 14, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 15, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 15, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 16, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.81 mm, No. of poles: 16, 180°, Box
-4-
