BB-855-12691 Overview

MCGIGABIT, TX/SX-MM1300-SC

BB-855-12691 Parametric

Parameter Name	Attribute value
type	-
Configuration	Modular-Card
copper port	1
Copper type	10/100/1000
Fiber optic port	1
Fiber type	Gigabit (multimode)
SFP/XFP port	-
characteristic	-
distance	2km
MTU	-
Voltage - input	-
Connector type	RJ45，SC
Installation type	rack mount
Intrusion protection	-
Operating temperature	0°C ~ 50°C

Preview

Download Datasheet

View All

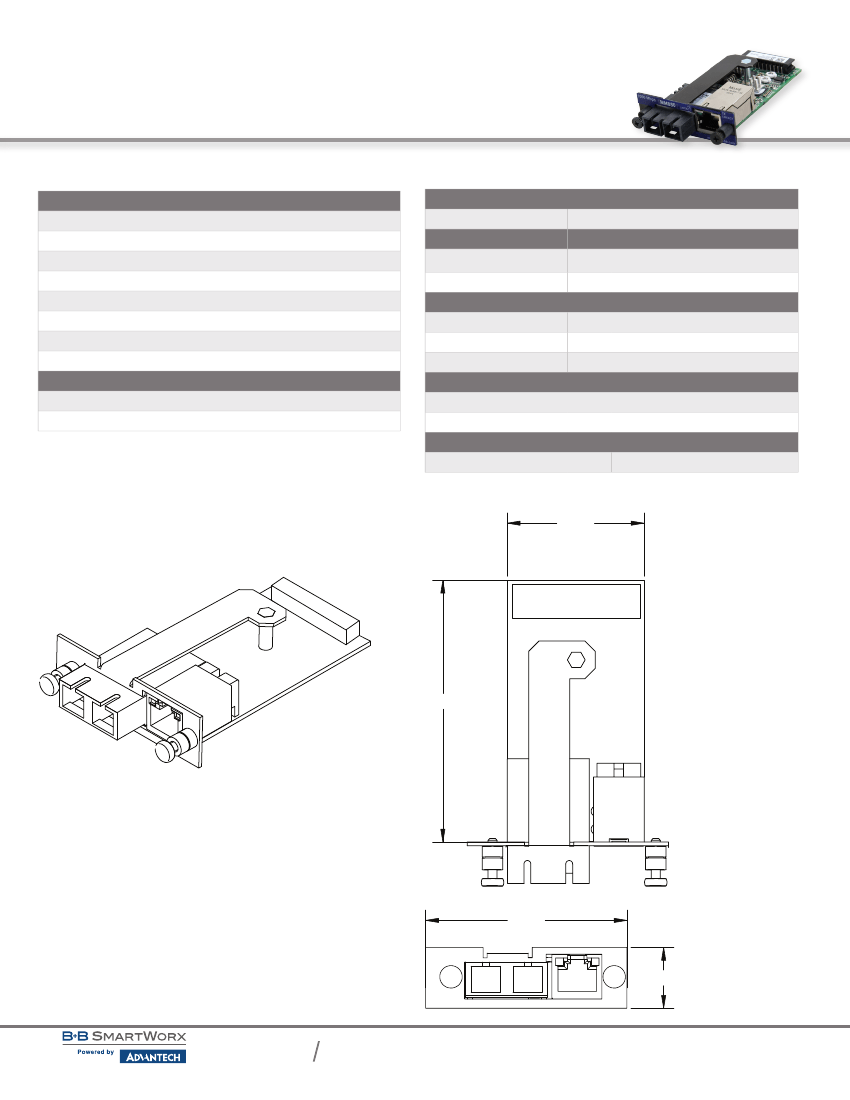

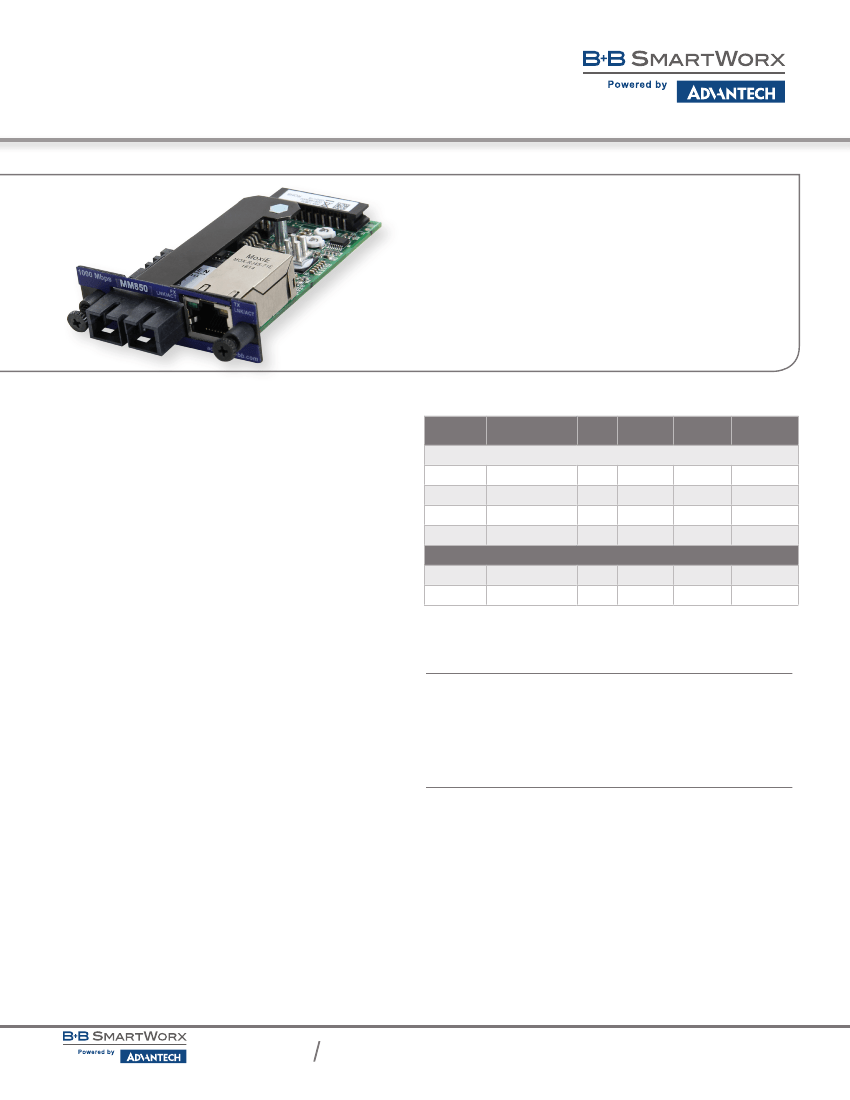

1000 Mbps Media

Converter Module

McGigabit

www.advantech-bb.com

PRODUCT FEATURES

•

Modular, hot-swappable architecture reduces operational costs

associated with product installations, upgrades and maintenance

One 1000 Mbps twisted pair port with and RJ-45 connector

One 1000 Mbps fiber port with SC connector

Plug-and-play operation

Installs in any MediaConverter Chassis series

Your network is growing and many new access points, workstations, etc. are

required. An unmanaged 1000Base-T to fiber converter, offering Plug and

Play, and supporting jumbo frames, can be installed in a one, four, eight or

twelve slot MediaConverter Series chassis. The chassis are 1U high, and

the horizontal modules such as the McGigabit can be easily installed in any

available slot. When copper-to-fiber conversions are required, along with

advanced troubleshooting features, our MediaConverter Series is the perfect

solution.

When copper-to-fiber conversions are required, along with advanced

troubleshooting features, our MediaConverter Series is the perfect solution.

Availble in single-mode, mult- mode and single-strand fiber and, with SC

connectors, the McGigabit provides a simple conversion.

ORDERING INFORMATION

MODEL

NUMBER

McGigabit

855-12670

855-12691

855-12671

855-12672

855-12674

855-12675

FIBER

MM850-SC

MM1300-SC

SM1310-SC

SM1310/PLUS-SC

SSLX-SM1310-SC

SSLX-SM1550-SC

FIBER

PORTS RANGE

220/550 m

2 km

15 km

40 km

15 km

ETHERNET ETHERNET

PORTS

CONNECTOR

RJ45

SINGLE-STRAND FIBER *

* These products have single-strand fiber technology. Deploy in pairs or connect another

compatible B+B SmartWorx LLC single-strand fiber product.

ACCESSORIES

851-10901

- 1-slot Chassis

851-10904

- 4-slot Chassis

851-10908

- 8-slot Chassis

851-10912

- 12-slot Chassis

All product specifications are subject to change without notice.

McGigabit_2517ds

orders@advantech-bb.com

support@advantech-bb.com

Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104

European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445

BB-855-12691 Related Products

	BB-855-12691	BB-855-12674	BB-855-12670	BB-855-12671	BB-855-12672	BB-855-12675
Description	MCGIGABIT, TX/SX-MM1300-SC	MCGIGABIT, TX/SSLX-SM1310-SC (13	MCGIGABIT, TX/SX-MM850-SC	MCGIGABIT, TX/LX-SM1310-SC	MCGIGABIT, TX/LX-SM1310/PLUS-SC	MCGIGABIT, TX/SSLX-SM1550-SC (15
Configuration	Modular-Card	Modular-Card	Modular-Card	Modular-Card	Modular-Card	Modular-Card
copper port	1	1	1	1	1	1
Copper type	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000
Fiber optic port	1	1	1	1	1	1
Fiber type	Gigabit (multimode)	Gigabit (single mode)	Gigabit (multimode)	Gigabit (single mode)	Gigabit (single mode)	Gigabit (single mode)
distance	2km	15km	550m	15km	40km	15km
Connector type	RJ45，SC	RJ45，SC	RJ45，SC	RJ45，SC	RJ45，SC	RJ45，SC
Installation type	rack mount	rack mount	rack mount	rack mount	rack mount	rack mount
Operating temperature	0°C ~ 50°C	0°C ~ 50°C	0°C ~ 50°C	0°C ~ 50°C	0°C ~ 50°C	0°C ~ 50°C
