U6Y001H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> U6Y001H

U6Y001H: DescriptionAC/DC CONVERTER 12V 400W; CategoryPower/power management; File Size246KB，2 Pages; ManufacturerTDK-LAMBDA; Environmental Compliance

Download Datasheet Parametric View All

U6Y001H Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	U6Y001H	-	-	View	Buy Now

U6Y001H Overview

AC/DC CONVERTER 12V 400W

U6Y001H Parametric

Parameter Name	Attribute value
type	open framework
Number of outputs	1
Voltage - input	90 ~ 264 VAC
Voltage - Output 1	12V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (maximum)	33.3A
Power (W)	400W
application	ITE (Business), Medical
Voltage - Isolation	4kV
efficiency	90%
Operating temperature	0°C ~ 70°C (with derating)
characteristic	Remote on/off, standby output, universal input
Installation type	Base installation
size/dimensions	6.50" long x 3.50" wide x 1.34" high (165.1mm x 88.9mm x 34.0mm)
Minimum load required	-
Approval	CE

Preview

Download Datasheet

View All

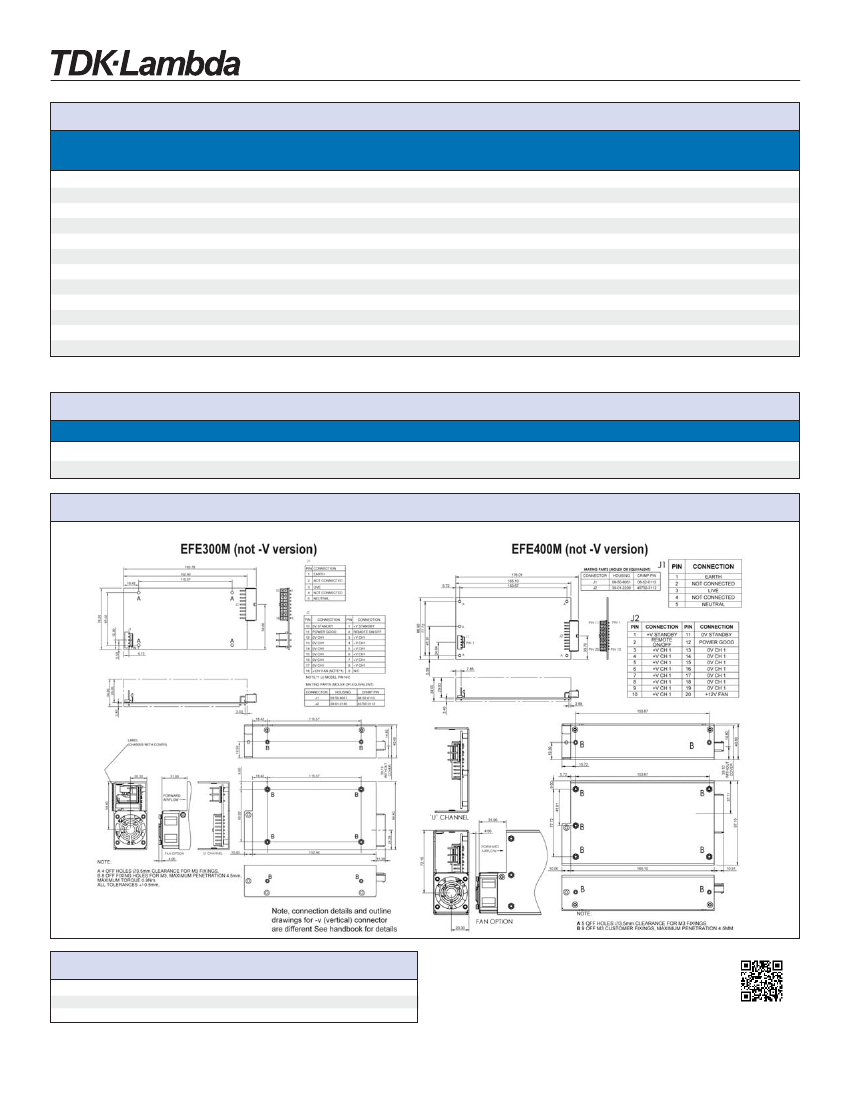

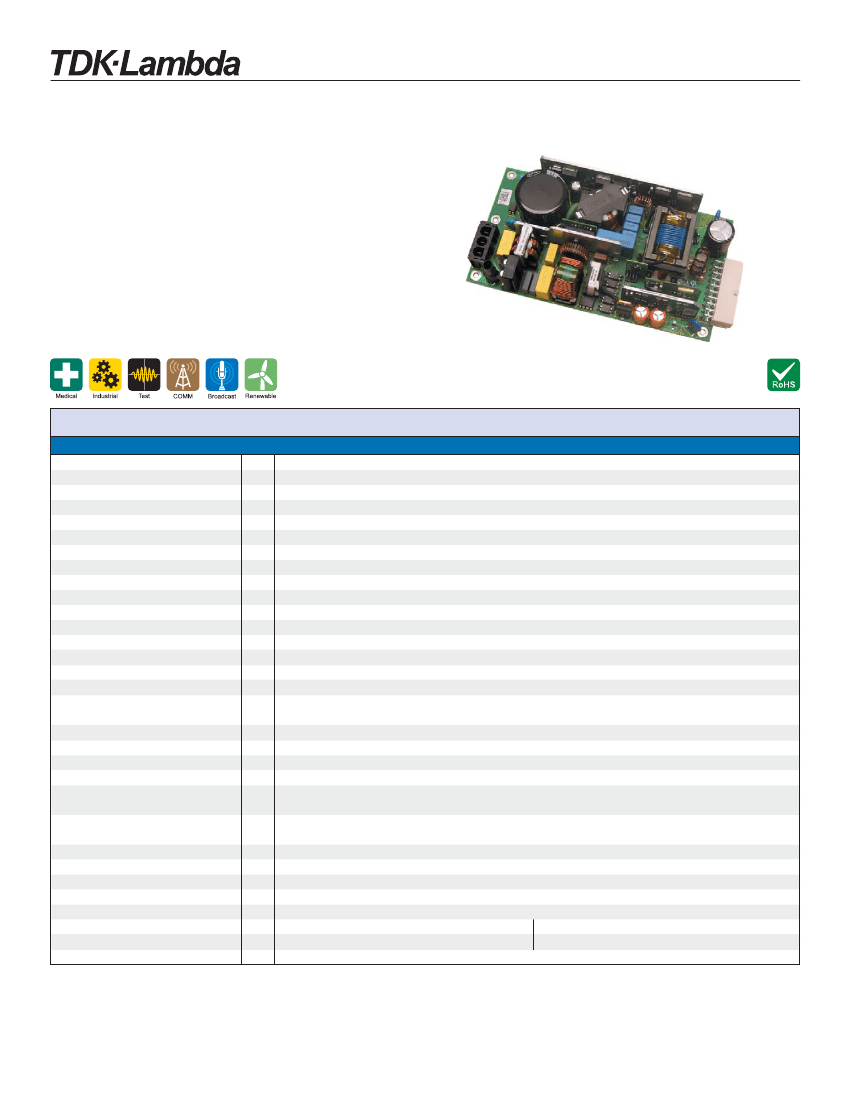

EFE300M & 400M Series

300-400W Medical Power Supplies

Features



Medical Safety Certiﬁcations (BF Rated)



Fully Featured - including ORing FET



Universal Input (90 - 264VAC)



Peak Loading (10s)



Suitable for 1U applications



Full Digital Control



High Efﬁciency



Low Proﬁle



Reinforced Isolation (4kVAC input to output)

Key Market Segments & Applications

Speciﬁcations

Model

Input Voltage range

Input Frequency

Inrush Current

Power Factor Harmonics

Voltage Setting

Total Regulation

Ripple & Noise

Efﬁciency

Overcurrent Protection

Overvoltage Protection

Overtemperature Protection

Hold Up Time (Typ)

Leakage Current (max)

Fan Supply

Standby Voltage

Remote Sense

Signals & Features

EFE300M

μA

EFE400M

90 - 264VAC

45 - 63Hz, 440Hz with reduced PFC

<40A at 25C and 230VAC input, Cold Start

EN61000-3-2 Compliant (0.97 typical)

Setting: -5% to +10% (Chosen at time of ordering), Accuracy: +/-1% at 50% Load

< 4% with 90 - 264VAC input change and 0-100% load change

< 1.5% peak-peak

90% typical. EFE400M: 1W power draw in standby mode

Automatic recovery upon overload removal

Cycle AC line to reset

Yes

>16ms at 90VAC input, 75% load

123μA 120VAC 60Hz, 257μA 240VAC 60Hz, <300μA 264VAC 63Hz (Type Test results)

12V 1A (Available if no fan option selected)

5V 2A or 12V 1A (chosen at time of ordering)

None

Remote on/off - Inhibit or Enable operation (chosen at time of ordering) Power Good - High

indicates supply is good. ORing FET - Allows redundant connection of supplies

0 to +70°C. Derate linearly to 50% load from 50°C to 70°C

-40 to +85°C

5 - 95% RH

Forced air, 2m/s from input to output (approximately 10CFM)

Input to Output 4kVAC

(3)

, (2 x MOPPs (3rd edition 60601));

Input to Ground 1.5 kVAC, 2.3kVDC (Basic), Output to Ground 1500VAC

2G, 10-500Hz (sweep & endurance at resonance) in all 3 planes. MIL-STD-810E,

Method 51.4, Pro I, Cat 1, 9

30G per IEC68-2-27, MIL-STD-810E/F, Method 516.5, Pro I, IV, VI

UL/CSA/IEC/EN 60601-1, ANSI/AAMI ES60601-1, IEC/EN 61010-1

(4)

, IEC/UL/EN/CSA 60950-1, CE Mark

EN61000-4-2, -3, -4, -5, -6, -8, -11, -12, -14

EN55011, EN55022 Class B (per CISPR.11/22), EN61000-3-3

EN55011, EN55022 Class B (per CISPR.11/22)

350g or 600g

450g or 700g

3 x 6 x 1.34”

3.5 x 6.5 x 1.34”

Five Years

Operating Temperature

(2) °C

Storage Temperature

°C

Humidity (non condensing)

%RH

Cooling

Isolation

Vibration (non operating)

Shock

Safety Agency Approvals

Immunity

Conducted Emissions and Flicker

Radiated Emissions

Weight (open frame or enclosed)

Size (Open frame style)

(1)

Warranty

yrs

(1) Including underside component leads

(2) -20°C cold start.

(3) Type tested to 4kVAC (equivalent to 5.7 kVDC), production tested to 4.3 kVDC.

(4) EFE400M, designed to meet 61010-1

1-800-526-2324 • www.us.tdk-lambda.com/lp/
