CRYSTAL OSCILLATORS

Data Sheet 0645A

AB-X29NXXX Series

PECL/LVPECL UHF XO

Description

The AB-X29NXXX Series

of crystal oscillators (XO) provides ultra high frequency with

PECL/LVPECL complementary outputs. The outputs can be disabled for test automation or

combining multiple clocks. The device is based on low noise analog harmonic frequency

multiplication, providing exceptionally low Phase Noise and Jitter. It’s packaged in a miniature,

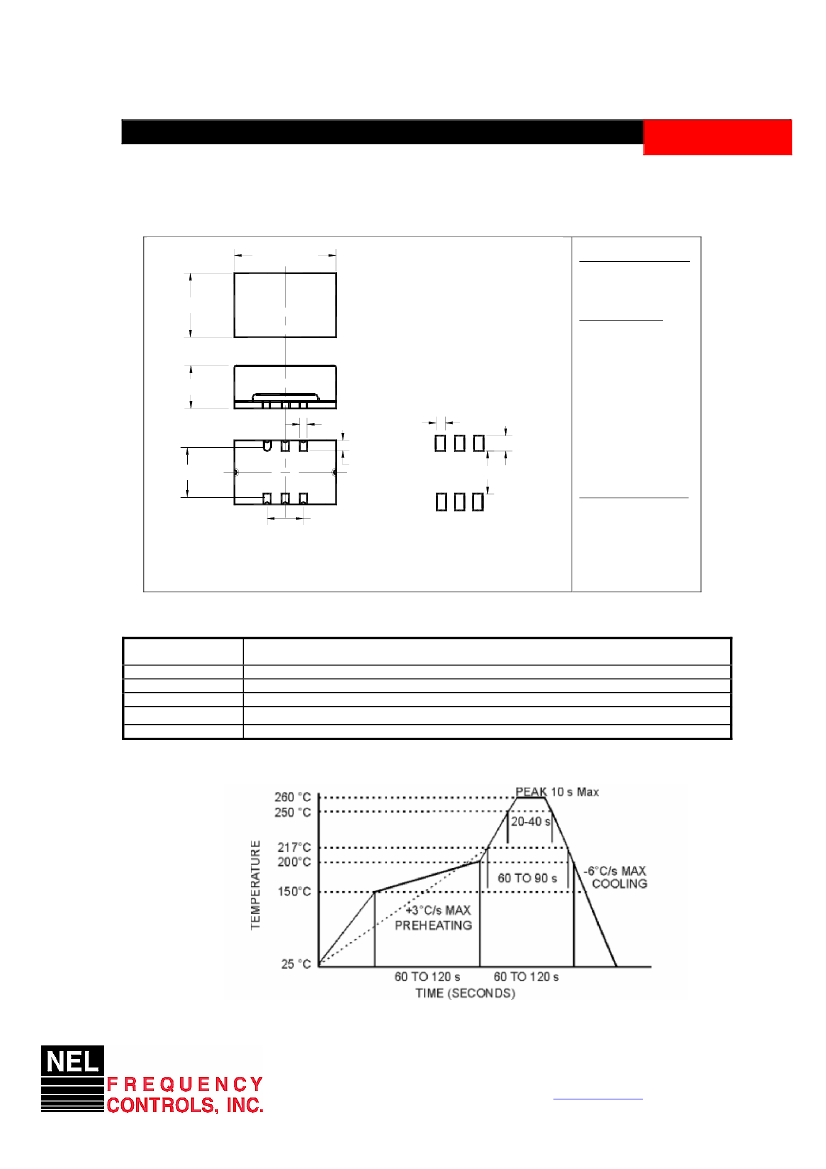

FR-4 based 9x14 mm SMD package

Applications and Features

•

Fiber Channel; 10 GbE; Infiniband; Network Processors; SONET/SDH

High Reliability – NEL HALT/HASS qualified for crystal oscillator start-up conditions

Extremely Low Phase Noise and Jitter

Frequency Range to 1,000 MHz

RoHS compliant, Lead Free Construction

SONET ± 20 ppm overall stability available

High Shock Resistance, to 1.000 G

Creating a Part Number

AB - X 29N X X X

Package code

AB 6 pad 9x14 mm SMD

Frequency Stability, ppm

E ±20

F ±25

G ±32

H ±50

J ±100

K Customer specific

Operating Voltage

0 5.0 V ± 5%

A 3.3 V ± 5%

Enable Option

L Enable Low

N N/C

Temperature Range, ºC

A 0 to 50

B 0 to 70

C -20 to 70

D -40 to 85

9 Customer Specific

357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881

Email:

nelsales@nelfc.com

www.nelfc.com
