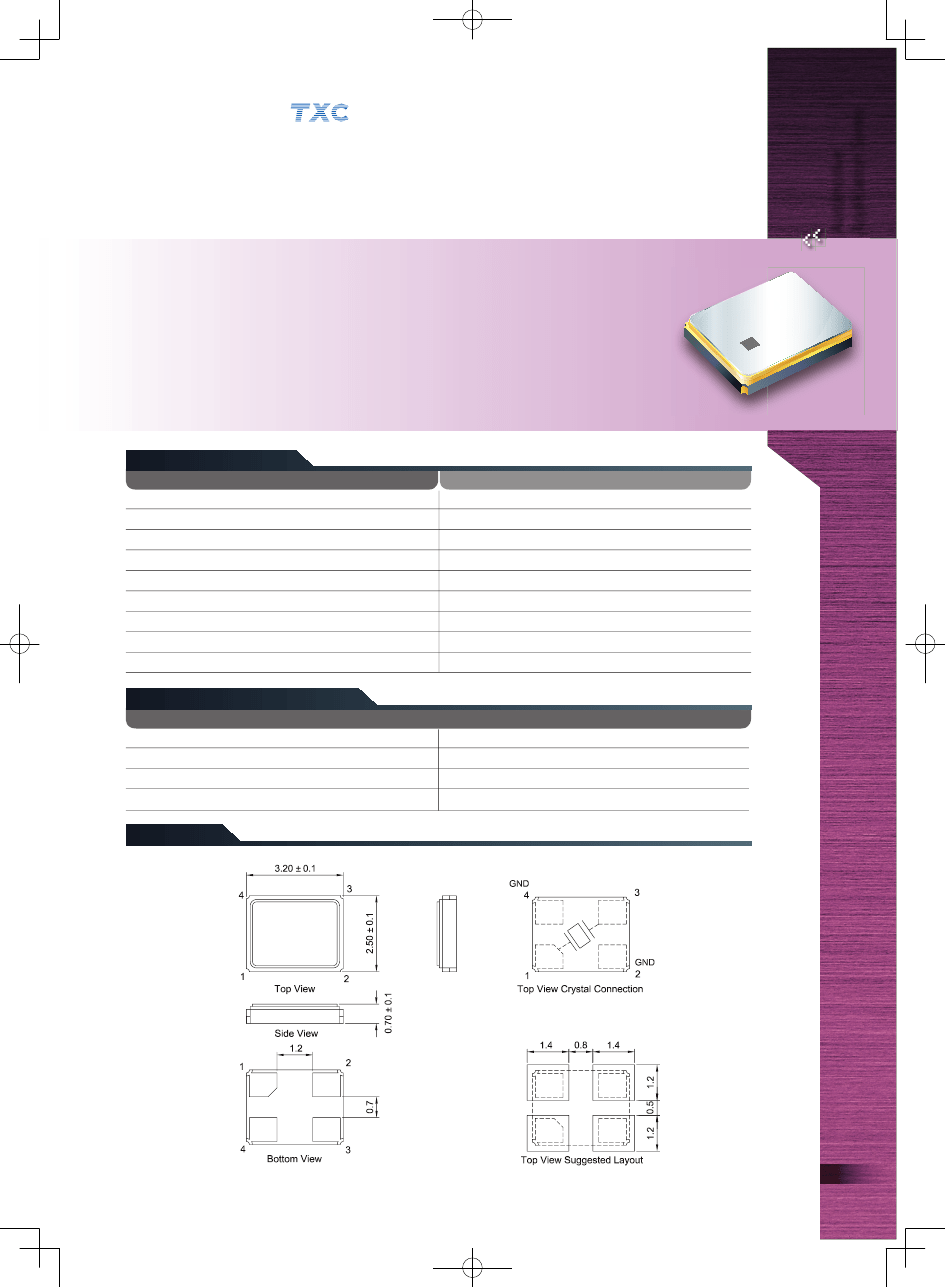

Think of Frequency Think of
come visit our site http://www.txccorp.com
SMD
Seam Sealing Crystals
3.2 x 2.5 x 0.7 mm AM Series
0
26 0 1
T
1g
Features
．
Reliable seam sealed ceramic package.
．
Wide operating temperature range.
．
Superior performance and stringent reliability in harsh environment.
．
Application: TPMS, ECM, ABS and sensor modules.
．
Compact size.
．
RoHS Compliant / Pb Free.
Electrical Specifications
Item / Type
Frequency Range
Overtone
Frequency Tolerance (at 25
℃
)
Frequency Stability Over Operating Temperature Range
Operating Temperature Range
Drive Level
Load Capacitance
Storage Temperature Range
Reliability Standard
AM
10 ~ 50 MHz
Fundamental
±
10 ppm,
±
20 ppm,
±
50 ppm Max
±
150 ppm Max. , or specify
- 40 ~ +125
℃
, or specify
10
μ
W (typical) ; 100
μ
W (Max.)
12 pF, or specify
- 40 ~ +125
℃
AEC-Q200
Equivalent Series Resistance(ESR)
Fundamental
10 ~ 12 MHz
12 ~ 20 MHz
20 ~ 30 MHz
30 ~ 50 MHz
180
Ω
Max.
100
Ω
Max.
80
Ω
Max.
60
Ω
Max.
Dimensions
Units: mm
Remark : Specification subject to change without prior notice. Please confirm with our sales. http://www.txccorp.com
Automotive
Application Series
