Part Number

Search

51940-337LF

Description
PWRBLADE VERT LF REC
CategoryThe connector    The connector
File Size244KB,4 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

51940-337LF Online Shopping

Suppliers Part Number Price MOQ In stock
51940-337LF - - View Buy Now

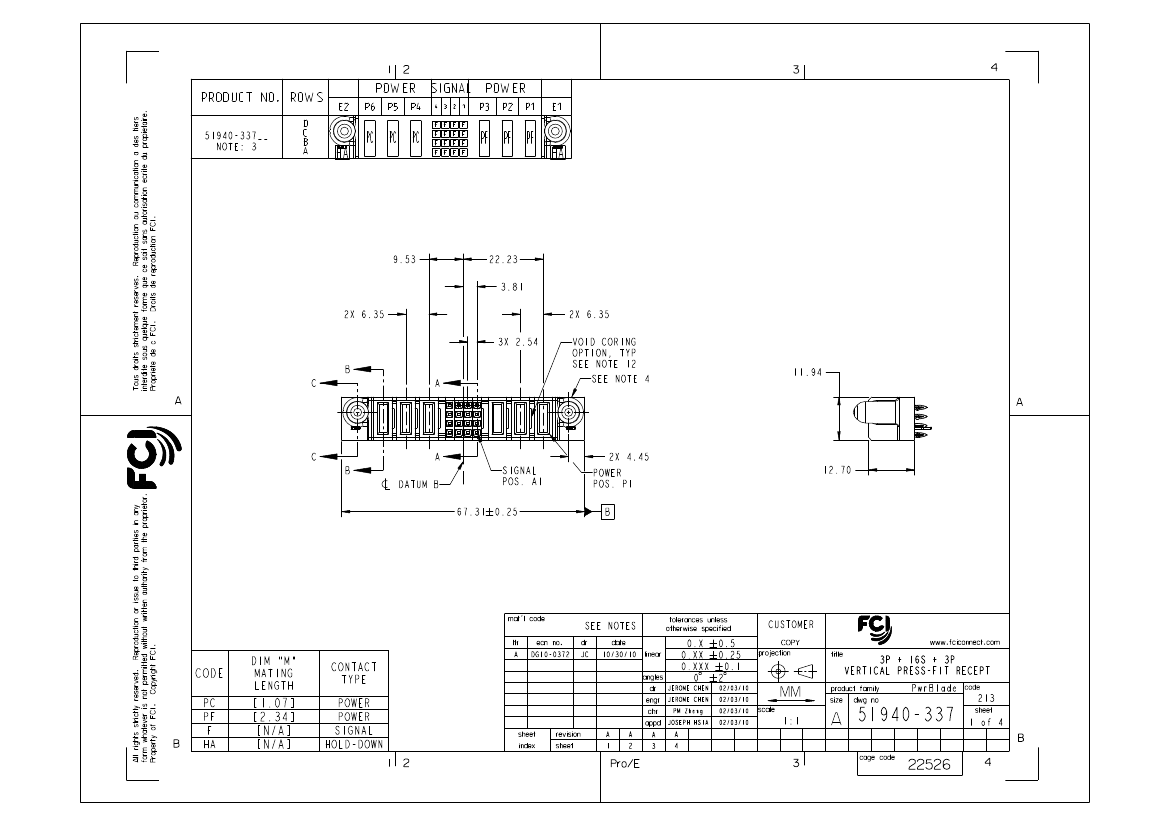

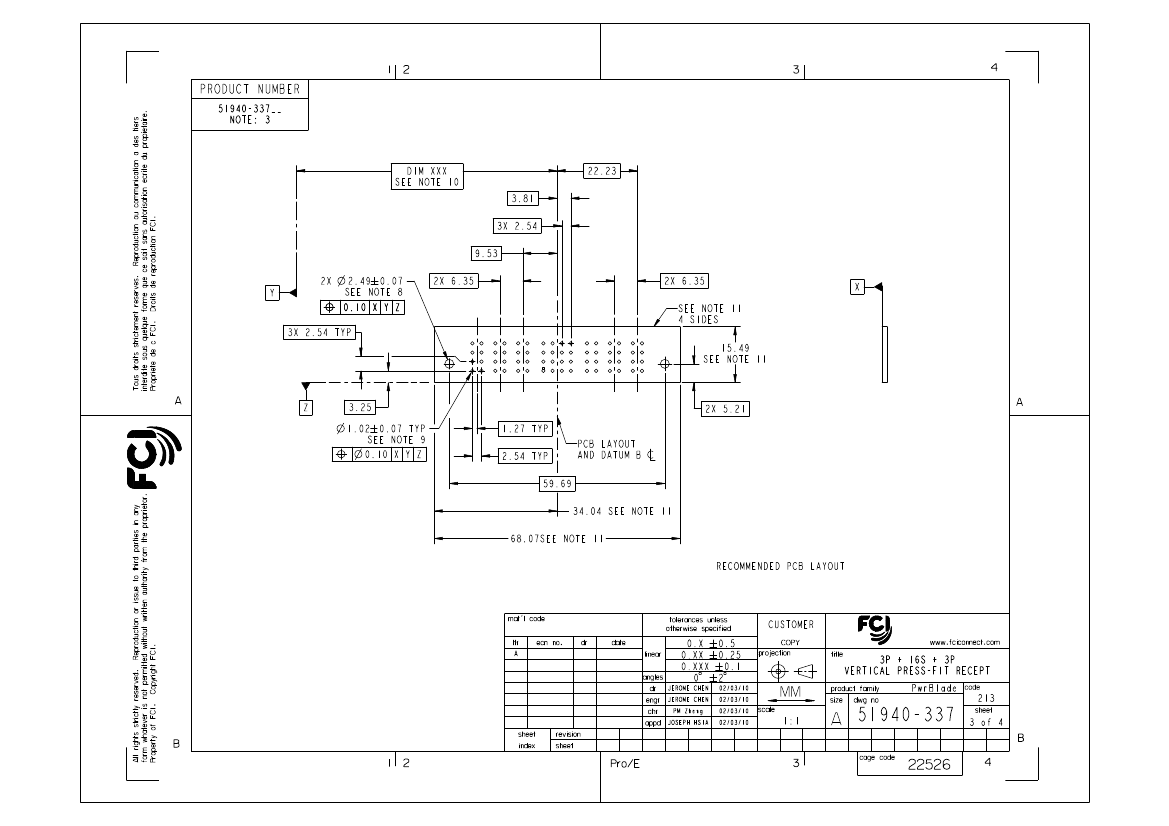

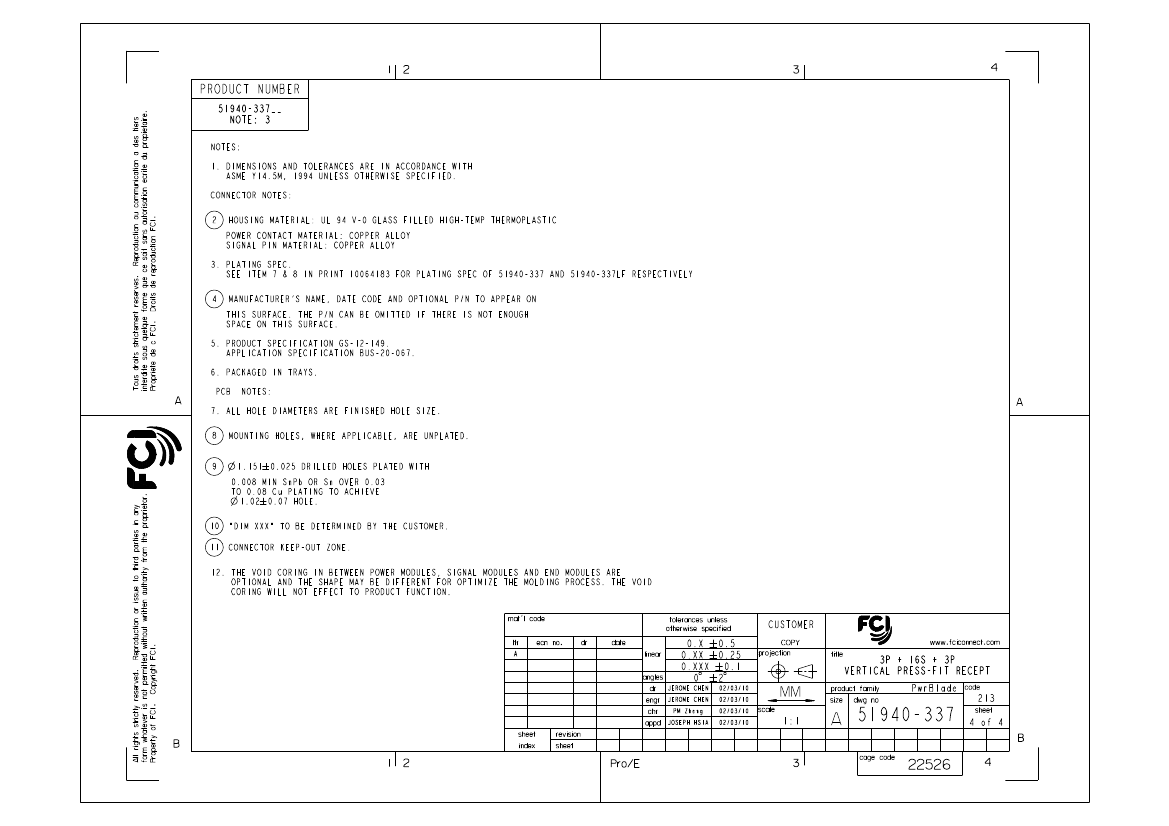

51940-337LF Overview

PWRBLADE VERT LF REC

51940-337LF Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerAmphenol
package instructionLEAD FREE
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time6 weeks
Other featuresTERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
Board mount optionsHOLE .086-.098
body width0.47 inch
subject depth0.5 inch
body length2.65 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact arrangementS16P6
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTin (Sn) - with Nickel (Ni) barrier
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Contact resistance20 mΩ
Contact styleHYBRID
DIN complianceNO
Dielectric withstand voltage2500VDC V
Durability200 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force.973 N
Insulation resistance500000000 Ω
insulator materialGLASS FILLED THERMOPLASTIC
JESD-609 codee3
MIL complianceNO
Mixed contactsYES
Installation option 1GUIDE PIN
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
Number of rows loaded4
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.135 inch
Terminal pitch2.54 mm
Termination typePRESS FIT
Total number of contacts22
UL Flammability Code94V-0
Evacuation force-minimum value.17792 N
PDM: Rev:A
STATUS:
Released
Printed: Dec 20, 2010
.

51940-337LF Related Products

51940-337LF 51940-337
Description PWRBLADE VERT LF REC Board Connector, 22 Contact(s), 4 Row(s), Female, Straight, Press Fit Terminal, Guide Pin, Receptacle
Maker Amphenol Amphenol
Reach Compliance Code compliant compli
ECCN code EAR99 EAR99
Other features TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
Board mount options HOLE .086-.098 HOLE .086-.098
body width 0.47 inch 0.47 inch
subject depth 0.5 inch 0.5 inch
body length 2.65 inch 2.65 inch
Body/casing type RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact arrangement S16P6 S16P6
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED
Contact completed and terminated Tin (Sn) - with Nickel (Ni) barrier TIN/LEAD OVER NICKEL
Contact point gender FEMALE FEMALE
Contact material NOT SPECIFIED COPPER ALLOY
Contact resistance 20 mΩ 20 mΩ
Contact style HYBRID HYBRID
DIN compliance NO NO
Dielectric withstand voltage 2500VDC V 2500VDC V
Durability 200 Cycles 200 Cycles
Filter function NO NO
IEC compliance NO NO
maximum insertion force .973 N .973 N
Insulation resistance 500000000 Ω 500000000 Ω
insulator material GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC
MIL compliance NO NO
Mixed contacts YES YES
Installation option 1 GUIDE PIN GUIDE PIN
Installation option 2 LOCKING LOCKING
Installation method STRAIGHT STRAIGHT
Installation type BOARD BOARD
Number of connectors ONE ONE
Number of rows loaded 4 4
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE
Rated current (signal) 3 A 3 A
Guideline UL UL
reliability COMMERCIAL COMMERCIAL
Terminal length 0.135 inch 0.135 inch
Terminal pitch 2.54 mm 2.54 mm
Termination type PRESS FIT PRESS FIT
Total number of contacts 22 22
UL Flammability Code 94V-0 94V-0
Evacuation force-minimum value .17792 N .17792 N
