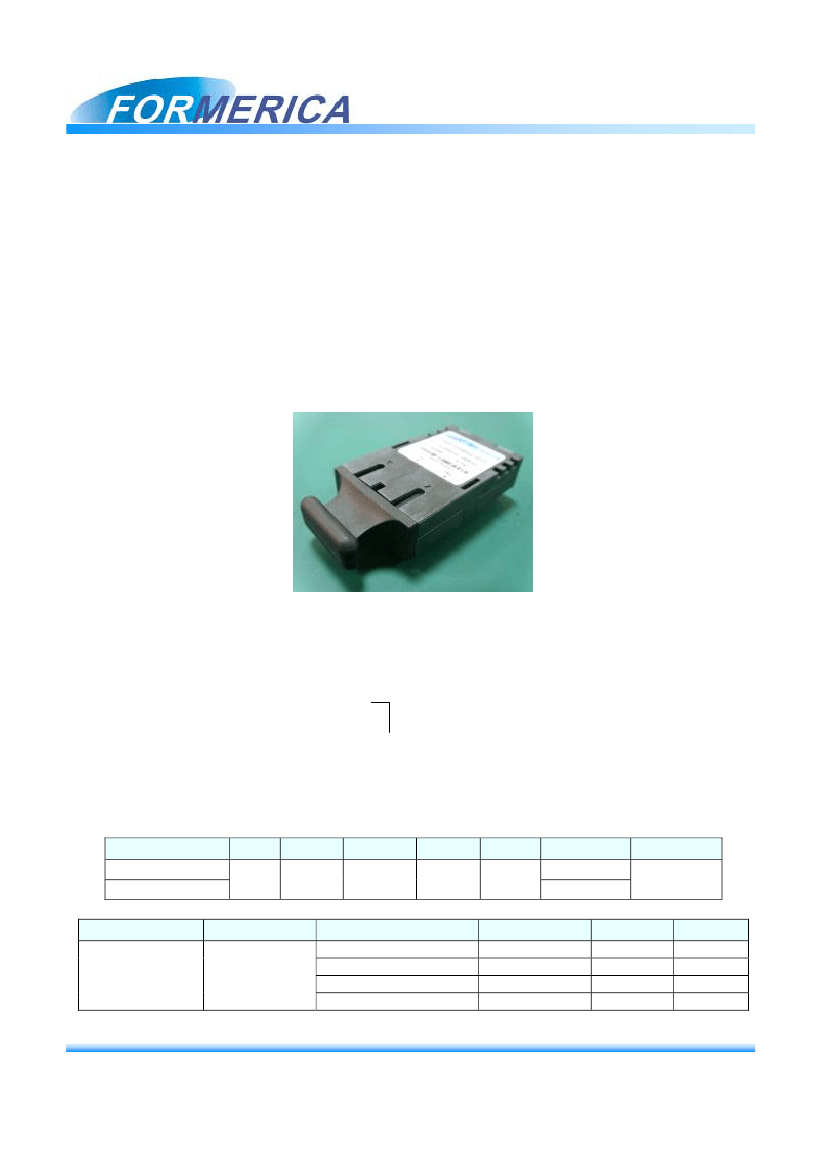

1X9 Gigabit Ethernet Transceiver
P
RODUCT
N
UMBER
: TSP-DxCH2-C11
Specification
1X9 Form Factor
Duplex SC Receptacle – DSC
Optical Transceivers
1000BASE-SX
1250Mbit/s
Ordering Information
T S P - D x CH2 - C 1 1
Voltage / Temperature
1 : 3.3V + 0℃ ~ + 70℃
2 : 3.3V - 40
℃
~ + 85℃
Model Name
TSP-D1CH2-C11
TSP-D2CH2-C11
Voltage Category Device type Interface
3.3 V
W/O DDMI VCSEL / PIN
AC / AC
Coupling
SD/LOS
LVTTL
Temperature
+0°C~+70°C
-40°C~+85°C
Distance
550m
( Table 1 )
Media
Multi-Mode Fiber
Wavelength
850nm
Fiber Core Dimension
50
μ
m
50
μ
m
62.5
μ
m
62.5
μ
m
Bandwidth
500 MHz*km
400 MHz*km
200 MHz*km
160 MHz*km
Fiber Type
OM2
OM1
Distance
550m
500m
275m
220m
Table 1
Formerica Optoelectronics Inc
.
4F, No.31, Xintai Rd, Zhubei City,
Hsinchu County 302, Taiwan
Ph: +886-3-5512858 Fax: +886-3-5537118
Version 02
Page
1
1X9 Gigabit Ethernet Transceiver
P
RODUCT
N
UMBER
: TSP-DxCH2-C11
Features
ROHS Compliant
Standard 1X9 Form Factor
Gigabit Ethernet Standard ( IEEE802.3Z 1000BASE-SX ) Compliant
Fibre Channel Standard ( 100-M5-SN-I and 100-M6-SN-I ) Compliant
Laser Class 1 Product – IEC60825-1 Compliant
Standard Duplex SC Receptacle Optical Interface
Single + 3.3 V Power Supply
Differential LVPECL Data Input and Output
LVTTL Signal Detect
Low Power Consumption
Absolute Maximum Ratings
Parameter
Storage temperature
Supply voltage
Operating Relative Humidity
Input voltage
Symbol
T
S
V
CC
-
V
IN
Min
-40
0
5
0
Typ
-
-
-
-
Max
85
4
95
V
CC
Unit
°C
V
％
V
Operating Conditions
Parameter
Supply Voltage
Operating Case temperature
( TSP-D1CH2-C11 )
Operating Case temperature
( TSP-D2CH2-C11 )
Total Current ( Transmitter + Receiver )
Hand Lead Soldering Temperature / Time
Wave Lead Soldering Temperature / Time
Symbol
V
CC(3.3V)
Tc
Icc
Th
Tw
Min
3.1
0
-40
-
-
-
Typ
3.3
-
-
-
-
-
Max
3.5
70
85
250
260/10
260/10
Unit
V
ºC
mA
ºC /sec
ºC /sec
Formerica Optoelectronics Inc
.
4F, No.31, Xintai Rd, Zhubei City,
Hsinchu County 302, Taiwan
Ph: +886-3-5512858 Fax: +886-3-5537118
Version 02
Page
2
1X9 Gigabit Ethernet Transceiver
P
RODUCT
N
UMBER
: TSP-DxCH2-C11
Transmitter Specifications
( V
CC
=3.1V~3.5V；Tc= 0
o
C~70
o
C / Tc= -40
o
C~85
o
C )
Parameter
Optical Characteristics
Output Optical Power
Extinction Ratio
Center Wavelength
Spectral Width (RMS)
Rise/Fall time (20-80%)
Relative Intensity Noise
Output Eye
Electrical Characteristics
Differential Input Voltage
V
DIFF
0.4
--
2.0
V
P
out
ER
λ
C
σ
T
r,f
RIN
-9
9
830
--
--
--
--
--
--
--
--
-3
--
860
0.85
260
-117
dBm
dB
nm
nm
ps
dB/Hz
Symbol
Min
Typ
Max
Unit
Compliant with IEEE 802.3z
Receiver Specifications
( V
CC
=3.1V~3.5V；Tc= 0
o
C~70
o
C / Tc= -40
o
C~85
o
C )
Parameter
Optical Characteristics
Optical Input Power-maximum
Receiver Sensitivity ( PRBS=2
7
-1；BER≦10
-12
)
Operating Center Wavelength
Signal Detect – Asserted
Signal Detect – De-asserted
Signal Detect – Hysteresis
Electrical Characteristics
Differential Output Voltage
Signal Detect Output Voltage -Low
Signal Detect Output Voltage -High
V
DIFF
V
SDL
V
SDH
0.4
0
2
--
--
--
2.0
0.8
V
CC
+0.3
V
V
V
P
SATIN
P
SAN
λ
c
P
SA
P
SD
P
SH
0
--
770
--
-35
0.5
--
--
--
--
--
-18
860
-18
--
6
dBm
dBm
nm
dBm
dBm
dB
Symbol
Min
Typ
Max
Unit
Formerica Optoelectronics Inc
.
4F, No.31, Xintai Rd, Zhubei City,
Hsinchu County 302, Taiwan
Ph: +886-3-5512858 Fax: +886-3-5537118
Version 02
Page
3
1X9 Gigabit Ethernet Transceiver
P
RODUCT
N
UMBER
: TSP-DxCH2-C11
Pin Definition and Descriptions
9. TX GND
r
8. TD+
7. TD-
6. V
CCT
5. V
CCR
4. SD
3. RD-
2. RD+
1. RX GND
Bottom VIEW
N/C
N/C
Pin
1
2
3
4
5
6
7
8
9
Name
RX GND
RD+
RD-
SD
V
CCR
V
CCT
TD-
TD+
TX GND
Receiver Signal Ground
Receiver Data Out
Receiver Data Out Bar
Signal Detect
Receiver Power Supply
Transmitter Power Supply
Transmitter Data In Bar
Transmitter Data In
Transmitter Signal Ground
Description
Formerica Optoelectronics Inc
.
4F, No.31, Xintai Rd, Zhubei City,
Hsinchu County 302, Taiwan
Ph: +886-3-5512858 Fax: +886-3-5537118
Version 02
Page
4
1X9 Gigabit Ethernet Transceiver
P
RODUCT
N
UMBER
: TSP-DxCH2-C11

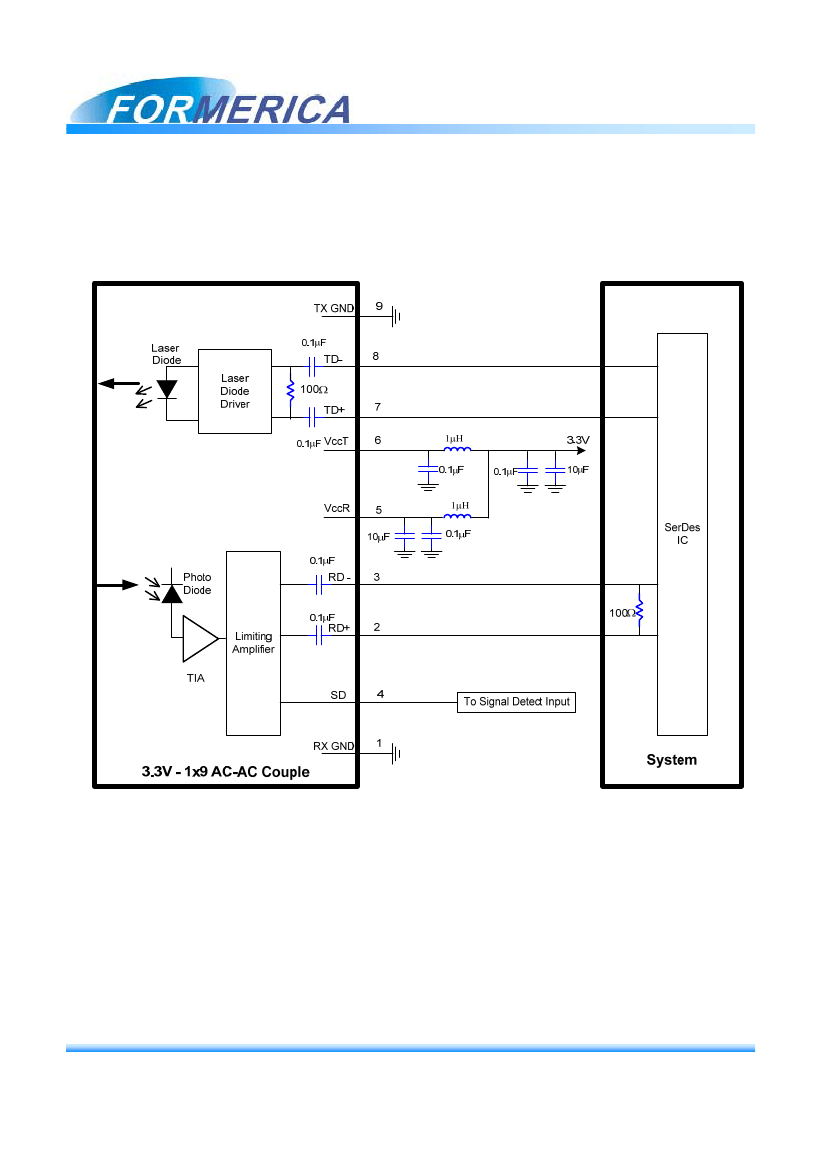

Recommended Circuit Diagram
Formerica Optoelectronics Inc
.
4F, No.31, Xintai Rd, Zhubei City,
Hsinchu County 302, Taiwan
Ph: +886-3-5512858 Fax: +886-3-5537118
Version 02
Page
5
