Introduction
Vero® Series is a revolutionary advancement in chip on board (COB) light source technology and innovation. Vero LED light
sources simplify luminaire design and manufacturing processes Vero Chip on Board (COB) LED arrays are available in four
LES configurations, engineered to enable new degrees of flexibility and reliability over a broad range of electrical currents.
Vero arrays deliver increased lumen density to enable improved beam control and precision lighting with 2 and 3 SDCM color
control standard for clean and consistent uniform lighting.
Vero products include an onboard connector port that enables a solder-free electrical interconnect, and simple mounting
features for plug-and-play installation.
Bridgelux Décor Series™ is our state-of-the-art color line designed specifically for premium applications, producing
unmatched LED light quality with brilliant color-rendering options and pleasing lighting palettes. Bridgelux Décor Series color
points are available on Vero® SE Series, Vero® Series, V Series™ and V Series™ HD.
Décor Series™ Class A
is based on human response testing, providing color points with a combined GAI and CRI metric.
Décor Series™ Ultra
products provide a high CRI of 97 and typical R9 value of 98, which emphasizes the reds and color
tones to which the human eye is most receptive - perfect for the most luxurious retail shops and world renowned museums.
Décor Series Ultra is designed as a replacement for halogen lamps
Décor Series™ Food
products offer color points developed to address the unique requirements of the food, grocery, and
restaurant industries. Highlighting the distinctive colors and nuanced patterns found in meats and breads, the Décor Series
Food products are a must have for any butcher counter or bakery.
Décor Series ™ Entertainment
products provide color points developed specifically for the healthcare and entertainment
industries. The 5600K cool white color point combined with a CRI of 90 or 97 provides the bright white required by these
industries.
Décor Series™ Street and Landmark
is designed to be a direct replacement for high pressure sodium lamps.
Features
Benefits
• Efficacy of 160 lm/W typical
• Lumen output performance ranges from 3,850 to
38,400 lumens
• Broad range of CCT options from 1750K to 6500K
• CRI options include minimum 65, 70, 80, and 90, 2
and 3 SDCM color control for 2700K-4000K CCT
• Reliable operation at up to 2X nominal drive current
• Radial die pattern and improved lumen density
• Thermally isolated solder pads
• Onboard connector port
• Top side part number markings
• V
f
bin code backside marking
• Broad application coverage for interior and exterior
lighting
• Flexibility for application driven lighting design
requirements
• High quality true color reproduction
• Uniform consistent white light
• Flexibility in design optimization
• Enhanced ease of use and assembly
• Solderless connectivity enables plug & play
installation and field upgradability
• Improved inventory management and quality control
Vero
®
Series

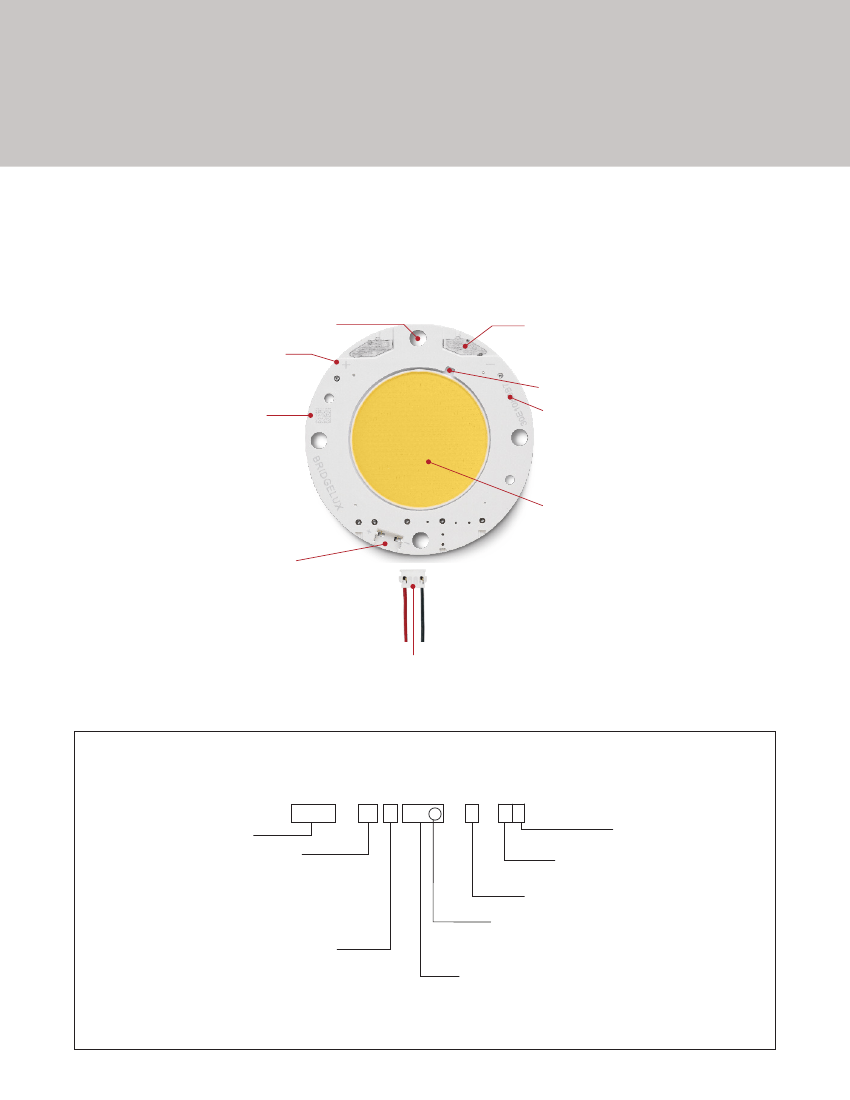

Product Feature Map
Vero 29 is the largest form factor in the Vero family of
next generation solid state light sources. In addition to
delivering the performance and light quality required
for many lighting applications, Vero incorporates several
features to simplify the design integration and
manufacturing process, accelerate time to market and
reduce system costs. Please visit www.bridgelux.com for
more information on the Vero Series family of products.
Mounting holes
Polarity indication marks simplify
manufacturing operator instructions
Thermally isolated solder pads reduce
manufacturing cycle time and complexity
T
c
Measurement point
2D Bar code provides full
manufacturing traceability
Top side part number marking improves
inventory management and outgoing
quality control
Radial die configuration improves lumen
density and beam control
Solderless connector port enables simplified
manufacturing processes, reduced inventory
carrying costs and can enable field upgradability
Optional Molex Pico-EZmate
™
connector harness
(sold separately)
Product Nomenclature
The part number designation for Bridgelux Vero LED arrays is explained as follows:
1 2 3 4
56
7
8 9 10 11
–
12
– 13 14
BXRC – 30 E 10K 0 – C – 7 3
Product Family
Nominal CCT
17 = 1,750K
20 = 2,000K
25 = 2,500K
27 = 2,700K
30 = 3,000K
35 = 3,500K
40 = 4,000K
50 = 5,000K
56 = 5,600K
57 = 5,700K
65 = 6,500K
Gen. 7
CCT Bin Options
2 = 2 SDCM
3 = 3 SDCM
4 = 4 SDCM
Array Configuration
Color Targeting Designator
0 = Cold Targeted
1 = Hot Targeted
Flux Indicator
10Kx = 10,000 lm
CRI
B = 65 CRI min.
C = 70 CRI min.
E = 80 CRI min.
G = 90 CRI min.
H = 97 CRI typ.
A = Class A
2
Product Selection Guide
The following product configurations are available:
Table 1:
Selection Guide, Pulsed Measurement Data (T
j
= T
c
= 25°C)
Part Number
BXRC-17E10K0-B-74
BXRC-17E10K0-C-74
BXRC-17E10K0-D-74
BXRC-20B10K1-C-73
BXRC-20B10K1-D-73
BXRC-25E10K0-B-74
BXRC-25E10K0-C-74
BXRC-25E10K0-D-74
BXRC-27E10K0-B-7X
BXRC-27E10K0-C-7X
BXRC-27E10K0-D-7X
BXRC-27G10K0-B-7X
BXRC-27G10K0-C-7X
BXRC-27G10K0-D-7X
BXRC-27H10K0-D-74
BXRC-30E10K0-B-7X
10
10
Nominal
CCT
1
(K)
1750
1750
1750
2000
2000
2500
2500
2500
2700
2700
2700
2700
2700
2700
2700
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3500
3500
3500
3500
3500
3500
3500
3500
3500
CRI
80
80
80
65
65
80
80
80
80
80
80
90
90
90
97
80
80
80
90
90
90
97
93
93
93
80
80
80
90
90
90
93
93
93
2
Nominal Drive
Current
3
(mA)
1800
1710
2100
1710
2100
1800
1710
2100
1800
1710
2100
1800
1710
2100
2100
1800
1710
2100
1800
1710
2100
2100
1800
1710
2100
1800
1710
2100
1800
1710
2100
1800
1710
2100
Typical Pulsed
Flux
4,5,6
T
c
= 25ºC
(lm)
8291
10512
6994
17724
11793
13401
16991
11305
14365
18213
12118
11955
15157
10085
8788
14943
18946
12606
12437
15768
10491
9353
11232
14241
9475
15425
19557
13013
12822
16257
10817
12074
15309
10186
Minimum
Pulsed Flux
6,7
T
c
= 25ºC
(lm)
7462
9461
6295
15952
10613
12061
15292
10174
12928
16392
10906
10759
13641
9076
7909
13449
17052
11345
11193
14191
9442
8418
10109
12817
8528
13883
17602
11711
11540
14631
9735
10867
13778
9167
Typical V
f
(V)
52.0
69.4
37.6
69.4
37.6
52.0
69.4
37.6
52.0
69.4
37.6
52.0
69.4
37.6
37.6
52.0
69.4
37.6
52.0
69.4
37.6
37.6
52.0
69.4
37.6
52.0
69.4
37.6
52.0
69.4
37.6
52.0
69.4
37.6
Typical
Power
(W)
93.6
118.7
79.0
118.7
79.0
93.6
118.7
79.0
93.6
118.7
79.0
93.6
118.7
79.0
79.0
93.6
118.7
79.0
93.6
118.7
79.0
79.0
93.6
118.7
79.0
93.6
118.7
79.0
93.6
118.7
79.0
93.6
118.7
79.0
Typical
Efficacy
(lm/W)
89
89
89
149
149
143
143
143
153
153
153
128
128
128
111
160
160
160
133
133
133
118
120
120
120
165
165
165
137
137
137
129
129
129
BXRC-30E10K0-C-7X
BXRC-30E10K0-D-7X
10
BXRC-30G10K0-B-7X
BXRC-30G10K0-C-7X
BXRC-30G10K0-D-7X
BXRC-30H10K0-D-7X
BXRC-30A10K1-B-73
8,9
BXRC-30A10K1-C-73
8,9
BXRC-30A10K1-D-73
8,9
BXRC-35E10K0-B-7X
10
BXRC-35E10K0-C-7X
10
10
BXRC-35E10K0-D-7X
BXRC-35G10K0-B-7X
BXRC-35G10K0-C-7X
BXRC-35G10K0-D-7X
BXRC-35A10K1-B-73
8,9
8,9
BXRC-35A10K1-C-73
BXRC-35A10K1-D-73
8,9
Notes for Table 1:
1. Nominal CCT as defined by ANSI C78.377-2011. Products with a CCT of 5000K-6500K are hot targeted to T
c
= 85°C.
2. CRI values are typical for Décor Series Class A and Décor Series Ultra products. CRI values are minimums for all other products. Minimum R9 value for 80
CRI products is 0, the minimum R9 values for 90 CRI products is 50, the minimum R9 values for 97 CRI products is 93. Bridgelux maintains a ±3 tolerance on
CRI and R9 values.
3. Drive current is referred to as nominal drive current.
4. Products tested under pulsed condition (10ms pulse width) at nominal test current where T
j
(junction temperature) = T
c
(case temperature) = 25°C.
5. Typical performance values are provided as a reference only and are not a guarantee of performance.
6. Bridgelux maintains a ±7% tolerance on flux measurements.
7. Minimum flux values at the nominal test current are guaranteed by 100% test.
8. Nominal CCT is defined by the Lighting Research Center’s Class A definition. The center of the Class A color bin is on the corresponding isothermal line.
9. GAI value is 80. To help ensure optimal fixture level performance, GAI is measured at the fixture level, on axis, at a case temperature of 70°C. GAI may vary
depending on fixture design and performance.
3
10. SKUs can meet DLC premium (Outdoor Mid Output) requirements under certain system level conditions.
Electronics Design Contest
