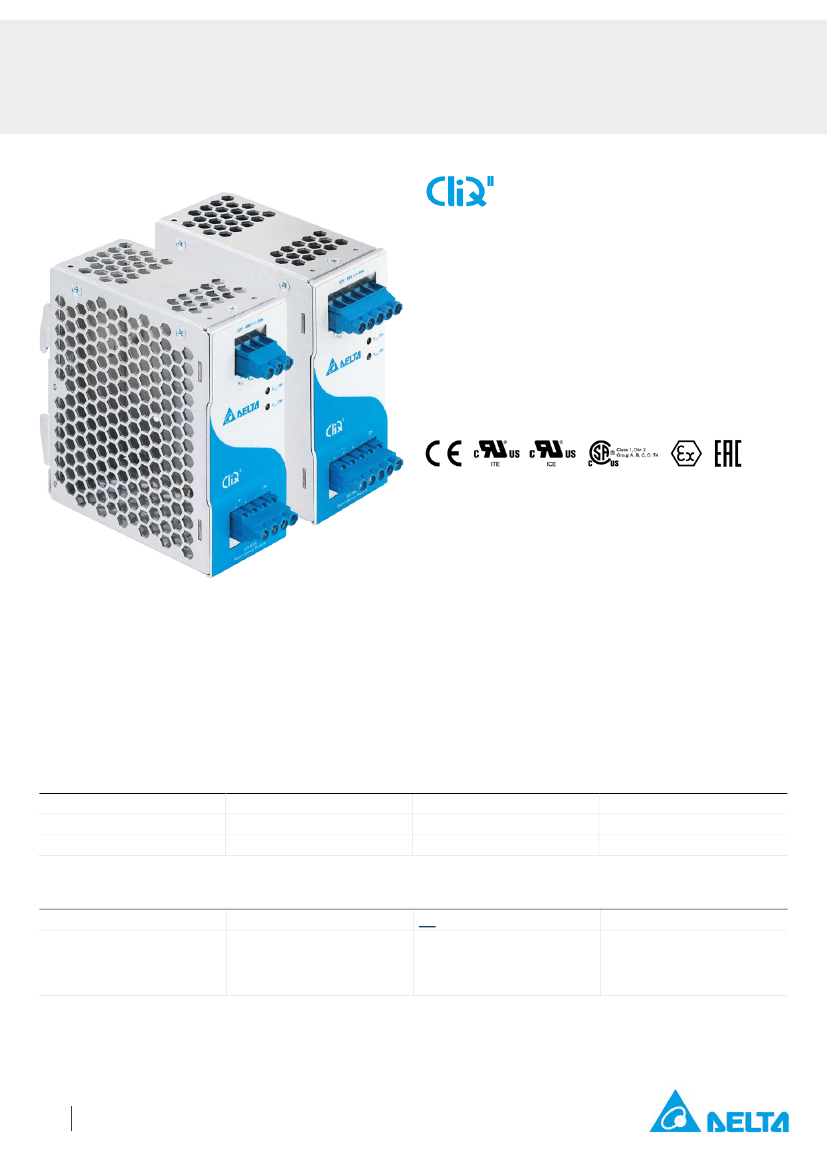

Very wide operating temperature from -40°C to +80°C
Built-in 2 channel DC OK signal and alarm relay contact
Support N+1 Redundancy connection
Conformal coating on PCBA to protect against chemical and
dust pollutants
Hazardous Locations approval to ATEX and Class I, Div 2
(DRR-20A and DRR-40A)
Safety Standards
CB Certified for worldwide use
Model Number:
DRR-20☐, DRR-40☐
Unit Weight:
0.38 kg (0.84 lb), 0.52 kg (1.15 lb)
Dimensions (L x W x D):
121 x 50 x 122.1 mm
(4.76 x 1.97 x 4.81 inch)
General Description
Delta’s CliQ II redundancy modules offer a variable input and output voltage from 22Vdc to 60Vdc. The DRR-20☐ and DRR-40☐ can
operate over a wide temperature range of -40°C to -80°C. The state-of-the-art design is made to withstand harsh industrial
environments. The rugged, compact aluminium case is shock and vibration resistant according to IEC 60068-2 standard. Due to the
wide input and output voltage range from 22Vdc to 60Vdc, the redundancy modules are able to support power supply in parallel
operation. These modules also have an alarm relay contact as an indicator.
Model Information
CliQ II Redundancy Module
Model Number
DRR-20☐
DRR-40☐
Input Voltage Range
22-60Vdc
22-60Vdc
Rated Output Voltage
V
in
-0.65V (typ.)
V
in
-0.65V (typ.)
Rated Output Current
20.0A
40.0A
Model Numbering
DR
DIN Rail
R–
Redundancy Module
XXA
Output Current
20 - 20A
40 - 40A
□
A - Metal Case,
with Class I, Div
N - Metal Case,
without Class I, Div 2
1
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (April 2018, Rev. 04)
TECHNICAL DATASHEET
CliQ II Redundancy Modules
20A / DRR-20
□
, 40A / DRR-40
□
Specifications
Input Ratings / Characteristics
Nominal Input Voltage
Input Voltage Range
Input Current
DRR-20☐
24Vdc and 48Vdc
22-60Vdc
20A Max
(1+1 Redundancy) = Nominal 2 x 12.5A
(N+1 Redundancy) = Nominal 2 x 10A
(Single Use) = Nominal 20A
40A Max
(1+1 Redundancy) = Nominal 2 x 25A
(N+1 Redundancy) = Nominal 2 x 20A
(Single Use) = Nominal 40A
> 97.0% typ.
DRR-20☐
DRR-40☐
24V System:
Both V
in1
& V
in2
> 18V ± 5% or < 30V Max
48V System:
Both V
in1
& V
in2
> 36V ± 5% or < 60V Max
DRR-40☐
Efficiency
Input Voltage Alarm / Relay Contacts*
*The LED will turn on when the V
in1
& V
in2
> 18V ± 5% (for 24V system) or > 36V ± 5% (for 48V system) and not more than 30V (for 24V system) or not more than 60V (for
48V system). The relay contacts will be closed. If V
in1
& V
in2
are under or over this range, the LED will turn off.
Output Ratings / Characteristics
Nominal Output Voltage Range
Output Current
Voltage Drop (V
in
-V
out
)
Output Current
DRR-20☐
DRR-40☐
V
in
-0.65V (typ.)
20A Max
40A Max
0.65V typ.
20A Max
Mechanical
Case Cover / Chassis
Dimensions (L x W x D)
Unit Weight
LED Indicators
Cooling System
Terminal
DRR-20☐
DRR-40☐
Wire
Mounting Rail
Noise (1 Meter from power supply)
Input / Output
DRR-20☐
DRR-40☐
Aluminium
121 x 50 x 122.1 mm (4.76 x 1.97 x 4.81 inch)
0.38 kg (0.84 lb)
0.52 kg (1.15 lb)
Green LED DC OK: V
in1
and V
in2
Convection
Input: 3 Pins (Rated 300V/30A)
Output: 4 Pin (Rated 300V/30A)
Input: 5 Pins (Rated 300V/30A)
Output: 5 Pin (Rated 300V/30A)
AWG 12-10
Standard TS35 DIN Rail in accordance with EN 60715
Sound Pressure Level (SPL) < 40dBA
2
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (April 2018, Rev. 04)
TECHNICAL DATASHEET
CliQ II Redundancy Modules
20A / DRR-20
□
, 40A / DRR-40
□
Environment
Surrounding Air Temperature
Power De-rating
Operating Humidity
Operating Altitude
Shock Test
Vibration
Over Voltage Category
Non-Operating
Non-Operating
Operating
Storage
Vertical Mounting
Horizontal Mounting
-40°C to +80°C
-40°C to +85°C
> 50°C de-rate power by 2.5% / °C
> 50°C de-rate power by 2.5% / °C
5 to 95% RH (Non-Condensing)
0 to 2,500 Meters (8,200 ft.)
IEC 60068-2-27, 30G (300m/S²) for a duration of 18ms,
1 time per direction, 2 times in total
IEC 60068-2-6, 10Hz to 500Hz @ 30m/S² (3G peak);
60 min per axis for all X, Y, Z direction
III
According to IEC/EN 62477-1 /
EN 60204-1 (clearance and
creepage distances) and IEC
62103 (safety part)
Pollution Degree
2
Protections
Overload / Overcurrent*
Short Circuit
Degree of Protection
Protection Against Shock
DRR-20☐
DRR-40☐
DRR-20☐
DRR-40☐
< 25A, No Damage
< 50A, No Damage
< 25A, No Damage
< 50A, No Damage
IP20
Class III with PE** connection
*The overload condition must be controlled by the PSUs in parallel. The limit of input current should not be more than 25A (for 20A module) or not more than 50A (for 40A
module).
**PE: Primary Earth
Reliability Data
MTBF
Expected Cap Life Time
> 800,000 hrs. as per Telcordia SR-332
I/P: 24Vdc and 48Vdc, O/P: 100% load, Ta: 25°C
10 years (Standby Mode @ 40°C)
3
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (April 2018, Rev. 04)
TECHNICAL DATASHEET
CliQ II Redundancy Modules
20A / DRR-20
□
, 40A / DRR-40
□
Safety Standards / Directives
Electrical Equipment in Power Installations
Electrical Safety
SIQ Bauart
UL/cUL recognized
CB scheme
Industrial Control Equipment
Hazardous Location / ATEX
(For DRR-20A and DRR-40A)
UL/cUL recognized
Hazardous Location
IEC/EN 62477-1 / IEC 62103
EN 60950-1
UL 60950-1 and CSA C22.2 No. 60950-1
IEC 60950-1
UL 508 and CSA C22.2 No. 107.1-01
cCSAus to CSA C22.2 No. 213-M1987, ANSI / ISA
12.12.01:2007 [Class I, Division 2, Group A, B, C, D T4,
Ta= -40°C to +80°C (> +50°C derating)]
EN 60079-0:2009, EN 60079-15:2010 [
II 3G Ex nA nC IIC
T4 Gc, Ta= -40°C to +80°C (> +50°C derating)]
Certificate No. EPS 12 ATEX 1 491 X
In conformance with EMC Directive 2014/30/EU and Low
Voltage Directive 2014/35/EU
For DRR-20A and DRR-40A:
In conformance with Equipment for explosive atmospheres
(ATEX) directive 2014/34/EU
RoHS Directive 2011/65/EU Compliant (EN 50581)
Input & Output / PE
1.5KVac
ATEX
II 3G ATEX 2014/34/EU (For DRR-20A and DRR-40A)
CE
Material and Parts
Galvanic Isolation
EMC
Emissions (CE & RE)
Immunity
Electrostatic Discharge
IEC 61000-4-2
CISPR 32, EN 55032, EN 55011, FCC Title 47: Class B
EN 55024, EN 61000-6-2
Level 4 Criteria A
1)
Air Discharge: 15kV
Contact Discharge: 8kV
Level 3 Criteria A
1)
80MHz-1GHz, 10V/M, 80% modulation (1KHz)
Level 3 Criteria A
1)
2kV
Level 3 Criteria A
1)
Common Mode
2)
: 2kV
Differential Mode
3)
: 1kV
Level 3 Criteria A
1)
150kHz-80MHz, 10Vrms
Criteria A
1)
10A/Meter
Level 3 Criteria A
1)
Additional 100% dip; 1 cycle (20ms); No Damage
Level 3 Criteria A
1)
Common Mode
2)
: 2kV
Differential Mode
3)
: 1kV
Radiated Field
Electrical Fast Transient / Burst
Surge
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
Conducted
Power Frequency Magnetic Fields
Voltage Dips and Interruptions
Low Energy Pulse Test (Ring Wave)
IEC 61000-4-6
IEC 61000-4-8
IEC 61000-4-11
IEC 61000-4-12
Note: Product intended to be used as Apparatus with AC-DC Power Supply, EMC compliance to be verified in correspondence to the connected units.
1) Criteria A: Normal performance within the specification limits
2) Asymmetrical: Common (Line to earth)
3) Symmetrical: Differential mode (Line to line)
4
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
www.DeltaPSU.com (April 2018, Rev. 04)
TECHNICAL DATASHEET
CliQ II Redundancy Modules
20A / DRR-20
□
, 40A / DRR-40
□

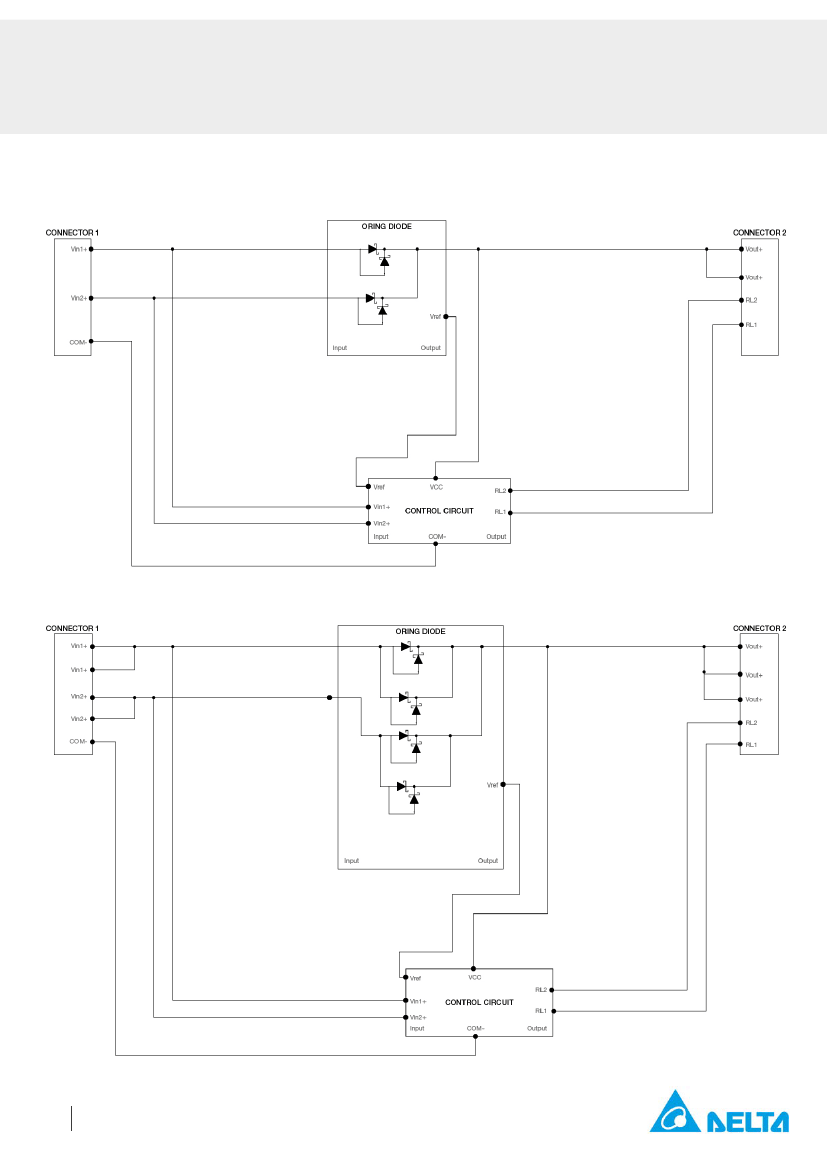

Block Diagram
DRR-20☐
DRR-40☐
5
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
