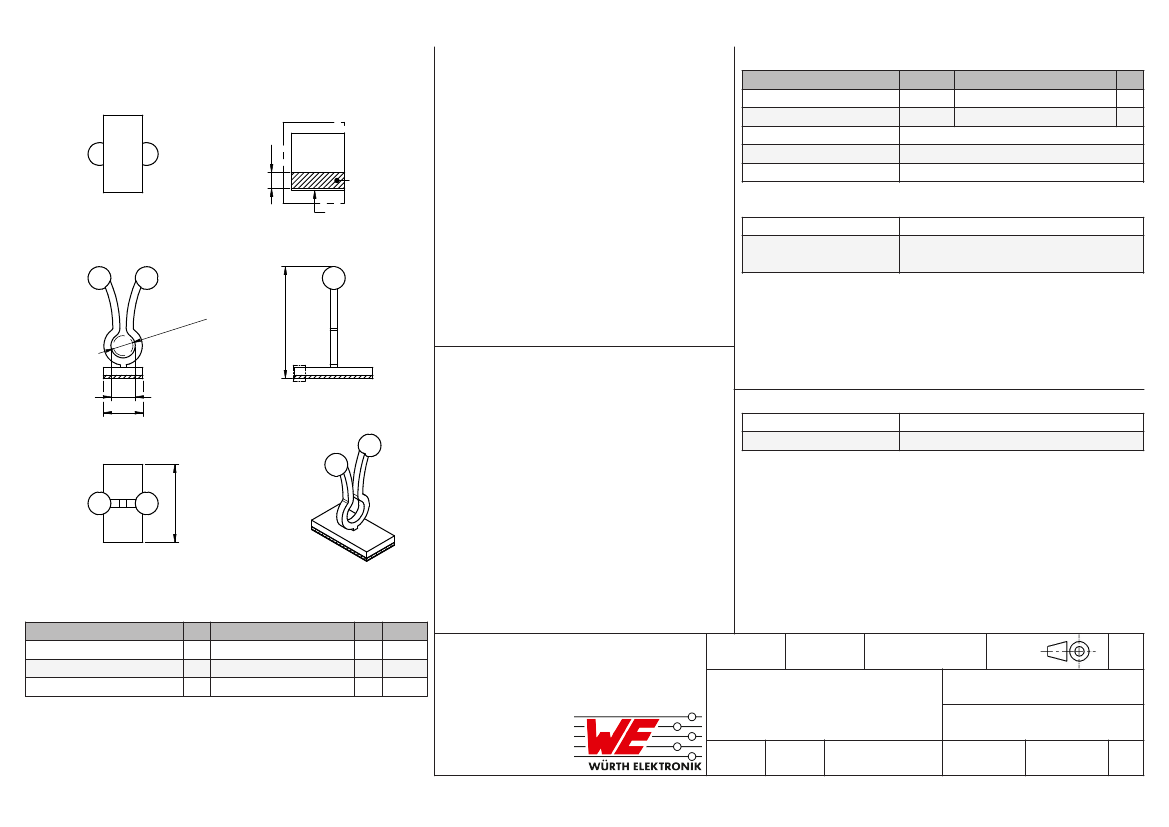

Dimensions: [mm]
detail A
0,8
Properties:
Properties
Inner Diameter
Inner Diameter closed
Material
Color
Adhesive tape
Release tape
Value
Ø ID
Ø ID closed
21
20
Nylon 66
Natural
UL94 V-2
Unit
mm
mm
Flammability Rating according to
General Information:
Operating Temperature
Operating Temperature Adhesive
Foil
-30 °C up to +85 °C
-30 °C up to +104 °C
d
lose
ID c
O
H
A
O
ID
L
Packaging Properties:
Packaging
Packaging Unit (Qty.)
Bag
250
Article Properties:
Properties
Length
Width
Height
L
W
H
Value
25
13
40
Unit
Tol.
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
W
mm ±0.4mm
mm ±0.3mm
mm ±0.4mm
DaMa
DESCRIPTION
JuSa
DIN ISO 2768-1m
Twister for Cables with Self-
Adhesive Base WA-CHTW
REVISION
STATUS
ORDER CODE
520208000
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
001.001
Valid
2017-05-12
eiCan
1/3
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Article Properties:
L
10 mm
20 mm
21 mm
25 mm
28 mm
38 mm
W
19.8 mm
13.0 mm
14.0 mm
20.0 mm
19.0 mm
13.0 mm
15.0 mm
20.0 mm
H
28.4 mm
22.7 mm
26.9 mm
33.1 mm
28.9 mm
28.8 mm
37.9 mm
40.0 mm
42.1 mm
56.6 mm
Ø ID
6.6 mm
8.5 mm
9.2 mm
15.0 mm
11.1 mm
9.4 mm
18.0 mm
21.0 mm
24.0 mm
36.0 mm
Ø ID closed
5.8 mm
7.2 mm
8.5 mm
13.8 mm
10.0 mm
8.2 mm
17.0 mm
20.0 mm
23.0 mm
34.0 mm
Order Code
520201000
520202000
520204000
520206000
520205000
520203000
520207000
520208000
520209000
520210000
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
DaMa
DESCRIPTION
JuSa
DIN ISO 2768-1m
Twister for Cables with Self-
Adhesive Base WA-CHTW
REVISION
STATUS
ORDER CODE
520208000
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
001.001
Valid
2017-05-12
eiCan
2/3
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
