UNLESS OTHERWISE STATED
ALL DIMENSIONS IN mm
DO NOT SCALE
LINEAR TOLERANCE
THIRD ANGLE PROJECTION
SIZE
(0.0) (0.00)
(0)
0-10mm
0.10
0.15
0.5
10-30mm
0.15
0.20
0.5
30-50mm
0.20
0.5
0.30
50-100mm
0.25
0.8
0.50
100-200mm
0.40 ANGULAR TOLERANCE 0.5 DEGREES
1.5
0.80
200-300mm
0.80 UNSPECIFIED RADII 0.25mm
2.0
1.20
300-500mm
1.00 DRAFT ANGLE 0.5 DEGREES
3.0
2.00
+500mm
1.50
5.0
3.00
ORG.SCALE
MATERIAL
ITEM No.
TITLE
UNCONTROLLED
Item
550260
Panel Thickness (mm)
0.7-3.0
W
15.1
L
15
4.8
1:1
H
15.1

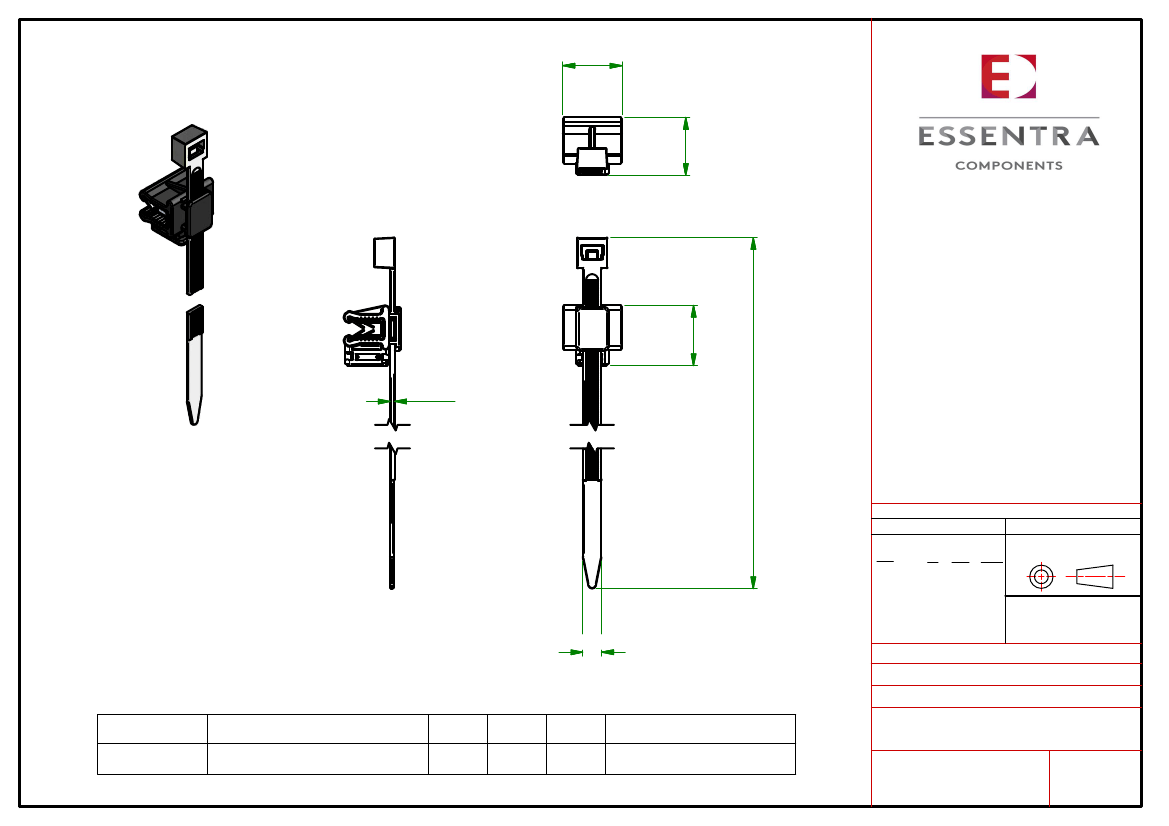

Cable Tie Size
200X4.8X1.2
DWG.No.
POLYAMIDE AND ST STEEL
550260
METAL EDGE CABLE TIE
MOUNTING CLIPS
ISSUE No.
SR6261-6
1
