ulTIMiFlux Dielectric Phase Change Thermal Material
CD-02-05
60
o
C/140
o
F PHASE-CHANGE TEMPERATURE
FEATURES AND BENIFITS
● Low Thermal Impedance
● Excellent Replacement for Thermal Greases
● Thixotropic / Prevents Compound Run-Out
● Excellent Mechanical & Dielectric Properties
● Cost Effective “Drop in Place” Solution
● RoHS and Halogen Free Compliant
Wakefield-Vette's
ulTIMiFlux
line of thermal interface materials offer high performance, low cost,
configurability and custom sizes for your thermal system needs. Thermal Interface Materials (TIM) are
a secondary material installed between the heat sink and the device which are designed to improve the
thermal transfer to the heat sink. Regardless of how flat or smooth the device and heat sink are, there
will always be small air voids between the two surfaces. Since air is a not a great conductor of heat, a
TIM replaces the air and fills the voids. There are many types of TIMs and each has its best case
usages. Wakefield-Vetts’s line of dielectric phase change thermal materials are intended to fill voids
between a device and the heat sink and utilizes a polyimide film to act as a thermally conductive carrier
in order to deliver a uniform thickness coating of phase-change thermal compound on both sides.
Through the development of this unique formulation,
Wakefield-Vette’s phase change solution offers
efficient thermal transfer by phase-changing during
normal device operating temperatures while
maintaining a uniform bond line thus driving out the
air and adjusting for any surface imperfections or
flatness conditions that may exist across the interface.
This construction is useful in a wide range of
electronic cooling applications from transistors,
diodes or any type of heat generating non-isolated
power device.

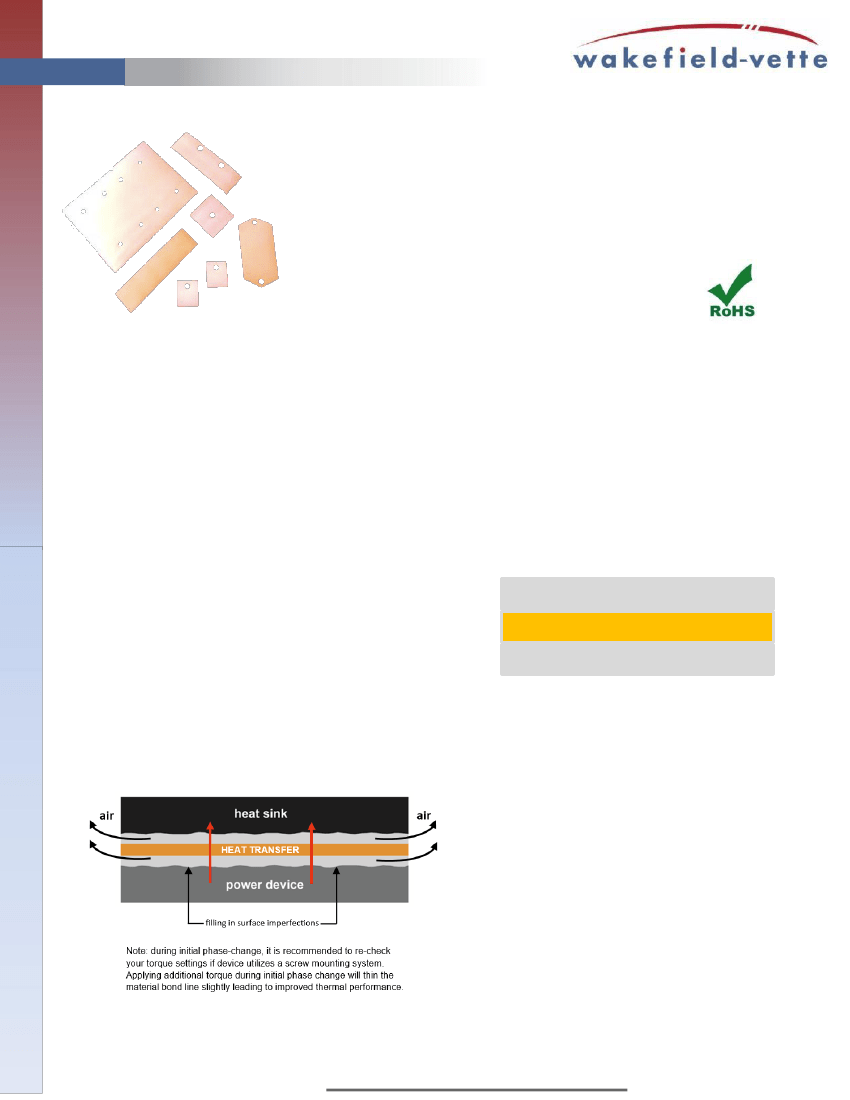

Standard Phase Change Pad Construction
Phase Change Compound
Polyimide Substrate Carrier
Phase Change Compound
A primary advantage of utilizing a phase-
change system is the ability to drive out air
from within the interface during initial device
cycling causing phase change and surface
wetting of the thermal compound coating.
The phase-change compound is available in
specific die cut patterns for common TO
packages and can be placed instantly and
immediately ready for component mounting.
Due to it’s thixotropic formulation design,
compound is held within the interface with no
worries of run-out into unwanted areas during
normal device/component operation.
www.wakefield-vette.com
ulTIMiFlux Dielectric PhaseChange Thermal Material
CD-02-05
Wakefield-Vette's phase-change product is a solvent free high performance dielectric thermal interface material
that is designed to provide efficient thermal transfer by providing precision phase-change and a uniform bond line
thickness across a device/component mounting interface. The pads are designed as a pre-formed thermally
conductive “drop in place” solution that offers excellent thermal transfer characteristics. From an installation
perspective, thermal greases are difficult to dispense as well as provide inadequate coverage and a uniform
thickness across the interface most often leaving trapped air leading to poor thermal transfer. Not to mention the
thermal grease clean up required in unwanted areas afterwards.
Wakefield-Vette offers the following pad sizes and die-cut TO package sizes for ease of installation:
WV Part Number
CD-02-05-220
CD-02-05-247
CD-02-05-264
CD-02-05-025
CD-02-05-127
CD-02-05-190
CD-02-05-LED-1
CD-02-05-LED-2
CD-02-05-220-N
CD-02-05-247-N
CD-02-05-220-2
CD-02-05-220-3
CD-02-05-247-2
CD-02-05-247-3
CD-02-05-218
CD-02-05-126
CD-02-05-66
CD-02-05-3-2
CD-02-05-3-4
CD-02-05-3-8
CD-02-05-DO4
CD-02-05-DO4-5
CD-02-05-DO5
CD-02-05-REC-125
CD-02-05-REC-125-N
CD-02-05-REC-112
CD-02-05-BRI-225
CD-02-05-C-18
CD-02-05-C-20
CD-02-05-C-22
CD-02-05-C-26
CD-02-05-C-34
CD-02-05-C-39
CD-02-05-C-46
CD-02-05-C-49
CD-02-05-C-54
Description
Phase Change TO-220 Pad with mounting hole
Phase Change TO-247 Pad with mounting hole
Phase Change TO-264 Pad with mounting hole
Phase Change 1” x 1” Square Pad
Phase Change 5” x 5” Square Pad
Phase Change 7.75” x 10.00” Rectangular Pad
Phase Change LED 1 Inch OD Circle Pad
Phase Change LED 2 Inch OD Circle Pad
Phase Change TO-220 Pad, NO HOLE
Phase Change TO-247 Pad, NO HOLE
Phase Change Dual Mount TO-220 Pad, 2 holes
Phase Change Triple Mount TO-220 Pad, 3 holes
Phase Change Dual Mount TO-247 Pad, 2 holes
Phase Change Triple Mount TO-247 Pad, 3 holes
Phase Change TO-218 Pad with hole
Phase Change TO-126 Pad with hole
Phase Change TO-66 Pad, 2 pin
Phase Change TO-3 Pad, 2 pin
Phase Change TO-3 Pad, 4 pin
Phase Change TO-3 Pad, 8 pin
Phase Change DO-4 Pad, 0.625" OD / 0.203" ID
Phase Change DO4/5 Pad 0.800" OD / 0.260" ID
Phase Change DO-5 Pad 1.00" OD / 0.250" ID
Phase Change Rectifier Pad 1.25" x 1.25" with hole
Phase Change Rectifier Pad 1.25" X 1.25", NO HOLE
Phase Change Rectifier Pad 1.12" x 1.12" with hole
Phase Change Bridge Rectifier Pad 2.25" x 1.75", 2 End Slots
Phase Change Chipset Pad 0.689" x 0.689", No Hole
Phase Change Chipset Pad 0.768" x 0.768", No Hole
Phase Change Chipset Pad 0.846" x 0.846", No Hole
Phase Change Chipset Pad 1.003" x 1.003", No Hole
Phase Change Chipset Pad 1.319" x 1.319", No Hole
Phase Change Chipset Pad 1.516" x 1.516", No Hole
Phase Change Chipset Pad 1.811" x 1.811", No Hole
Phase Change Chipset Pad 1.909" x 1.909", No Hole
Phase Change Chipset Pad 2.106" x 2.106", No Hole
Size
0.70” x 0.50”, single mounting hole
0.95” x 0.75”, single mounting hole
1.05” x 0.85”, single mounting hole
1” x 1”, no holes
5” x 5”, no holes
7.75” x 10.00”, no holes
1.00" Diameter Circle, No ID
2.00" Diameter Circle, No ID
0.70" x 0.50" NO HOLE
0.95" x 0.75" NO HOLE
1.00" x 0.50" 2 holes
1.50" x 0.50", 3 holes
1.50" x 0.95", 2 holes
2.25" x 0.95", 3 holes
0.80" x 0.60" with hole
0.50" x 0.35" with hole
1.25" x 0.70", 2 pin
1.55" x 1.05", 2 pin
1.55" x 1.05", 4 Pin
1.55" x 1.05", 8 Pin
0.625" OD / 0.203" ID
0.800" OD / 0.260" ID
1.00" OD / 0.250" ID
1.25" x 1.25" with hole
1.25" X 1.25", NO HOLE
1.12" x 1.12" with hole
2.25" x 1.75", 2 End Slots
0.689" x 0.689", No Hole
0.768" x 0.768", No Hole
0.846" x 0.846", No Hole
1.003" x 1.003", No Hole
1.319" x 1.319", No Hole
1.516" x 1.516", No Hole
1.811" x 1.811", No Hole
1.909" x 1.909", No Hole
2.106" x 2.106", No Hole
For use with
T0-220, with mounting holes
TO-247, with mounting holes
TO-264, with mounting holes
General Use
General Use
General Use
LED
LED
TO-220 with no mounting hole
TO-247 with no mounting hole
Dual Mount TO-220
Triple Mount TO-220
Dual Mount TO-247
Triple Mount TO-247
TO-218 with mounting hole
TO-126 with mounting hole
TO-66 (std 2 pin)
TO-3 (2 pin configuration)
TO-3 (4 pin configuration)
TO-3 (8 pin configuration)
DO-4
DO-4 / DO-5
DO-5
Rectifier
Rectifier
Rectifier
Bridge Rectifier
17.5mm x 17.5mm, chipset
19.5mm x 19.5mm, chipset
21.5mm x 21.5mm, chipset
25.5mm x 25.5mm, chipset
33.5mm x 33.5mm, chipset
38.5mm X 38.5mm, chipset
46mm X 46mm, chipset
48.5mm X 48.5mm, chipset
53.5mm x 53.5mm, chipset
Specific tests should be performed by the end user to determine the product suitability for the particular
application. Contact Wakefield-Vette sales and engineering support with any inquiries.
www.wakefield-vette.com
ulTIMiFlux Dielectric PhaseChange Thermal Material
CD-02-05
Wakefield-Vette's phase-change product physical properties / characteristics:
Property/Characteristics
Base Phase Change Formulation
Electrical Isolation
Phase Change Temperature
Viscosity @ Phase Change
Overall Thickness
Color
Separator Liner / Color
Total Mass Loss, % TML
Collectible Volatile, Condensable Matter, % CVC
Water Vapor Gain, % WVR
Storage Condition and Temperature
Shelf Life
Value
Proprietary
9200V
60oC / 140oF
Thixotropic
0.003” +/- 10%
Orange
White
0.138
0.130
0.021
Cool Dry Location at or below 35oC / 95oF
Indefinite if stored per conditions above
Due to temperature sensitive design, it is
recommended to ship air freight during warmer
months to prevent phase-change of thermal
compound during long ground transit (May-
September)
0.107 oC-in2 / Watt (@100 PSI)
UL94V-0
Transit Methods / Conditions
Thermal Impedence
UL Flammability Rating
Specific tests should be performed by the end user to determine the product suitability for the particular
application. Contact Wakefield-Vette sales and engineering support with any inquiries.
www.wakefield-vette.com
