CRYSTAL CLOCK OSCILLATORS
LVPECL HF/UHF CLOCK (XO)
Data Sheet 0631F
Rev.
-
AA-X29LXXX Series
Description
The
AA-X29LXXX Series
of quartz crystal oscillators provides ultra high frequency with LVPECL
complementary outputs. The outputs can be disabled for test automation or combining multiple clocks. The
device is based on low noise analog harmonic multiplication, and packaged in a miniature, low profile
leadless FR4 based package with gold plated pads, which enhances compatibility with PCB material.
Applications and Features
• Ultra High Frequency – 150.0MHz to 500.000MHz
• Fiber Channel; 10 GbE; Infiniband; Network Processors; SOHO Routing
• High Reliability - NEL HALT/HASS qualified for crystal oscillator start-up conditions
• Fast Rise and Fall times
• Tight frequency stability - ±20 ppm overall available
• RoHS Compliant, Lead Free Construction
• Low cost
Creating a Part Number
AA - X 29L X X X - FREQ
Package Code
Overall Frequency Stability, ppm
AA 6 pad 7.5x 5.2mm SMD
E ±20
F ±25
Input Voltage
G ±50
A
3.3V±5%
H ±100
B
2.5V±5%
9 Customer specific
Enable Option
L
Enable Low
N
N/C
Temperature Range, °C
A 0 to 50
B 0 to 70
C -20 to 70
D -40 to 85
9
Customer specific
357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881
Email:
nelsales@nelfc.com
www.nelfc.com
CRYSTAL CLOCK OSCILLATORS
AA-X29LXXX Series
Continued
LVPECL HF/UHF CLOCK (XO)
Data Sheet 0631F
Rev.
-
Absolute Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Supply Voltage
Enable/Disable Voltage
Parameter
Nominal Frequency
Supply Voltage
Supply current
Output Logic Type
Load
Output Levels
Sym
Fo
Vcc
Icc
Output to Vcc-2V, or
Thevenin Equivalent
overall
Symbol
To
Tst
Vcc
Ven/dis
Conditions, Note
Code A
Code B
Value
-40 to +85
-50 to +90
-0.5 to 4.5
0 to Vcc
MIN
150
3.135
2.375
TYP
3.3
2.5
80
LVPECL
50
MAX
500
3.465
2.625
100
Unit
ºC
ºC
V
V
Unit
MHz
V
mA
Ohm
V
Electrical Parameters
Voh
Vol
Duty Cycle (Symmetry)
Rise/Fall Time
Jitter
Integrated
Tr/Tf
J
Wavecrest
characterized
At 50% of output voltage
swing
20 to 80, 80 to 20 %
Integrated from Phase
Noise, 12 KHz to 20 MHz
, RMS
Random
period,
Accumul.,
pk-to-pk
Deterministic
Vcc-
1.025
Vcc-
1.620
45/55
50/50
0.35
0.2
55/45
0.4
%
ns
ps
2.5
2.5
25
3
6
-65
-95
-125
-140
-145
-148
See “Creating a Part Number”
Not all combinations available,
consult factory
Vcc-1
0
Vcc
Vcc-1.6
ps
ps
Phase Noise
£(∆f)
Frequency Stability
∆F/F
@ 10 Hz
@100 Hz
@1 KHz
@10KHz
@100KHz
@>1MHz
Overall, including initial
calibration, temperature,
aging 10 years, shock and
vibration
PECL logic “1"
PECL logic “0"
212.5 MHz
dBc/Hz
ppm
Enable Low Option
Pin 2 Disabled
Pin 2 Enabled
V
357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881
Email:
nelsales@nelfc.com
www.nelfc.com
CRYSTAL CLOCK OSCILLATORS
Rev. -
AA-X29LXXX Series
Continued
LVPECL HF/UHF CLOCK (XO)
Electrical Connection
Pin
Connection
1
Enable/Disable or No Connect
2
N.C.
3
Gnd
4
Output
5
/Output
6
V
CC

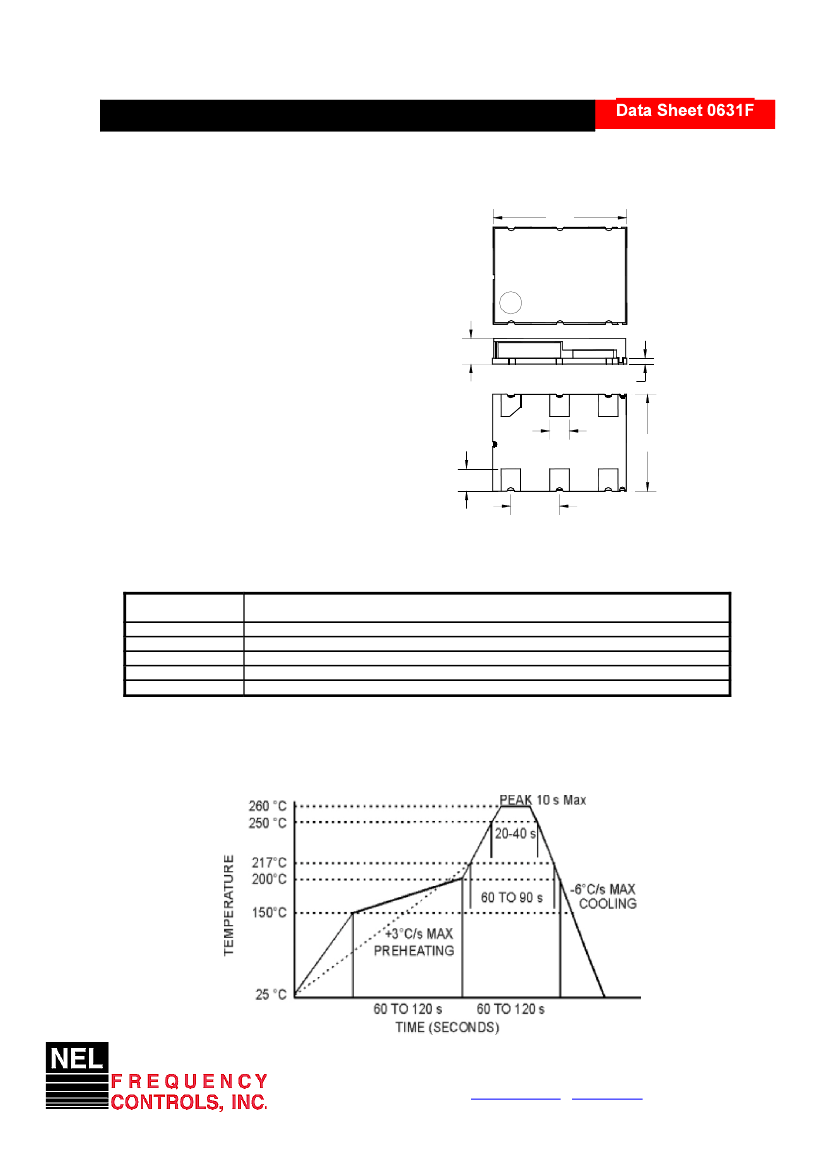

Dimensions are typical in mm
7.5
NEL
2.0
0.5
1
2
3
1.37
5.20
1.37
6
2.540
5
4
Environmental and Mechanical Characteristics
Operating temp.
range
Mechanical Shock
Thermal Shock
Vibration
Hermetic Seal
Soldering conditions
see part # table
Per MIL-STD-202, Method 213, Cond. E
Per MIL-STD-883, Method 1011, Cond. A
Per MIL-STD-883, Method 2007, Cond. A
Leak rate less than 1x10-8 atm.cc/s of helium
See MAX reflow profile below
Maximum Reflow Profile
357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881
Email:
nelsales@nelfc.com www.nelfc.com
