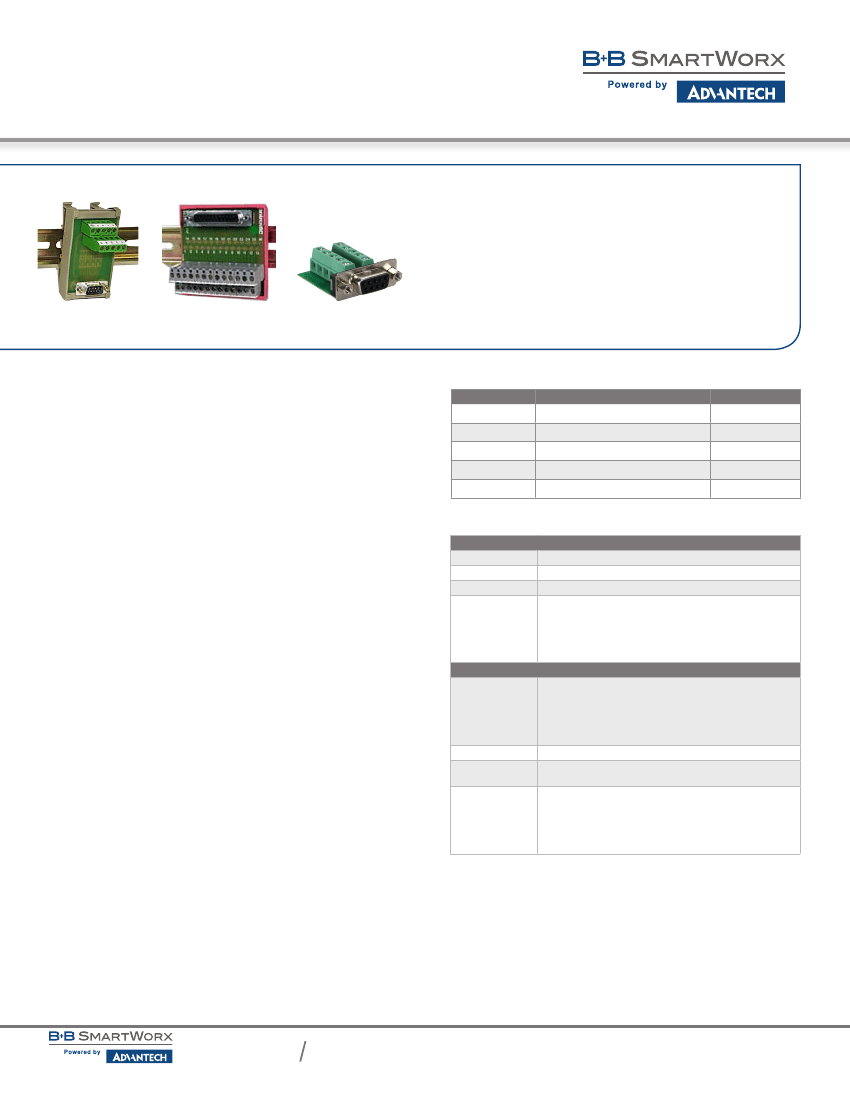

DB to Terminal Block Adapters
– DIN Rail Mount & Inline Versions
Models DR9MTB, DR9FTB, DR25FTB, DB9MTB, DB9FTB
www.advantech-bb.com
•
•
•
•
•
DR9MTB
DR25FTB
DB9FTB
PRODUCT FEATURES
Compact size for tight installation spaces
Simplify field wiring in industrial cabinets
Shielded ground terminal block
DIN rail versions - replace DIN mounted devices easily and quickly
Inline versions - connect quickly, plug and go
Make wiring easy in industrial cabinets or other installations with these DB to
terminal block adapters. Compact size is perfect for wiring areas with limited
space. DIN rail or inline installation options.
Connections can be made quickly without special tools. Install them once -
then replace components error-free with a simple unplug/re-plug, rather than
tediously unfastening and refastening numerous wires individually to terminal
blocks.
Each pin on the DB connector has a corresponding terminal block that is
marked. In addition, an extra terminal block is provided that connects to the
shield of the DB connector (used for grounding purposes). The DB connector
accepts industrial standard 4-40 locking screws.
ORDERING INFORMATION
MODEL NUMBER DESCRIPTION
DR9MTB
DR9FTB
DR25FTB
DB9MTB
DB9FTB
DB9 Male to Terminal Block Adapter
DB9 Female to Terminal Block Adapter
DB25 Female to Terminal Block Adapter
DB9 Male to Terminal Block Adapter
DB9 Female to Terminal Block Adapter
MOUNTING
DIN Rail Mount
DIN Rail Mount
DIN Rail Mount
Inline
Inline
SPECIFICATIONS
TECHNOLOGY
Terminal Blocks
Up to 14 AWG (Compression Clamp Terminal Blocks)
Voltage Rating
125 VAC, 150 VDC
Current Rating:
1A
DR9MTB: DB9 male
DR9FTB: DB9 female
DB Connector
DR25FTB: DB25 female
DB9MTB: DB9 male
DB9FTB: DB9 female
MECHANICAL
DR9FTB: 7.4 x 3.3 x 5.5 cm (2.9 x 1.3 x 2.1 in)
DR9MTB: 7.4 x 3.3 x 5.5 cm (2.9 x 1.3 x 2.1 in)
Dimensions
DR25FTB: 7.4 x 7.1 x 5.5 cm (2.9 x 2.8 x 2.1 in)
DB9MTB: 4.4 x 3.1 x 2.3 cm (1.7 x 1.2 x 0.9 in)
DB9FTB: 3.7 x 3.1 x 1.6 cm (1.5 x 1.2 x 0.5 in)
Housing
Plastic
35mm or 32mm DIN rail.
Mounting Options
Inline.
DR9MTB: 53.86 gm (1.9 oz)
DR9FTB: 53.86 gm (1.9 oz)
Weight
DR25FTB: 107.73 gm (3.8 oz)
DB9MTB: 22.68 gm (0.8 oz)
DB9FTB: 22.68 gm (0.8 oz)
All product specifications are subject to change without notice.
Dx9xTB_DR25FTB_3817ds
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
