Datasheet> All Categories > Discrete semiconductor> diode> R7220608ESOO

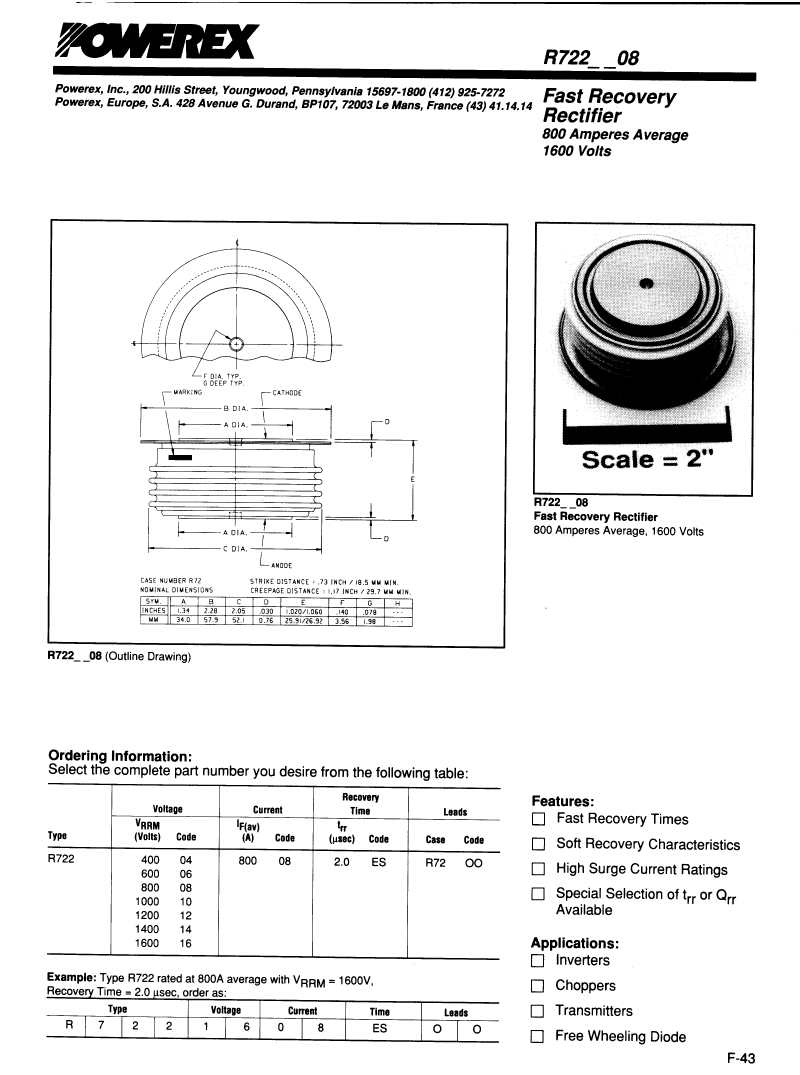

Preview

R7220608ESOO: DescriptionDIODE GEN PURP 600V 800A DO200AB; CategoryDiscrete semiconductor diode; File Size632KB，4 Pages; ManufacturerPOWEREX; Websitehttp://www.pwrx.com/Home.aspx; Environmental Compliance

Download Datasheet Parametric Compare View All

R7220608ESOO Overview

DIODE GEN PURP 600V 800A DO200AB

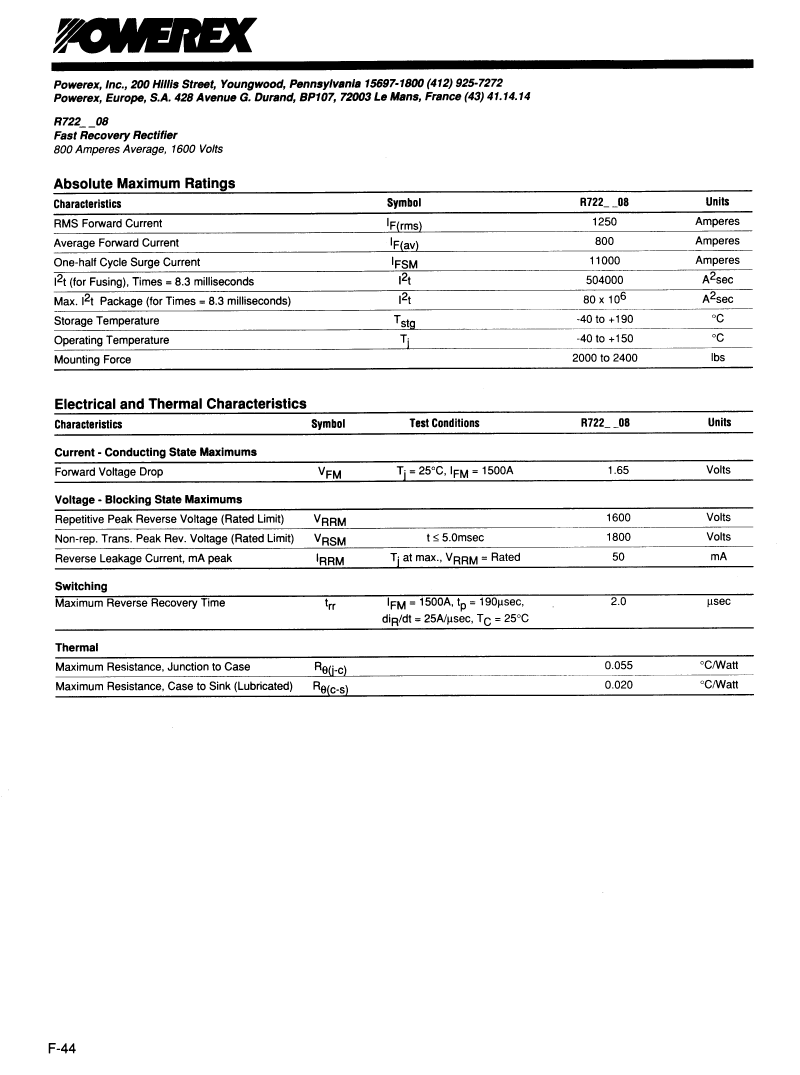

R7220608ESOO Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	POWEREX
package instruction	O-CEDB-N2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	FREE WHEELING DIODE
application	FAST SOFT RECOVERY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.7 V
JESD-30 code	O-CEDB-N2
Maximum non-repetitive peak forward current	11000 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	800 A
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	DISK BUTTON
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	600 V
Maximum reverse recovery time	2 µs
surface mount	YES
Terminal form	NO LEAD
Terminal location	END
Maximum time at peak reflow temperature	NOT SPECIFIED

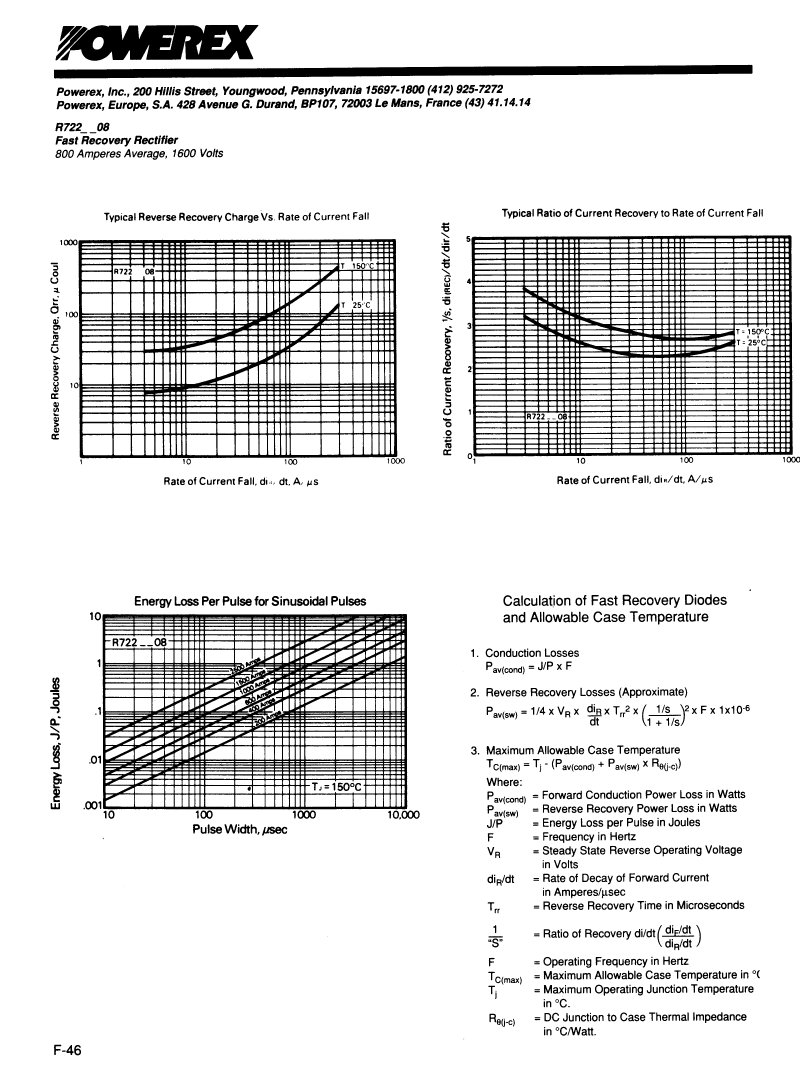

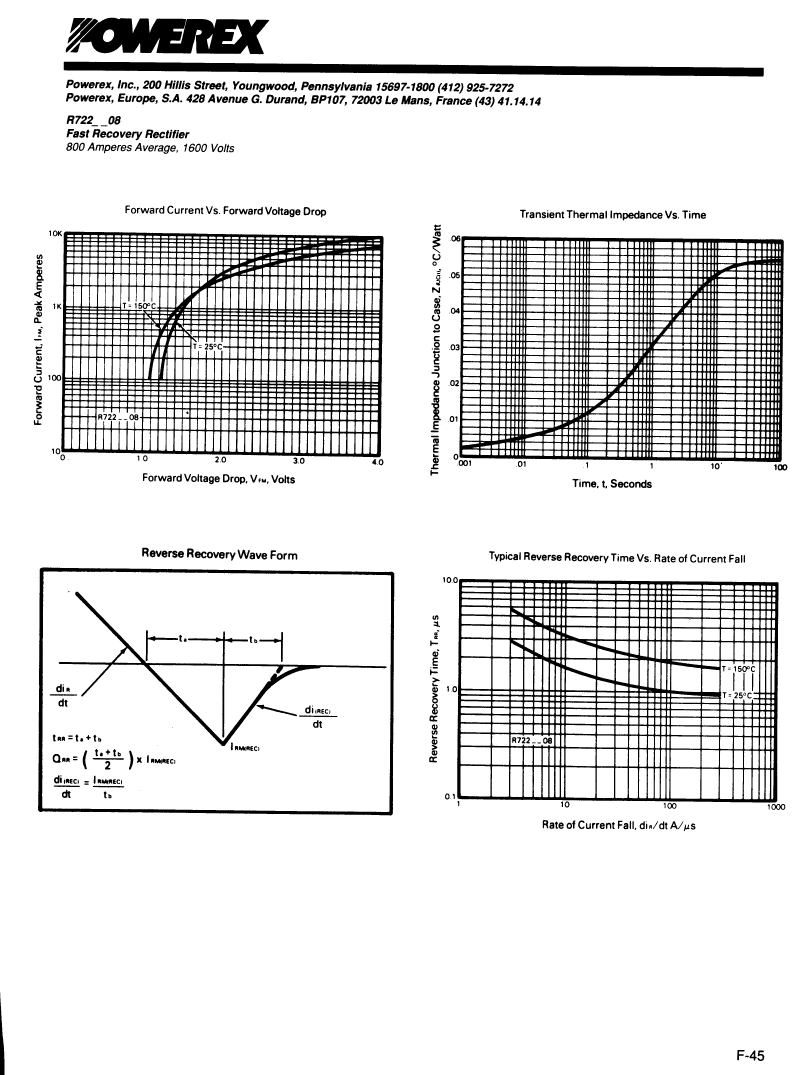

Preview

Download Datasheet

View All

R7220608ESOO Related Products

	R7220608ESOO	R7220208ESOO	R7220408ESOO	R7221608ASOO	R7221008ESOO	R7221608CSOO	R7221408ESOO	R7221208ESOO	R7220808ESOO
Description	DIODE GEN PURP 600V 800A DO200AB	DIODE GEN PURP 200V 800A DO200AB	DIODE GEN PURP 400V 800A DO200AB	DIODE GP 1.6KV 800A DO200AB	DIODE GEN PURP 1KV 800A DO200AB	DIODE GP 1.6KV 800A DO200AB	DIODE GP 1.4KV 800A DO200AB	DIODE GP 1.2KV 800A DO200AB	DIODE GEN PURP 800V 800A DO200AB
Diode type	RECTIFIER DIODE	standard	RECTIFIER DIODE	standard	RECTIFIER DIODE	standard	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Is it lead-free?	Lead free	-	Lead free	-	Lead free	-	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	-	conform to	-	conform to	-	conform to	conform to	conform to
Maker	POWEREX	-	POWEREX	-	POWEREX	-	POWEREX	POWEREX	POWEREX
Reach Compliance Code	unknown	-	unknown	-	unknown	-	unknown	unknown	unknown
ECCN code	EAR99	-	EAR99	-	EAR99	-	EAR99	EAR99	EAR99
Other features	FREE WHEELING DIODE	-	FREE WHEELING DIODE	-	FREE WHEELING DIODE	-	FREE WHEELING DIODE	FREE WHEELING DIODE	FREE WHEELING DIODE
application	FAST SOFT RECOVERY	-	FAST SOFT RECOVERY	-	FAST SOFT RECOVERY	-	FAST SOFT RECOVERY	FAST SOFT RECOVERY	FAST SOFT RECOVERY
Configuration	SINGLE	-	SINGLE	-	SINGLE	-	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	-	SILICON	-	SILICON	-	SILICON	SILICON	SILICON
Maximum forward voltage (VF)	1.7 V	-	1.7 V	-	1.7 V	-	1.7 V	1.7 V	1.7 V
JESD-30 code	O-CEDB-N2	-	O-CEDB-N2	-	O-CEDB-N2	-	O-CEDB-N2	O-CEDB-N2	O-CEDB-N2
Maximum non-repetitive peak forward current	11000 A	-	11000 A	-	11000 A	-	11000 A	11000 A	11000 A
Number of components	1	-	1	-	1	-	1	1	1
Phase	1	-	1	-	1	-	1	1	1
Number of terminals	2	-	2	-	2	-	2	2	2
Maximum operating temperature	150 °C	-	150 °C	-	150 °C	-	150 °C	150 °C	150 °C
Minimum operating temperature	-40 °C	-	-40 °C	-	-40 °C	-	-40 °C	-40 °C	-40 °C
Maximum output current	800 A	-	800 A	-	800 A	-	800 A	800 A	800 A
Package body material	CERAMIC, METAL-SEALED COFIRED	-	CERAMIC, METAL-SEALED COFIRED	-	CERAMIC, METAL-SEALED COFIRED	-	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND	-	ROUND	-	ROUND	-	ROUND	ROUND	ROUND
Package form	DISK BUTTON	-	DISK BUTTON	-	DISK BUTTON	-	DISK BUTTON	DISK BUTTON	DISK BUTTON
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	-	Not Qualified	-	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	600 V	-	400 V	-	1000 V	-	1400 V	1200 V	800 V
Maximum reverse recovery time	2 µs	-	2 µs	-	2 µs	-	2 µs	2 µs	2 µs
surface mount	YES	-	YES	-	YES	-	YES	YES	YES
Terminal form	NO LEAD	-	NO LEAD	-	NO LEAD	-	NO LEAD	NO LEAD	NO LEAD
Terminal location	END	-	END	-	END	-	END	END	END
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
