IL-G-7P-S3L2-SA-1 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> IL-G-7P-S3L2-SA-1

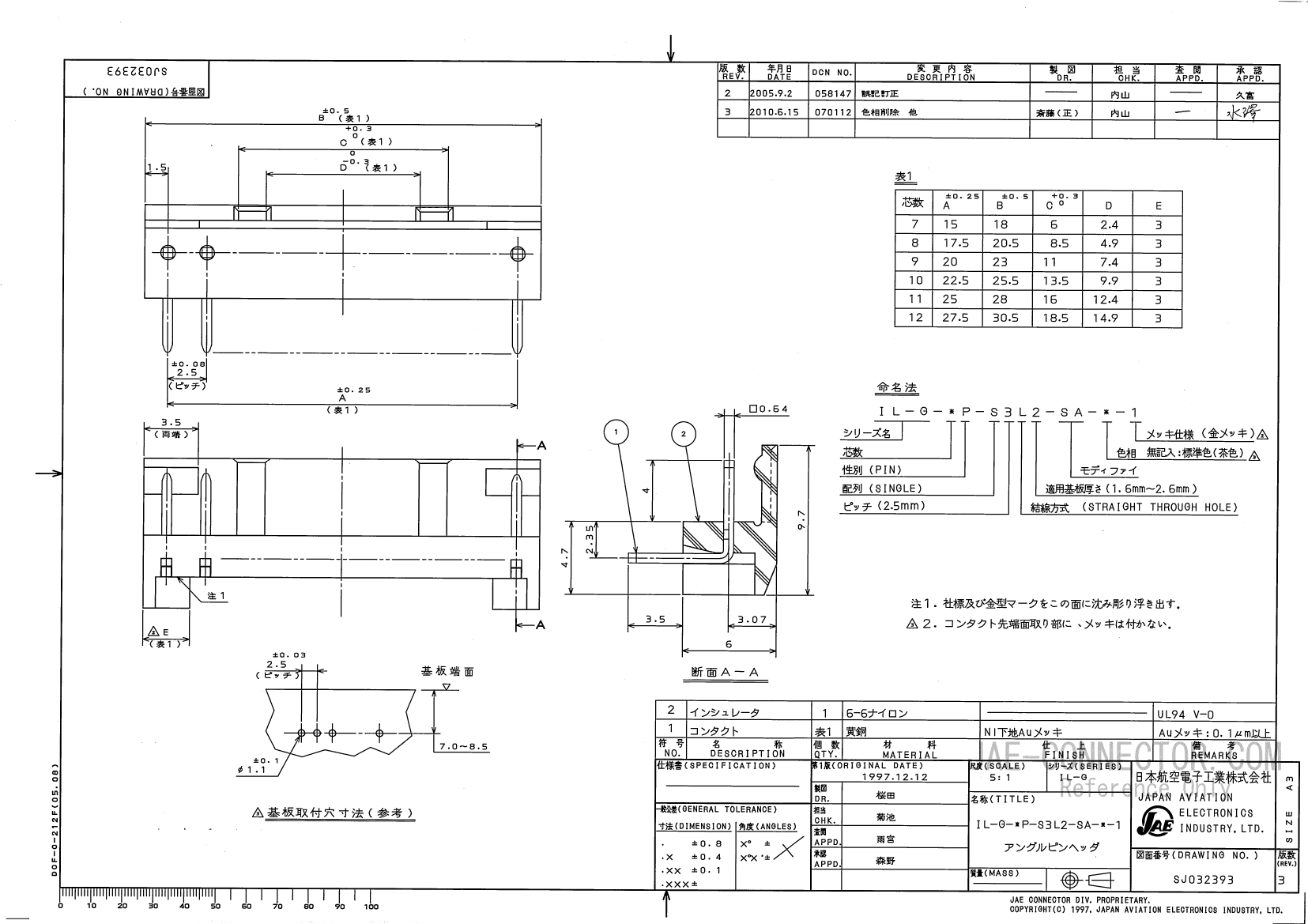

Preview

IL-G-7P-S3L2-SA-1: DescriptionCONN HEADER; CategoryThe connector; File Size110KB，1 Pages; ManufacturerJAE Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

IL-G-7P-S3L2-SA-1 Overview

CONN HEADER

IL-G-7P-S3L2-SA-1 Parametric

Parameter Name	Attribute value
Connector type	Connector
Contact type	Male pin
Spacing - Mating	0.098"（2.50mm）
Number of pins	7
Number of rows	1
Line spacing - patching	-
Number of pins loaded	all
style	Board to cable/wire
shield	Covered - 1 wall
Installation type	Through hole, right angle
Termination	welding
Fastening type	friction lock
Contact Length - Mating	0.157"（4.00mm）
Contact length - terminal	0.138"（3.50mm）
Overall contact length	-
Insulation height	0.236"（6.00mm）
Contact shape	Square
Contact surface treatment - mating	gold
Contact Surface Treatment Thickness - Mating	3.90µin（0.099µm）
Contact Surface Preparation - Column	-
Contact material	brass
Insulation Materials	Polyamide (PA66), Nylon 66
characteristic	-
Operating temperature	-40°C ~ 85°C
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	brown
Rated current	3A/contact
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	-
application	-

Preview

Download Datasheet

View All

IL-G-7P-S3L2-SA-1 Related Products

	IL-G-7P-S3L2-SA-1	IL-G-10P-S3L2-SA-1	IL-G-11P-S3L2-SA-1	IL-G-12P-S3L2-SA-1	IL-G-12P-S3T2-SA-1	IL-G-13P-S3L2-SA-1	IL-G-8P-S3L2-SA-1	IL-G-9P-S3L2-SA-1
Description	CONN HEADER	CONN HEADER	CONN HEADER	CONN HEADER	CONN HEADER	CONN HEADER	CONN HEADER	CONN HEADER
Connector type	Connector	Connector	Connector	Connector	Connector	Connector	Connector	Connector
Contact type	Male pin	Male pin	Male pin	Male pin	Male pin	Male pin	Male pin	Male pin
Spacing - Mating	0.098"（2.50mm）	0.098"（2.50mm）	0.098"（2.50mm）	0.098"（2.50mm）	0.098"（2.50mm）	0.098"（2.50mm）	0.098"（2.50mm）	0.098"（2.50mm）
Number of pins	7	10	11	12	12	13	8	9
Number of rows	1	1	1	1	1	1	1	1
Number of pins loaded	all	all	all	all	all	all	all	all
style	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire
shield	Covered - 1 wall	Covered - 1 wall	Covered - 1 wall	Covered - 1 wall	Covered - 1 wall	Covered - 1 wall	Covered - 1 wall	Covered - 1 wall
Installation type	Through hole, right angle	Through hole, right angle	Through hole, right angle	Through hole, right angle	Through hole	Through hole, right angle	Through hole, right angle	Through hole, right angle
Termination	welding	welding	welding	welding	welding	welding	welding	welding
Fastening type	friction lock	friction lock	friction lock	friction lock	friction lock	friction lock	friction lock	friction lock
Contact Length - Mating	0.157"（4.00mm）	0.157"（4.00mm）	0.157"（4.00mm）	0.157"（4.00mm）	0.157"（4.00mm）	0.157"（4.00mm）	0.157"（4.00mm）	0.157"（4.00mm）
Contact length - terminal	0.138"（3.50mm）	0.138"（3.50mm）	0.138"（3.50mm）	0.138"（3.50mm）	0.138"（3.50mm）	0.138"（3.50mm）	0.138"（3.50mm）	0.138"（3.50mm）
Insulation height	0.236"（6.00mm）	0.236"（6.00mm）	0.236"（6.00mm）	0.236"（6.00mm）	0.280"（7.10mm）	0.236"（6.00mm）	0.236"（6.00mm）	0.236"（6.00mm）
Contact shape	Square	Square	Square	Square	Square	Square	Square	Square
Contact surface treatment - mating	gold	gold	gold	gold	gold	gold	gold	gold
Contact Surface Treatment Thickness - Mating	3.90µin（0.099µm）	3.90µin（0.099µm）	3.90µin（0.099µm）	3.90µin（0.099µm）	3.90µin（0.099µm）	3.90µin（0.099µm）	3.90µin（0.099µm）	3.90µin（0.099µm）
Contact material	brass	brass	brass	brass	brass	brass	brass	brass
Insulation Materials	Polyamide (PA66), Nylon 66	Polyamide (PA66), Nylon 66	Polyamide (PA66), Nylon 66	Polyamide (PA66), Nylon 66	Polyamide (PA66), Nylon 66	Polyamide (PA66), Nylon 66	Polyamide (PA66), Nylon 66	Polyamide (PA66), Nylon 66
Operating temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation color	brown	brown	brown	brown	brown	brown	brown	brown
Rated current	3A/contact	3A/contact	3A/contact	3A/contact	3A/contact	3A/contact	3A/contact	3A/contact
