RCWE
www.vishay.com
Vishay Dale
Thick Film Surface Mount Chip Resistors,
Wraparound, Extremely Low Value (0.01
to 0.976
)
FEATURES
• Extremely low resistance values
(0.01
to 0.976
)
• Sulfur resistant (per ASTM B809-95 humid vapor
test)
• Enhanced power rating due to long side terminal
construction (0612, 1020 types)
• Suitable for current sensing and shunts
• Metal glaze on high quality ceramic
• Protective overglaze
• Lead (Pb)-free solder contacts on Ni barrier layer
• AEC-Q200 qualified
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
DESIGN SUPPORT TOOLS
Models
Available
click logo to get started
STANDARD ELECTRICAL SPECIFICATIONS
GLOBAL
MODEL
RCWE0402
CASE SIZE
POWER RATING
P
70 °C
W
0.125
TEMPERATURE
COEFFICIENT
± ppm/°C
400
200
100
700
400
200
100
400
300
200
100
300
200
100
600
300
200
100
500
300
200
100
200
100
600
300
200
100
600
300
200
100
RESISTANCE
RANGE
0.033 to 0.05
0.051 to 0.196
0.2 to 0.976
0.010 to 0.018
0.02 to 0.0324
0.033 to 0.105
0.11 to 0.976
0.010 to 0.018
0.02 to 0.0324
0.033 to 0.05
0.051 to 0.976
0.010 to 0.016
0.018 to 0.2
0.205 to 0.976
0.010 to 0.018
0.02 to 0.0324
0.033 to 0.05
0.051 to 0.976
0.010 to 0.018
0.02 to 0.0324
0.033 to 0.05
0.051 to 0.976
0.010 to 0.016
0.0162 to 0.976
0.010 to 0.018
0.02 to 0.0324
0.033 to 0.05
0.051 to 0.976
0.010 to 0.018
0.02 to 0.0324
0.033 to 0.05
0.051 to 0.976
TOLERANCE
±%
5.0
1.0, 5.0
0.5
(1)
, 1.0, 5.0
5.0
1.0, 5.0
1.0, 5.0
0.5
(1)
, 1.0, 5.0
5.0
1.0, 5.0
1.0, 5.0
0.5
(1)
, 1.0, 5.0
2.0, 5.0
2.0, 5.0
1.0, 5.0
5.0
1.0, 5.0
1.0, 5.0
0.5
(1)
, 1.0, 5.0
5.0
1.0, 5.0
1.0, 5.0
0.5
(1)
, 1.0, 5.0
2.0, 5.0
1.0, 5.0
5.0
1.0, 5.0
1.0, 5.0
0.5
(1)
, 1.0, 5.0
5.0
1.0, 5.0
1.0, 5.0
0.5
(1)
, 1.0, 5.0
E-SERIES
(2)
24
24; 96
24
24; 96
24
24; 96
0402
RCWE0603
0603
0.2
RCWE0805
0805
0.25
RCWE0612
0612
1.0
24
24; 96
24
24; 96
24
24; 96
24
24; 96
24
24; 96
24
24; 96
RCWE1206
1206
0.5
RCWE1210
1210
1.0
RCWE1020
1020
2.0
RCWE2010
2010
1.0
RCWE2512
2512
2.0
Notes
• Power rating depends on the max. temperature at the solder point, the component placement density and the substrate material
• Part marking: Reference “Surface Mount Resistor Marking” (www.vishay.com/doc?20020)
(1)
Tight tolerance of 0.5 % is available for resistance values above 0.300
(0402 size) and above 0.200
(0603 to 2512 sizes)
(2)
Use E24 decades only for 5.0 % tolerance. E24 or E96 decades are available for 0.5 % and 1.0 % tolerance. Refer to standard decade table
(www.vishay.com/doc?31001)
Revision: 21-Aug-2018
Document Number: 20019
1
For technical questions, contact:
ww2bresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
RCWE
www.vishay.com
Vishay Dale

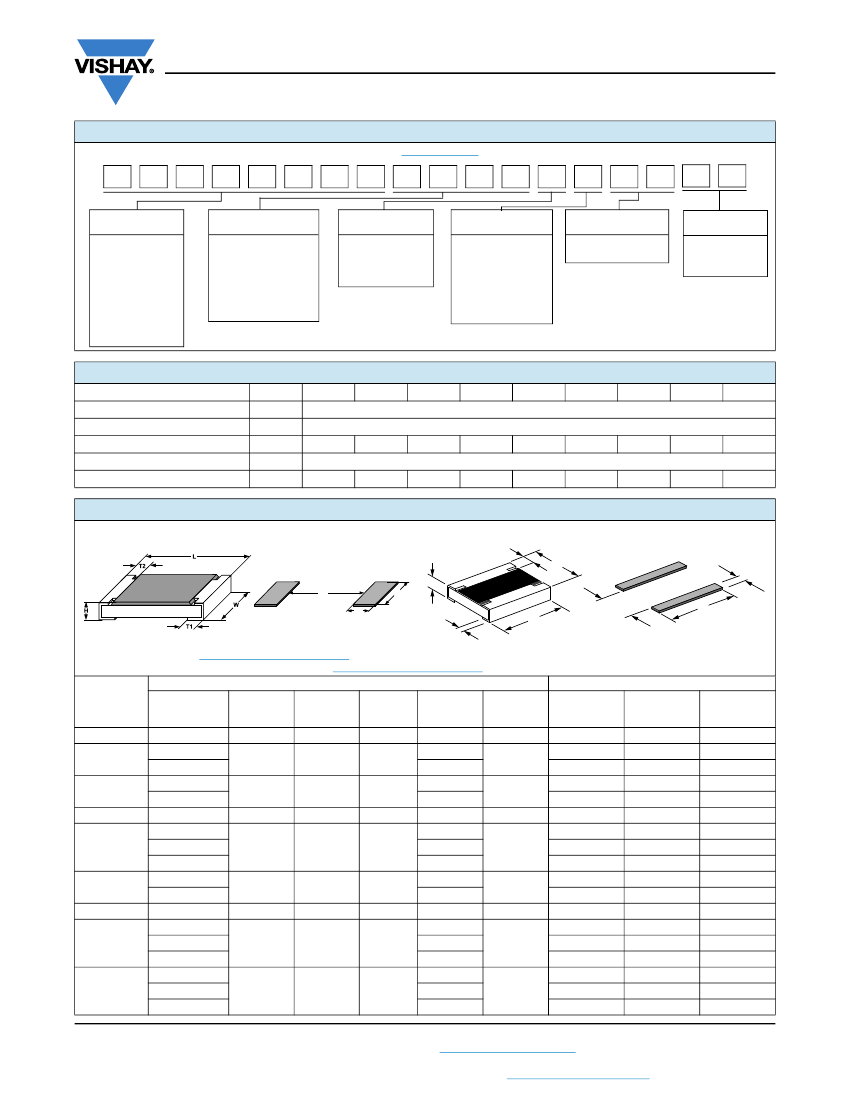

GLOBAL PART NUMBER INFORMATION
Global Part Numbering example: RCWE060351L0FNEA
(visit
www.vishay.net
Vishay Dale parts numbering manual for all options)
R
C
W
E
0
6
0
3
5
1
L
0
F
N
E
A
SPECIAL
(up to 2 digits)
(dash number)
from
1 to 99
as
applicable
GLOBAL MODEL
(8 digits)
RCWE0402
RCWE0603
RCWE0805
RCWE0612
RCWE1206
RCWE1210
RCWE1020
RCWE2010
RCWE2512
VALUE
(4 digits)
L
= m *
R
= decimal
10L0
= 0.01
R470
= 0.47
Note:
* Use “L” for resistance
values < 0.1
TOLERANCE
(1 digit)
D
= ± 0.5 %
F
= ± 1.0 %
G
= ± 2.0 %
J
= ± 5.0 %
TCR
(1 digit)
K
= ± 100 ppm/°C
N
= ± 200 ppm/°C
M
= ± 300 ppm/°C
Q
= ± 400 ppm/°C
P
= ± 500 ppm/°C
T
= ± 600 ppm/°C
G
= ± 700 ppm/°C
PACKAGING
(2 digits)
EA
= lead (Pb)-free,
tape/reel
TECHNICAL SPECIFICATIONS
PARAMETER
Operating temperature range
Maximum operating voltage
Insulation voltage
U
ins
(1 min)
Insulation resistance
Weight/1000 pieces (typical)
UNIT
°C
V
V
g
0.7
3
5.5
11.5
> 75
> 100
> 200
> 100
0402
0603
0805
0612
1206
-55 to +155
(P x
R)
1/2
> 300
> 10
9
10.5
17.5
27.5
26
40.5
> 300
> 300
> 300
> 300
1210
1020
2010
2512
DIMENSIONS
RCWE0402 to RCWE2512
RCWE0612, RCWE1020
T2
L
H
l
a
b
a
l
W
T1
b
•
3D models available:
www.vishay.com/doc?31106
• Surface mount solder profile recommendations:
www.vishay.com/doc?31052
DIMENSIONS
in millimeters
RESISTANCE
SIZE
RANGE
L
W
H
T1
0402
0.033 to 0.976 1.05 ± 0.05 0.55 ± 0.05 0.35 ± 0.1 0.3 ± 0.15
0.01 to 0.03
0.5 ± 0.2
0603
1.6 ± 0.1
0.85 ± 0.1 0.5 ± 0.1
0.033 to 0.976
0.3 ± 0.2
0.01 to 0.03
0.6 ± 0.2
0805
2.0 ± 0.15
1.3 ± 0.1 0.55 ± 0.1
0.033 to 0.976
0.4 ± 0.2
0612
0.01 to 0.976
1.6 ± 0.2
3.2 ± 0.2
0.6 ± 0.1 0.4 ± 0.15
0.01 to 0.03
0.9 ± 0.2
1206
0.033 to 0.05 3.1 ± 0.15 1.6 ± 0.15 0.6 ± 0.1
0.8 ± 0.2
0.051 to 0.976
0.45 ± 0.2
0.01 to 0.03
0.8 ± 0.2
1210
3.1 ± 0.2
2.5 ± 0.2
0.6 ± 0.1
0.033 to 0.976
0.4 ± 0.2
1020
0.01 to 0.976
2.5 ± 0.2
5.0 ± 0.2
0.6 ± 0.1 0.55 ± 0.15
0.01 to 0.03
1.6 ± 0.3
2010
0.033 to 0.05
5.0 ± 0.2
2.5 ± 0.15 0.6 ± 0.1
0.7 ± 0.3
0.051 to 0.976
0.7 ± 0.3
0.01 to 0.03
2.0 ± 0.3
2512
0.033 to 0.05
6.3 ± 0.2 3.15 ± 0.15 0.6 ± 0.1
0.8 ± 0.3
0.051 to 0.976
0.8 ± 0.3
Revision: 21-Aug-2018
SOLDER PAD DIMENSIONS
in millimeters
T2
0.25 ± 0.1
0.3 ± 0.2
0.35 ± 0.2
0.25 ± 0.15
0.45 ± 0.2
a
0.7
0.9
0.7
1.0
0.8
0.9
1.3
1.2
1.0
1.3
0.9
1.2
2.3
1.4
1.4
2.8
1.6
1.6
b
0.7
1.0
1.0
1.4
1.4
3.5
1.8
1.8
1.8
2.6
2.6
5.5
3.0
3.0
3.0
3.6
3.6
3.6
l
0.3
0.4
0.8
0.6
1.0
0.8
1.0
1.2
1.6
1.1
2.0
1.4
1.4
3.2
3.2
1.4
3.8
3.8
0.4 ± 0.2
0.30 ± 0.15
0.6 ± 0.2
0.6 ± 0.2
Document Number: 20019
2
For technical questions, contact:
ww2bresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
RCWE
www.vishay.com
DERATING
Rated Power in %
120
100
80
Vishay Dale
60
40
20
0
-55
-25
0
25
75
70
100
125
155
175
Ambient Temperature in °C
PERFORMANCE
TEST
Thermal shock
Short time overload
High temperature exposure
Temperature cycling
Biased humidity
Mechanical shock
Vibration
Operational life
Resistance to solder heat
Moisture resistance
CONDITIONS OF TEST
MIL-STD-202, method 107, -55 °C to +125 °C, 300 cycles at each extreme
2x rated power; size and duration - 0402: 0.5 s, 0603 and 0805: 1 s,
1206 and larger: 2 s
MIL-STD-202, method 108, 1000 h at T = 125 °C, 0 % power
JESD 22, method JA-104, 1000 cycles (-55 °C to +125 °C)
MIL-STD-202, method 103, 1000 h 85 °C/85 % RH, 10 % x (P x
R)
1/2
MIL-STD-202, method 213, condition C, 10
g’s,
6 ms (half sine), 3 directions
MIL-STD-202, method 204, 5
g’s,
20 min, 12 cycles, 3 directions, 10 Hz to 2000 Hz
MIL-STD-202, method 108, 1000 h at T = 125 °C at rated power
MIL-STD-202, method 210, +260 °C solder, 10 s to 12 s dwell, 25 mm/s
emergence
MIL-STD-202, method 106, 0 % power, 7a and 7b not required
TEST LIMITS
± 1.0 % + 0.0005
± 0.5 % + 0.0005
± 2.0 % + 0.0005
± 2.0 % + 0.0005
± 2.0 % + 0.0005
± 1.0 % + 0.0005
± 1.0 % + 0.0005
± 2.0 % + 0.0005
± 1.0 % + 0.0005
± 2.0 % + 0.0005
PACKAGING
MODEL
RCWE0402
RCWE0603
RCWE0805
RCWE0612
RCWE1206
RCWE1210
RCWE1020
RCWE2010
RCWE2512
REEL
TAPE WIDTH
8 mm/punched paper
8 mm/punched paper
8 mm/punched paper
8 mm/punched paper
8 mm/punched paper
8 mm/punched paper
12 mm/embossed plastic
12 mm/embossed plastic
12 mm/embossed plastic
DIAMETER
180 mm/7"
180 mm/7"
180 mm/7"
180 mm/7"
180 mm/7"
180 mm/7"
180 mm/7"
180 mm/7"
180 mm/7"
PITCH
2 mm
4 mm
4 mm
4 mm
4 mm
4 mm
4 mm
4 mm
8 mm
PIECES/REEL
10 000
5000
5000
5000
5000
5000
4000
4000
2000
CODE
EA
EA
EA
EA
EA
EA
EA
EA
EA
Notes
• Embossed carrier tape per EIA-481-1A
• Additional packaging details at:
www.vishay.com/doc?31543
Revision: 21-Aug-2018
Document Number: 20019
3
For technical questions, contact:
ww2bresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of
typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding
statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a
particular product with the properties described in the product specification is suitable for use in a particular application.
Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over
time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.
Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for
such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document
or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
© 2017 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED
Revision: 08-Feb-17
1
Document Number: 91000
