DCMO150318-5-1

Description
Voltage Controlled Oscillator, 1500MHz Min, 3200MHz Max, ROHS COMPLIANT PACKAGE-16
CategoryPassive components    oscillator
File Size325KB,3 Pages
ManufacturerSYNERGY
Websitehttp://www.synergymwave.com/
Environmental Compliance
Download Datasheet Parametric View All

DCMO150318-5-1 Overview

Voltage Controlled Oscillator, 1500MHz Min, 3200MHz Max, ROHS COMPLIANT PACKAGE-16

DCMO150318-5-1 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionROHS COMPLIANT PACKAGE-16
Reach Compliance Codecompli
Maximum control voltage20 V
Minimum control voltage0.5 V
Modulation sensitivity160 MHz/V
Installation featuresSURFACE MOUNT
offset frequency10 kHz
Maximum operating frequency3200 MHz
Minimum operating frequency1500 MHz
Maximum operating temperature85 °C
Minimum operating temperature-30 °C
Oscillator typeVOLTAGE CONTROLLED OSCILLATOR
Output Power7 dBm
phase noise-93 dBc/Hz
physical size12.7mm x 12.7mm x 4.06mm
Maximum slew rate30 mA
Nominal supply voltage5 V
surface mountYES
Base Number Matches1

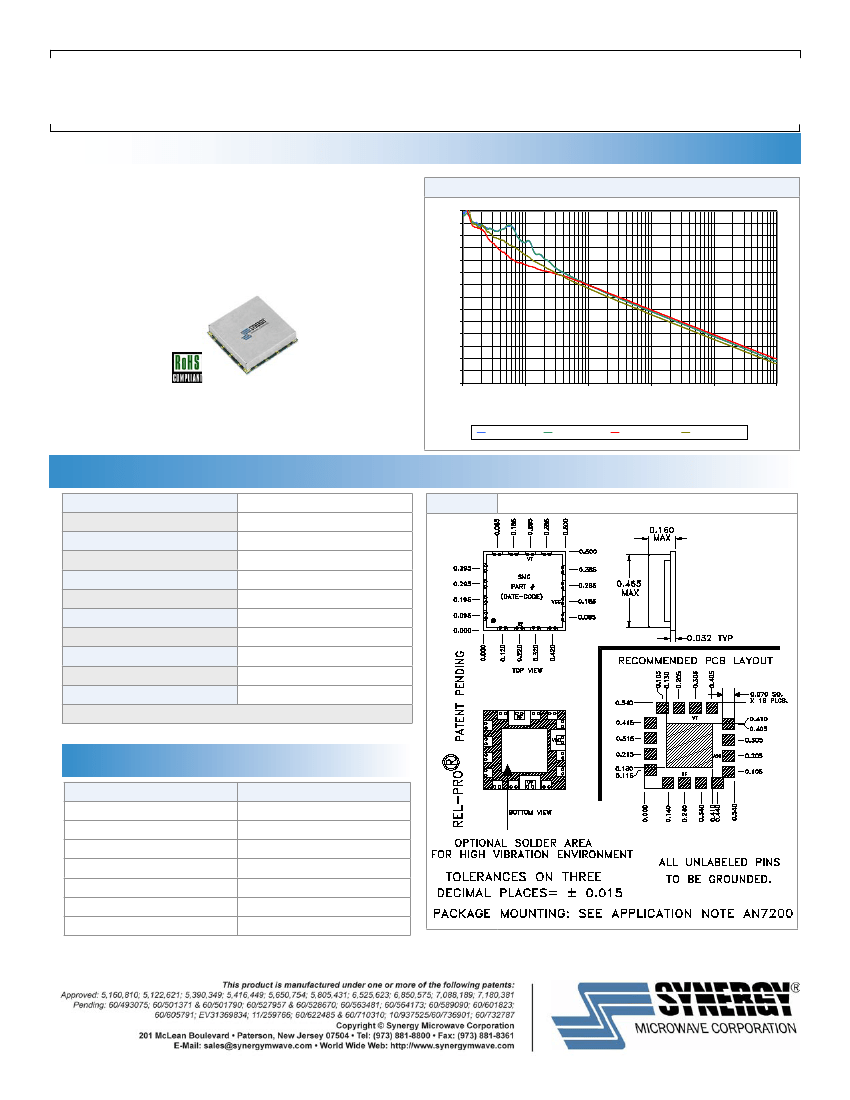

VOLTAGE CONTROLLED OSCILLATOR
SURFACE MOUNT MODEL:
DCMO150318-5-1
WIDE BANDWIDTH
FEATURES:
Exceptional Phase Noise Performance
Small Size, Surface Mount
Lead Free REL-PRO
®
Technology
Phase Noise
-30
-40
-50
-60
Phase Noise (dBc/Hz)
1500 - 3200 MHz
-70
-80
-90
-100
-110
-120
-130
-140
-150
-160
-170
100
1000
10000
100000
1000000
10000000
Offset Frequency (Hz)
1410.2MHz/0V
1410.2MHz/0V
3403.4MHz/25V
2401.2MHz/8.3V
SPECIFICATIONS (Rev. B 10/20/06)
Frequency
Tuning Voltage
Bias Voltage
Output Power

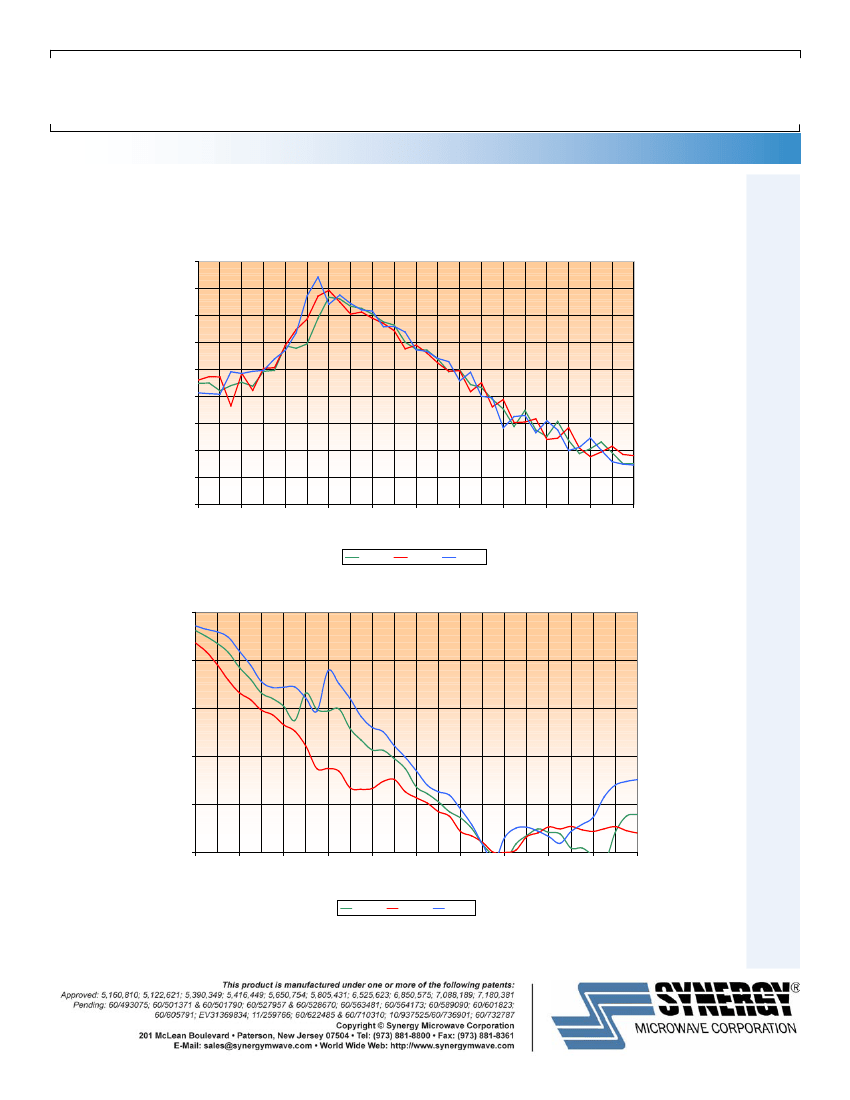

Tuning Sensitivity
Output Impedance
Harmonic Suppression
Frequency Pulling
Frequency Pushing
Phase Noise @ 10 kHz
Operating Temperature Range
* Internally regulated
1500-3200 MHz
See table below.
+5 VDC @ 30 mA (Max)
+7 dBm (Min)
40-160 MHz/V (TYP)
50 Ohms (Nom)
10 dB (Typ.)
10 MHz (Typ. @ 1.75:1 VSWR)
5 MHz/V (Typ.)
-93 dBc/Hz (Typ)
-30 to +85 °C
Package #
278LF

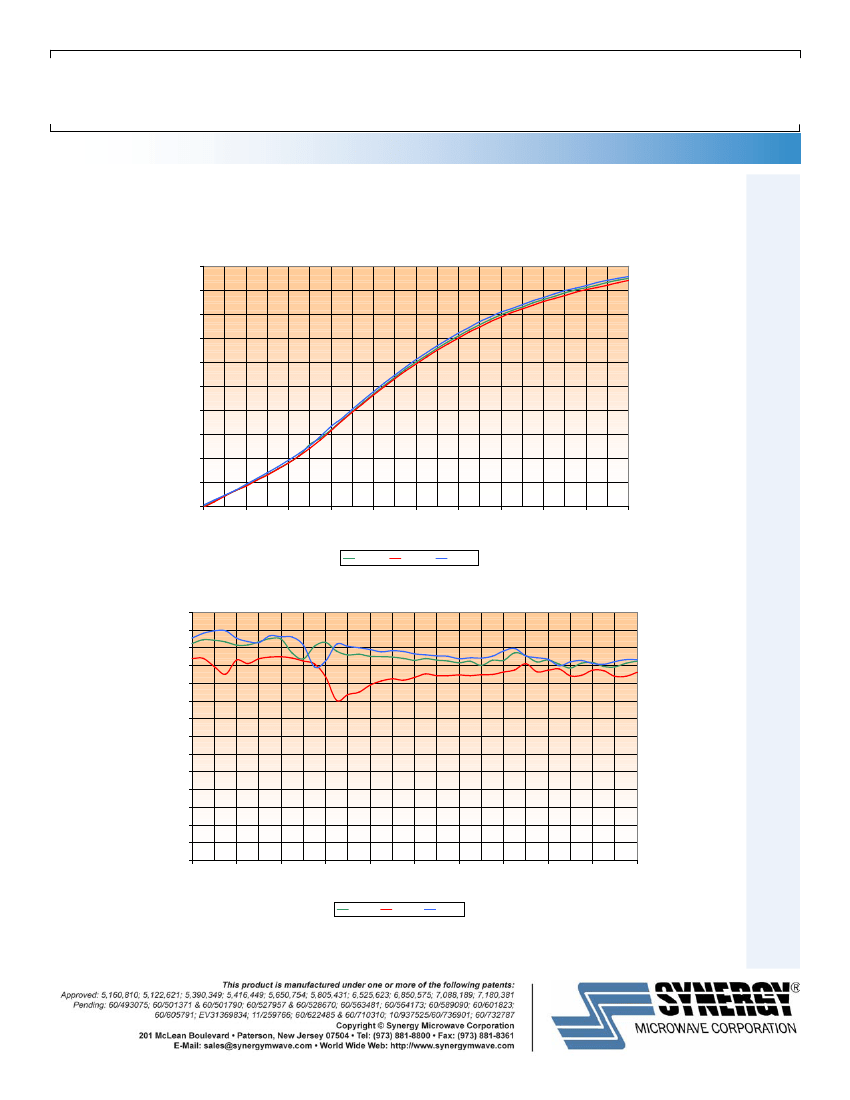

Guaranteed Tuning Specifications
Tuning Voltage ( V )
0.5
5
8
12
15
18
20
Frequency ( MHz )
1500 (Max)
1800 (Min)
2100 (Min)
2700 (Min)
2900 (Min)
3180 (Min)
3200 (Min)
