1845180300 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1845180300

1845180300: DescriptionCircular Connector, 3 Contact(s), PUR, Female, Socket; CategoryThe connector The connector; File Size44KB，2 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/

Download Datasheet Parametric View All

1845180300 Overview

Circular Connector, 3 Contact(s), PUR, Female, Socket

1845180300 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Back shell type	SOLID
Body/casing type	SOCKET
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Coupling type	SNAP
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation type	CABLE
Options	WITH CABLE ASSEMBLY
Shell material	PUR
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

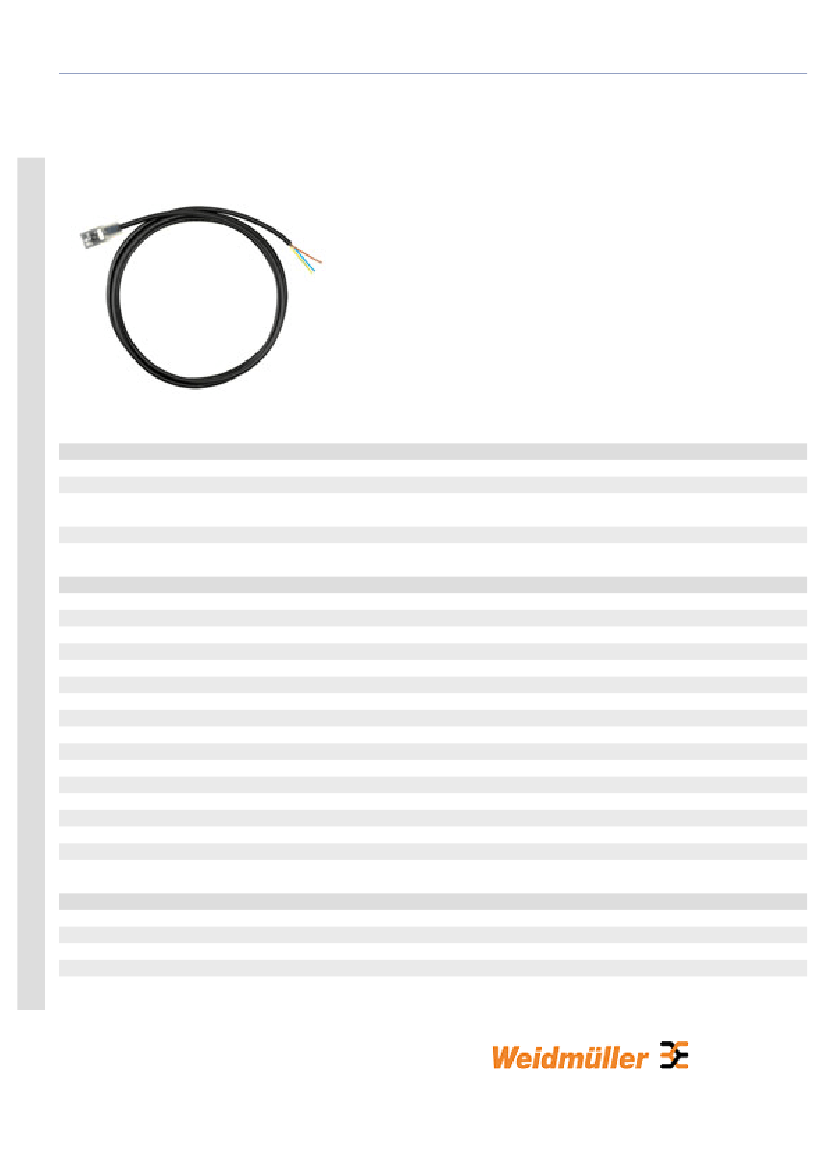

Product catalogue | Sensor-Actuator-Interface (SAI) | SAI - lines & plug-in connectors | Valve plug with integral seal |

Type C/CD | Type C | SAIL-VSC-(0,5)

General ordering data

Order No.

Part designation

Version

EAN

Qty.

Technical data

Ambient temperature, max.

Ambient temperature, min.

Cable diameter, min

Connection cross-section

Contact gap, valve plug

Contact material

Contact surface

Contact tube diameter

Core cross-section

Material (text)

Protection class

Rated current

Rated voltage

Sheathing colour

No. of poles

Version

Cable length

Classifications

ETIM 2.0

ETIM 3.0

eClass 4.1

eClass 5.0

eClass 5.1

1845180300

SAIL-VSC-3.0U(0.5)

Valve plugs with integral seal, One end without

connector - valve plug, C, Socket

4032248358724

1 pc(s).

80 °C

-25 °C

5 mm

0,5

9.4 mm

CuZn

tinned

Miscellaneous

0.5 mm²

PUR

IP 67

24 V

black

One end without connector - valve plug

EC000304

EC001855

27-26-07-01

-1-
