Electrical Specifications at 25 deg C Temp Range -40 ° C to 120 ° C
Part Number
PA2742NL
PA2741NL
PA2752NL
PA2748NL
PA3927NL
PA2743NL
PA2749NL
PA2744NL
PA2751NL
PA2745NL
PA2746NL
PA2750NL
PA2747NL
PA2756NL
PA2757NL
PA2754NL
PA2753NL
PA2755NL
PA2670NL
PG1265NL
Inductance
4
per Winding
(uH +30%/-35%)
397
94
10150
1125
800
383*
536
280
486
130*
96*
400
61*
484
1030
215
95
117
500
380
Irated
1
(Arms or Adc)
1
1.1
1.4
1.8
3
3.3
3.8
4
4.2
5
6
6
7
8
9
10
12.5
14
16
20
DCR per Winding
(mΩ Max)
92
30
210
55
27
18
17.1
13.2
16
6.75
4.3
9.4
2.9
7.7
9.75
3.75
3
1.95
4.25
4.1
Leakage Inductance
(uH Min)
0.6
0.3
25
3
1.5
1
1.2
0.7
1
0.4
0.25
1.25
0.15
1.5
3
0.5
0.15
0.3
1.5
1.2
Package Name
High Shasta
Low Shasta
LCCI-50
Polecat
Polecat
Polecat
LCCI-37
Polecat
LCCI-44LP
Polecat
Polecat
LCCI-44
Polecat
LCCI-50
HCCI-80
Makeni
LCCI-50
Makeni
HCCI-80
HCCI-80
Package Size
LxWxH
(mm Max)
9.1 x 8.9 x 7.9
9.1 x 8.9 x 3.8
19.6 x 17.0 x 9.9
12.7 x 13.2 x 5.6
13x13x8.6
13.0 x 13.0 x 5.6
16.4 x 14.2 x 8.9
13.0 x 13.0 x 5.6
18.2 x 15.0 x 7.6
13.2 x 13.2 x 5.6
13.2 x 13.2 x 5.6
18.2 x 15.0 x 10.0
13.5 x 13.5 x 5.6
19.6 x 17.0 x 9.9
31.0 x 25.4 x 12.7
21.1 x 19.1 x 11.2
19.6 x 17.0 x 9.9
21.1 x 19.1 x 11.2
31.0x25.4x12.7
31.0x25.4x12.7
NOTE:
1. The current rating (Irated) is based upon the temperature rise of the component and represents the rms current which will cause a typical temperature rise of 55C with 50LFM forced cooling.
2. The temperature of the component (ambient plus temperature rise) must be within the stated operating temperature range.
3. Optional Tape & Reel packaging can be ordered by adding a “T” suffix to the part number (i.e. PA2741NL becomes PA2741NLT). Pulse complies to industry standard tape and reel specification EIA481.
4. Components identified by an asterisk have an inductance tolerance of +/- 35%. All other components are +30/-35%.
5. Parts marked with the AEC-Q200 symbol are AEC-Q200 qualified. Parts not identified as AEC-Q200 are still under test.
1
power.pulseelectronics.com
P688.L (03/18)
http://www.power.pulseelectronics.com/contact
SMT Common Mode Chokes
1.0A to 20.0A
Impedance Plots
700
600
Impedance (ohms)
500
400
300
200
100
0
0.1
PA2741NL
PA2753NL
1
Frequency (MHz)
PA2745NL
PA2754NL
10
PA2746NL
PA2755NL
PA2747NL
100
3500
Impedance (ohms)
3000
2500
2000
1500
1000
500
0
0.1
1
Frequency (MHz)
10
100
PA2742NL
PA2750NL
PA2743NL
PA2751NL
PA2744NL
PA2756NL
PA2748NL
PA2757NL
PA2749NL
2
power.pulseelectronics.com
P688.L (03/18)
http://www.power.pulseelectronics.com/contact
SMT Common Mode Chokes
1.0A to 20.0A
Impedance Plots
3500
3000
2500
2000
1500
1000
500
0
0.1
1
PA2670NL
PA3927NL
10
PG1265NL
100
30000
Impedance (ohms)
25000
20000
15000
10000
5000
0
0.1
1
Frequency (MHz)
PA2752NL
10
100
3
power.pulseelectronics.com
P688.L (03/18)
http://www.power.pulseelectronics.com/contact
SMT Common Mode Chokes
1.0A to 20.0A

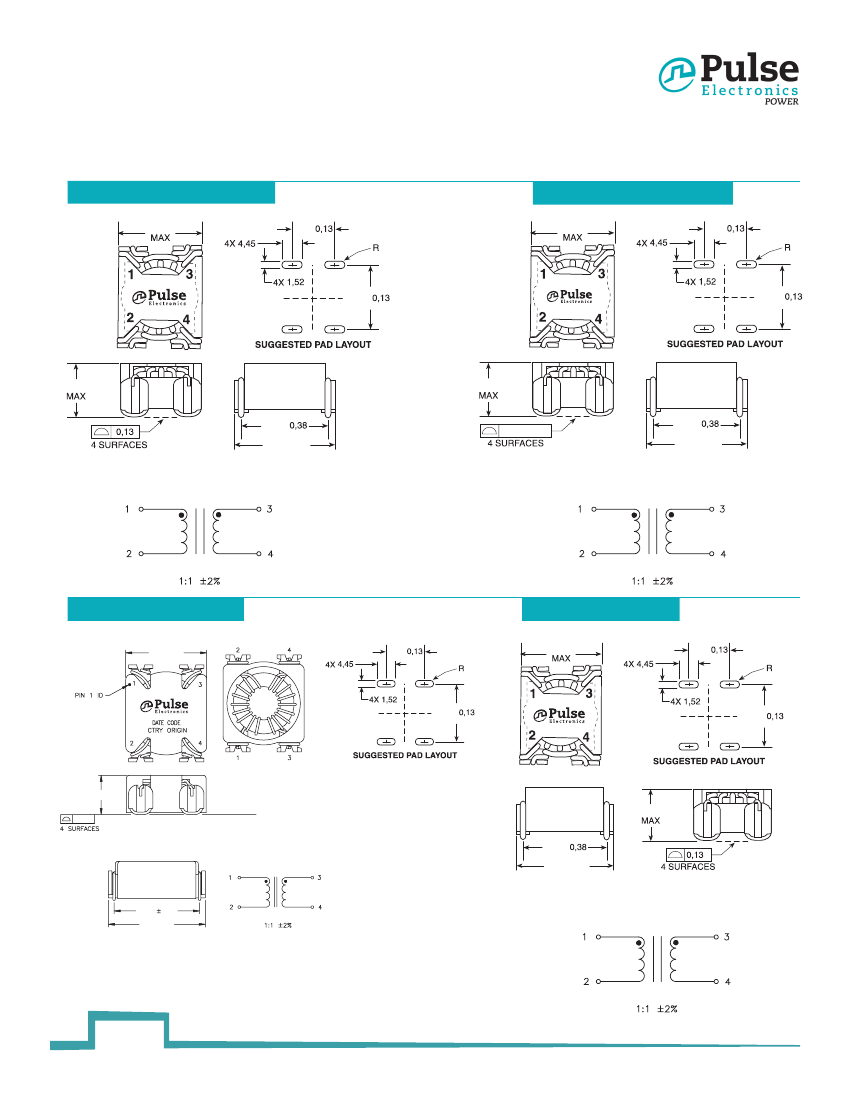

Mechanicals
Low Shasta - PA2741NL
High Shasta - PA2742NL
Schematic
Schematic
Please note that for PA2741NL and PA2742NL the part should be connected as follows:
Customer to connect pins (1,2) and (4,3) together on board to form a single winding (1,2-4,3).
Customer to connect pins (8,7) and (5,6) together on board to form a single winding (8,7-5,6)
All ratings (leakage and DCR) are with respect to the above winding configuration.
