ED500/6DS: DescriptionTERMINAL BLOCK 5MM 6POS PCB; CategoryThe connector; File Size656KB，1 Pages; ManufacturerOn Shore Technology Inc.; Environmental Compliance

Download Datasheet Parametric View All

ED500/6DS Overview

TERMINAL BLOCK 5MM 6POS PCB

ED500/6DS Parametric

Parameter Name	Attribute value
Number of levels	1
Number of pins per level	6
spacing	0.197"（5.00mm）
Mating direction	Horizontal, with board
current	15A
Voltage	300V
Wire gauge	14-22 AWG
Installation type	Through hole
wire termination	Screws - leaf springs, wire guards
characteristic	-
color	blue
Operating temperature	-30°C ~ 105°C
Shell material	Polyamide (PA), nylon
Contact material - plating	brass
Fixture Material - Plating	Stainless steel
Screw material - coating	-
Torque - Screws	0.4 Nm（3.5 Lb-In）
Thread	M2.6

Preview

Download Datasheet

View All

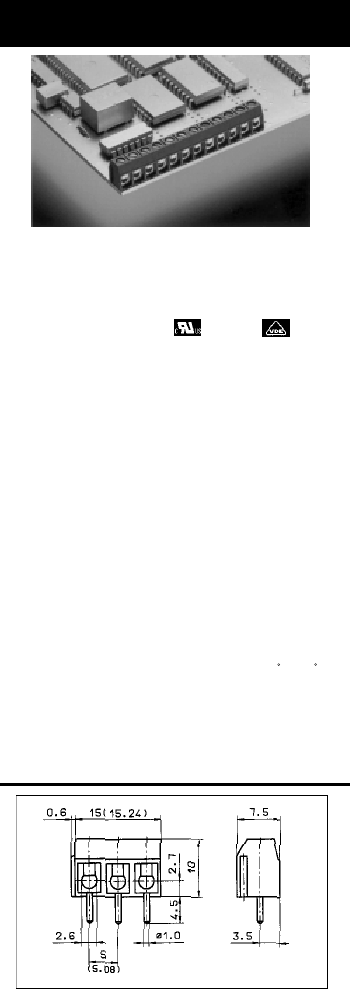

ED500/X (5.0 mm)

EDZ500/X (5.08 mm)

2-12 poles, Spacing 5.0 mm or 5.08 mm

insert required no. of poles

x

How to order see page 5

Ratings:

Rated Voltage

Rated Current

Wire Size

Test Voltage

Rated Torque/ScrewSize

Max. Rated Cross Section

Single Wire (solid)

Stranded Wire (flexible)

Stranded wire with Ferrules

Dimensions

Spacing

PCB Hole Diameter

Stripped Length

Materials

Insulating Material

Flammability Class

Temperature Range

Terminal Block

Wire Guard

Color

Blue

300V

15 A

AWG 22-14

250 V

17.5 A (T60)

1.5 mm

2

2.0 kV

0.4 Nm/M2.6

1.5 mm

2

1.5 mm

2

0.75 mm

2

5.0 mm (5.08 mm)

1.3 mm

6.0 mm

PA

UL94 V-0

-30 C/+105 C

CuZn

Stainless Steel
