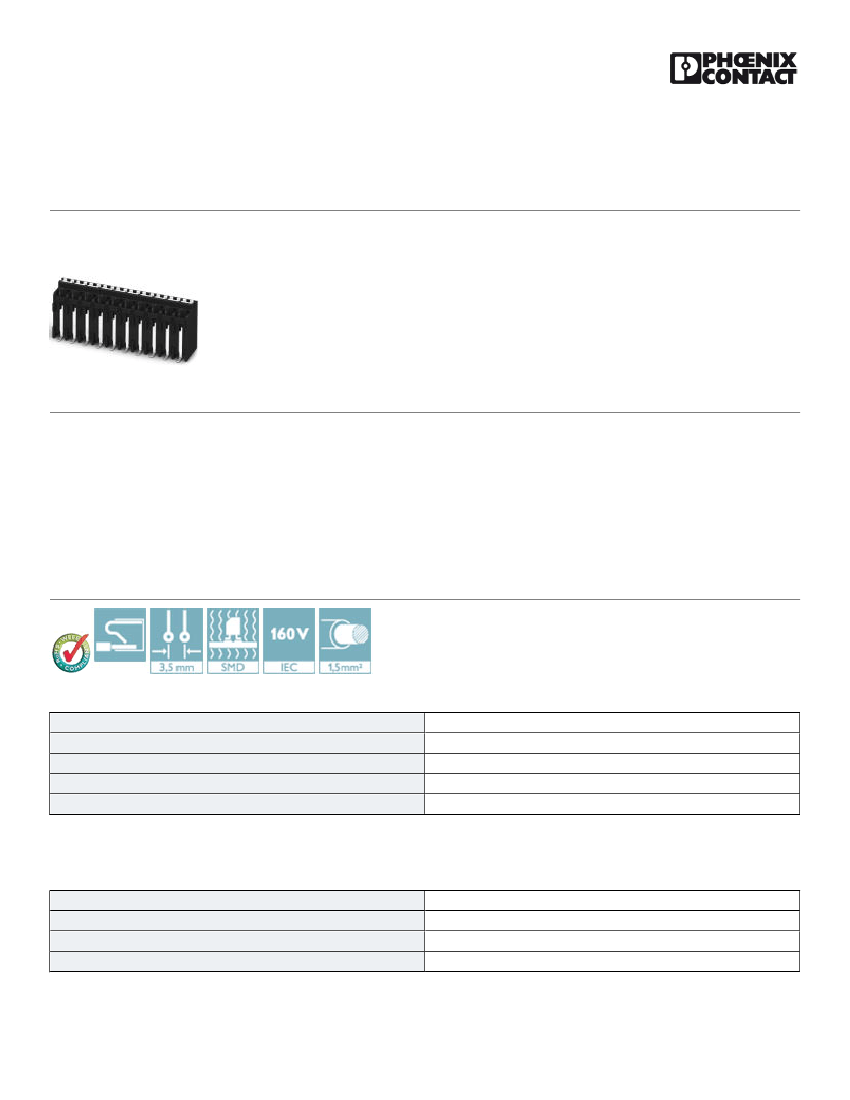

PCB terminal block - SPT-SMD 1,5/ 2-V-3,5 R24 - 1824080
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, Nominal current: 13.5 A, Nom. voltage: 160 V, Pitch: 3.5 mm, Number of positions: 2,
Connection method: Push-in spring connection, Mounting: SMD soldering, Conductor/PCB connection direction:
90 °, Color: black, Sample values available under SAMPLE SPT...
The illustration shows the 10-position
version
Product Features
■
■
■
■
■
■
■
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive use through colour coded actuation lever
Designed for integration into the SMT soldering process
Operation and conductor connection from one direction enable integration into front of device
Quick and convenient testing using integrated test option
Two soldering spots per position reduce the mechanical strain on the soldering spots
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
200 pc
3.0 g
85369010
Germany
Technical data
Dimensions
Length
Pitch
Dimension a
Width
7.7 mm
3.50 mm
3.5 mm
7.5 mm
05/20/2016 Page 1 / 5
https://www.phoenixcontact.com/us/products/1824080
PCB terminal block - SPT-SMD 1,5/ 2-V-3,5 R24 - 1824080
Technical data
Dimensions
Height
Pin dimensions
Pin spacing
Hole diameter
13.6 mm
0,7 x 0,3
7 mm
1.1 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Insulating material
Solder pin surface
Flammability rating according to UL 94
Stripping length
Number of positions
SPT 1,5/..-V-SMD
IIIa
2.5 kV
2.5 kV
2.5 kV
160 V
160 V
320 V
EN-VDE
13.5 A
1.5 mm²
LCP
Sn
V0
8 mm
2
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section AWG min.
Conductor cross section AWG max.
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.2 mm²
0.75 mm²
24
16
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
V0
05/20/2016 Page 2 / 5
https://www.phoenixcontact.com/us/products/1824080
PCB terminal block - SPT-SMD 1,5/ 2-V-3,5 R24 - 1824080
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27141111
27141109
27141190
27141190
27261101
27440401
27440401
27440401
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002643
EC002643
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211801
39121432
39121432
39121432
39121432
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / EAC / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
05/20/2016 Page 3 / 5
https://www.phoenixcontact.com/us/products/1824080
PCB terminal block - SPT-SMD 1,5/ 2-V-3,5 R24 - 1824080
Approvals
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
24-16
10 A
300 V
D
24-16
10 A
300 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
24-16
10 A
300 V
D
24-16
10 A
300 V
EAC
cULus Recognized

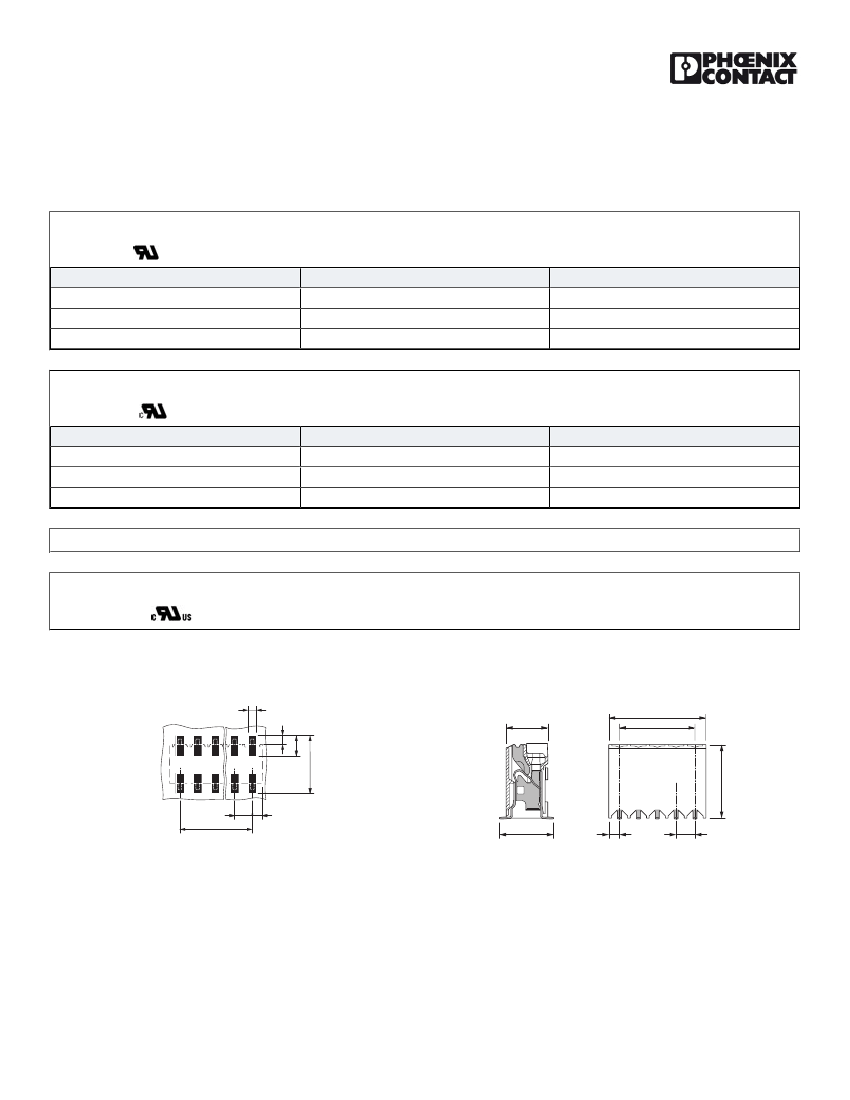

Drawings
Drilling diagram
1,6
Dimensional drawing
7,7
a+4
a
1,75
4
11,4
a
3,5
(3,81)
2
10
2
3,5
(3,81)
05/20/2016 Page 4 / 5
13,6
https://www.phoenixcontact.com/us/products/1824080
PCB terminal block - SPT-SMD 1,5/ 2-V-3,5 R24 - 1824080
Diagram
27
24
21
18
15
12
9
6
3
0
0
Operating current [A]
1,5 mm
10
20
2
30
40
50
60
70
80
90 100 110
Ambient temperature [°C]
Type: SPT-SMD 1,5/...-V-3,5(3,81) R..
Tested in accordance with DIN EN 60512-5-2:2003-01
Reduction factor = 1
Number of positions: 5
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
05/20/2016 Page 5 / 5
