145645040100829 datasheet, PDF

145645040100829: DescriptionBoard Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Plug,; CategoryThe connector The connector; File Size157KB，3 Pages; ManufacturerAVX

Download Datasheet Parametric View All

145645040100829 Overview

Board Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Plug,

Parameter Name	Attribute value
Objectid	1671163681
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.71
Other features	WITH VACUUM COVER
Board mount options	SOLDER HOLDING FLANGE
body width	0.094 inch
subject depth	0.047 inch
body length	0.508 inch
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug contact pitch	0.02 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.159 mm
Plating thickness	4u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.4 A
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	40

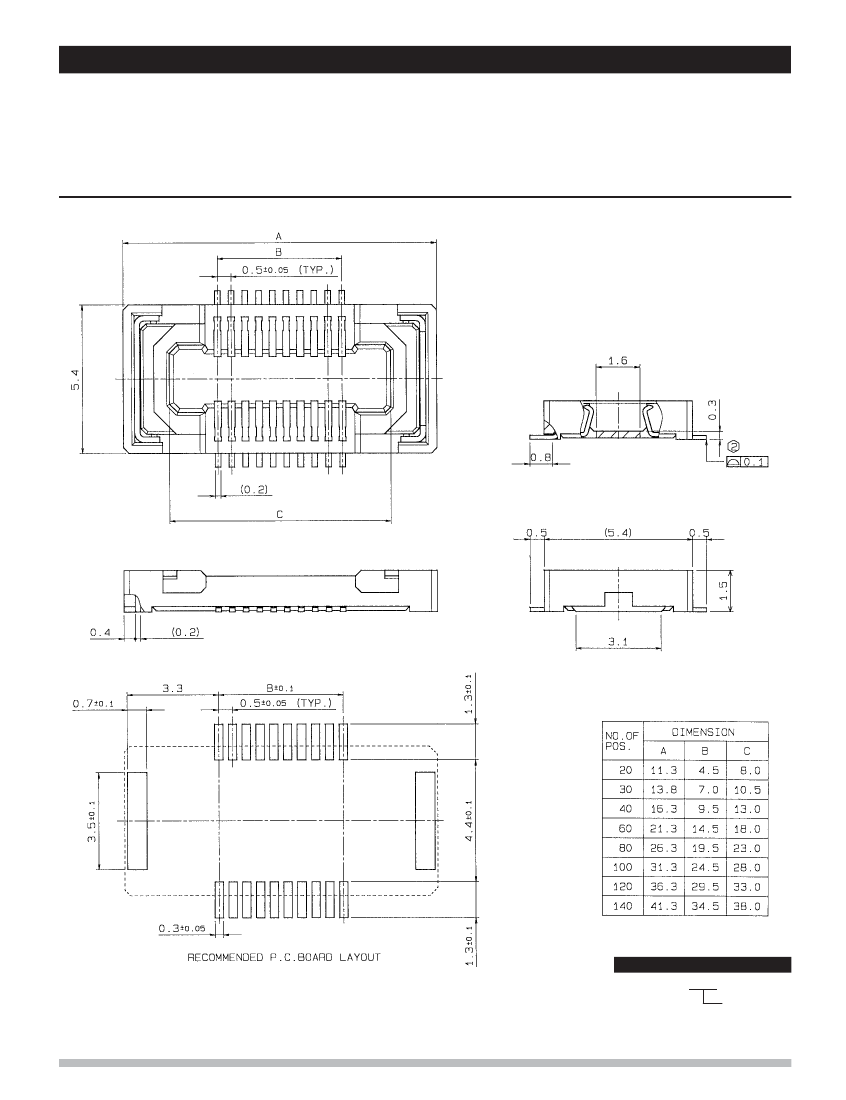

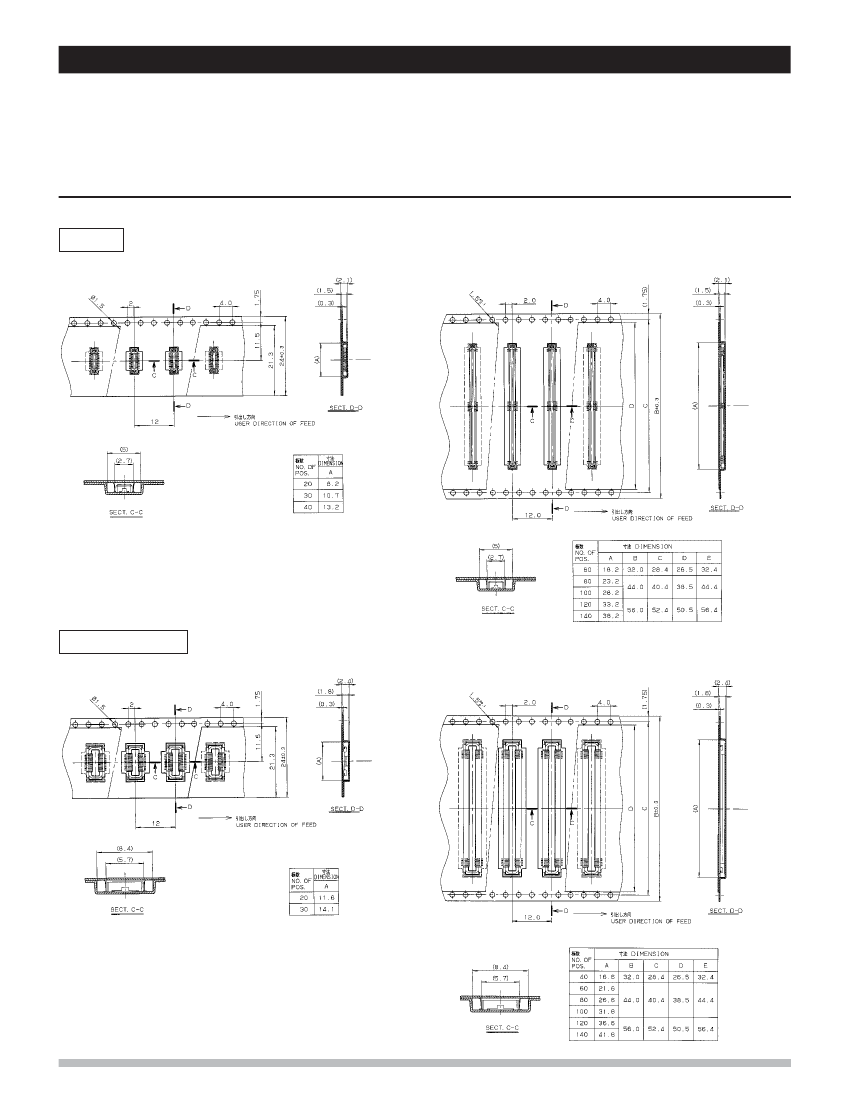

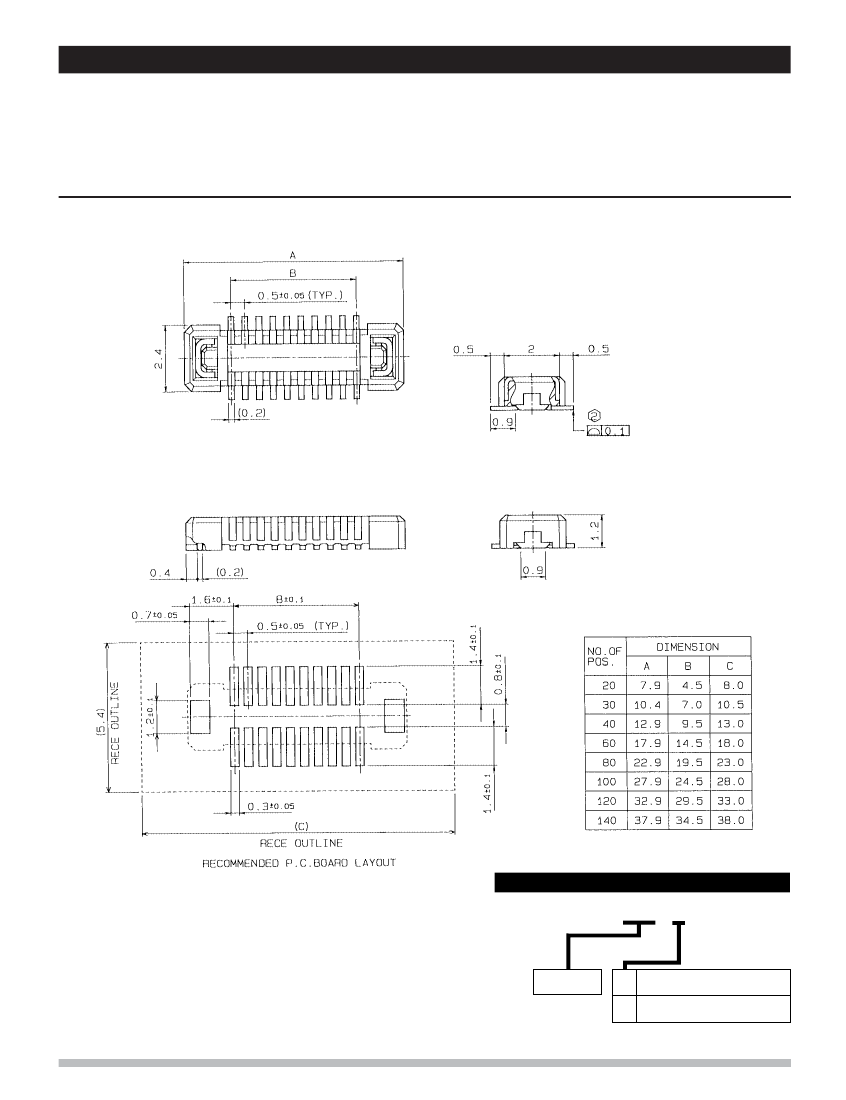

SUPER MICRO CONNECTORS

5645

SERIES

プラグ

Plug

注文コード Ordering

Code

14 5645 XXX X00 829

VARIATION CODE

極数

NO. OF POS.

0

1

吸着カバー無

WITHOUT VACUUM COVER

吸着カバー付

WITH VACUUM COVER
