All-4-One™ International Transformers
Chassis Mount
International Standards at Lower Cost and Better Performance
Designed to provide the high isolation, creepage and clearance necessary
to comply with international safety standards.

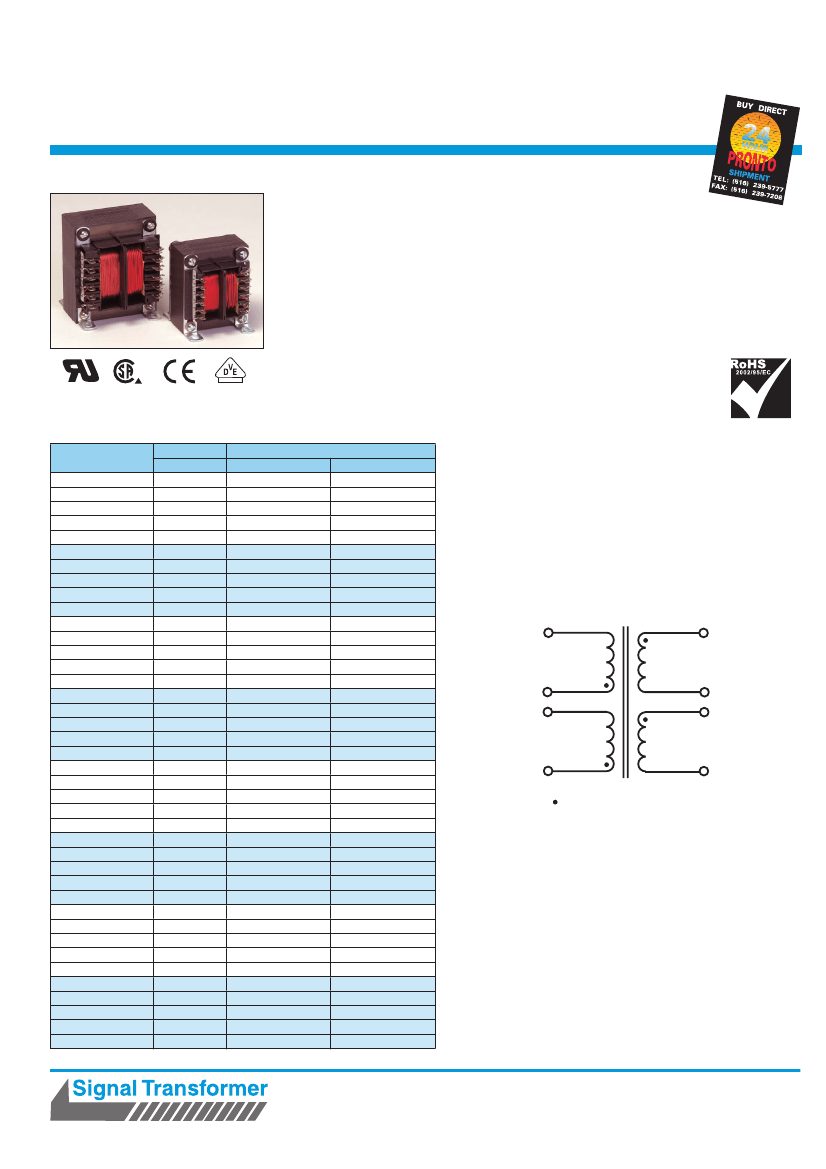

General Specifications
• Power - 25 VA to 175 VA
• Dielectric Strength - 4000 VRMS Hipot
• Primaries - Dual primaries (115/230 V - 50/60 Hz)
• Dual Secondaries - Series or parallel
• Terminals - Solder lug / quick connect type terminals
• Leakage - Current meets UL 60601-1, IEC/EN 60601-1
• Insulation - Class F (155º C)
• Flammability Rating - Bobbin and shroud material meet UL 94-V0
Agency Certifications
• UL 1446 E66312
• UL recognized to UL 506, File # E63829
• CSA certified to C22.2 #66, File # 221070
• VDE certified to VDE 0805 / EN 60950, File # 1448
• Agency certified versions available with lead wires
Part Number
A41-25-10
A41-43-10
A41-80-10
A41-130-10
A41-175-10
A41-25-12
A41-43-12
A41-80-12
A41-130-12
A41-175-12
A41-25-16
A41-43-16
A41-80-16
A41-130-16
A41-175-16
A41-25-20
A41-43-20
A41-80-20
A41-130-20
A41-175-20
A41-25-24
A41-43-24
A41-80-24
A41-130-24
A41-175-24
A41-25-28
A41-43-28
A41-80-28
A41-130-28
A41-175-28
A41-25-36
A41-43-36
A41-80-36
A41-130-36
A41-175-36
A41-25-230
A41-43-230
A41-80-230
A41-130-230
A41-175-230
VA
Size
25
43
80
130
175
25
43
80
130
175
25
43
80
130
175
25
43
80
130
175
25
43
80
130
175
25
43
80
130
175
25
43
80
130
175
25
43
80
130
175
Secondary RMS Rating
Series
10VCT @ 2.5A
10VCT @ 4.3A
10VCT @ 8.0A
10VCT @ 13.0A
10VCT @ 17.5A
12.6VCT @ 2.0A
12.6VCT @ 3.4A
12.6VCT @ 6.3A
12.6VCT @ 10.3A
12.6VCT @ 14.0A
16VCT @ 1.6A
16VCT @ 2.7A
16VCT @ 5.0A
16VCT @ 8.1A
16VCT @ 11.0A
20VCT @ 1.25A
20VCT @ 2.2A
20VCT @ 4.0A
20VCT @ 6.5A
20VCT @ 8.8A
24VCT @ 1.0A
24VCT @ 1.8A
24VCT @ 3.3A
24VCT @ 5.4A
24VCT @ 7.3A
28VCT @ 0.9A
28VCT @ 1.5A
28VCT @ 2.8A
28VCT @ 4.6A
28VCT @ 6.25A
36VCT @ 0.7A
36VCT @ 1.2A
36VCT @ 2.2A
36VCT @ 3.6A
36VCT @ 4.8A
230VCT @ 0.11A
230VCT @ 0.19A
230VCT @ 0.35A
230VCT @ 0.57A
230VCT @ 0.76A
Parallel
5V @ 5.0A
5V @ 8.6A
5V @ 16.0A
5V @ 26.0A
5V @ 35.0A
6.3V @ 4.0A
6.3V @ 6.8A
6.3V @ 12.6A
6.3V @ 20.6A
6.3V @ 28.0A
8V @ 3.2A
8V @ 5.4A
8V @ 10.0A
8V @ 16.2A
8V @ 22.0A
10V @ 2.5A
10V @ 4.4A
10V @ 8.0A
10V @ 13.0A
10V @ 17.6A
12V @ 2.0A
12V @ 3.6A
12V @ 6.6A
12V @ 10.8A
12V @ 14.6A
14V @ 1.86A
14V @ 3.0A
14V @ 5.6A
14V @ 9.2A
14V @ 12.5A
18V @ 1.4A
18V @ 2.4A
18V @ 4.4A
18V @ 7.2A
18V @ 9.6A
115V @ 0.22A
115V @ 0.38A
115V @ 0.7A
115V @ 1.14A
115V @ 1.52A
SM
½
½½½½
½½½½½½½½
½
½
½
½½½½
½½½½½½½½
½
½½
½½
½
½½½½½½½½½½½½½½½½½½½½½½½
½½
Note:
VDE certified lead wire versions available.
©2006 Signal Transformer Inc. Specifications subject to change without notice. 07.06
www.signaltransformer.com
1
500 Bayview Avenue, Inwood, NY 11096
Toll Free 866-239-5777 • Tel 516-239-5777 • Fax 516-239-7208
sales@signaltransformer.com • techhelp@signaltransformer.com
All-4-One™ International Transformers
Chassis Mount
International Standards at Lower Cost and Better Performance
SM

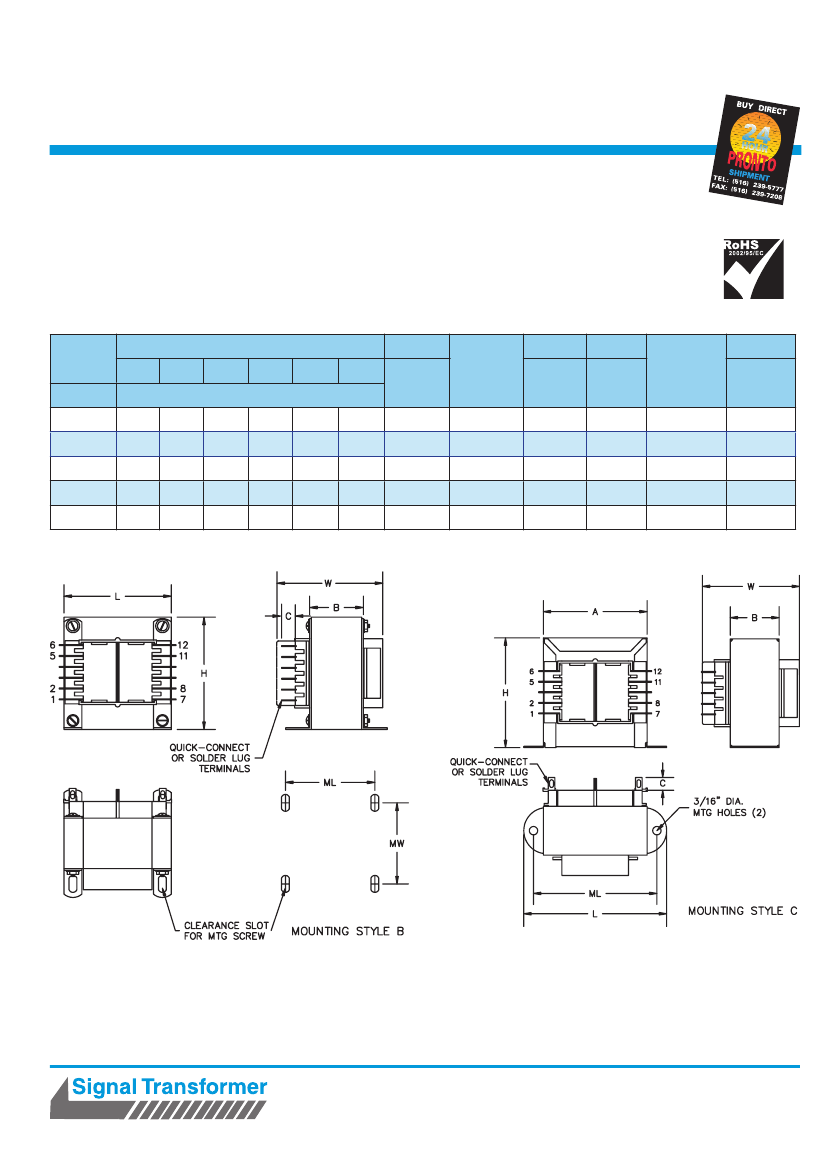

Dimensions
VA
L
Size
25
43
80
130
175
2.81
(71.4)
3.12
(79.4)
2.50
(63.5)
2.81
(71.4)
3.12
(79.4)
2.14
(54.4)
2.14
(54.4)
2.52
(64.3)
3.00
(76.2)
3.14
(79.7)
W
H
Inches
(mm)
2.31
(58.7)
2.68
(68.2)
3.00
(76.2)
3.37
(85.7)
3.75
(95.3)
2.00
(50.8)
2.25
(57.2)
–
–
–
1.12
(28.6)
1.12
(28.6)
1.37
(35.0)
1.62
(41.3)
1.62
(41.3)
.31
(7.9)
.31
7.9)
.31
(7.9)
.37
(9.5)
.37
(9.5)
A
B
C
Terminals
Inches
(mm)
.187
(4.75)
.187
(4.75)
.187
(4.75)
0.25
(6.35)
0.25
(6.35)
Mounting Style
Mounting
DImenstions
ML
2.37
(60.3)
2.81
(71.4)
2.00
(50.8)
2.25
(57.2)
2.50
(63.5)
MW
Mounting Screw
Weight
lbs
(kg)
1.25 lbs
(0.57)
1.6 lbs
(0.73)
2.8 lbs
(1.27)
4.1 lbs
(1.86)
5.5 lbs
(2.49)
C
C
B
B
B
–
–
2.18
(55.5)
2.50
(63.5)
2.50
(63.5)
#6
#6
#6
#8
#8
©2006 Signal Transformer Inc. Specifications subject to change without notice. 07.06
www.signaltransformer.com
2
500 Bayview Avenue, Inwood, NY 11096
Toll Free 866-239-5777 • Tel 516-239-5777 • Fax 516-239-7208
sales@signaltransformer.com • techhelp@signaltransformer.com
