TECHNICAL DATA SHEET
15

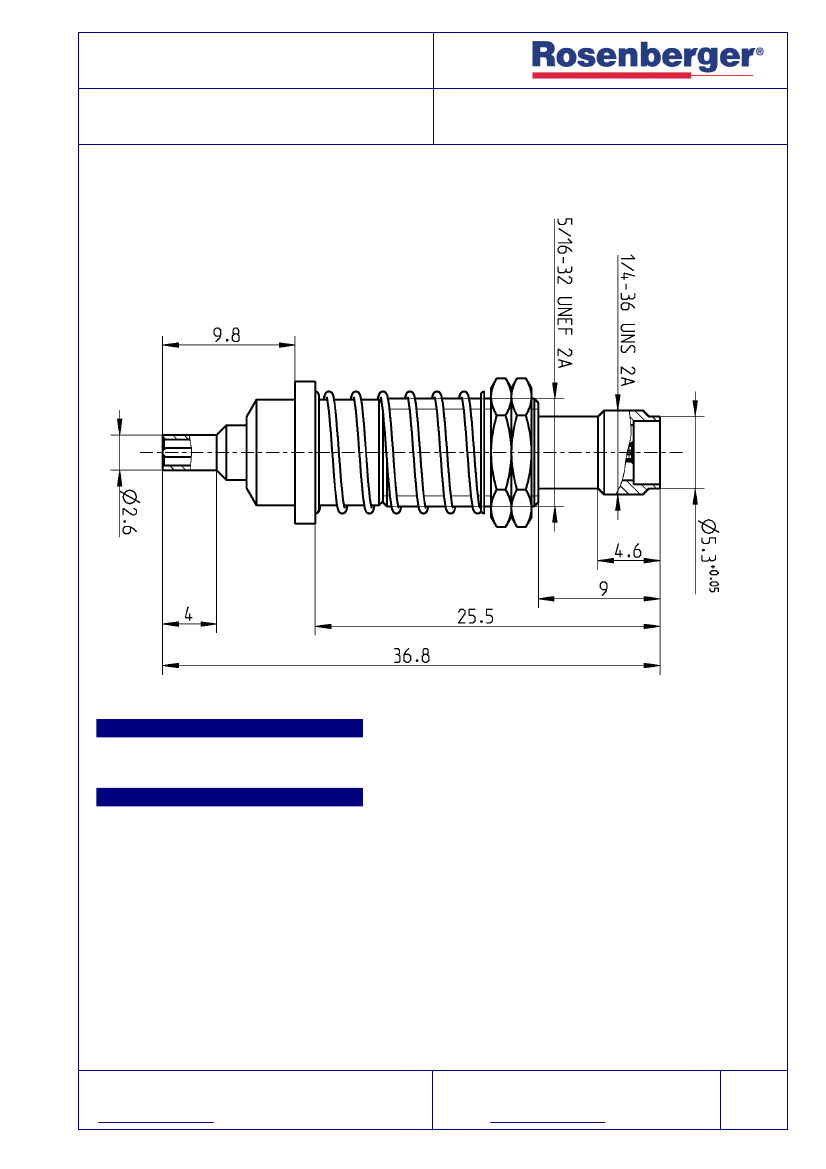

SLIDE-ON ADAPTER
15K132-K00E4
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
SMA IEC 169-15
15K101-40M, RF test switch
Material and plating
Connector parts
Center contact
Outer contact
Outer contact
Inner spring
Insulator
Coupling nut
Outer spring
Material
Beryllium copper
Brass
Brass
Stainless steel
PTFE
Brass
Stainless steel
Plating
Gold, min. 0.8 m, over chemical nickel
Gold, min. 0.8 m, over chemical nickel
Gold, min. 0.8 m, over chemical nickel
Gold, min. 0.15 m, over chemical nickel
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/1
TECHNICAL DATA SHEET
15
SLIDE-ON ADAPTER
15K132-K00E4
Electrical data
Impedance
Frequency
Return loss
50
Ω
DC to 6 GHz
≤
-28 dB, DC to 2 GHz
≤
-25 dB, 2 to 4 GHz
≤
-21 dB, 4 to 6 GHz
≥
0.5 x10
3
MΩ
≤
50 mΩ
≤
50 mΩ
4V
Insulation resistance
Center contact resistance
Outer contact resistance
Working voltage
Mechanical data
Mating form
Mating cycles
Mating force
Unmating force
Slide-on
> 200,000
≤4N
≥2N
Environmental data
Temperature range
-40°C to 90°C
Installation
Recommendation for the installation
SMA Interface
Press-down adapter
Measurement device
Packing
Standard
1 pcs in plastic bag
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
Michelmann Folke
Date
30/08/04
Approved
Michelmann Folke
Date
22/03/05
Rev.
200
Engineering change number
04-0130
Name
Neureiter Franz
Date
03/12/04
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
2/2
