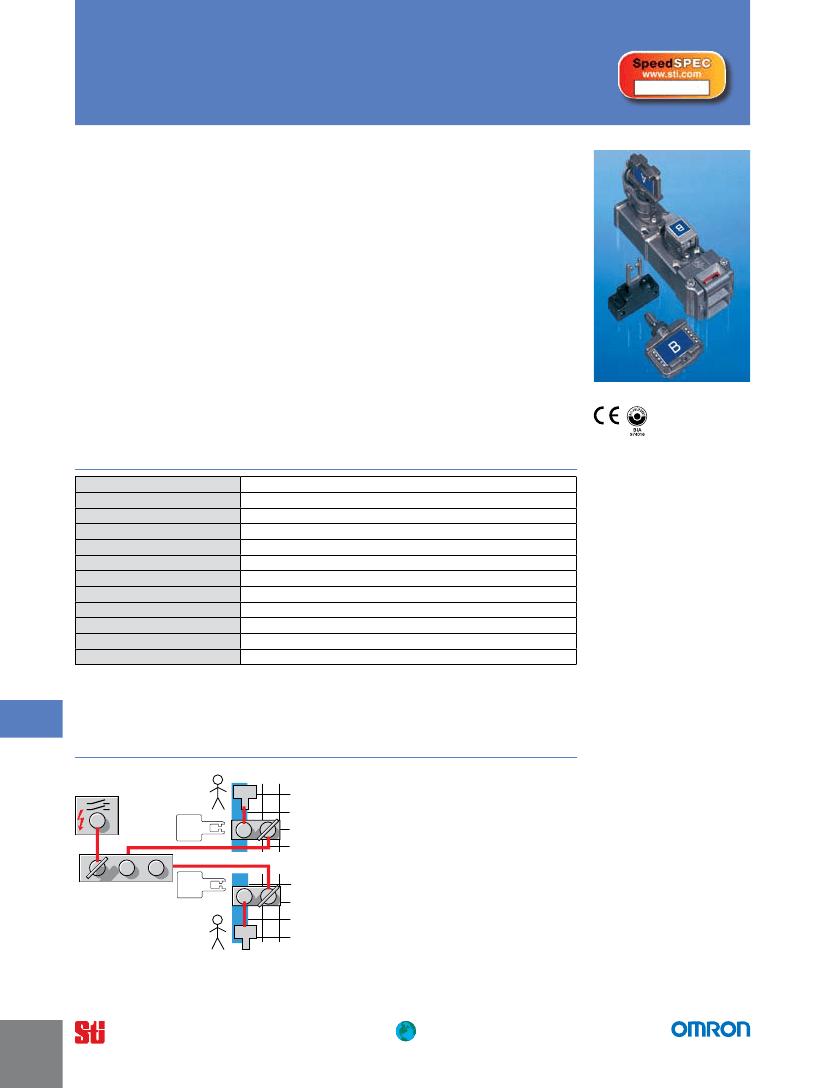

Process Safeguarding
Slamlock Double Key
trapped Double Key interlocks
Slamlock double key interlock is similar to the single key version but has
a secondary key to allow ‘2 key in’ or ‘key exchange’ conditions. The key
exchange version may be used where whole body access is required, as the
secondary key can be used as a personnel key.
•
•
•
•
•
•
•
•
450 lb. locking force
Variety of actuator types available
Direct drive push/pull operation
316 stainless steel construction
Virtually maintenance free
Weatherproof stainless steel dust cap as standard
Fitted with tamper resistant screws
Screws may be applied from the rear for increased tamper resistance
DSLE
Specifications
Operating Temperature:
Mechanical Operations:
Max. Shear Force to Key:
Max. Torque to Key:
Max. Holding Force:
Relative Operating Humidity:
Weight:
Material:
Mounting:
Code Barrels:
Conforms to Standards:
Approvals:
-20 to 80°C (-4 to 176°F)
>10
5
under normal working conditions
15.1 kN
14 Nm
2000 N (450 lb.)
25% to 95%
1332 gm (47 oz.)
316L stainless steel
2 x M5
Tested to 100,000 operations
Relevant clauses EN292, EN1088 & GS ET 19
CE marked for all applicable directives and BG
Specifications are subject to change without notice.
m
Applications
Isolator switch
Slamlock Double Key
A
C
B
Personnel key
C
A
B
B
Dual key access locks
B
Key exchange unit
Slamlock Double Key
C
C
Personnel key
m24
OmrOn Scientific technOlOgieS, inc.
USA
Tel. 1/888/510-4357
canada
Tel. 1/866/986-6766
For the Latest Information
On the Internet:
www.sti.com
or
www.omron.ca
Slamlock Double Key
Process Safeguarding

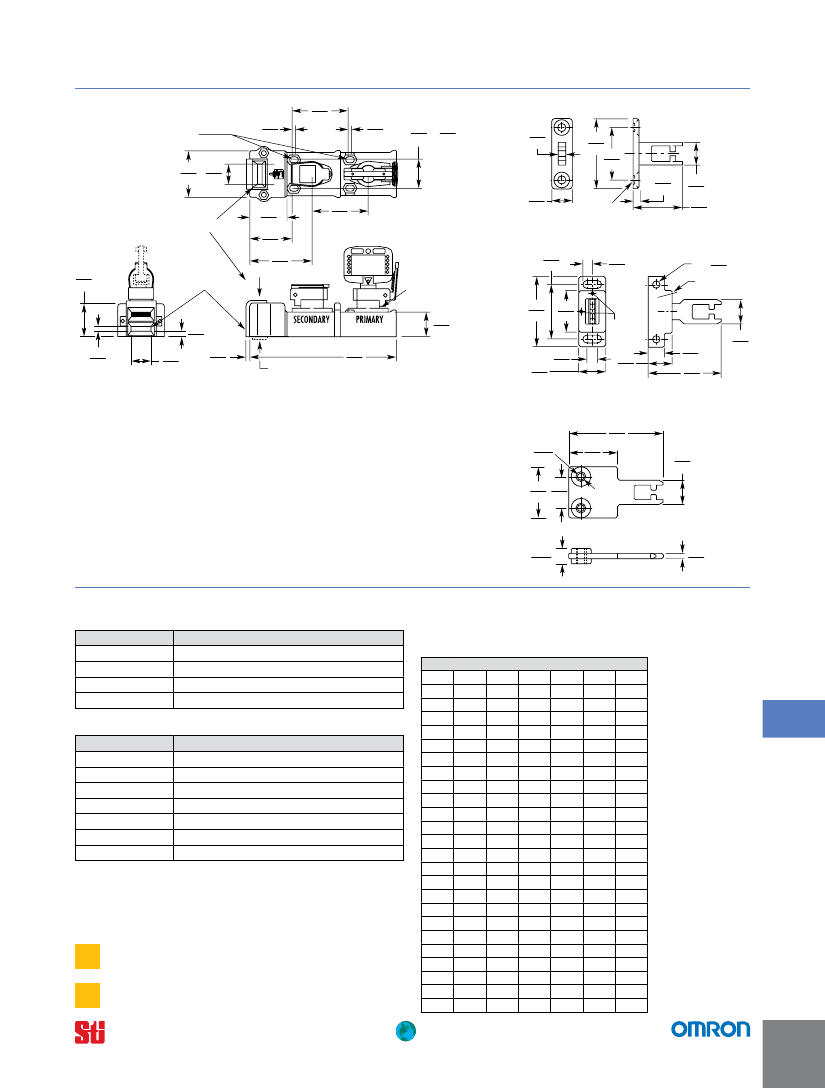

Dimensions
M5 C'BORED FROM TOP.
M5 MOUNTING FROM U'SIDE
USING M5 NUTS IN
RECESSES
48 20.8
1.89 0.82
(mm/in.)
57.7
2.27
Standard Actuator
3.5
0.14
3.5
0.14
28.5
& 30
PITCH RANGE
1.12
1.18
3.5
0.14
52
2.05
40
1.57
4
0.16
18
0.71
36
1.42
TOP ENTRY
34
1.34
38.3
1.51
43.6
1.72
64.1
2.52
57.7
2.27
14.5
0.57
M5 CSK
flexible 1 Actuator
40
1.57
CODE BARREL SCREWS
M4 x 8 RESISTORX HEAD
6.8
0.27
FRONT ENTRY
4 x
Ø5.5
0.22
2 x M3
5.5
0.22
5
0.2
20.8
0.82
25.4
1
4
0.16
151
5.94
52
2.05
31
1.22
Adjusting
screws
BOTTOM ENTRY
8
20 0.31
0.79
flat Actuator
19
0.75
13
0.51
51
2.01
18
0.71
4
0.175
36 20
1.42 0.8
25
.984
57
2.24
18
0.69
Ordering
Slamlock Double Key interlock
Primary key is trapped, secondary key is free to release actuator.
Part no.
DSLE10
DSLE11
DSLE12
DSLE13
Actuator
Standard
Flexible
Flat
Flat with 305 mm chain
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
R
S
T
U
V
W
X
Y
Z
Aa
Ba
Ca
Da
Ea
Fa
Ga
Ha
Ia
Ja
Ka
La
Ma
Na
Oa
Pa
Ra
Sa
Ta
Ua
Va
Wa
Xa
Ya
Za
Ab
Bb
Cb
Db
Eb
Fb
Gb
Hb
Ib
Jb
Kb
Lb
Mb
Nb
Ob
Pb
Rb
Sb
Tb
Ub
Vb
Wb
Xb
Yb
Zb
8
0.315
3.8
0.14
Key codes
(....) = Primary key / key free
[....] = Secondary key / key trapped
codes
Ac
Bc
Cc
Dc
Ec
Fc
Gc
Hc
Ic
Jc
Kc
Lc
Mc
Nc
Oc
Pc
Rc
Sc
Tc
Uc
Vc
Wc
Xc
Yc
Zc
Both keys trapped to release actuator.
Keys not included.
Part no.
DSLE14
DSLE15
DSLE16
DSLE17
44519-0700
44519-0710
44519-0720
Actuator
Standard
Flexible
Flat
Flat with 305 mm chain
Spare standard actuator
Spare flexible actuator
Spare flat actuator
Codes ‘A’ to ‘Z’ available excluding the letter ‘Q’. To specify
coding, add the key code of your choice from the Key Code Table
to the part no. from the Ordering Table, i.e. DSLE10(A) [B] is a
Double Slamlock unit with the secondary key supplied trapped.
Primary key is ordered separately.
details
✎
For codingM5. and referencing,
see page
✎
To order keys, on page M30.
see Accessories
OmrOn Scientific technOlOgieS, inc.
USA
Tel. 1/888/510-4357
canada
Tel. 1/866/986-6766
Ad
Bd
Cd
Dd
Ed
Fd
Gd
Hd
Id
Jd
Kd
Ld
Md
Nd
Od
Pd
Rd
Sd
Td
Ud
Vd
Wd
Xd
Yd
Zd
Ae
Be
Ce
De
Ee
Fe
Ge
He
Ie
Je
Ke
Le
Me
Ne
Oe
Pe
Re
Se
Te
Ue
Ve
We
Xe
Ye
Ze
Af
Bf
Cf
Df
Ef
Ff
Gf
Hf
If
Jf
Kf
Lf
Mf
Nf
Of
Pf
Rf
Sf
Tf
Uf
Vf
Wf
Xf
Yf
Zf
m
For the Latest Information
On the Internet:
www.sti.com
or
www.omron.ca
m25
OMRON AUTOMATION AND SAFETY • THE AMERICAS HEADQUARTERS •
Chicago, IL USA
•
847.843.7900
•
800.556.6766
•
www.omron247.com
OMRON CANADA, INC. • HEAD OFFICE
Toronto, ON, Canada • 416.286.6465 • 866.986.6766 • www.omron247.com
OMRON ELECTRONICS DE MEXICO • HEAD OFFICE
México DF • 52.55.59.01.43.00 • 01-800-226-6766 • mela@omron.com
OMRON ELECTRONICS DE MEXICO • SALES OFFICE
Apodaca, N.L. • 52.81.11.56.99.20 • 01-800-226-6766 • mela@omron.com
OMRON ELETRÔNICA DO BRASIL LTDA • HEAD OFFICE
São Paulo, SP, Brasil • 55.11.2101.6300 • www.omron.com.br
OMRON ARGENTINA • SALES OFFICE
Cono Sur • 54.11.4783.5300
OMRON CHILE • SALES OFFICE
Santiago • 56.9.9917.3920
OTHER OMRON LATIN AMERICA SALES
54.11.4783.5300
OMRON EUROPE B.V. •
Wegalaan 67-69, NL-2132 JD, Hoofddorp, The Netherlands.
•
+31 (0) 23 568 13 00
•
www.industrial.omron.eu
Authorized Distributor:
Automation Control Systems
• Machine Automation Controllers (MAC) • Programmable Controllers (PLC)
• Operator interfaces (HMI) • Distributed I/O • Software
Drives & Motion Controls
• Servo & AC Drives • Motion Controllers & Encoders
Temperature & Process Controllers
• Single and Multi-loop Controllers
Sensors & Vision
• Proximity Sensors • Photoelectric Sensors • Fiber-Optic Sensors
• Amplified Photomicrosensors • Measurement Sensors
• Ultrasonic Sensors • Vision Sensors
Industrial Components
• RFID/Code Readers • Relays • Pushbuttons & Indicators
• Limit and Basic Switches • Timers • Counters • Metering Devices
• Power Supplies
Safety
• Laser Scanners • Safety Mats • Edges and Bumpers • Programmable Safety
Controllers • Light Curtains • Safety Relays • Safety Interlock Switches
C345I-E-01
07/15
Note: Specifications are subject to change.
Printed on recycled paper.
© 2015 Omron Electronics LLC
Printed in U.S.A.
