Cannon Filter Connectors
ITT Electronic Components is a division of the multi-
national ITT Corporation a $7.5 billion dollar global
enterprise. Our connector portfolio remains the most
extensive in the industry offering the most reliable and
cost effective range of interconnect solutions. These
innovations have enabled ITT to provide products and
technologies to such markets as:
•
•
•
•
•
•
•
•
•
•
Aerospace
Computers Systems
Defense Electronics
Geophysical
Industrial Automation
Medical Electronics
Network Systems
Telecom Switching
Underwater Systems
Wireless
driven lead times. These principles have allowed ITT to
become the market leader in all of our business
portfolios.
Six Sigma Manufacturing
ITT operates manufacturing facilities in the United
States, France, Germany, Italy, Mexico, China, and the
UK, all of which have particular product area strengths
allowing ITT to offer a truly global footprint to our
customers. Our facilities are world class and
accommodate full vertical integration with the latest
manufacturing technologies including: automated and
robotic machining centers, Super Market manufacturing
cells, Kanban pull systems, and automated electrical,
mechanical, and optical test and inspection equipment.
The combination of our manufacturing strength and our
advanced manufacturing facilities allows ITT to offer
products at market driven prices. Our capabilities,
especially in robotics, computerized precision tooling,
Kaizen Project Management, Six Sigma tools, and test
labs, gives ITT the most optimized global
manufacturing footprint in the interconnect industry.
When you specify a Cannon Filter connector, you can
rely on a product designed, developed, and manufac-
tured to the highest quality and reliability standards in
the industry. This tradition of excellence is based on
ITT’s corporate culture of operating its entire business
under the principles of Six Sigma. At ITT, Six Sigma is
not just a quality philosophy but a complete corporate
culture that drives the entire business. Our Value Based
Management and Value Based Product Development
systems are two cornerstones of ITT that allows for the
development of both leadership and product develop-
ment principles, ensuring that the correct industry
leading products are developed to the accepted market
Dimensions shown in inch (mm)
Specifications and dimensions subject to change
www.ittcannon.com
2
Cannon Filter Connectors
RoHS Compliance Information
ITT has implemented a strict parts control plan for all ITT
electronics plants worldwide that allows the Cannon con-
nector product portfolio to meet the requirements of
European Union Directive 2002/95/EC better know as the
Reduction of Hazardous Substances initiative.
Please consult Customer Service if RoHS part verifica-
tion is required.
Three types of contacts are available for
each contact position: filter contacts,
power contacts or grounded contacts.
Just about any combination of contacts
can be used on the same connector to
offer maximum circuit flexibility.

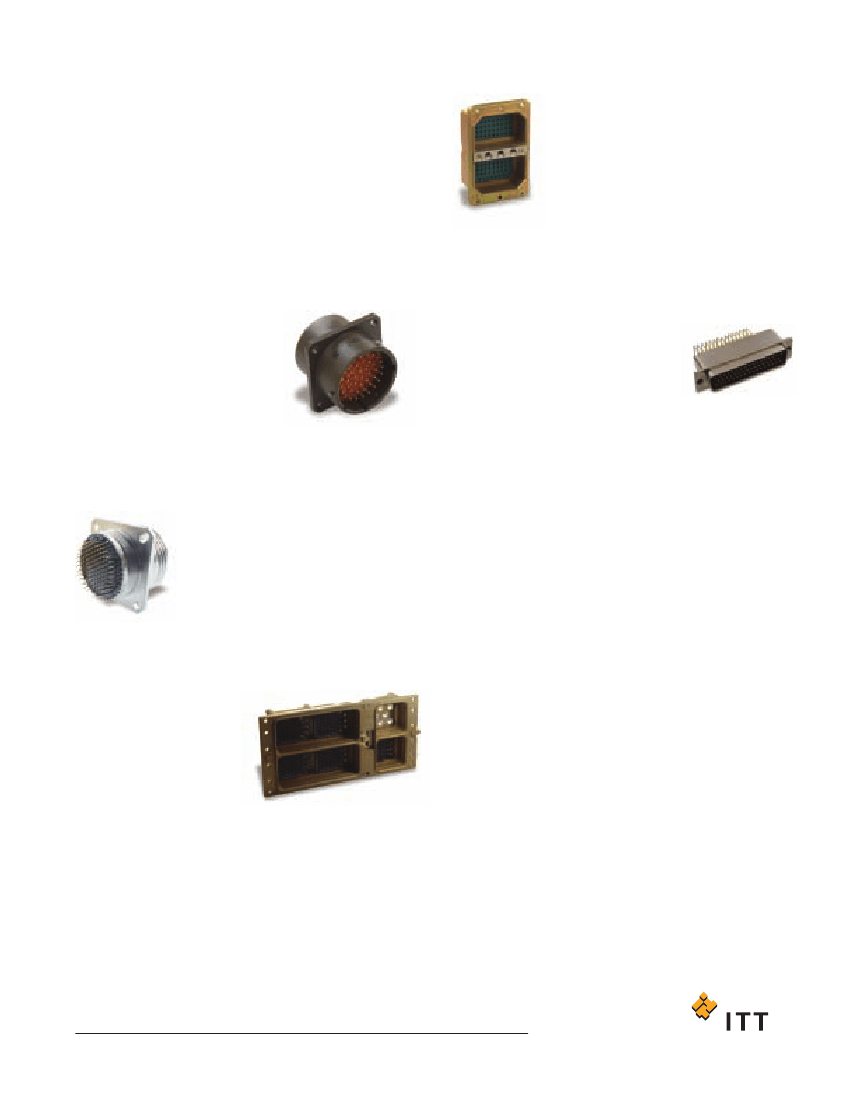

Cannon Filter Connector
Products
ITT’s transverse monolith filter
connectors provide more EFI/RFI
shielding on one substrate than
any other filter connector.
The Cannon filter connector takes up 78% less space
than a standard connector with separate discreet filters.
It also weighs up to 72% less. This tiny filter can stand
up to 8,000 g’s of pyrotechnic shock.
All of the Cannon filter connectors have the same layout
pattern and contact spacing as their equivalent non-fil-
tered connectors, and are intermate-
able and intermountable with them.
Filter connectors are longer than
standard connectors in order to
incorporate the capacitors and
inductors. However, special shells can be designed by
ITT engineers that move the flange to facilitate the avail-
able space to the front or rear of your enclosure specifi-
cation.
For more information, visit www.ittcannon.com/filter.
ITT’s rugged filter connectors are the
leading choice for the most demand-
ing commercial, industrial, military and
aerospace applications, including
advanced weapon systems. Their superior filtering
concept cuts off unwanted signals at optimum point and
provides superior linearity. Gaps in performance are
eliminated by the win-
dowless ground plane in
the connector itself.
In addition to substantial
gains in electrical per-
formance, the separate functions of a standard connec-
tor and a feed-thru filter are combined in a single unit.
Without altering the normal function of a standard con-
nector, the filter provides RFI suppression at frequencies
above a prescribed point (low pass).
Dimensions shown in inch (mm)
Specifications and dimensions subject to change
www.ittcannon.com
3
Cannon Filter Connectors
Table of Contents
Product Overview Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
TD1* (MIL-DTL-24308) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
TMDM (MIL-C-83513). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
TPV (MIL-C-26482) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Chip-on-Flex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
TKJ/TKJL/TKJA/TKJB (MIL-DTL-38999) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
TDPX (MIL-C-81659) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
TBKAD (ARINC 600) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Product Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Dimensions shown in inch (mm)
Specifications and dimensions subject to change
www.ittcannon.com
4
Cannon Filter Connectors

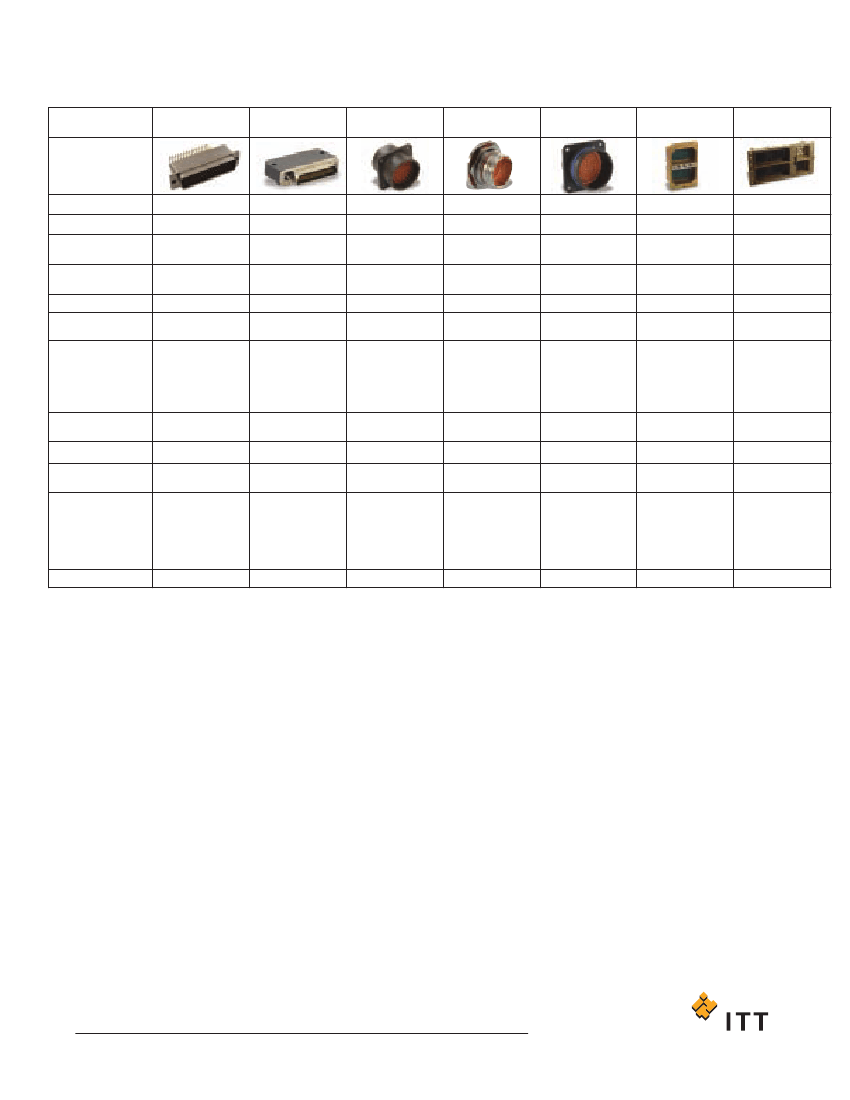

Product Overview Guide
TD1*
MIL-DTL-24308
TMDM
MIL-C-83513
TPV
MIL-C-26482
Chip-on-Flex
MIL-DTL-38999
TKJ/TKJL/TKJA/TKJB
MIL-DTL-38999
TDPX
MIL-C-81659
TBKAD
ARINC 600
Type
Current Rating
Contact Resistance
Contact
Material
Shell
Shell Material
Available Layouts
plug and socket
7.5A
15 milli ohm max
gold plated
copper alloy
metal
aluminum
9
15
25
37
50
Polarized D
Available
Available
Yes
plug and socket
3A
15 milli ohm max
gold plated
copper alloy
metal
aluminum
9
15
21,25
31
37, 51, 100
Polarized D
Available
Available
Yes
plug and socket
7.5A to 15A
15 milli ohm max
gold plated
copper alloy
metal
aluminum
plug and socket
5A to 20A
15 milli ohm max
gold plated
copper alloy
metal
aluminum
plug and socket
5A to 20A
15 milli ohm max
gold plated
copper alloy
metal
aluminum
plug and socket
5A to 20A
15 milli ohm max
gold plated
copper alloy
metal
aluminum
plug and socket
5A to 20A
15 milli ohm max
gold plated
copper alloy
metal
aluminum
5 to 61 contacts
3 to 128 contacts
3 to 128 contacts
20 to 424 contacts
60 to 800 contacts
Configuration
RoHS
Factory Terminated
Space Applications
Cyclindrical
Available
Available
Yes
Cyclindrical
Available
Available
Yes
Cyclindrical
Available
Available
Yes
Rack and Panel
Available
Available
Yes
Rack and Panel
Available
Available
Yes
Page Number
6
9
12
17
20
32
40
Dimensions shown in inch (mm)
Specifications and dimensions subject to change
www.ittcannon.com
5
