PRESSURE GAUGES
PG-20

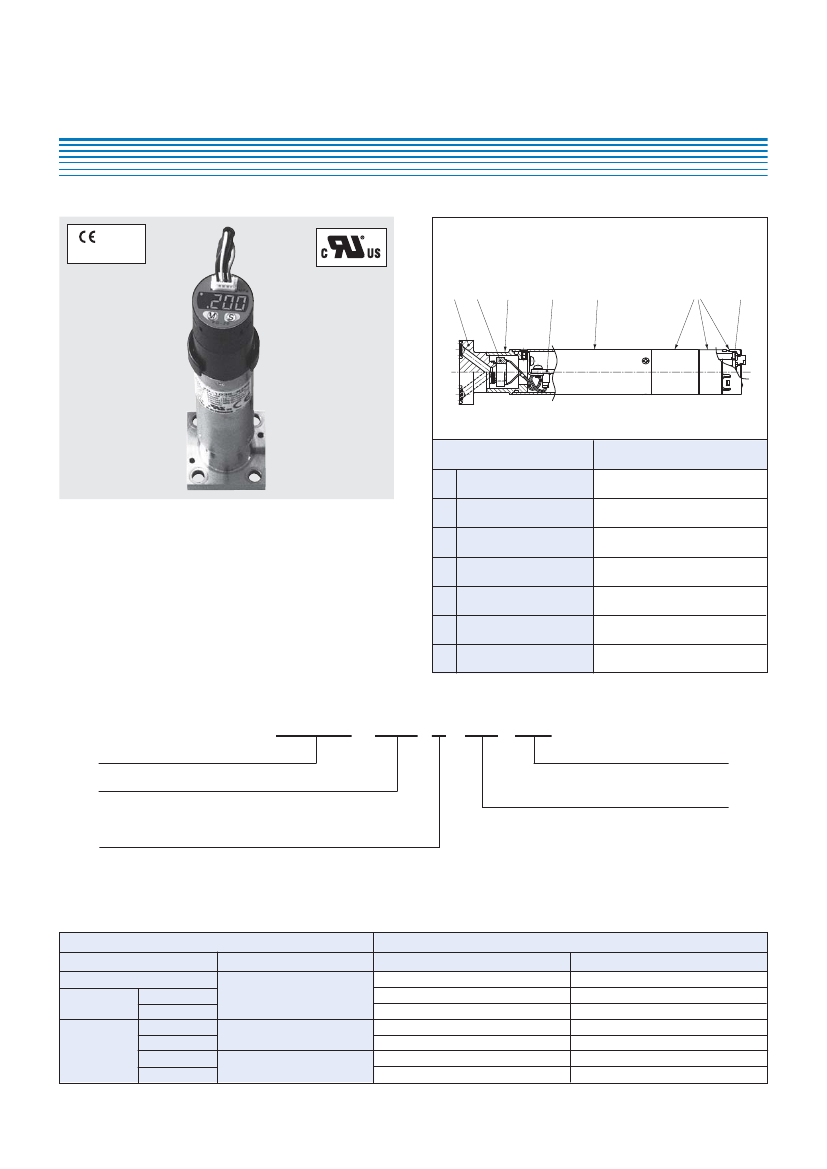

INTERNAL STRUCTURE (R 1/4)
① ②
③
④
⑤
⑥
⑦
marking
Compatible with
EMC directive
Part name
Material
SUS316L of Double melt
SUS316L of Double melt
SUS316L
−
1
Fitting block
Sensor module
Sensor holder
Amp board
Cover
Case
Display board
■
FEATURES
External diameter
φ
20mm. Easily installable fitting block
Rotable display part (90
°
step, 270
°
full travel)
Wide combination of output types (switch, current or
voltage) available
Integrally welded structure of sensing chip and fitting block
2
3
4
5
6
7
SUS316L
PBT
−
■
MODEL NUMBER DESIGNATION
P G - 20 - 1 0 3 R - N 2 W 2
Series name
Rated pressure
502G：0 ~ 0.5 MPa
103G：0 ~ 1.0 MPa
502R：
-
0.1 ~ 0.5 MPa
103R：
-
0.1 ~ 1.0 MPa
Fitting block spec.
W1:1.5 inches W-Seal
W2:1.125 inches W-Seal
Output specification
B : SW Nothing
N2 : SW Two outputs (NPN open collector)
P2 : SW Two outputs (PNP open collector)
NV : SW One output (NPN open collector)
+ Voltage output (1 ~ 5V)
PV : SW One output (PNP open collector)
+ Voltage output (1 ~ 5V)
NA : SW One output (NPN open collector)
+ Current output (4 ~ 20mA)
PA : SW One output (PNP open collector)
+ Current output (4 ~ 20mA)
Pressure Reference / Rated analog out put range
G : Gauge pressure (Positive) / 0MPa ~ Rated pressure
R : Gauge pressure (Compound) / -0.1MPa ~ Rated pressure
■
LIST OF MODEL NUMBERS
Output specification
Switch output
None
Two outputs
NPN
Rated Pressure
502
PG-20-502R-BW
*
PG-20-502R-N2W
*
PG-20-502R-P2W
*
PG-20-502□-NVW
*
PG-20-502□-PVW
*
PG-20-502□-NAW
*
PG-20-502□-PAW
*
Analog output
None
Voltage output
Current output
103
PG-20-103R-BW
*
PG-20-103R-N2W
*
PG-20-103R-P2W
*
PG-20-103□-NVW
*
PG-20-103□-PVW
*
PG-20-103□-NAW
*
PG-20-103□-PAW
*
One outputs
PNP
NPN
PNP
NPN
PNP
Note 1. W
*
: Fitting block spec. (W1/ W2)
Note 2.
□
: G (Positive) / R (Compound)
PRESSURE GAUGES
PG-20
■
STANDARD SPECIFICATIONS
Item
Pressure reference
Rated pressure range
Maximum pressure
Vacuum pressure
Leakage (He vacuum method)
Operating temp.range
Compensated temp. range
Operating humidity range
Storage temp. range
Media
Insulation resistance
Pressure contact material
Pressure contact roughness
Pressure contact particle
Cable connector
Protection grade
Net weight
Operating voltage
Positive (G)
Compound (R)
0 ~ 0.5 MPa
−
0.1 ~ 0.5 MPa
0.75 MPa
1.4
×
10 Pa abs (minimum)
-4
Model number
PG-20
502
Gauge
0 ~ 1.0 MPa
−
0.1 ~ 1.0 MPa
1.5 MPa
103
General specifications
5
×
10
-12
Pa·m
3
/ sec. minimum (Weld in pressure port)
−
10 ~ 50°C
（No
condensation）
0 ~ 50°C
35 ~ 85% RH（No condensation）
−
20 ~ 60°C
（Atmospheric
pressure, humidity 65%RH
minimum
）
Gases and Liquids compatible with SUS316L
50MΩ
minimum
(Between bundled electrical wirings and the pressure port. at 125VDC)
SUS316L Double-Melt Material (Fitting and Sensor)
（Ra：0.15, Rz：0.7）
μm
minimum
Zero count of particle of the size 0.1mμm or bigger (By our inspection standard)
Cable length : 2m cable AWG26 / include cable holder
IP40
Approx. 200g (W1) Approx. 110g (W2)
Voltage output type and other : 12~24VDC±10% (including ripple)
Current output type : 24VDC±10%(including ripple)
30mA
minimum
(No current flow from switch / analog output)
EN61326-1 : 2006, EN61326-2-3 : 2006
EMI : Class B, EMS : Annex BB
3 -1/2
LED display ( Red LED)
270°
step)
(90°
Positive (G)
Compound (R)
.000 ~ .500 MPa
−
.100 ~ .500 MPa
4 times / sec
±
1.0％ FS (The
repeatability, liniality and hystresis are contained)
±
0.1％ FS / ℃ (
0 ~ 50°C Reference temp. 25°C )
1 digit
"***" Blinking of pressure display (110 % F.S.or more)
Zero point adjustment, Panel lock
1 ∼ 5 VDC
(Output current : 1 mA
minimum
/ Output residence: 1.5
kΩ)
Output accuracy
Temperature character
±
1.0％ FS
(The setting error and LIN / HYS are contained)
±
0.1％ FS / ℃ (
0 ~ 50°C Reference temp. 25°C )
4 ∼ 20mA
(Vort: 24VDC
±10%
/ 500Ω
minimum
)
Output accuracy
Temperature character
±
1.0％ FS
(The setting error and LIN / HYS are contained)
±
0.1％ FS / ℃ (
0 ~ 50°C Reference temp. 25°C )
Output 1 or 2
NPN / PNP transistor open collector
30VDC 100mA
minimum
1.2V(NPN) / 2.2V(PNP)
minimum
(Land current 100mA)
Separate mode / Window comparator mode
±
0.3％ FS
minimum
±
0.1％ FS / ℃ (
0 ~ 50°C Reference temp. 25°C )
Approx. 2.5, 25, 250 ms
0 ∼ 300counts
(Select panel SW)
.000 ~ 1.000 MPa
−
.100 ~ 1.000 MPa
Voltage
Pressure Display
Analog output
Switch output
Current consumption
CE marking
Display Method
Rotation angle
Rated display range
Display cycle
Display accuracy
Thermal error
Resolution
Over range
Additional function
Output voltage
Output current
Number of output
Output interface
Switching capacity
Residual voltage
Output working chart
Repeatability
Thermal error
Response
Hysteresis setting
PG-20
PRESSURE GAUGES
■
INTERNAL ELECTRICAL SCHEMATICS
●
PG-20-****-N2**
Pressure
LED
Display LED
SW display LED
×
2
Brown (Power supply)
●
PG-20-****-P2**
Pressure
Display LED
LED
SW display LED
×
2
Brown (Power supply)
Black (SW1)
MainCircuit
Sensor
White (SW2)
SW output circuits
Load Load
MainCircuit
Sensor
Load Load
SW output circuits
Black (SW1)
Pressure
White (SW2)
Blue (COM.)
Pressure
Blue (COM.)
FG:
Frame Ground
FG:
Frame Ground
●
PG-20-****-NV**
Pressure
LED
Display LED
1.5kΩ
Load
MainCircuit
Black (SW1)
Pressure
White(Voltage output)
Blue (COM.)
FG:
Frame Ground
SW display LED
×
2
Brown (Power supply)
●
PG-20-****-PV**
Pressure
LED
Display LED
SW display LED
×
2
Brown (Power supply)
Sensor
Sensor
Black (SW1)
MainCircuit
1.5kΩ
Load
White
(Voltage output)
Blue (COM.)
FG:
Frame Ground
Pressure
●
PG-20-****-NA**
Pressure
Display LED
LED
SW display LED
×
2
Brown (Power supply)
●
PG-20-****-PA**
Pressure
LED
Display LED
SW display LED
×
2
Brown (Power supply)
MainCircuit
Sensor
MainCircuit
Load
Black (SW1)
Pressure
White (Current output)
Blue (COM.)
Sensor
Black (SW1)
Pressure
Load
White
(Current output)
Blue (COM.)
FG:
Frame Ground
FG:
Frame Ground
Model number
PG-20-****
-BW*
Ｎ.Ｃ.
Ｎ.Ｃ.
SW2
（NPN/PNP）
COMMON
color
Brown
Black
White
Blue
-N2W* / -P2W*
（12∼24ＶＤＣ±10％）
-NVW* / -PVW*
SW1（NPN/PNP）
（1−5V）
-NAW* / -PAW*
（４Ｄ
２ Ｖ Ｃ±10％）
（4−20mA）
PRESSURE GAUGES
PG-20
■

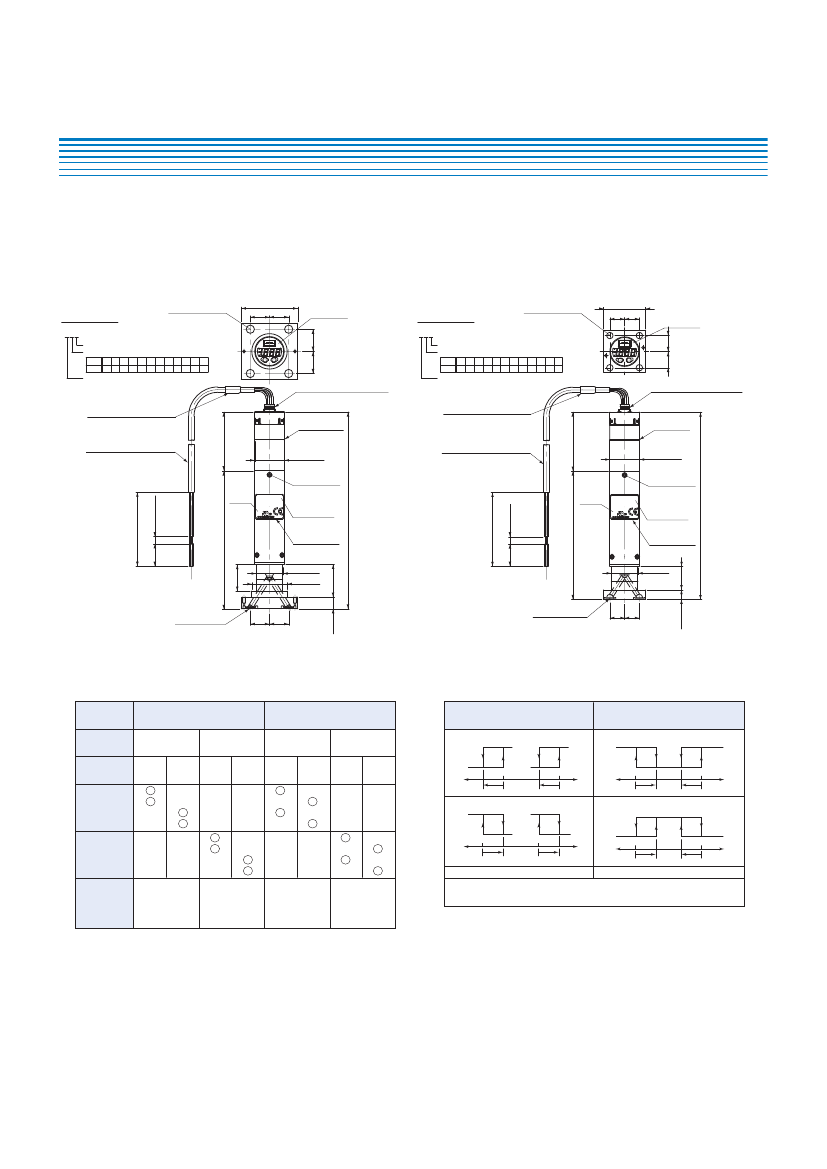

OUTLINE DIMENSIONS
PG-20-***R/G-**W1
4-
φ
5.6(through)
O-ring installation
S5-70 made by Fujikin
Lot No.
(Rabel)
８Y１
Unless otherwise specified tolerance :
±
0.5 (Unit: mm)
PG-20-***R/G-**W2
□38.15 ± 1.15
13 13
15
4-
φ
4.4(through)
O-ring installation
CW-40 made by Fujikin
Lot No.
(Rabel)
８Y１
panel (PET)
□28.5 ± 0.2
10 10
panel (PET)
Production week:1∼6
Month of manufacture
month 1 2 3 4 5 6 7 8 9 10 11 12
A B C D E F G H J Y L M
Year of manufacture: years ending in 0∼9
MPa
PG-20
15
M S
Connector with lock mechanical Post (9Tnylon),
Housing (PBT) GH connector made by JST
Production week:1∼6
Month of manufacture
month 1 2 3 4 5 6 7 8 9 10 11 12
A B C D E F G H J Y L M
Year of manufacture: years ending in 0∼9
MPa
M S
PG-20
Connector with lock mechanical Post (9Tnylon),
Housing (PBT) GH connector made by JST
Heat shrinkage tube
(Flame resisting polyolefin)
Rotation mechanism
Radial ( 270
°
)
Heat shrinkage tube
(Flame resisting polyolefin)
Rotation mechanism
Radial ( 270
°
)
4 core cable (
φ
3.7), L=2000 ± 100
AWG26. UL-style(21101)
Sheath / Insulator: (No.halogen,
Flame resisting polyolefin)
PBT
4 core cable (φ 3.7), L=2000 ± 100
AWG26. UL-style(21101)
Sheath / Insulator: (No.halogen,
Flame resisting polyolefin)
φ
20 ± 0.2
Plate screw (SWRM)
Ni plating
PBT
φ
20 ± 0.2
Plate screw (SWRM)
Ni plating
Lot No.
1.BROWN:POWER (24VDC10%)
2.BLACK:SWITCH1(NPN 30V100mA)
3.WHITE:ANALOG OUT (4
∼
20mA)
4.BLUE :COMMON
Made in Japan
（5）
15 ± 5
Semi-stripping
Lot.
8Y1
1.BROWN:POWER (12∼24VDC10%)
2.BLACK:SWITCH1(NPN 30V100mA)
3.WHITE:SWITCH2(NPN 30V100mA)
4.BLUE :COMMON
Made in Japan
RANGE(-0.100∼1.000)MPa
135 max.
RANGE(-0.100∼1.000)MPa
50 ± 10
50 ± 10
Rabel (PET)
Lot.
8Y1
Rabel (PET)
SUS
Laminate seal (PET)
SUS
Laminate seal (PET)
18 ± 0.2
22 ± 0.2
13
13
■
SWITCH OUTPUT MODE
Output
Mode
Operation
Separate
8 ± 0.2
Fitting port:W1
1.5W-seal
10 10
SW1
Window comparator
Separate
SW2
Window comparator
Separate mode
（HI
operation）
ON
OFF
-Pr
H
H
P1: SW1
P2: SW2
Pr
Window comparator mode
（A
operation）
ON
OFF
P1
-Pr
H
H
P2
Pr
ON
HI
LO
A
B
HI
LO
A
B
S- 1
S- 2
S- 3
S- 4
C- 5
C- 6
C- 7
C- 8
Pressure setting
(Operating point)
Setting 1
(Lower limit) : Setting 1
(Upper limit) : Setting 2
Setting 2
(Lower limit) : Setting 1
(Upper limit) : Setting 2
（LO
operation）
ON
OFF
Pr
H
H
（B
operation）
ON
P1: SW1
-Pr
P2: SW2
OFF
-Pr
6.5 ± 0.2
Fitting port:W2
1.125W-seal
16 ± 0.2
φ
18 ± 0.2
φ
24 ± 0.2
φ
18 ± 0.2
127 max.
Lot No.
PG-20-103R-N2W1
（5）
15 ± 5
Semi-stripping
PG-20-103R-NAW2
10.9 10.9
P1
H
H
P2
OFF
Pr
P1≦P2 or P1≧P2
H：
Switch hysteresis、
P1＝
Setting 1
、
P2＝
Setting 2
P1≦P2–2H
Note 1. In the Separate Mode, setting 1 corresponds to SW1, and
Setting 2 corresponds to SW2.
Note 2. In the Window Comparator Mode, the minimum value for
SW1 and SW2 corresponds to Setting 1 and the maximum
value corresponds to Setting 2.
Note 3. It becomes only “SW1” for one switch output specification.
In that cace, it displays it in the switch operation mode in
order of “S-1”“S-3”“C-5”“C-7”.
