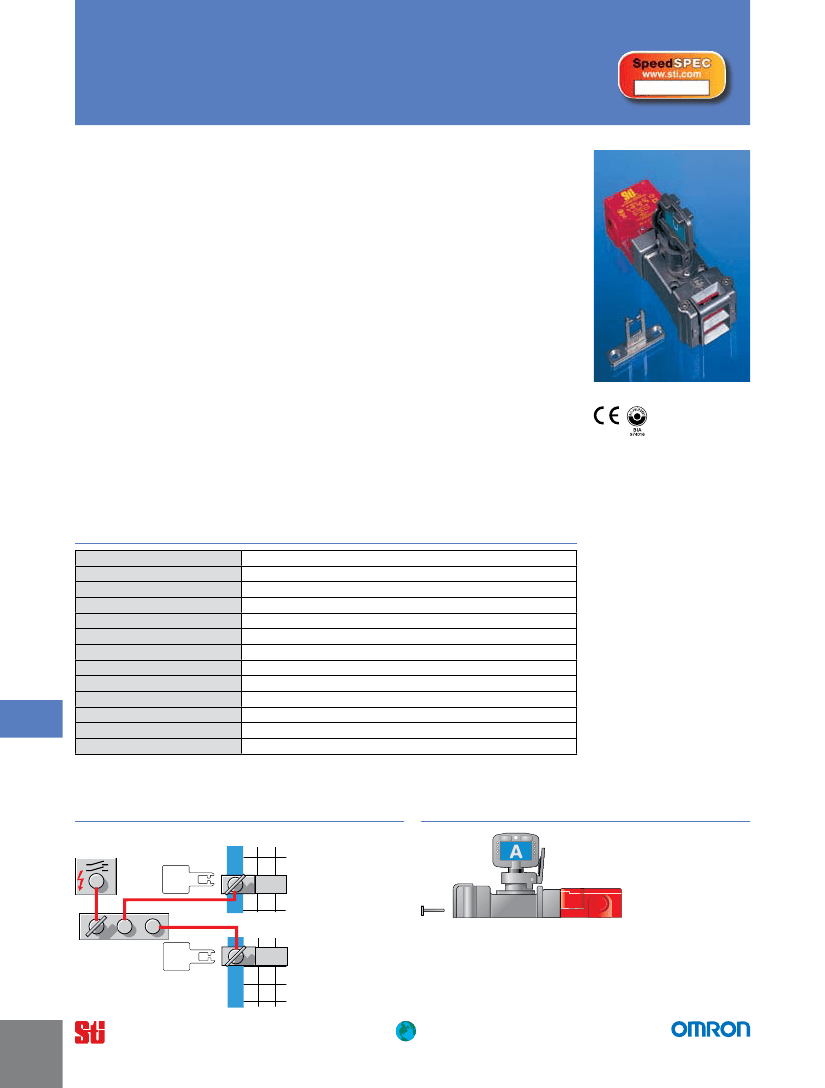

Process Safeguarding
Slamlock Single Key
with interlock
trapped Single Key with
interlock Switch
The Slamlock with interlock switch combines the features of
trapped keys with tongue actuated interlocks including the safety
and auxiliary contacts of the interlock switch. There are two operat-
ing versions of the Slamlock.
With one version of the Slamlock, the key is trapped to release
the actuator. When the actuator is inserted into the interlock (guard
closed), the key may be rotated 90° to the free position and
removed. When the key is in the free position, the 2 N/C safety
contacts are closed and the N/O auxiliary contact is open. With
the key removed, the actuator cannot be removed thus locking the
closed guard door. The key must be re-inserted and rotated 90° in
order to unlock the guard. This version of the Slamlock is used to
interlock hatches, guards and doors where full body access is not
required.
With the other version of this Slamlock, the key is trapped when
the actuator is trapped. In order to remove the actuator (open
the guard), the key must be rotated 90° to the free position and
removed. When the key is in the free position, the 2 N/C safety
contacts are open and the N/O auxiliary contact is closed. In
applications with full body access, the system should be designed
to require removal of the key in the free position in order to operate
a second device inside the guarded area.
• Safety interlock combined
with trapped key function
• 450 lb. locking force
• Variety of actuator types
available
• Direct drive push/pull
operation
• 316 stainless steel
construction
• Virtually maintenance free
• Weatherproof stainless steel
dust cap as standard
• Fitted with tamper resistant
screws
• Screws may be applied
from the rear for increased
tamper resistance
SSSE
Specifications
Operating Temperature:
Mechanical Operations:
Max. Shear Force to Key:
Max. Torque to Key:
Max. Holding Force:
Max. Releaseable Load:
Relative Operating Humidity:
Weight:
Material:
Mounting:
-20 to 80°C (-4 to 176°F)
>10
5
under normal working conditions
15.1 kN
14 Nm
2000 N (450 lb.)
100 N (22.5 lb.)
25% to 95%
1160 gm (41 oz.)
316L stainless steel
2 x M5
Tested to 100,000 operations
Relevant clauses EN292, EN1088 & GS ET 19
CE marked for all applicable directives and BG
m
Code Barrels:
Conforms to Standards:
Approvals:
Specifications are subject to change without notice.
Applications
Isolator switch
A
Operation
Slamlock Single Key
B
T5009
Interlock
A
B
B
B
Key exchange unit
T5009
Interlock
As shown, actuator is out, key is trapped, safety
contacts are open, and auxiliary contact is closed.
Slamlock Single Key
m26
OmrOn Scientific technOlOgieS, inc.
USA
Tel. 1/888/510-4357
canada
Tel. 1/866/986-6766
For the Latest Information
On the Internet:
www.sti.com
or
www.omron.ca
Slamlock Single Key with interlock
Process Safeguarding

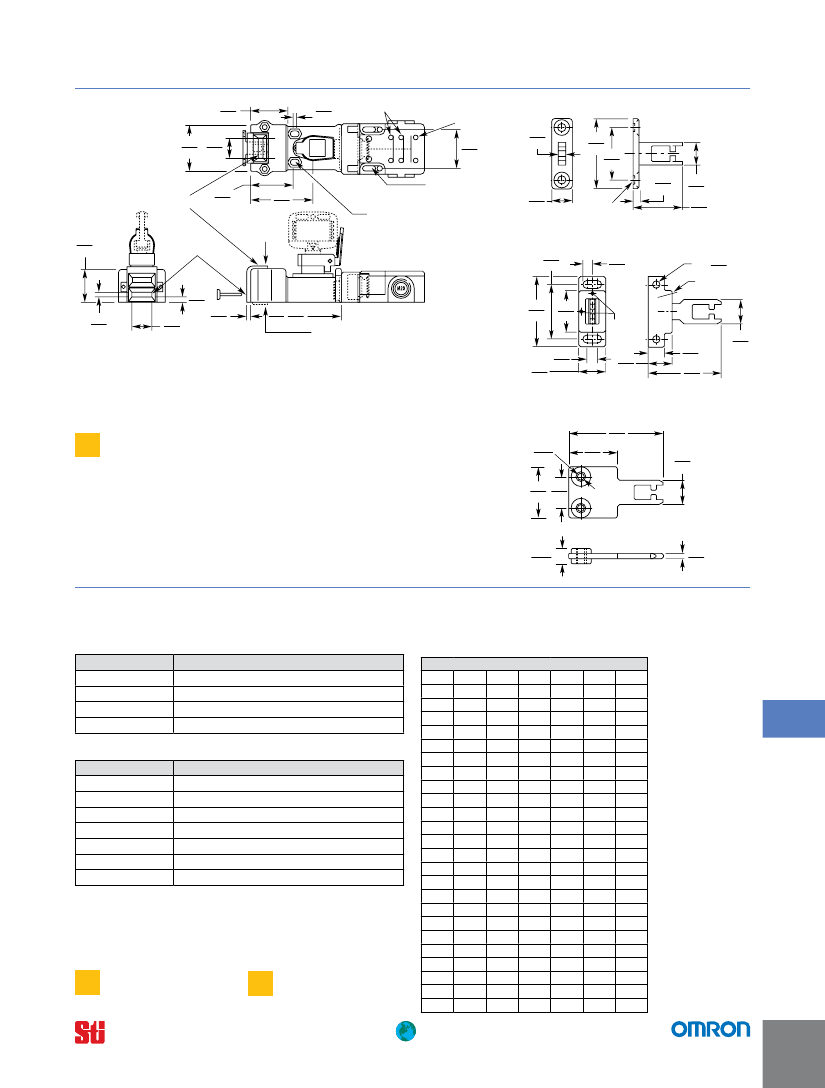

Dimensions
38.3
1.51
48 20.8
1.89 0.82
3.5
0.14
SAFETY CONTACTS
AUXILIARY
CONTACTS
40.0
1.57
M5 C'BORED
FROM TOP
M5 C'BORED FROM TOP.
M5 MOUNTING FROM U'SIDE
USING M5 NUTS IN RECESSES.
Standard Actuator
(mm/in.)
3.5
0.14
52
2.05
40
1.57
4
0.16
18
0.71
36
1.42
TOP ENTRY
43.6
1.72
64.1
2.52
14.5
0.57
M5 CSK
34
1.34
flexible 1 Actuator
FRONT ENTRY
40
1.57
6.8
0.27
4 x
Ø5.5
0.22
2 x M3
5.5
0.22
5
0.2
20.8
0.82
4
0.16
93
3.66
52
2.05
BOTTOM ENTRY
31
1.22
Adjusting
screws
8
20 0.31
0.79
flat Actuator
19
0.75
13
0.51
51
2.01
18
0.71
✎
For specifications on the T5009 Interlock
Switch, see Section G of this catalog.
4
0.175
36 20
1.42 0.8
25
.984
57
2.24
18
0.69
Ordering
Slamlock Single Key with t5009 interlock Switch
2 N/C + 1 N/O contacts, M20/NPT adapter.
Key is trapped to release actuator.
Part no.
SSSE10
SSSE11
SSSE12
SSSE13
Actuator
Standard
Flexible
Flat
Flat with 305 mm chain
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
R
S
T
U
V
W
X
Y
Z
Aa
Ba
Ca
Da
Ea
Fa
Ga
Ha
Ia
Ja
Ka
La
Ma
Na
Oa
Pa
Ra
Sa
Ta
Ua
Va
Wa
Xa
Ya
Za
Ab
Bb
Cb
Db
Eb
Fb
Gb
Hb
Ib
Jb
Kb
Lb
Mb
Nb
Ob
Pb
Rb
Sb
Tb
Ub
Vb
Wb
Xb
Yb
Zb
8
0.315
3.8
0.14
Key codes
(....) = Primary key / key free
[....] = Secondary key / key trapped
codes
Ac
Bc
Cc
Dc
Ec
Fc
Gc
Hc
Ic
Jc
Kc
Lc
Mc
Nc
Oc
Pc
Rc
Sc
Tc
Uc
Vc
Wc
Xc
Yc
Zc
Key is trapped when actuator is trapped.
Part no.
SSSE20
SSSE22
SSSE23
SSSE24
44519-0700
44519-0710
44519-0720
Actuator
Standard
Flexible
Flat
Flat with 305 mm chain
Spare standard actuator
Spare flexible actuator
Spare flat actuator
Codes ‘A’ to ‘Z’ available excluding the letter ‘Q’. To specify
coding, add the key code of your choice from the Key Code
Table to the part no. from the Ordering Table, i.e., SSSE10(A) is a
Slamlock single key interlock with primary ‘A’ key.
Key is ordered
separately.
✎
For coding details
and referencing,
see page M5.
✎
To order keys, on
see Accessories
page M30.
Ad
Bd
Cd
Dd
Ed
Fd
Gd
Hd
Id
Jd
Kd
Ld
Md
Nd
Od
Pd
Rd
Sd
Td
Ud
Vd
Wd
Xd
Yd
Zd
Ae
Be
Ce
De
Ee
Fe
Ge
He
Ie
Je
Ke
Le
Me
Ne
Oe
Pe
Re
Se
Te
Ue
Ve
We
Xe
Ye
Ze
Af
Bf
Cf
Df
Ef
Ff
Gf
Hf
If
Jf
Kf
Lf
Mf
Nf
Of
Pf
Rf
Sf
Tf
Uf
Vf
Wf
Xf
Yf
Zf
