RNV Series
High Voltage Anti-moisture Metal Film Resistor
Features:
•
•
•
Stackpole Electronics, Inc.
Resistive Product Solutions
High voltage surge handling per IEC 60065.14.1, up to 7KV
High tolerance to prolonged exposure to temperature and
humidity stress
Ideal for applications requiring high stability, reliability and voltage
handling; including power inverters, AC adapters and switching
power supplies
Electrical Specifications
Type / Code
RNV14

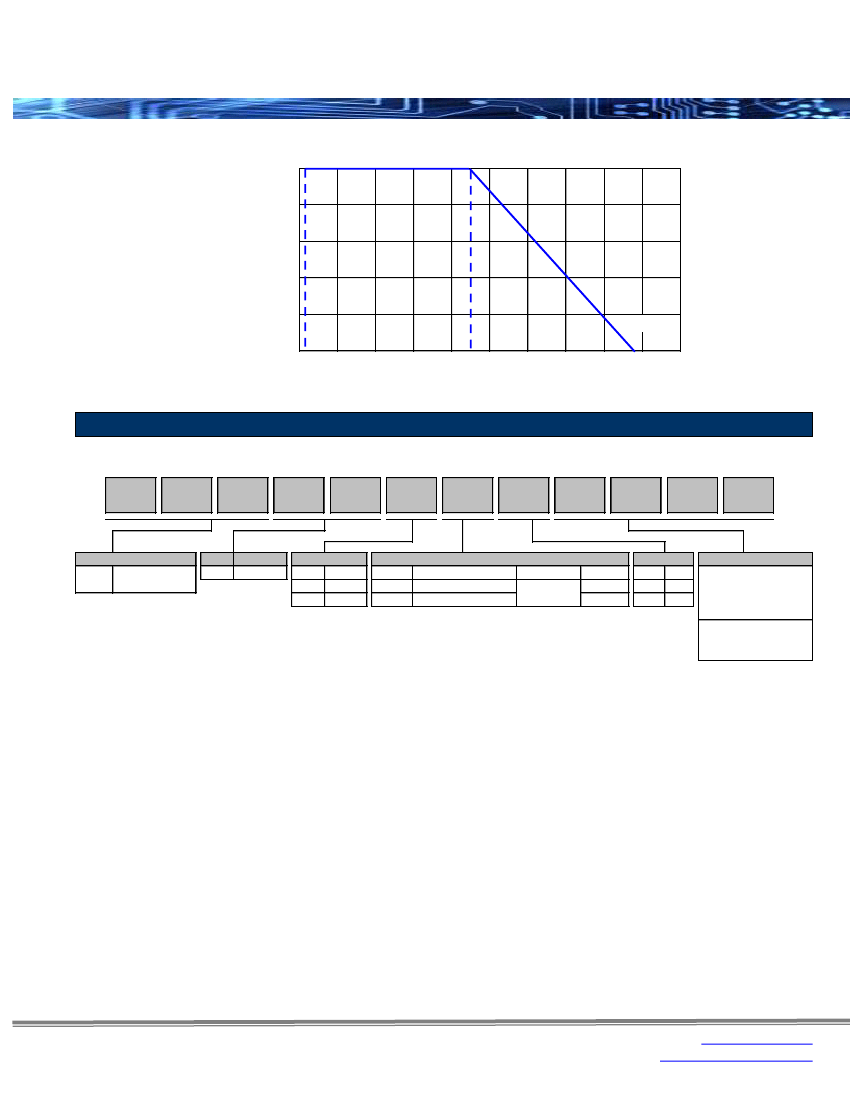

Power Rating
(Watts) @ 70ºC
0.25W
Maximum
Working Voltage
1600V (DC)
1150V (RMS)
(1)
Maximum
Overload Voltage
3200V (DC)
2300V (RMS)
Resistance Temperature
Coefficient
±100 ppm/ºC
±200 ppm/ºC
Ohmic Range (Ω) and Tolerance
1% and 5%
100K - 6.8M
100K - 15M
Note: (1) Lesser of √P*R or maximum working voltage

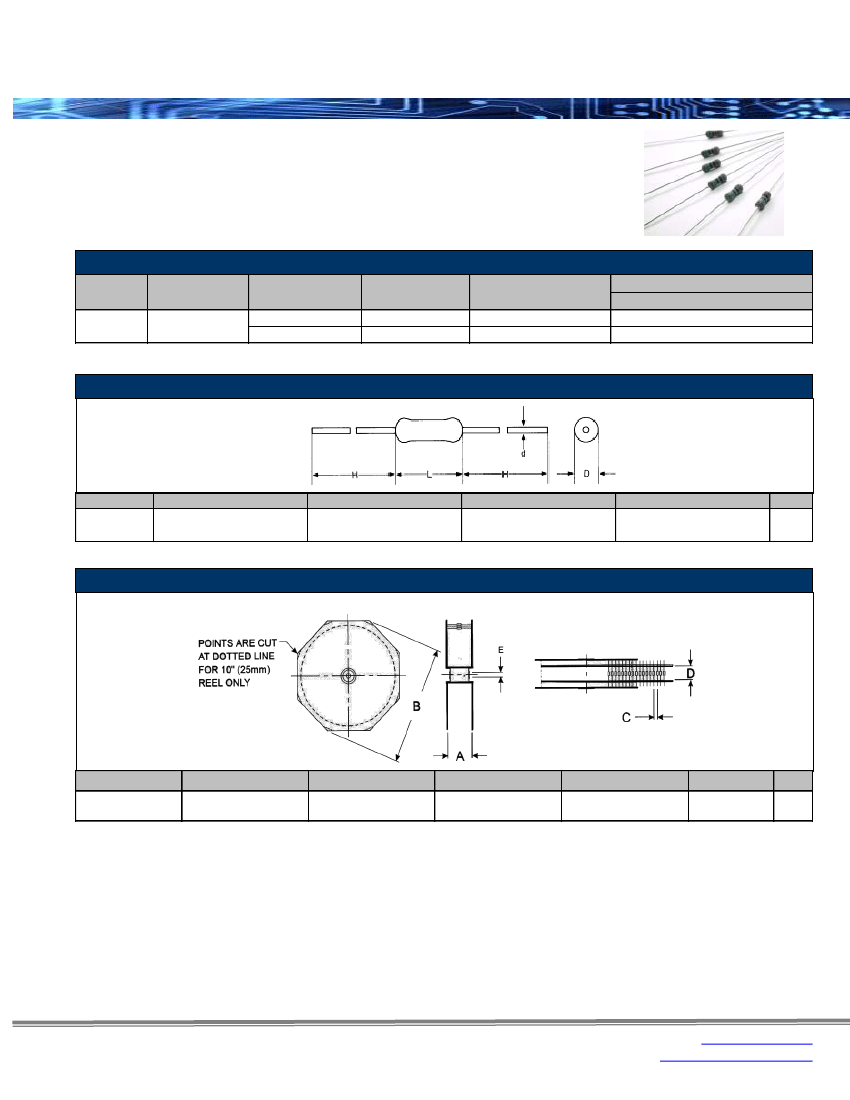

Mechanical Specifications
Type / Code
RNV14
L
0.236 ± 0.012
6.00 ± 0.30
D
0.094 ± 0.008
2.40 ± 0.20
d
0.022 ± 0.002
0.55 ± 0.05
H
1.102 ± 0.079
28.00 ± 2.00
Unit
inches
mm
Packaging Specifications
Type / Code
RNV14
A max.
2.756 ± 0.118
70.00 ± 3.00
(1)
B max.
11.811 ± 0.197
300.00 ± 5.00
C
0.197 ± 0.020
5.00 ± 0.50
D
2.047 ± 0.020
52.00 ± 0.50
(2)
Tape
0.250
6.35
Unit
inches
mm
Dimension "E": This is a non-critical dimension that does not have a tolerance in the standard.
Range of diameters is from 0.547" (13.9 mm) to 1.5" (38.1 mm)
(1) Reference value only. The "A" dimension shall be governed by the overall length of the taped component.
The distance between flanges shall be 0.59" (1.5 mm) to 0.315" (8 mm) greater than the overall component.
(2) The given dimension "D" expresses the standard width spacing. A 26 mm narrow spacing is available as
option "N" packaging code.
Rev Date: 08/23/2016
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
1
www.seielect.com
marketing@seielect.com
RNV Series
High Voltage Anti-moisture Metal Film Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions

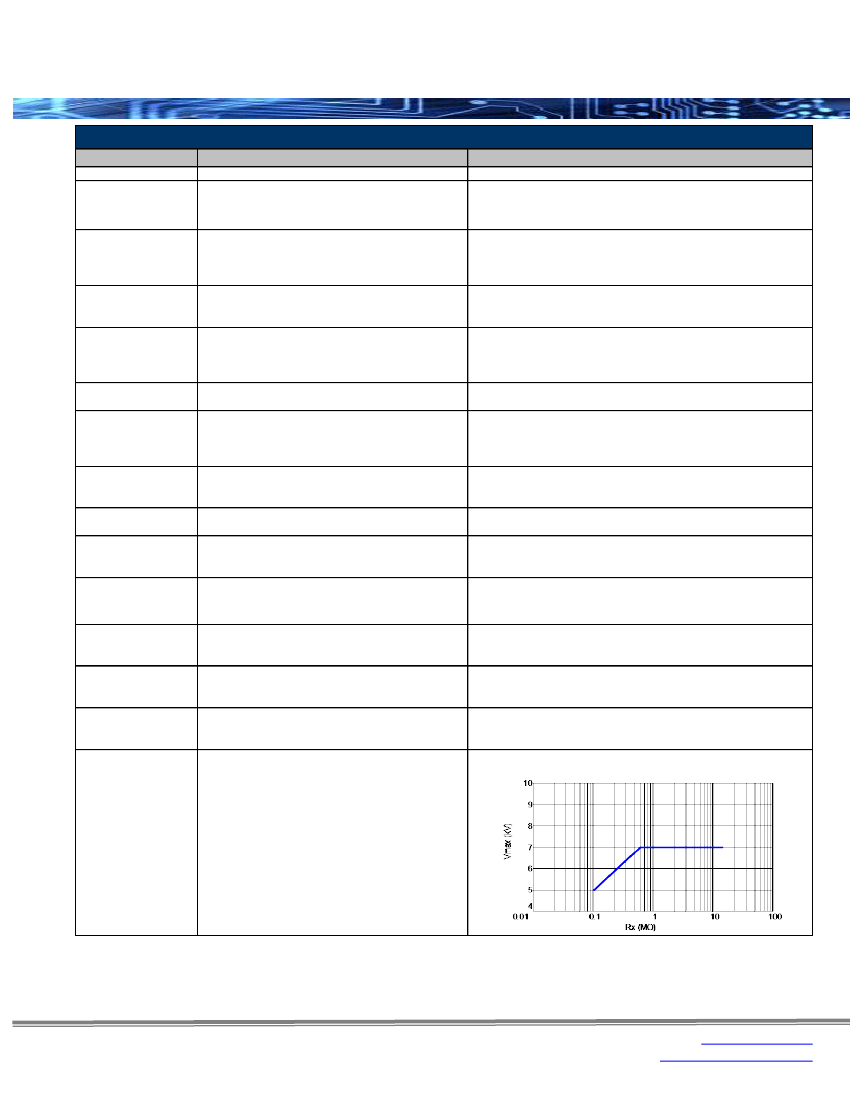

Performance Characteristics
Item
Solvent Resistance
Temperature Coefficient
Resistance (TCR)
Performance
No serious scratches on the insulating surface
±100 ppm/ºC (100K - 6.8M)
±200 ppm/ºC (100K - 15M)
Test Method
Resistor was dipped into solvent for 5 ± 0.5 minutes
Measured resistance (R
0
ohm) at room temperature (t ºC) then
measured again at 100ºC higher than room temperature
ppm/ºC = (R-R
0
)/R
0
X 10
6
/{(T + 100)-t}
Applied DC voltage 2.5 times rated voltage or max. overload voltage
whichever is lower for 5 seconds ON, 45 seconds OFF.
Repeated cycle 10 times. Maximum Overload voltage is not more
than 2 x Max Working Voltage
Resistor was clamped in the through of a 90ºC metallic V-block
and was tested at provided AC potential voltage for 1 minute.
Test voltage: max overload voltage. Test voltage: 500V (AC)
Applied 1.5mm amplitude vibration to two directions, perpendicular
to each other, for 6 hours each. Total 12 hours.
Vibrating frequency is 10HZ - 2000HZ - 10HZ cycle in 20 minutes.
Repeat cycle.
Resistor was clamped in the through of a 90ºC metallic V-block
at DC 100V for 1 minute
Tensile test: The body of the part is fixed. The tensile force was
applied gradually up to 10N. Twist test: Terminal lead was
rotated 360º of the original axis of the bent terminal,
alternating direction for 3 rotations.
Resistance to wave soldering condition:
Temperature/Time-Profile in accordance to the CECC00802.
Max Temperature/Time: 260ºC, 10 seconds
Dipped the lead into a solder bath (temperature 245ºC ± 5ºC) up
to 4 ± 0.8mm from the resistor body and held for 5 ± 0.5 seconds.
Test: -55ºC for 30 minutes, 25ºC for 30 seconds, 155ºC for 30
minutes, 25ºC for 30 seconds. Resistance changed after
continuous 5 cycles.
Temperature 40ºC ± 2ºC, relative humidity 90~95%, inside bath for
1.5 hour and shut voltage 0.5 hour. Repeated cycle for 1,000 hours.
Room temperature for 1 hour after test, then measured
In constant temperature chamber 70ºC ± 2ºC, applied rated DC
voltage for 1.5 hour and shut voltage for 0.5 hour.
Cycle repeated for 1,000 hours.
Resistor was put into a bath at fixed temp of -55ºC ± 3ºC for 2 hours.
After measured, left at room temp for 1 hour,
then measured again.
Resistor was put into a bath at fixed temp of 155ºC ± 3ºC for 16
hours. After measured, left at room temp for 1 hour,
then measured again.
In accordance with IEC60065.14.1, 50 discharges from a 1nF
capacitor charged to Vmax; Figure 2. 12 discharges/minute
Overload
(short time)
Resistance variation within ±(1% + 0.05Ω)
Voltage Proof
Resistance variation within ±(0.5% + 0.05Ω)
Vibration
Resistance variation within ±(0.5% + 0.05Ω)
Insulation Resistance
Robustness
of Terminations
Resistance to
Soldering Heat
Solderability
Rapid Change
of Temperature
Damp Heat
104 MΩ or more
Resistance variation within ±(0.5% + 0.05Ω)
and no mechanical damage
No mechanical and electrical deterioration
More than 95% of the lead surface was covered by
new solder after the leads were dipped in the solder
Resistance variation within ±(0.5% + 0.05Ω)
Resistance variation within ±(1.5% + 0.05Ω)
Endurance at 70ºC
Resistance variation within ±(1.5% + 0.05Ω)
Cold Resistance
Resistance variation within ±(1.5% + 0.05Ω)
Heat Resistance
Resistance variation within ±(1.5% + 0.05Ω)
High Voltage
Surge Test
Resistance variation within ±(1% + 0.05Ω)
Operating Temperature Range: -55ºC to +155ºC
Rev Date: 08/23/2016
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
2
www.seielect.com
marketing@seielect.com
