Ordering number : ENN7519
50C02SS
NPN Epitaxial Planar Silicon Transistor
50C02SS
Low-Frequency
General-Purpose Amplifier Applications
Applications
•
Package Dimensions
unit : mm
2159A
[50C02SS]
Low-frequency Amplifer, high-speed switching,
small motor drive, muting circuit.
Features
•
•
•
0.3
•
Large current capacitance.
Low collector-to-emitter saturation voltage (resistance).
RCE(sat) typ=175mΩ [IC=0.5A, IB=50mA].
Ultrasmall package facilitates miniaturization in end
products.
Small ON-resistance (Ron).
Top View
1.4
0.3
Side View
0.1
0.25
3
0.8
1
0.45
0.2
2
Bottom View
0.07
0.07
1.4
Side View
0.6
3
1 : Base
2 : Emitter
3 : Collector
SANYO : SSFP
2
1
Specifications
Absolute Maximum Ratings
at Ta=25°C
Parameter
Collector-to-Base Voltage
Collector-to-Emitter Voltage
Emitter-to-Base Voltage
Collector Current
Collector Current (Pulse)
Collector Dissipation
Junction Temperature
Storage Temperature
Symbol
VCBO
VCEO
VEBO
IC
ICP
PC
Tj
Tstg
Mounted on a glass-epoxy board (20!30!1.6mm)
Conditions
Ratings
60
50
5
400
800
200
150
--55 to +150
Unit
V
V
V
mA
mA
mW
°C
°C
Electrical Characteristics
at Ta=25°C
Parameter
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Gain-Bandwidth Product
Symbol
ICBO
IEBO
hFE
fT
VCB=40V, IE=0
VEB=4V, IC=0
VCE=2V, IC=10mA
VCE=10V, IC=50mA
300
500
Conditions
Ratings
min
typ
max
100
100
800
MHz
Unit
nA
nA
Marking : YN
Continued on next page.
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft's
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
SANYO Electric Co.,Ltd. Semiconductor Company
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
52703 TS IM TA-100152 No.7519-1/4
50C02SS
Continued from preceding page.
Parameter
Output Capacitance
Collector-to-Emitter Saturation Voltage
Base-to-Emitter Saturation Voltage
Collector-to-Base Breakdown Voltage
Collector-to-Emitter Breakdown Voltage
Emitter-to-Base Breakdown Voltage
Turn-ON Time
Storage Time
Fall Time
Symbol
Cob
VCE(sat)
VBE(sat)
V(BR)CBO
V(BR)CEO
V(BR)EBO
ton
tstg
tf
Conditions
VCB=10V, f=1MHz
IC=100mA, IB=10mA
IC=100mA, IB=10mA
IC=10µA, IE=0
IC=1mA, RBE=∞
IE=10µA, IC=0
See specified Test Circuit.
See specified Test Circuit.
See specified Test Circuit.
60
50
5
30
340
55
Ratings
min
typ
2.8
50
0.9
100
1.2
max
Unit
pF
mV
V
V
V
V
ns
ns
ns

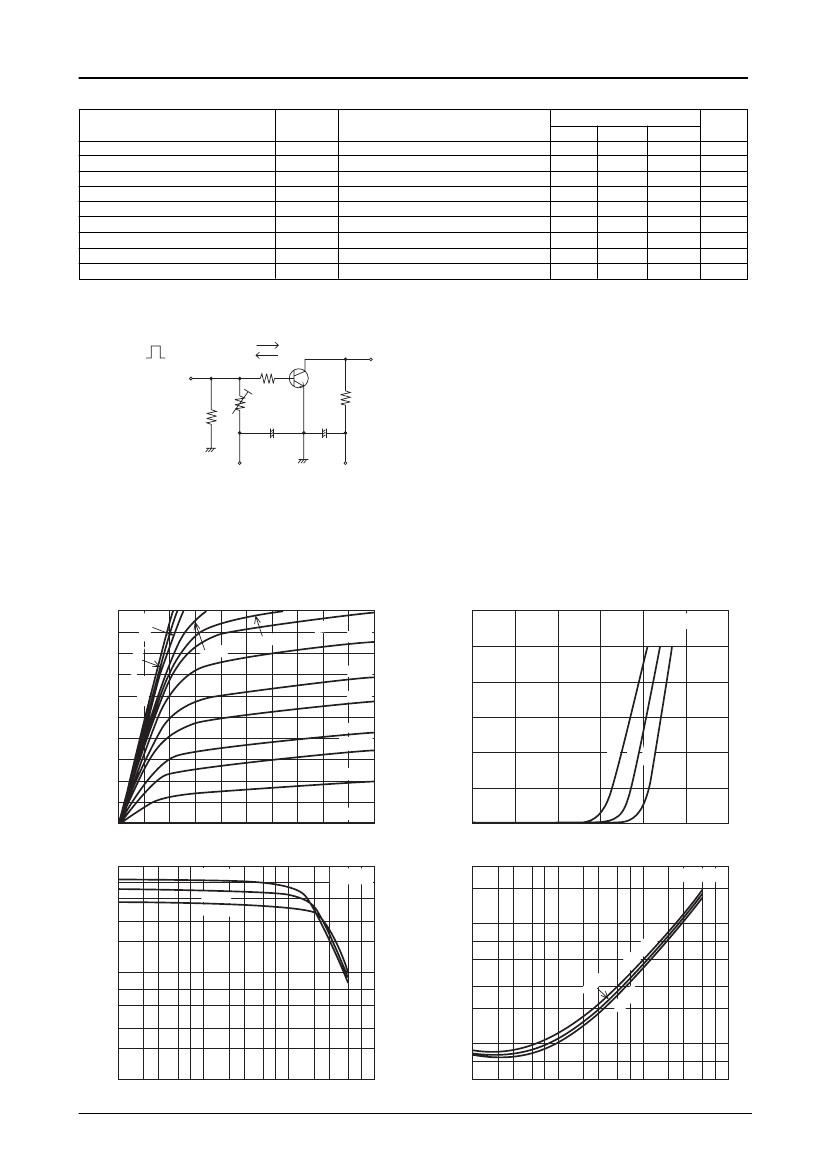

Switching Time Test Circuit
PW=20µs
D.C.≤1%
INPUT
IB1
OUTPUT
IB2
VR
50Ω
+
220µF
VBE= --5V
+
470µF
VCC=25V
RB
RL
IC=20IB1= --20IB2=200mA
500
IC -- VCE
A 1
5mA
600
IC -- VBE
VCE=2V
450
7mA
Collector Current, IC -- mA
30mA
350
300
250
200
150
100
50
0
0
3mA
Collector Current, IC -- mA
20m
400
A
10m
8mA
5mA
500
400
2mA
1mA
600µA
200µA
300
°
C
25
°
C
200
100
IB=0
100
200
300
400
500
600
700
800
900
1000
0
0
0.2
0.4
0.6
0.8
1.0
1.2
IT05107
Collector-to-Emitter Voltage, VCE -- mV
1000
7
5
3
2
IT05106
3
Ta=75
°C
hFE -- IC
Base-to-Emitter Voltage, VBE -- V
VCE(sat) -- IC
Ta=7
5
--25
°
C
IC / IB=10
2
3
VCE=2V
Collector-to-Emitter
Saturation Voltage, VCE(sat) -- mV
2
25
°C
--25°C
DC Current Gain, hFE
100
5
3
2
100
7
5
3
2
10
7
10
1.0
2
3
5 7 10
2
3
5 7 100
2
3
5 7 1000
IT05108
5
1.0
2
3
5 7 10
2
3
--2
5 7 100
5
°
C
25
°
C
Ta
=7
5
°
C
7
5 7 1000
IT05411
Collector Current, IC -- mA
Collector Current, IC -- mA
No.7519-2/4

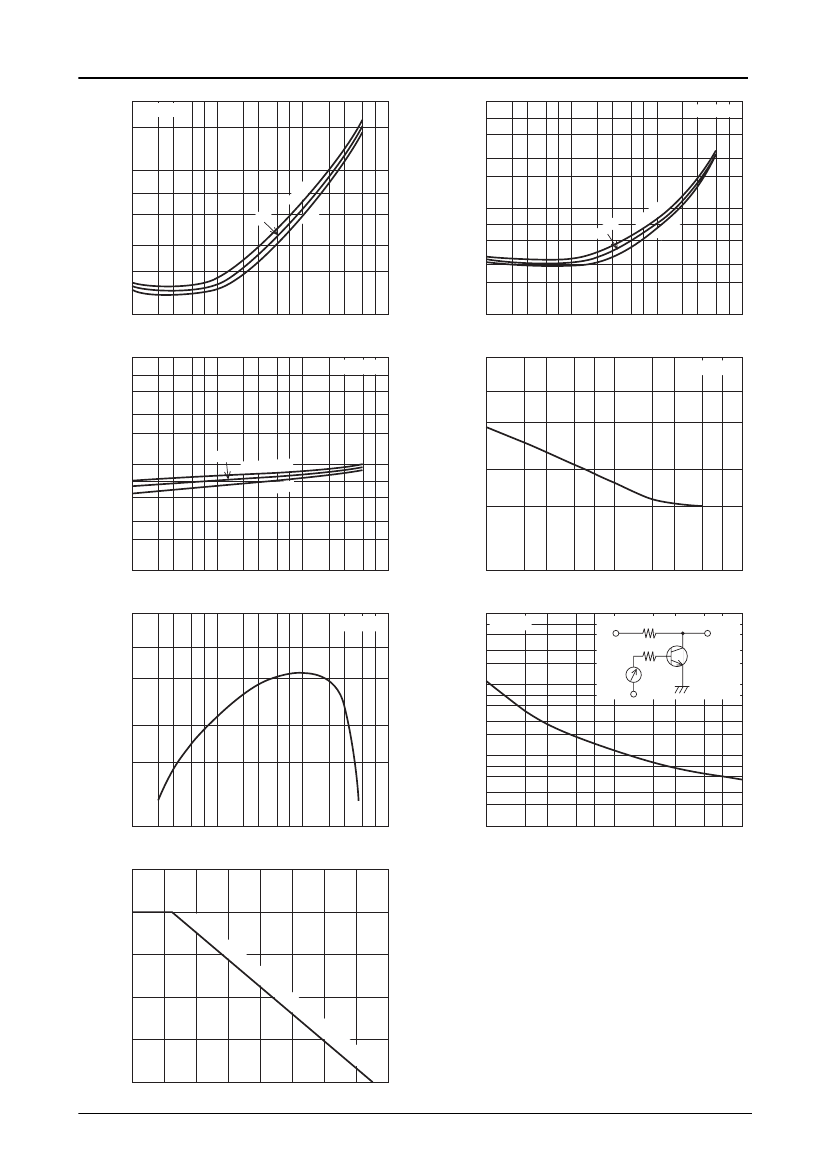

50C02SS
3
VCE(sat) -- IC
IC / IB=20
1000
7
VCE(sat) -- IC
IC / IB=50
Collector-to-Emitter
Saturation Voltage, VCE(sat) -- mV
Collector-to-Emitter
Saturation Voltage, VCE(sat) -- mV
2
5
3
2
100
7
5
Ta
=7
5
°
C
°
C
°
C
25
--2
5
100
7
5
3
2
°
C
25
C
5
°
=7
C
Ta
5
°
--2
3
2
10
1.0
2
3
5 7 10
2
3
5 7 100
2
3
5 7 1000
IT05109
10
1.0
2
3
5 7 10
2
3
5 7 100
2
3
5 7 1000
IT05110
Collector Current, IC -- mA
10
7
VBE(sat) -- IC
Collector Current, IC -- mA
10
Cob -- VCB
f=1MHz
IC / IB=20
Base-to-Emitter
Saturation Voltage, VBE(sat) -- V
3
2
Output Capacitance, Cob -- pF
2
3
5 7 1000
IT05111
5
7
5
1.0
7
5
3
2
25
°C
Ta= --25°C
3
75
°C
2
0.1
1.0
2
3
5 7 10
2
3
5 7 100
1.0
1.0
2
3
5
7
10
2
3
5
7
100
Collector Current, IC -- mA
1000
fT -- IC
Collector-to-Base Voltage, VCB -- V
100
7
5
3
2
10
7
5
3
2
1.0
7
5
3
2
IT05112
Ron -- IB
IN
VCE=10V
f=1MHz
1kΩ
1kΩ
IB
Gain-Bandwidth Product, fT -- MHz
OUT
7
5
3
2
100
1.0
ON Resistance, Ron --
Ω
2
3
5 7 10
2
3
5 7 100
2
3
5 7 1000
IT05113
0.1
0.1
2
3
5
7
1.0
2
3
5
Collector Current, IC -- mA
250
PC -- Ta
Base Current, IB -- mA
10
IT06092
7
Collector Dissipation, PC -- mW
200
M
ou
nt
ed
150
on
ag
las
s-e
po
100
xy
bo
ar
d(
20
!
3
50
0
!
1.6
m
m
)
160
0
0
20
40
60
80
100
120
140
Ambient Temperature, Ta --
°C
IT05114
No.7519-3/4
50C02SS
