REVISIONS
REV.
E
F
F
ECO. NO
2536
2740
3463
DESCRIPTION
UPDATE PROCESSING TEMP FOR "N" MTL
REMOVE 'NYLON 46' MATERIAL PART
ADD NOTE 15
DATE
3/30/2012
04/24/2013
06/06/2016
BY
JH
LH
LH

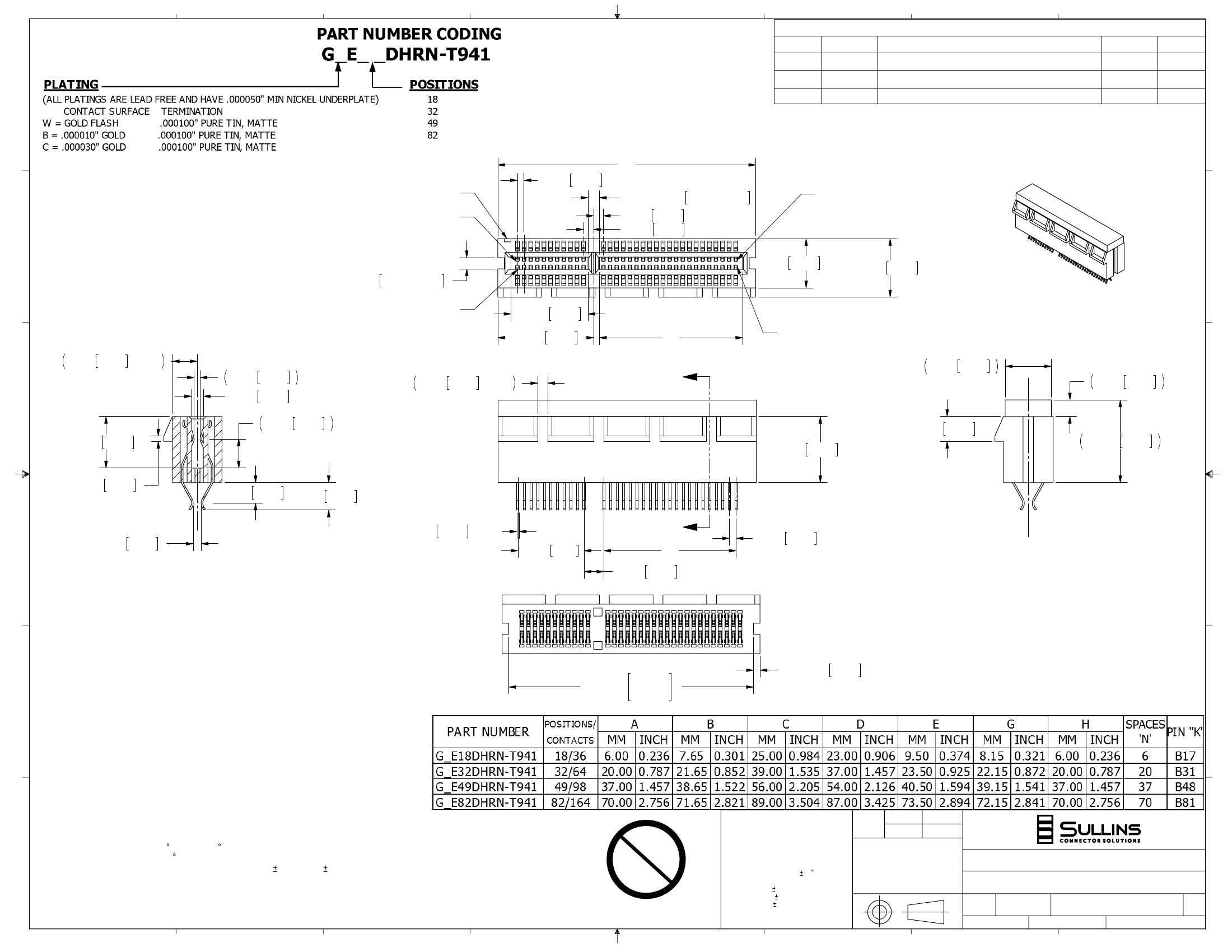

F
H
PIN #A1 IDENTIFIER
PIN A1
E
1.00 .039
C
1.73±0.08 .068±.003
1.50 .059
1.50 .059
PIN A 'N+12'
E
2X 1.70±0.05 .067±.002
PIN B1
11.65 .459
14.50 .571
3.75 .148 MAX.
0.90 .035
D
7.50 .295 MAX. 8.85 .348
B
PIN B 'N+12'
7.00 .276
1.80 .071
4.40 .173
7.80 .307
0.80 .031
1.50 .059 MAX.
A
2.50 .098
D
3.75 .148
10.25 .404 MAX.
12.50 .492
3.00 .118
4.10 .161
0.34 .013 TYP.
10.00 .394
A
A
3.00 .118
C
1.20 .047
1.00 .039 TYP.
C
SECTION A-A
B
D
0.00 +.000
'
- 0.10 - .004
2X 1.00 .039
B
A
NOTES:
1. INSULATOR MATERIAL: NYLON 9T, UL 94V-0, COLOR: BLACK.
2. CONTACT MATERIAL: PHOSPHOR BRONZE.
3. CONTACT PLATING: SEE PART NUMBER CODING.
4. CURRENT RATING: 1.1 AMPS PER CONTACT.
5. VOLTAGE RATING: 50 VAC/DC.
6. INSULATOR RESISTANCE: 1000 MEGOHMS MIN.
7. CONTACT RESISTANCE: 30 MILLI OHMS MAX.
8. DIELECTRIC WITHSTANDING: 500 VAC.
9. OPERATING TEMP.: -10 C TO + 85 C
10. PROCESSING TEMP.: 260 C FOR 10 SEC. MAX.
11. BOARD THICKNESS ACCOMMODATED: 1.57mm 0.13[.062 .005]
12. INSERTION FORCE: 117.3g(1.173N) MAX PER CONTACT PAIR WHEN USING A 1.70mm[.067"] TEST BLADE.
13. WITHDRAWAL FORCE: 15.31g(0.153N) MIN PER CONTACT PAIR USING A 1.44mm[.057"] PCB.
14. CAP NEEDS TO BE ON DURING IR REFLOW PROCESS TO PREVENT WARPAGE.
15. MATERIAL CODE "N" EQUIVALENT TO "G".
8
7
6
5
DRAWN
DATE
07/08/09
NAME
JH
TITLE
Pb
R
oHS COMPLIANT
4
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MM[INCHES]
TOLERANCES:
ANGULAR:
5
.X= 0.35 [.014]
.XX= 0.25 [.010]
.XXX= 0.080 [.0031]
THE INFORMATION HEREIN CONTAINS
PROPIETARY INFORMATION OF
SULLINS ELECTRONICS AND IS NOT
TO BE REPRODUCED, USED OR
DISCLOSED TO OTHERS FOR ANY
PURPOSE EXCEPT AS SPECIFICALLY
AUTHORIZED IN WRITING BY AN
OFFICER OF SULLINS ELECTRONICS.
PCI E, STRADDLE MOUNT, NO PEGS
A
PART NUMBER
SIZE
G_E_ _DHRN-T941
DWG. NO.
SCALE: 3:1
3
2
C
CAGE CODE
54453
11044
SHEET 1 OF 2
1
REV
H
FILE NAME: Z:\ECO RELEASED\3463, PCI E 1.0mm CC, STRADDLE TYPE, DWG 11042, 11043 AND 11044\11044, G_E_ _DHRN-T941 PRINT: 6/13/2016
8
7
6
5
4
3
2
1

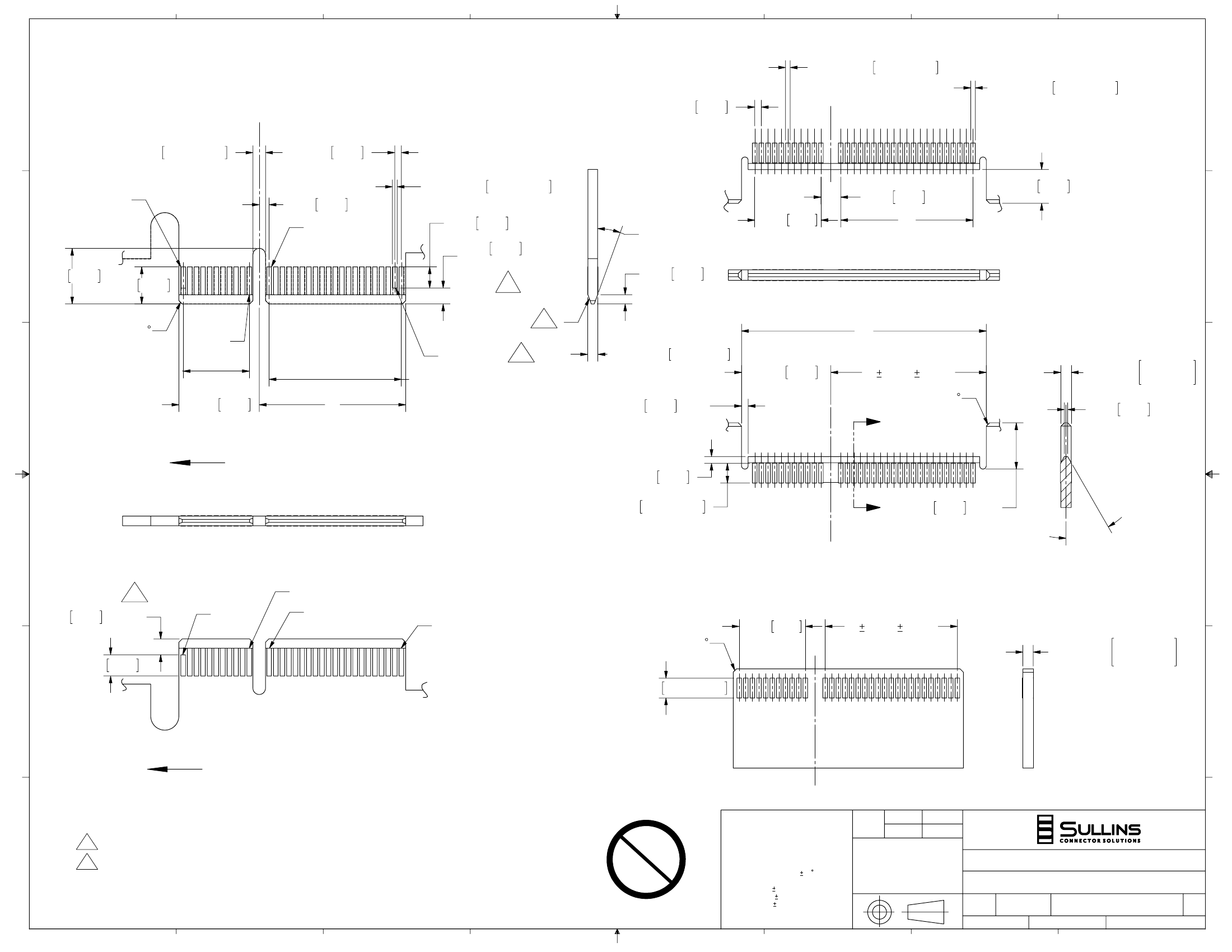

0.70±0.05 .028±.002
F
C
L
1.90±0.06 .075±.002
1.00 .039
0.70±0.05 .028±.002
1.50 .059
PIN B12
E
1.00 .039
C
L
0.70±0.05 .028±.002
F
PIN B1
3.00 .118
20.0°±2°
1.40 .055
10.00 .394
5.10 .201
3.20 .126
2.40 .094
PIN 'K'
A
E
8.40 .331
5.60 .220
1.
2.
PIN B11
PIN B 'N+11' 1.
'N' SPACES @1.0[.039] EACH=H
4X 0.50[.020]x45
10 SPACES @1.00 [.039]EACH
D
D
1.57±0.13 .062±.005
13.50 .531
1.00 .039 TYP.
E 0.05[ .002]
2X 0.50[.020]X 45
+0.05
+.002
1.57
.062
0.00
- .000
D
12.15 .478
G
B
0.50 .020
I/O PANEL DIRECTION
PRIMARY (COMPONENT) SIDE
1.00 .039
3.00±0.05 .118±.002
B
C
L
7.00 .276 MAX.
30.0°
C
C
RECOMMENDED PCB LAYOUT OF TYPE 1
1.
2.40 .094 PIN 'K'
PIN A1
PIN A11
PIN A12
PIN A 'N+12'
2X 0.50[.020]X 45
3.20 .126
B
SECTION B-B
SCALE 3 : 1
10.00 .394
A 0.05[ .002]
C
L
+0.05
+.002
1.57
.062
0.00
- .000
B
3.00±0.05 .118±.002
I/O PANEL DIRECTION
SECONDARY (SOLDER) SIDE
RECOMMENDED PCB LAYOUT OF TYPE 2
DRAWN
DATE
07/08/09
NAME
JH
TITLE
A
A
1. NO TIE BAR PERMITTED FROM CARD EDGE TO LEADING EDGE OF PAD FOR PINS 'A1' AND 'K'.
2. CHAMFER EDGES MUST BE FREE OF CUTTING BURR.
Pb
R
oHS COMPLIANT
5
4
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MM[INCHES]
TOLERANCES:
ANGULAR:
5
.X= 0.35 [.014]
.XX= 0.25 [.010]
.XXX= 0.080 [.0031]
THE INFORMATION HEREIN CONTAINS
PROPIETARY INFORMATION OF
SULLINS ELECTRONICS AND IS NOT
TO BE REPRODUCED, USED OR
DISCLOSED TO OTHERS FOR ANY
PURPOSE EXCEPT AS SPECIFICALLY
AUTHORIZED IN WRITING BY AN
OFFICER OF SULLINS ELECTRONICS.
PART NUMBER
SIZE
PCI E, STRADDLE MOUNT, NO PEGS
G_E_ _DHRN-T941
DWG. NO.
SCALE: 2:1
3
2
C
CAGE CODE
54453
11044
SHEET 2 OF 2
1
REV
H
8
7
6
FILE NAME: Z:\ECO RELEASED\3463, PCI E 1.0mm CC, STRADDLE TYPE, DWG 11042, 11043 AND 11044\11044, G_E_ _DHRN-T941 PRINT: 6/13/2016
