NWE18DHRN-T9410 datasheet, PDF

NWE18DHRN-T9410: DescriptionCONN PCI EXP FEMALE 36POS 0.039; CategoryThe connector; File Size750KB，2 Pages; ManufacturerSullins Connector Solutions; Environmental Compliance

Download Datasheet Parametric Compare View All

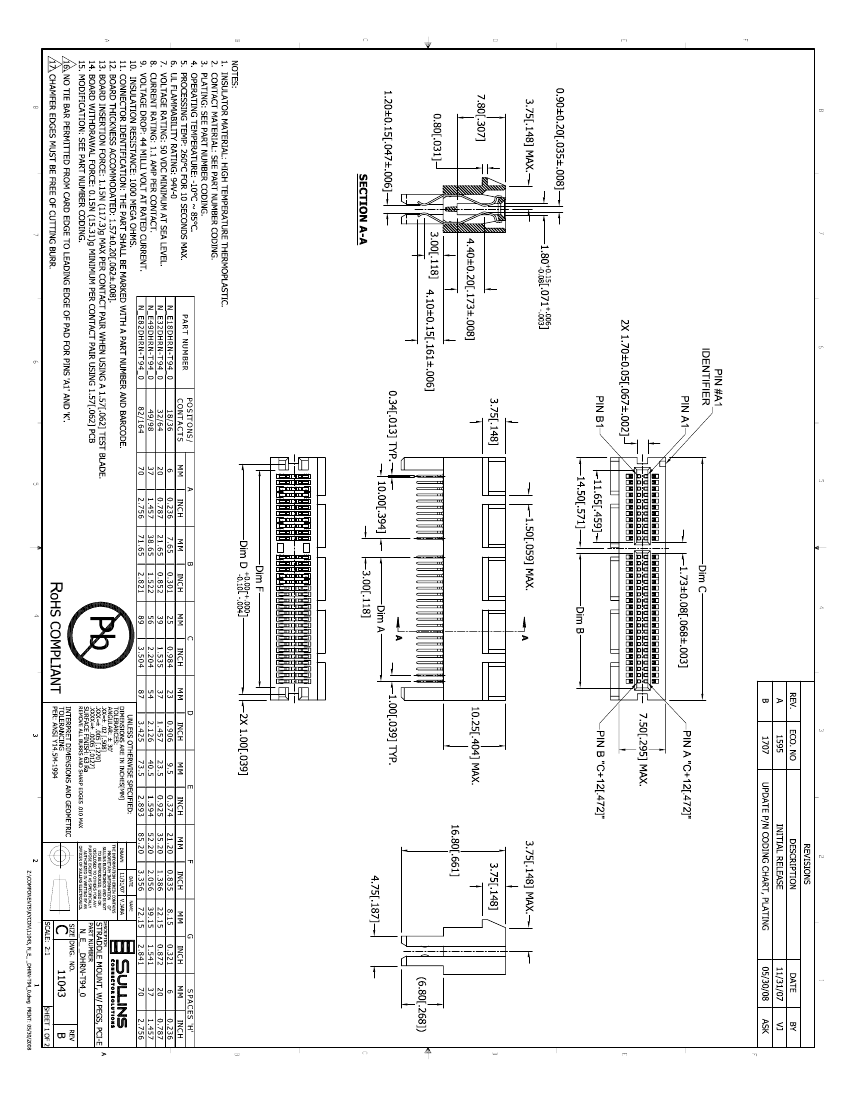

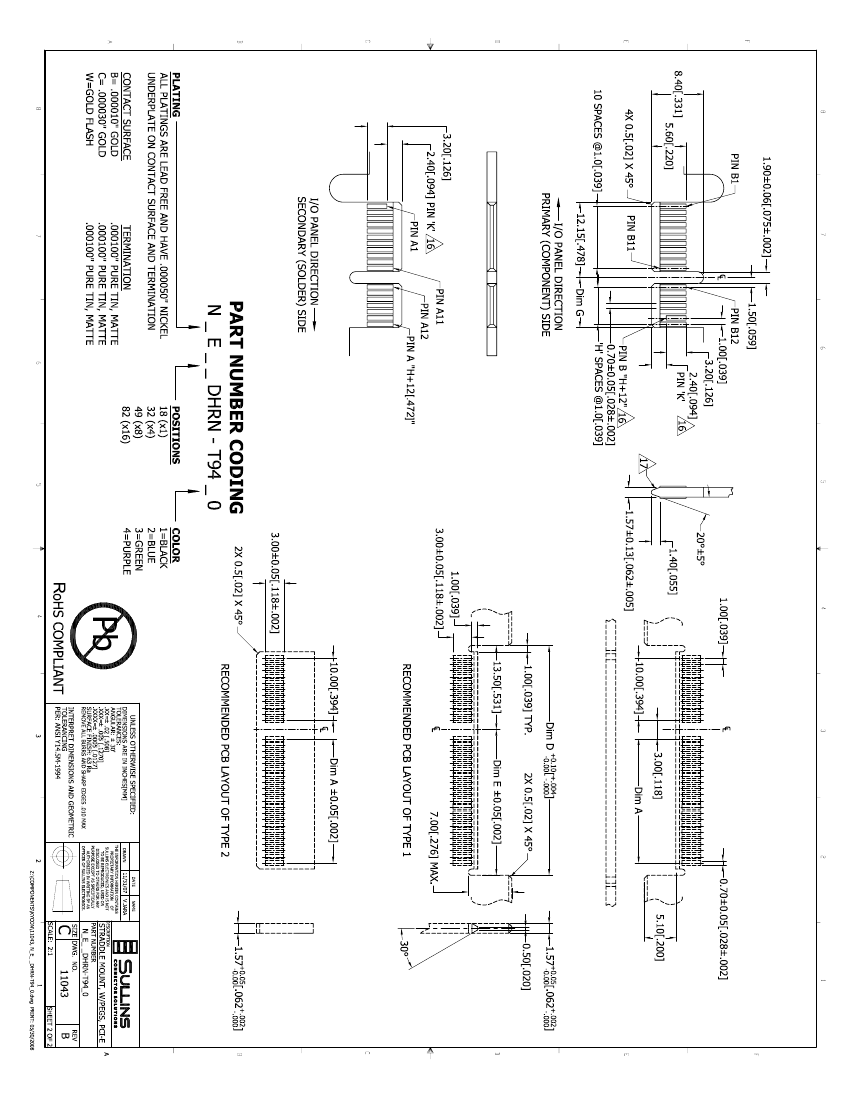

NWE18DHRN-T9410 Overview

CONN PCI EXP FEMALE 36POS 0.039

Parameter Name	Attribute value
card type	PCI Express™
gender	female head
Number of positions/plates/rows	18
Number of pins	36
Card thickness	0.062"（1.57mm）
Number of rows	2
spacing	0.039"（1.00mm）
reading	pair
characteristic	Board rails, card extenders, locking ramps
Installation type	Board edge, straddle mounted
Termination	welding
Contact material	Phosphor bronze
Contact plating	gold
Contact plating thickness	flash
Contact type	cantilever
color	black
Flange characteristics	-
Operating temperature	-55°C ~ 105°C
Material - Insulation	Polyamide (PA46), Nylon 4/6

	NWE18DHRN-T9410	NWE32DHRN-T9410	NWE49DHRN-T9410
Description	CONN PCI EXP FEMALE 36POS 0.039	CONN PCI EXP FEMALE 64POS 0.039	CONN PCI EXP FEMALE 98POS 0.039
card type	PCI Express™	PCI Express™	PCI Express™
gender	female head	female head	female head
Number of positions/plates/rows	18	32	38；11
Number of pins	36	64	98
Card thickness	0.062"（1.57mm）	0.062"（1.57mm）	0.062"（1.57mm）
Number of rows	2	2	2
spacing	0.039"（1.00mm）	0.039"（1.00mm）	0.039"（1.00mm）
reading	pair	pair	pair
characteristic	Board rails, card extenders, locking ramps	Board rails, card extenders, locking ramps	Board rails, card extenders, locking ramps
Installation type	Board edge, straddle mounted	Board edge, straddle mounted	Board edge, straddle mounted
Termination	welding	welding	welding
Contact material	Phosphor bronze	Phosphor bronze	Phosphor bronze
Contact plating	gold	gold	gold
Contact plating thickness	flash	flash	flash
Contact type	cantilever	cantilever	cantilever
color	black	black	black
Operating temperature	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Material - Insulation	Polyamide (PA46), Nylon 4/6	Polyamide (PA46), Nylon 4/6	Polyamide (PA46), Nylon 4/6
