ESQT-120-02-M-Q-358 datasheet, PDF

Datasheet> All Categories > The connector> ESQT-120-02-M-Q-358

ESQT-120-02-M-Q-358: DescriptionBoard Connector, 80 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT; CategoryThe connector; File Size880KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

ESQT-120-02-M-Q-358 Overview

Board Connector, 80 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT

ESQT-120-02-M-Q-358 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Is Samacsys	N
Other features	FLEXYZ; TIGER BUY
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (20) OVER NICKEL (50)
Contact completed and terminated	MATTE TIN OVER NICKEL (50)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	ESQT
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	80
Base Number Matches	1

Preview

Download Datasheet

View All

ESQT–115–02–F–D–500

F-211

(2,00mm) .0787"

ESQT–130–03–M–Q–400

ESQT–110–02–GF–Q–750

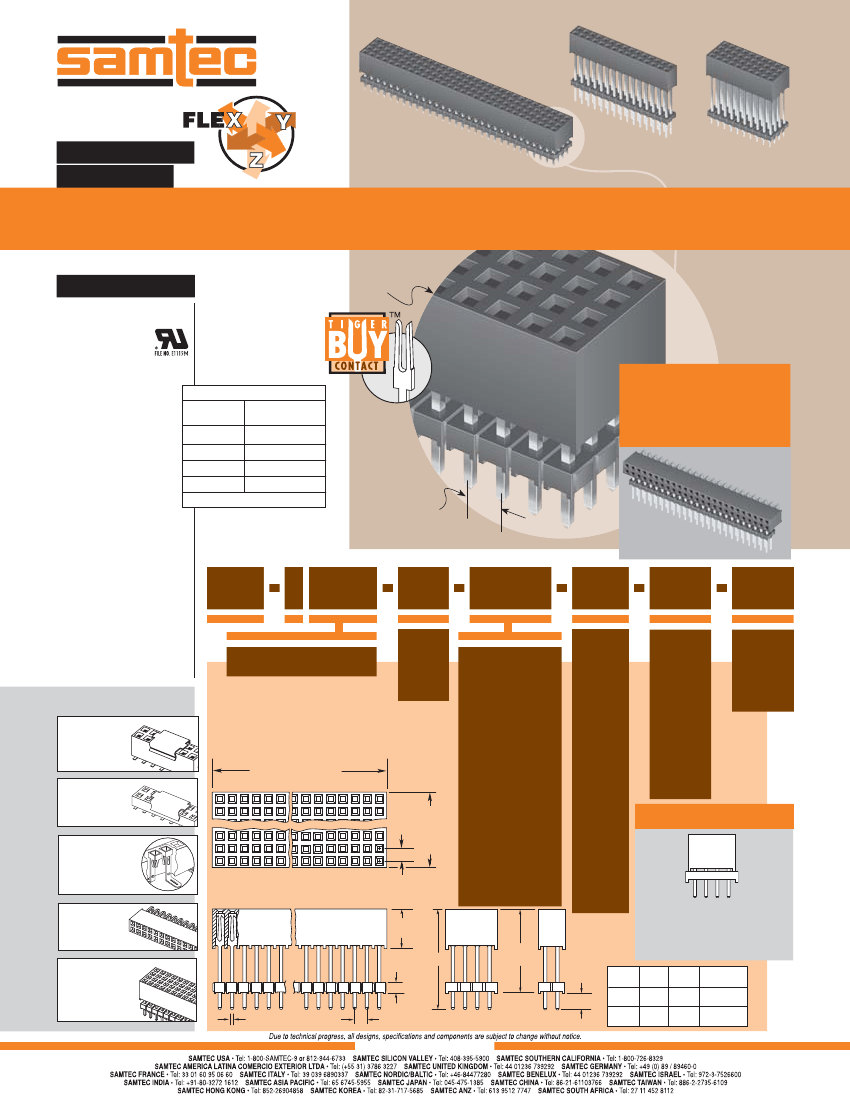

ESQT SERIES

FLEXIBLE ELEVATED SOCKET STRIPS

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?ESQT

Insulator Material:

Black Liquid Crystal

Polymer

Contact Material:

Phosphor Bronze

Plating:

Sn or Au over

50µ" (1,27µm) Ni

Operating Temp Range:

-55°C to +125°C

Contact Resistance:

10 mΩ max

Insertion Depth:

(2,62mm) .103" to

(5,03mm) .198" with

(0,38mm) .015" wipe

Max Cycles:

100 with 10µ" (0,25µm) Au

Insertion Force:

(Single contact only)

4oz (1,11N) avg.

Withdrawal Force:

(Single contact only)

3oz (0,83N) avg.

RoHS Compliant:

Yes

Lead–Free Solderable:

Yes, for -S, -D & -Q

(Wave only for -T, -5 & -6)

Mates with:

TMMH, TMM, MTMM,

MMT, TW, LTMM,

ZLTMM, ESQT, TCMD

High Retention

Contacts

CURRENT RATING

AMBIENT

TEMP

20°C

40°C

60°C

95°C

Mated with

TMMH

5.8A

5.1A

4.5A

2.9A

APPLICATION

SPECIFIC OPTION:

NOTEBOOK 2.5" DISK

DRIVE INTERFACE

6 POSITIONS (2x3) POWERED

Note:

This Series is

non-standard, non-returnable.

(2,00mm)

.0787" pitch

Call for part number.

ESQT

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

PLATING

OPTION

ROW

OPTION

BODY

HEIGHT

OTHER

OPTION

–S

–F

= Gold ﬂash on contact,

Matte Tin on tail

= Single

Row

–“XXX”

= Body

Height

(in inches)

(7,87mm)

.310"

minimum for

–S, –D, –Q

(9,53mm)

.375"

minimum for

–T, –5, –6

–“XXX”

= Polarized

Position

(Indicate

position

number)

02 thru 50

Also Available

Surface

Mount

See SQW and

TLE Series.

–D

= Double

Row

–L

= 10µ" (0,25µm)

Gold on contact,

Matte Tin on tail

–T

= Triple

Row

Low

Proﬁle

See CLT Series.

300

No. of positions x

(2,00) .0787 + (0,30) .012

–M

High

Reliability

See SMM Series.

295

(2,00) No. of

.0787 rows

TYP

(2,00)

.0787

= 20µ" (0,51µm)

Gold on contact,

Matte Tin on tail

–Q

= Quad

Row

–GF

= 15µ" (0,38µm)

Gold on contact,

Gold ﬂash on tail

(Recommended for

self-nesting)

(–02 lead style only)

ALSO AVAILABLE

–5

= Five

Row

–6

= Six

Row

Right

Angle

See SQW Series.

(6,35)

.250

(1,52)

.060

BODY

HEIGHT

TAIL

(1,27)

.050

MIN

Paste In Hole (PIH) processing.

Contact Samtec ASP Group.

(Not recommended for stack

through applications)

PC/104-Plus

Sockets

See ESQT-368

and PTHF Series.

LEAD

STYLE

MAX MAX BODY

TAIL

HEIGHT

(20,32)

.800

(10,36)

.408

– 02

(21,59) (13,72)

.850

(0,50) .020 SQ

(2,00) .0787

–03

.540

(11,63) (3,76)

.458

.148

WWW.SAMTEC.COM
