CAUTION: Do not operate at or near the maximum ratings listed for extended periods of time. Exposure to such conditions may adversely impact product reliability and
result in failures not covered by warranty.
NOTES:
1. The maximum voltage rating for the VB pin under continuous operating conditions is 5.5V. All other pins are allowed to operate continuously at
the absolute maximum ratings.
2.
JA
is measured in free air with the component mounted on a high effective thermal conductivity test board with “direct attach” features. See
Tech Brief TB379.
Electrical Specifications
Typical values are tested at VIN = 5V and +25°C Ambient Temperature, maximum and minimum values are
established over the recommended operating conditions; Parameters with MIN and/or MAX limits are 100%
tested at +25°C, unless otherwise specified. Temperature limits established by characterization and are not
production tested.
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX
UNITS
PARAMETER
POWER-ON RESET
Rising VIN Threshold
V
POR
Rising
Falling
-
2.20
-
-
-
-
2.47
-
1000
V
V
µA
VIN Bias Current
PROTECTIONS
Input Overvoltage Protection
I
VIN
R
ILIM
= 24.9k
V
OVP
ISL9211IRU58
ISL9211IRU68
5.6
6.6
5.55
6.55
-
5.8
6.8
-
-
-
1.0
180
4.34
30
180
-
150
110
6.0
6.95
-
-
1
1.07
-
4.40
50
-
20
-
-
V
V
V
V
µs
A
µs
V
mV
µs
nA
°C
°C
Input OVP Falling Threshold
ISL9211IRU58
ISL9211IRU68
Input OVP Response Time (Note 3)
Overcurrent Protection
Overcurrent Protection Blanking Time
Battery Overvoltage Protection Threshold
Battery OVP Threshold Hysteresis
Battery OVP Blanking Time
VB Pin Leakage Current
Over-Temperature Protection Rising Threshold
Over-Temperature Protection Falling Threshold
LOGIC
FAULT Output Logic Low
FAULT Output Logic High Leakage Current
POWER MOSFET
On-Resistance (Note 3)
NOTE:
3. Limits should be considered typical and are not production tested.
r
DS(ON)
Measured at 200mA
Sink 5mA current
BT
BOVP
V
VB
= 4.34V
I
OCP
BT
OCP
V
BOVP
V
VB
= 3V, R
ILIM
= 24.9k
0.93
-
4.25
-
-
-
-
-
-
-
0.4
-
0.8
1.5
V
µA
-
170
280
m
FN6658 Rev 4.00
January 13, 2009
Page 2 of 9
ISL9211
Pin Descriptions
VIN (Pin 1)
The input power source. The VIN can withstand 24V input.
Typical Application
INPUT
VIN
OUT
GND (Pins 2, 5)
System ground reference.
C
1
C
2
ISL6292
BATTERY
CHARGER
NC (Pin 3)
No connection and must be left floating.
ILIM
ISL9211
VB
R
VB
R
ILIM
GND
FAULT
BATTERY
PACK
FAULT (Pin 4)
FAULT is an open-drain logic output that turns LOW when
any protection event occurs.
VB (Pin 6)
Battery voltage monitoring input. This pin is connected to the
battery pack positive terminal via an isolation resistor.
PART
DESCRIPTION
24.9k
200k to 1M
1µF/25V X5R ceramic capacitor
ILIM (Pin 7)
Overcurrent protection threshold setting pin. Connect a
resistor between this pin and GND to set the OCP threshold.
R
ILIM
R
VB
C
1,
C
2
OUT (Pin 8)
Output pin.
Block Diagram
INPUT
VIN
Q
1
Q
2
OUT
ISL6292
BATTERY
CHARGER
Q
3
ILIM
POR
PRE-REG
REF
R
1
FET
DRIVER
R
ILIM
CP2
EA
CP1
R
2
1.2V
Q
4
0.8V
LOGIC
CP3
R
3
R
4
VB
R
VB
FAULT
GND
FIGURE 1. BLOCK DIAGRAM
FN6658 Rev 4.00
January 13, 2009
Page 3 of 9
ISL9211
Typical Operating Performance
VIN(2V/div)
The test conditions for the Typical Operating Performance are: V
IN
= 5V, T
A
= +25°C,
R
ILIM
= 24.9k, R
VB
= 200k, Unless Otherwise Noted.
VIN(2V/div)
OUT(2V/div)
OUT(2V/div)
Load Current(200mA/div)
Fault(5V/div)
TIME - 4ms/div
TIME - 20µs/div

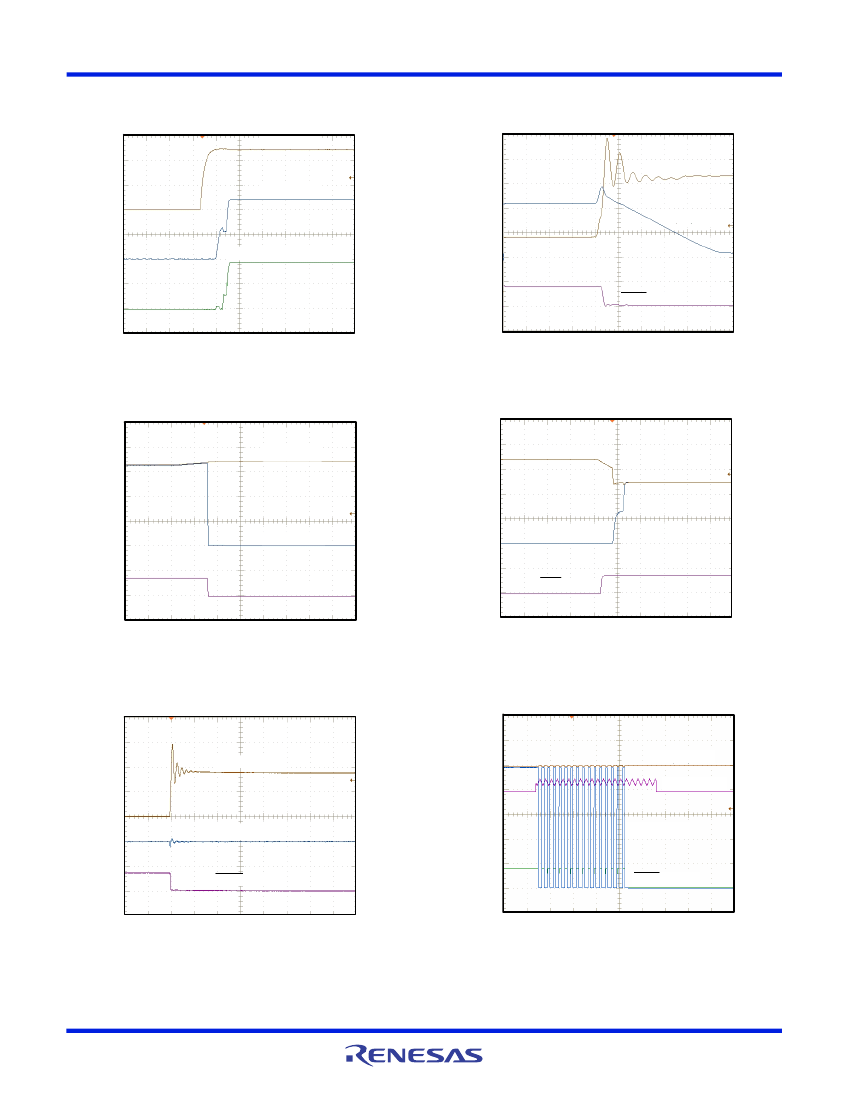

FIGURE 2. CAPTURED WAVEFORMS FOR POWER-UP. THE
OUTPUT IS LOADED WITH A 10 RESISTOR
FIGURE 3. CAPTURED WAVEFORMS WHEN THE INPUT
VOLTAGE STEPS FROM 5.5V TO 9.5V
VIN(2V/div)
VIN(2V/div)
OUT(2V/div)
OUT(2V/div)
Fault(5V/div)
Fault(5V/div)
TIME - 2s/div
TIME - 4ms/div
FIGURE 4. CAPTURED WAVEFORMS WHEN THE INPUT
GRADUALLY RISES TO THE INPUT
OVERVOLTAGE THRESHOLD
FIGURE 5. TRANSIENT WHEN THE INPUT VOLTAGE STEPS
FROM 6.5V TO 5.5V
VIN(5V/div)
VIN(1V/div)
VB(1V/div)
OUT(2V/div)
OUT(1V/div)
Fault(2V/div)
Fault(2V/div)
TIME - 40µs/div
TIME - 20s/div
FIGURE 6. TRANSIENT WAVEFORMS WHEN INPUT STEPS
FROM ZERO TO 9V
FIGURE 7. BATTERY OVERVOLTAGE PROTECTION. THE IC
IS LATCHED OFF AFTER 16 COUNTS OF
PROTECTION. VB VOLTAGE VARIES BETWEEN
4.3V TO 4.5V
FN6658 Rev 4.00
January 13, 2009
Page 4 of 9
ISL9211
