SSW-107-22-F-D-VS-K datasheet, PDF

Datasheet> All Categories > The connector> The connector> SSW-107-22-F-D-VS-K

SSW-107-22-F-D-VS-K: Description.025 SOCKET STRIPS; CategoryThe connector The connector; File Size749KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

SSW-107-22-F-D-VS-K Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SSW-107-22-F-D-VS-K	-	-	View	Buy Now

SSW-107-22-F-D-VS-K Overview

.025 SOCKET STRIPS

SSW-107-22-F-D-VS-K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Samacsys Description	14 Position, Tiger Buy™ Socket Strip with PCB Tails, 0.100" Pitch
Other features	TIGER BUY CONTACT
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	SSW
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	14

Preview

Download Datasheet

View All

F-219

SSW–115–22–G–D–VS-P

SSW–130–22–L–S–VS

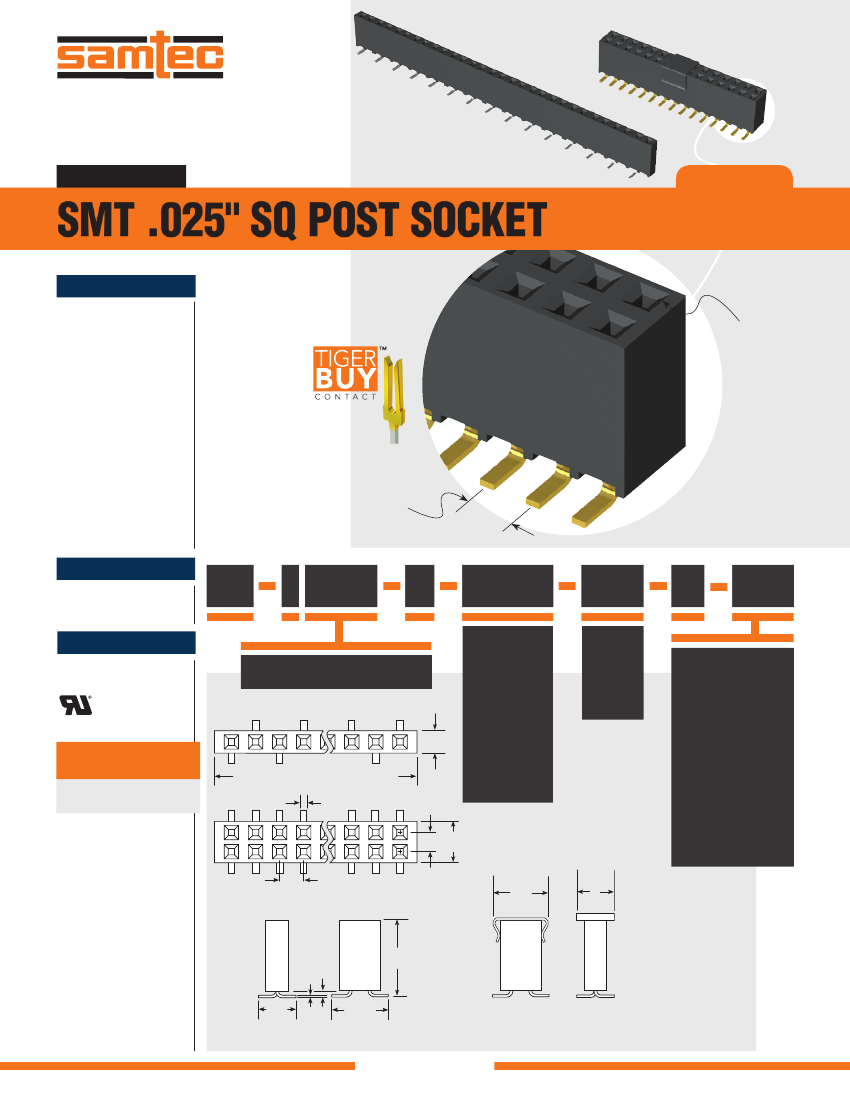

(2.54 mm) .100"

SSW SERIES

SMT .025" SQ POST SOCKET

SPECIFICATIONS

For complete specifications

and recommended PCB layouts

see www.samtec.com?SSW

Insulator Material:

Black LCP

Contact Material:

Phosphor Bronze

Plating:

Au or Sn over

50 µ" (1.27 µm) Ni

Current Rating (SSW/TSM):

4.7 A per pin

(2 pins powered)

Operating Temp Range:

-55 °C to +125 °C with Gold

-55 °C to +105 °C with Tin

Insertion Depth:

(3.68 mm) .145" to

(6.35 mm) .250"

Max Cycles:

100 with 10 µ" (0.25 µm) Au

Voltage Rating:

465 VAC / 655 VDC

RoHS Compliant:

Yes

Mates With:

TSW, MTSW, HTSW,

HMTSW, MTLW, EW, ZW,

TSS, HTSS, ZSS, TSM,

TSSH, DW, HW

Tiger Buy

contacts

(2.54 mm)

.100"

PROCESSING

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0.10 mm) .004" max

SSW

NO. PINS

PER ROW

PLATING

OPTION

ROW

OPTION

OTHER

OPTION

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

02 thru 36

(2.41)

.095

= Gold flash

on contact,

Matte Tin on tail

–F

–L

= Single

Row

–S

FILE NO. E111594

= 10 µ" (0.25 µm)

Gold on contact,

Matte Tin on tail

= 20 µ" (0.51 µm)

Gold on contact,

Gold flash on tail

= Double

Row

–D

= Polarized Position

–“XX”

–K

ALSO AVAILABLE

(MOQ Required)

(2.54) .100 x No. of Positions + (0.51) .020

(0.79)

.031

–G

= –S: (3.50 mm) .138" DIA,

–D: (6.50 mm) .256" DIA

Polyimide film Pick

& Place Pad

(03 positions min.)

• Other platings

• Notch option

= Pick & Place Pad

(05 positions min.)

–P

(2.54) (4.95)

.100 .195

(2.54)

.100

(7.11)

.280

(5.72)

.225

(4.95)

.195

(10.03)

.395

= Tape & Reel Packaging

(–02 thru –28)

–TR

(1.27)

.050

(9.78)

.385

(5.16)

.203

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

(0.41)

.016

(7.87)

.310

–P

OPTION

–S

–D

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
