0397040011: DescriptionTERM BLOCK PLUG 11POS STR 7.62MM; CategoryThe connector; File Size124KB，1 Pages; ManufacturerMolex Premise Network

Download Datasheet Parametric View All

0397040011 Overview

TERM BLOCK PLUG 11POS STR 7.62MM

0397040011 Parametric

Parameter Name	Attribute value
type	plug, female socket
Number of pins	11
Number of pins per level	11
Number of levels	1
spacing	0.300"（7.62mm）
Needle seat direction	-
Plug entrance	180°
Terminal type	screws
Installation type	free hanging
Current - IEC	-
Current - UL	10A
Voltage - UL	300V
Wire Gauge or Range - AWG	12-30 AWG
Wire gauge or range - mm²	-
color	green
Operating temperature	-40°C ~ 105°C
Contact mating surface treatment	tin
characteristic	Fixed lock (non-wire side)
Material flammability rating	UL94 V-0
Intrusion protection	-
Screw size	M3
Torque - Screws	0.56 Nm (5.0 Lb-In)
Wire stripping length	5mm
Contact material	copper alloy
Shell material	Polyamide (PA66), Nylon 6/6
Contact tail length	-
Insulation height	0.591"（15.00mm）

Preview

Download Datasheet

View All

13

12

11

10

9

8

7

6

5

4

3

2

1

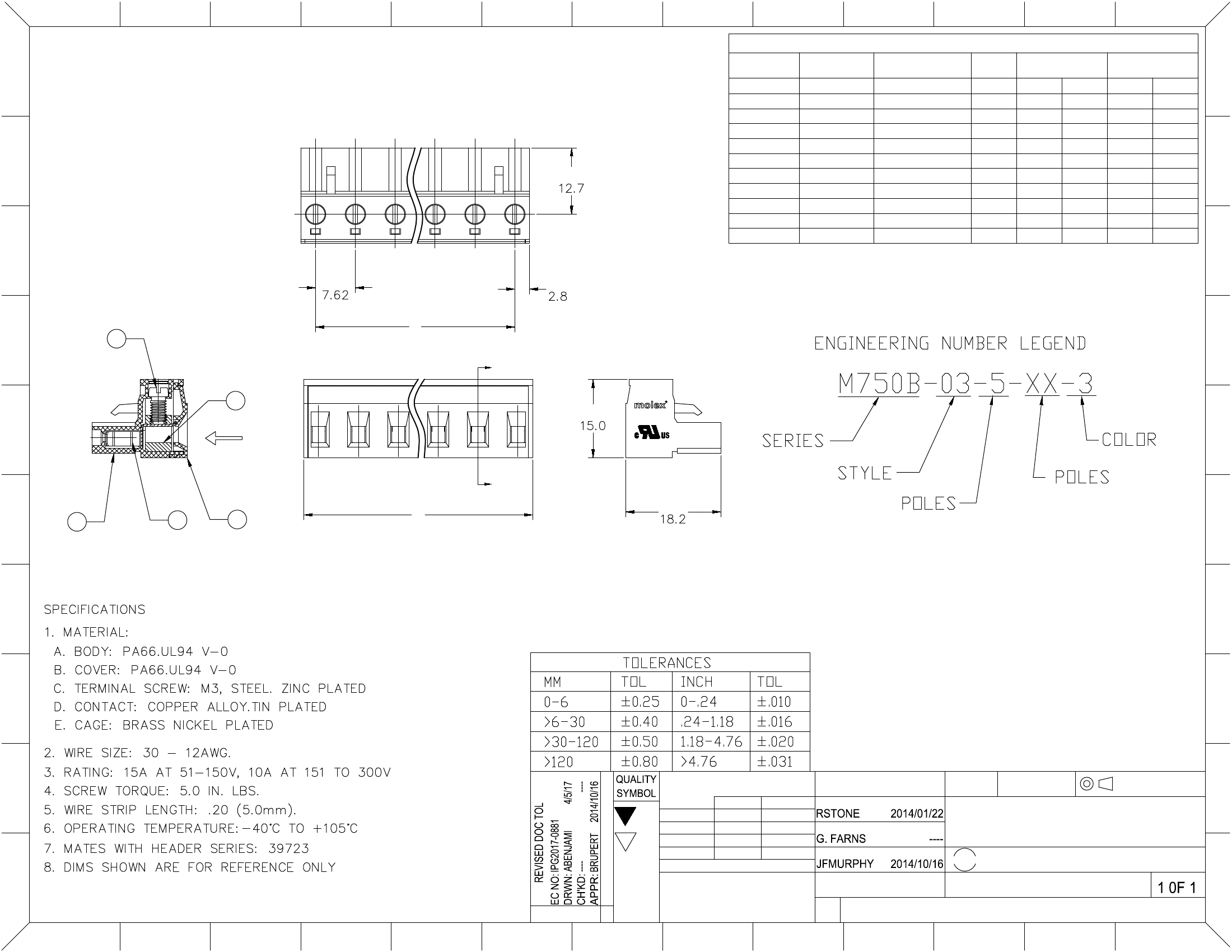

PART NUMBER DATA

J

CIRCUITS

2

3

4

5

6

7

8

9

10

11

12

PART

NUMBER

397040002

397040003

397040004

397040005

397040006

397040007

397040008

397040009

397040010

397040011

397040012

ENGINEERING

NUMBER

M750B-03-5-02-3

M750B-03-5-03-3

M750B-03-5-04-3

M750B-03-5-05-3

M750B-03-5-06-3

M750B-03-5-07-3

M750B-03-5-08-3

M750B-03-5-09-3

M750B-03-5-10-3

M750B-03-5-11-3

M750B-03-5-12-3

COLOR

GREEN

A IN mm

.52

.82

1.12

1.42

1.72

2.02

2.32

2.62

2.92

3.22

3.52

13.2

20.8

28.5

36.1

43.7

51.3

58.9

66.6

74.2

81.8

89.4

B IN mm

.300

.600

.900

1.200

1.500

1.799

2.099

2.399

2.699

2.999

3.299

7.62

15.23

22.85

30.47

38.09

45.70

53.32

60.94

68.56

76.17

83.79

J

I

.50

H

REF. LAST 2 DIGITS OF PART NUMBER EQUALS NUMBER OF POLES

.300

.11

B

G

C

G

E

.59

F

WIRE ENTRY

M750B

F

E

A

D

B

A

.72

E

CONTACT FACTORY FOR OPTIONAL COLORS

D

C

B

DESCRIPTION

GENERAL TOLERANCES

(UNLESS SPECIFIED)

DIMENSION STYLE

SCALE

DESIGN UNITS

IN/MM

DRAWN BY

DATE

TITLE

CHECKED BY

DATE

---

METRIC

THIRD ANGLE

PROJECTION

B

=

0

C

mm

4 PLACES

3 PLACES

2 PLACES

1 PLACE

---

INCH

---

=

0

APPROVED BY

DATE

molex

7.62 EURO PLUG

RIGHT ANGLE

NO MTG ENDS

MOLEX INCORPORATED

SHEET NO.

A

REV

A1

13

12

11

10

9

8

DRAFT WHERE

APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

7

6

5

MATERIAL NO.

DOCUMENT NO.

SEE CHART

SIZE

A

SD-39704-001

3

2

1

C

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX

INCORPORATED AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

4
