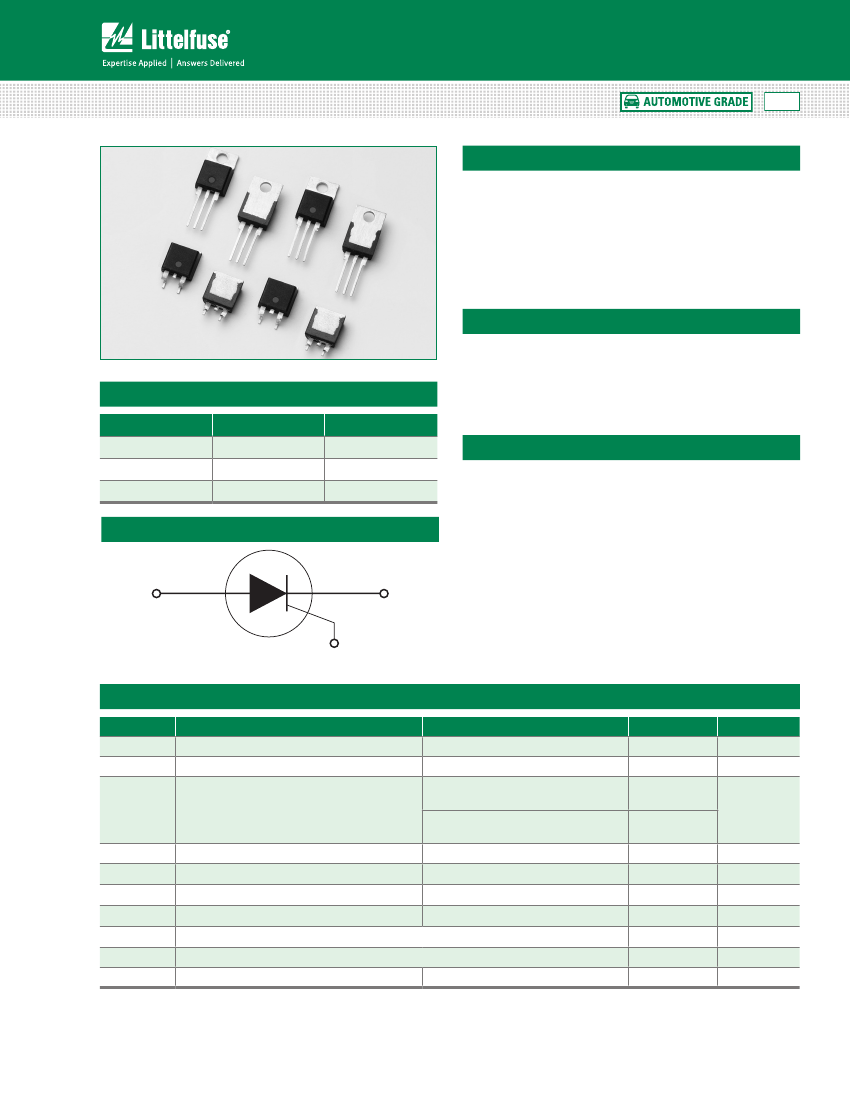

Teccor
®
brand Thyristors
40 Amp High Temperature Low Tq SCR
RoHS
HS4040xAQx Series
Description
The HS4040xAQx series of SCRs offer fast turn-off time
(tq) characteristics required for applications such as power
inverters, switching regulator, and high frequency pulse
circuits.
These fast turn-off time SCRs offer high dv/dt and
high
di/dt characteristics required in higher frequency
(>1000 PPS) switching circuits and a higher temperature
environment.
Features & Benefits
• RoHS compliant
• Voltage capability up
to 400 V
Value
40
400
15 to 65
Unit
A
V
mA
• TO-220 and TO-263
packages
• AEC-Q101 Fully compliant
• 150°C maximum junction
temperature
Main Features
Symbol
I
T(RMS)
V
DRM
/ V
RRM
I
GT
• Surge capability up to
520 A
Applications
Fast turn-off time SCRs are ideal for multi phase voltage
regulator circuits, DC/AC inverters, and higher frequency
pulsing power supplies.
Schematic Symbol
A
K
G
Absolute Maximum Ratings
Symbol
I
T(RMS)
I
T(AV)
I
TSM
I
2
t
di/dt
I
GM
P
G(AV)
T
stg
T
J
V
DSM
/V
RSM
Parameter
RMS on-state current
Average on-state current
Test Conditions
T
C
= 115°C
T
C
= 115°C
single half cycle; f = 50Hz;
T
J
(initial) = 25°C
single half cycle; f = 60Hz;
T
J
(initial) = 25°C
t
p
= 8.3 ms
f = 60Hz ; T
J
= 150°C
T
J
= 150°C
T
J
= 150°C
Value
40
25.0
430
A
520
1122
175
3.5
0.8
-40 to 150
-40 to 150
Pw=100 μs
500
A
2
s
A/μs
A
W
°C
°C
V
Unit
A
A
Peak non-repetitive surge current
I
2
t Value for fusing
Critical rate of rise of on-state current
Peak gate current
Average gate power dissipation
Storage temperature range
Operating junction temperature range
Peak non-repetitive blocking voltage
HS4040xAQx Series
S4040xQx Series
©2016 Littelfuse, Inc
Specifications are subject to change without notice.
Revised: 08/11/16
Teccor
®
brand Thyristors
40 Amp High Temperature Low Tq SCR
Electrical Characteristics
(T
J
= 25°C, unless otherwise specified)
Symbol
I
GT
V
GT
I
GT
dv/dt
V
GD
I
H
t
q
t
gt
V
D
= 12V; R
L
= 30Ω;
T
J
= -40°C
V
D
= V
DRM
; gate open; T
J
= 150°C
V
D
= V
DRM
; R
L
= 3.3 kΩ;
T
J
= 150°C
I
T
= 400mA (initial)
I
T
=0.5A; t
p
=50µs; dv/dt=5V/µs; di/dt=-30A/µs
I
G
= 2 x I
GT
; PW = 15µs; I
T
= 80A
V
D
= 12V; R
L
= 30
Ω
Test Conditions
MAX.
MIN.
MAX.
MAX.
MIN.
MIN.
MAX.
MAX.
TYP
.
70
15
3.0
75
HS4040xAQ
35
15
HS4040xAQ2
45
30
1.5
95
550
0.2
120
12
200
5
3.5
160
HS4040xAQ3
65
38
Unit
mA
V
mA
V/μs
V
mA
μs
μs
Static Characteristics
Symbol
V
TM
Test Conditions
I
T
= 80A; t
p
= 380μs
T
J
= 25°C
I
DRM
/ I
RRM
V
DRM
/ V
RRM
T
J
= 125°C
T
J
= 150°C
MAX.
MAX.
HS4040xAQ
HS4040xAQ2
1.6
10
2000
4000
μA
HS4040xAQ3
1.8
Unit
V
Thermal Resistances
Symbol
R
θ(J-C)
Parameter
Junction to case (AC)
Value
0.6
Unit
°C/W

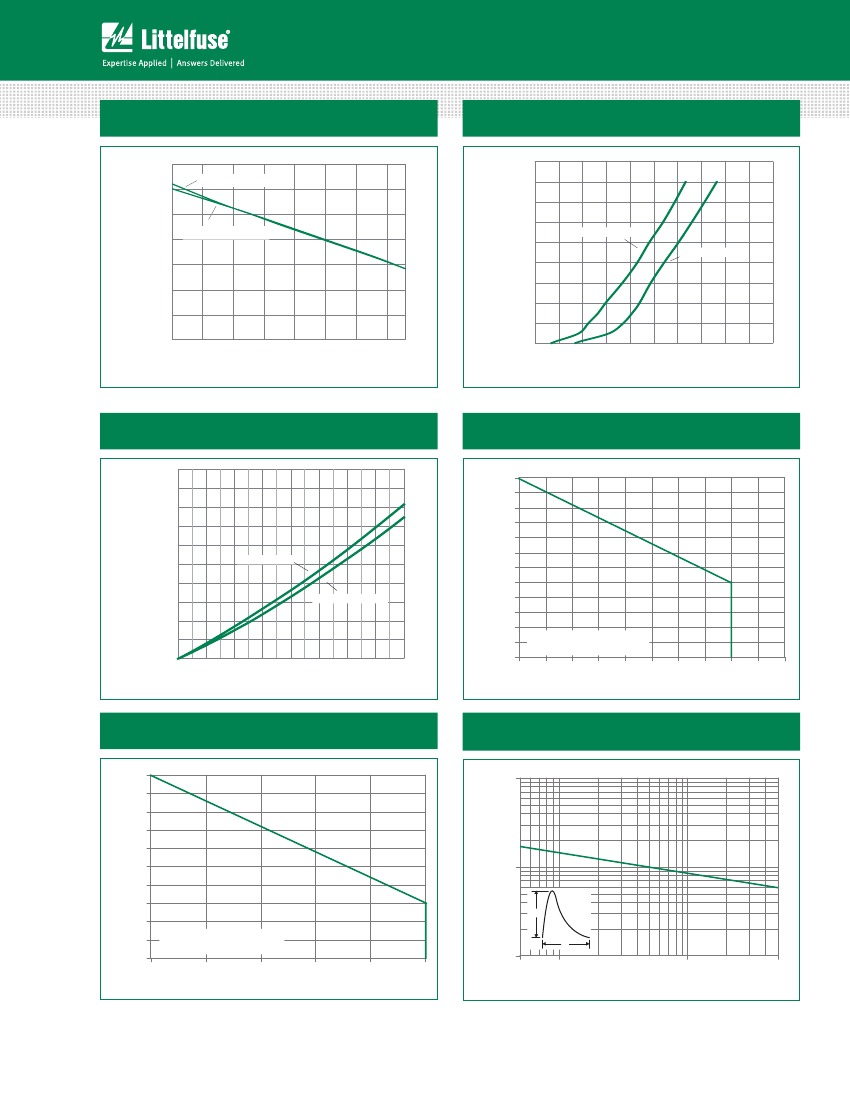

Figure 1: Normalized DC Holding Current vs. Junction
Temperature
3.0
Figure 2: Normalized DC Gate Trigger Current vs.
Junction Temperature
3.0
Ratio of IGT / IGT (T
J
= 25ºC)
Ratio of IH / IH (T
J
= 25ºC)
2.5
2.0
1.5
1.0
0.5
0.0
HS4040xQ3
HS4040xQ/xQ2
2.5
2.0
1.5
1.0
HS4040xQ/xQ2
HS4040xQ3
0.5
0.0
-40
-15
10
35
60
85 110 135 150
Junction Temperature (T
J
) – (ºC)
-40
-15
10
35
60
85 110 135 150
Junction Temperature (T
J
) – (ºC)
HS4040xAQx Series
S4040xQx Series
©2016 Littelfuse, Inc
Specifications are subject to change without notice.
Revised: 08/11/16
Teccor
®
brand Thyristors
40 Amp High Temperature Low Tq SCR
Figure 4: On-State Current vs. On-State Voltage
(Typical)
90
Figure 3: Normalized DC Gate Trigger Voltage vs.
Junction Temperature
1.4
Ratio of VGT / VGT (T
J
= 25ºC)
Postitive or Negative Instantaneous
On-State Current (I
T
) - Amps
1.2
1.0
0.8
0.6
0.4
0.2
0.0
-40
HS4040xQ3
80
70
60
50
40
30
20
10
0
0.8 0.9
1
1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8
Postitive or Negative Instantaneous
On-State Voltage (V
T
) - Volts
HS4040xQ/xQ2
HS4040xQ/xQ2
HS4040xQ3
-15
10
35
60
85 110 135 150
Junction Temperature (T
J
) – (ºC)
Figure 5: Power Dissipation (Typical) vs. RMS On-State
Current
Figure 6: Maximum Allowable Case Temperature
vs. RMS On-State Current
150
145
140
Average On - State Power Dissipation
[P
D(AV)
] - (Watts)
50
45
40
35
30
25
20
15
10
5
0
0
5
10
15
20
25
30
35
40
HS4040xQ/xQ2
HS4040xQ3
Maximum Allowable
Case Temperature (T
C
)- °C
135
130
125
120
115
110
105
100
95
90
0
CURRENT WAVEFORM: Sinusoidal
LOAD: Resistive or Inductive
CONDUCTION ANGLE: 180°
5
10
15
20
25
30
35
40
45
50
RMS On
-
State Current [I
T(RMS)
] -(Amps)
RMS On-State Current [I
T(RMS)
] - Amps
Figure 7: Maximum Allowable Case Temperature
vs. Average On-State Current
150
145
Figure 8: Peak Capacitor Discharge Current
10000
Maximum Allowable
Case Temperature (T
C
) - °C
140
135
130
125
120
115
110
105
100
0
5
10
15
20
25
CURRENT WAVEFORM: Sinusoidal
LOAD: Resistive or Inductive
CONDUCTION ANGLE: 180°
Peak Discharge Current (I
TM
) - Amps
1000
I
TRM
t
W
100
0.5
1.0
10.0
50.0
Average On-State Current [I
T(AVE)
] - Amps
Pulse Current Duration (t
w
) - ms
HS4040xAQx Series
S4040xQx Series
©2016 Littelfuse, Inc
Specifications are subject to change without notice.
Revised: 08/11/16
Teccor
®
brand Thyristors
40 Amp High Temperature Low Tq SCR
Figure 9: Peak Capacitor Discharge Current Derating
1.2
1.0
Normalized Peak Current
0.8
0.6
0.4
0.2
0.0
0
25
50
75
100
125
150
Case Temperature (T
C
) - °C
Figure 10: Surge Peak On-State Current vs. Number of Cycles
1000
Peak Surge (Non-repetitive)
On-state Current (I
TSM
) – Amps
SUPPLY FREQUENCY: 60 Hz Sinusoidal
LOAD: Resistive
RMS On-State Current: [I
T(RMS)
]: Maximum Rated
Value at Specified Case Temperature
Notes:
1. Gate control may be lost during and immediately
following surge current interval.
2. Overload may not be repeated until junction
temperature has returned to steady-state
rated value.
100
10
1
10
100
1000
Surge Current Duration -- Full Cycles
Soldering Parameters
Reflow Condition
- Temperature Min (T
s(min)
)
Pre Heat
- Temperature Max (T
s(max)
)
- Time (min to max) (t
s
)
Average ramp up rate (Liquidus Temp)
(T
L
) to peak
T
S(max)
to T
L
- Ramp-up Rate
Reflow
- Temperature (T
L
) (Liquidus)
- Temperature (t
L
)
Pb – Free assembly
T
P
Temperature
t
P
Ramp-up
150°C
200°C
60 – 180 secs
5°C/second max
5°C/second max
217°C
60 – 150 seconds
260
+0/-5
T
L
T
S(max)
t
L
Preheat
Ramp-do
Ramp-down
T
S(min)
t
S
time to peak temperature
25
Time
Peak Temperature (T
P
)
Time within 5°C of actual peak
Temperature (t
p
)
Ramp-down Rate
Time 25°C to peak Temperature (T
P
)
Do not exceed
HS4040xAQx Series
S4040xQx Series
°C
20 – 40 seconds
5°C/second max
8 minutes Max.
280°C
©2016 Littelfuse, Inc
Specifications are subject to change without notice.
Revised: 08/11/16
Teccor
®
brand Thyristors
40 Amp High Temperature Low Tq SCR
Environmental Specifications
Test
AC Blocking
Specifications and Conditions
MIL-STD-750, M-1040, Cond A Applied
Peak AC voltage @ 150°C for 1008 hours
EIA / JEDEC, JESD22-A101
1008 hours; 320V - DC: 85°C;
85% rel humidity
JESD22 A-104 Appendix 6
-55°C to 150°C, 15-minute dwell,
1000 cycles
T
A
=25C, ΔT
J
≥ 100°C, 1008hrs
EIA/JEDEC: JESD22-A102
121°C, 100%RH, 15psig, 96hours
JESD22 A-111: 260°C, 10 seconds
ANSI/J-STD-002, category 3, Test A
Physical Specifications
Terminal Finish
Body Material
Lead Material
100% Matte Tin-plated
UL recognized epoxy meeting flammability
classification V-0
Copper Alloy
Biased Temperature
& Humidity
Temperature Cycling
Design Considerations
Careful selection of the correct device for the application’s
operating parameters and environment will go a long way
toward extending the operating life of the Thyristor. Good
design practice should limit the maximum continuous
current through the main terminals to 75% of the device
rating. Other ways to ensure long life for a power discrete
semiconductor are proper heat sinking and selection of
voltage ratings for worst case conditions. Overheating,
overvoltage (including dv/dt), and surge currents are
the main killers of semiconductors. Correct mounting,
soldering, and forming of the leads also help protect
against component damage.
Intermittent
Operational Life
Autoclave (Pressure
Cooker Test)
Resistance to
Solder Heat
Solderability
Dimensions — TO-220AB (R-Package) — Non-Isolated Mounting Tab Common with Center Lead
T
C
MEASURING POINT
O
E
A
ANODE
B
C
D
7.01
.276
13.36
.526
P
8.13
.320
AREA (REF.) 0.17 IN
2
Dimension
A
B
C
D
E
F
G
H
J
K
Inches
Min
0.380
0.105
0.230
0.590
0.142
0.110
0.540
0.025
0.195
0.095
0.060
0.085
0.018
0.178
0.045
0.038
Max
0.420
0.115
0.250
0.620
0.147
0.130
0.575
0.035
0.205
0.105
0.075
0.095
0.024
0.188
0.060
0.048
Millimeters
Min
9.65
2.67
5.84
14.99
3.61
2.79
13.72
0.64
4.95
2.41
1.52
2.16
0.46
4.52
1.14
0.97
Max
10.67
2.92
6.35
15.75
3.73
3.30
14.61
0.89
5.21
2.67
1.91
2.41
0.61
4.78
1.52
1.22
F
G
L
H
R
NOTCH IN
GATE LEAD
TO ID.
NON-ISOLATED
TAB
CATHODE
ANODE GATE
K
J
N
M
L
Note: Maximum torque to
be applied to mounting tab
is 8 in-lbs. (0.904 Nm).
M
N
O
P
R
HS4040xAQx Series
S4040xQx Series
©2016 Littelfuse, Inc
Specifications are subject to change without notice.
Revised: 08/11/16
京公网安备 11010802033920号
EEWORLD
