152D226X9020B2G

Description
CAP TANT 22UF 10% 20V AXIAL
CategoryPassive components
File Size106KB,6 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

152D226X9020B2G Online Shopping

Suppliers Part Number Price MOQ In stock
152D226X9020B2G - - View Buy Now

152D226X9020B2G Overview

CAP TANT 22UF 10% 20V AXIAL

152D226X9020B2G Parametric

Parameter NameAttribute value
capacitance22µF
Tolerance±10%
Voltage - Rated20V
typeseal
ESR (equivalent series resistance)-
Operating temperature-55°C ~ 85°C
Service life at different temperatures1000 hours at 125°C
Installation typeThrough hole
Package/casingAxial
size/dimensions0.185" diameter x 0.474" length (4.70mm x 12.04mm)
Height - Installation (maximum)-
lead spacing-
Manufacturer size codeB
grade-
characteristicUniversal
failure rate-

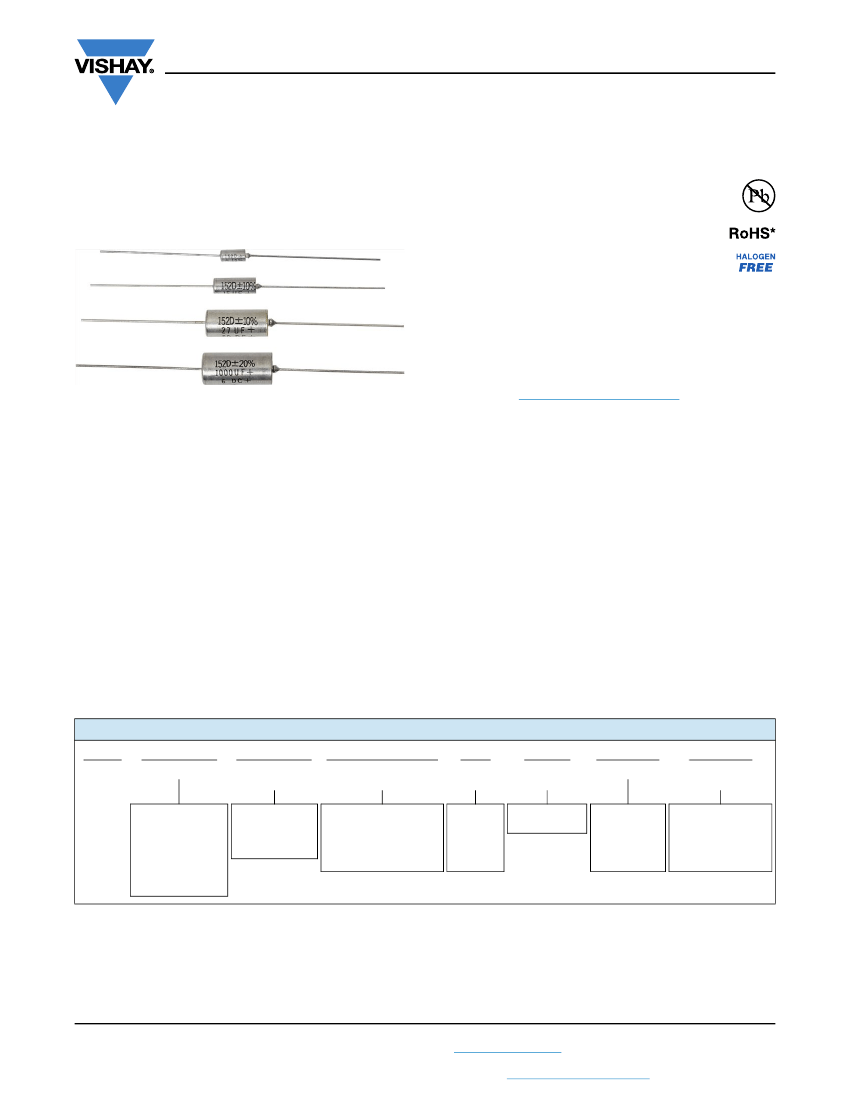

152D
www.vishay.com
Vishay Sprague
Solid-Electrolyte T
ANTALEX
™ Capacitors,
Extended Capacitance Values, Hermetically-Sealed
FEATURES
• Axial through-hole terminations:
tin / lead (SnPb), 100 % tin (RoHS-compliant)
• High capacitance and small size
• Exceptional operating stability
• Hermetically-sealed, cylindrical, metal-case
• Low leakage current and low dissipation factor
• The military equivalent of the 152D is the M39003/03 (style
CSR23) which is qualified to MIL-PRF-39003/3
• Provide proven reliability in a wide variety of high
performance military, industrial and commercial markets
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
This datasheet provides information about parts that are
RoHS-compliant and / or parts that are non RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information / tables in this datasheet for details
Available
Available
PERFORMANCE CHARACTERISTICS
Operating Temperature:
-55 °C to +85 °C
(to +125 °C with voltage derating)
Capacitance Tolerance:
at 120 Hz, +25 °C
± 20 % and ± 10 % standard. ± 5 % available as special
Dissipation Factor:
at 120 Hz, +25 °C
Dissipation factor, as determined from the expression
2fRC, shall not exceed the values listed in the Standard
Ratings table
DC Leakage Current (DCL Max.):
at +25 °C:
leakage current shall not exceed the values listed
in the Standard Ratings table
at +85 °C:
leakage current shall not exceed 10 times the
values listed in the Standard Ratings table
At +125 °C:
leakage shall not exceed 12 times the values
listed in the Standard Ratings table
Life Test:
capacitors shall withstand rated DC voltage
applied at +85 °C for 2000 h or derated DC voltage applied
at +125 °C for 1000 h
Following the life test:
1. DCL shall not exceed 125 % of the initial requirement. In
no case need the leakage current be less than 2 μA
2. Dissipation factor shall meet the initial requirement
3. Change in capacitance shall not exceed ± 5 %
ORDERING INFORMATION
152D
MODEL
106
CAPACITANCE
X0
CAPACITANCE
TOLERANCE
X0 = ± 20 %
X9 = ± 10 %
X5 = ± 5 % *
* Special order
006
DC VOLTAGE RATING
AT +85 °C
This is expressed in
volts. To complete the
three-digit block,
zeros precede the
voltage rating.
A
CASE
CODE
See
Ratings
and Case
Codes
table
2
STYLE
NUMBER
2 = insulated
sleeve
T
PACKAGING
E3
RoHS-
COMPLIANT
E3 = 100 % tin
termination
(RoHS-compliant)
Blank = SnPb
termination
This is expressed
in picofarads. The
first two digits are
the significant
figures. The third
is the number of
zeros to follow.
B = bulk
T = tape
and reel
G = ammo
pack
Revision: 16-Nov-17
Document Number: 40016
1
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
