8L30210NLGI Overview

IC CLK BUFF LVCMOS/LVTTL 32VFQFP

Crystal or Differential-to-LVCMOS/
LVTTL Clock Buffer
Datasheet
8L30210
Description
The 8L30210 is a low skew, 1-to-10 LVCMOS / LVTTL Fanout
Buffer. The low impedance LVCMOS/LVTTL outputs are designed
to drive 50 series, or parallel terminated transmission lines.
The 8L30210 is characterized at full 3.3V, 2.5V, and mixed
3.3V/2.5V, 3.3V/1.8V, 3.3V/1.5V, 2.5V/1.8V and 2.5V/1.5V output
operating supply modes. The input clock is selected from two
differential clock inputs or a crystal input. The differential inputs
can be wired to accept a single-ended input. The internal oscillator
circuit is automatically disabled when the crystal input is
de-selected.
Features
• Ten LVCMOS / LVTTL outputs up to 200MHz
• Differential input pairs can accept the following differential input
levels: LVPECL, LVDS, HCSL
• Crystal oscillator interface
• Crystal input frequency range: 10MHz to 40MHz
• Additive RMS phase jitter: 30fs (typical)
• Synchronous output enable to avoid clock glitch
• Power supply modes:
Core / Output
3.3V / 3.3V
2.5V / 2.5V
3.3V / 2.5V
3.3V / 1.8V
3.3V / 1.5V
2.5V / 1.8V
2.5V / 1.5V
• Supports case temperature up to 105°C
• -40°C to 85°C ambient operating temperature
• Available in lead-free (RoHS 6) package

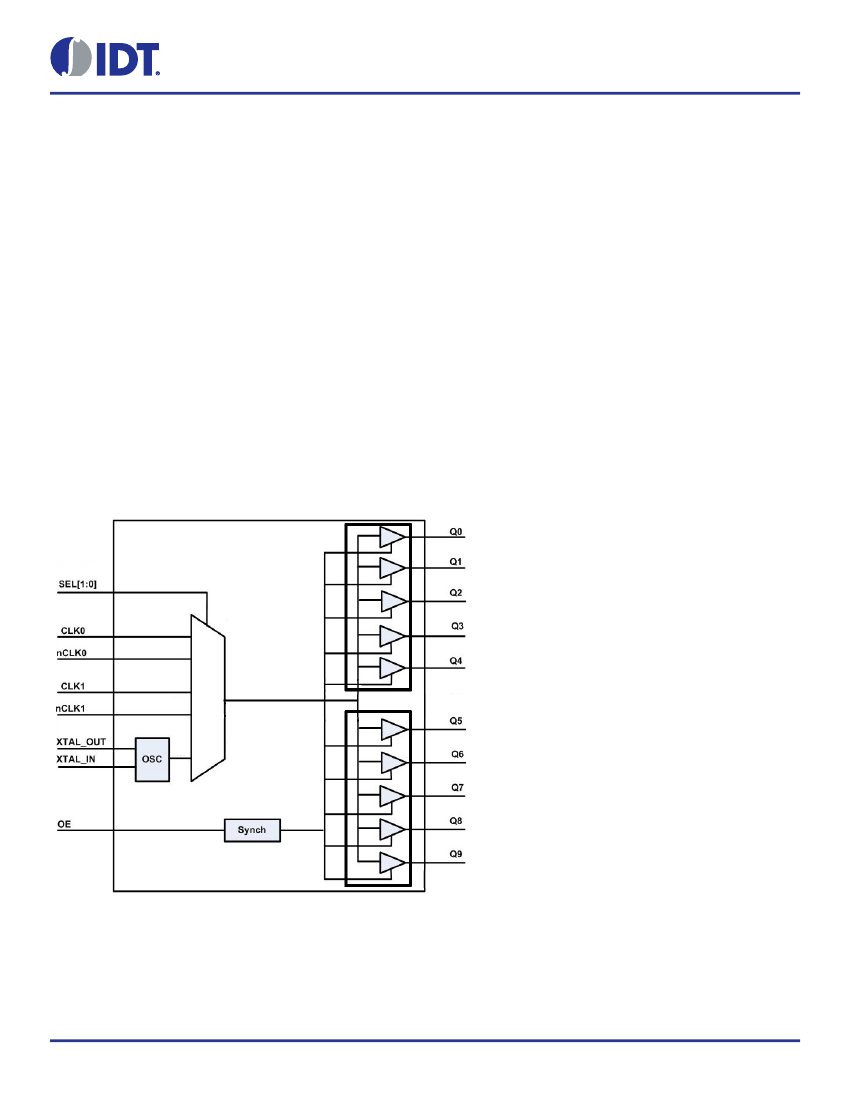

Block Diagram
00
01
1x
©2017 Integrated Device Technology, Inc.
1
July 27, 2017
