19K202-271E4

Description
RF SMP Connector, Female, Cable Mount, Solder Terminal, Jack,
CategoryThe connector    The connector
File Size92KB,2 Pages
ManufacturerRosenberger
Websitehttps://www.rosenberger.com/
Environmental Compliance
Download Datasheet Parametric View All

19K202-271E4 Overview

RF SMP Connector, Female, Cable Mount, Solder Terminal, Jack,

19K202-271E4 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codecompli
Other featuresAPPLICABLE CABLE: RG 405, CAPTIVE CENTER CONTACT
subject depth0.259 inch
Body diameter0.193 inch
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF SMP CONNECTOR
Contact to complete cooperationGOLD (31) OVER NICKEL
Contact completed and terminatedGOLD (31) OVER NICKEL
Contact point genderFEMALE
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.51 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Installation methodRIGHT ANGLE
Installation typeCABLE
Maximum operating frequency26.5 GHz
Maximum operating temperature155 °C
Minimum operating temperature-65 °C
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeSOLDER
Total number of contacts1
voltage standing wave ratio1.38
Base Number Matches1

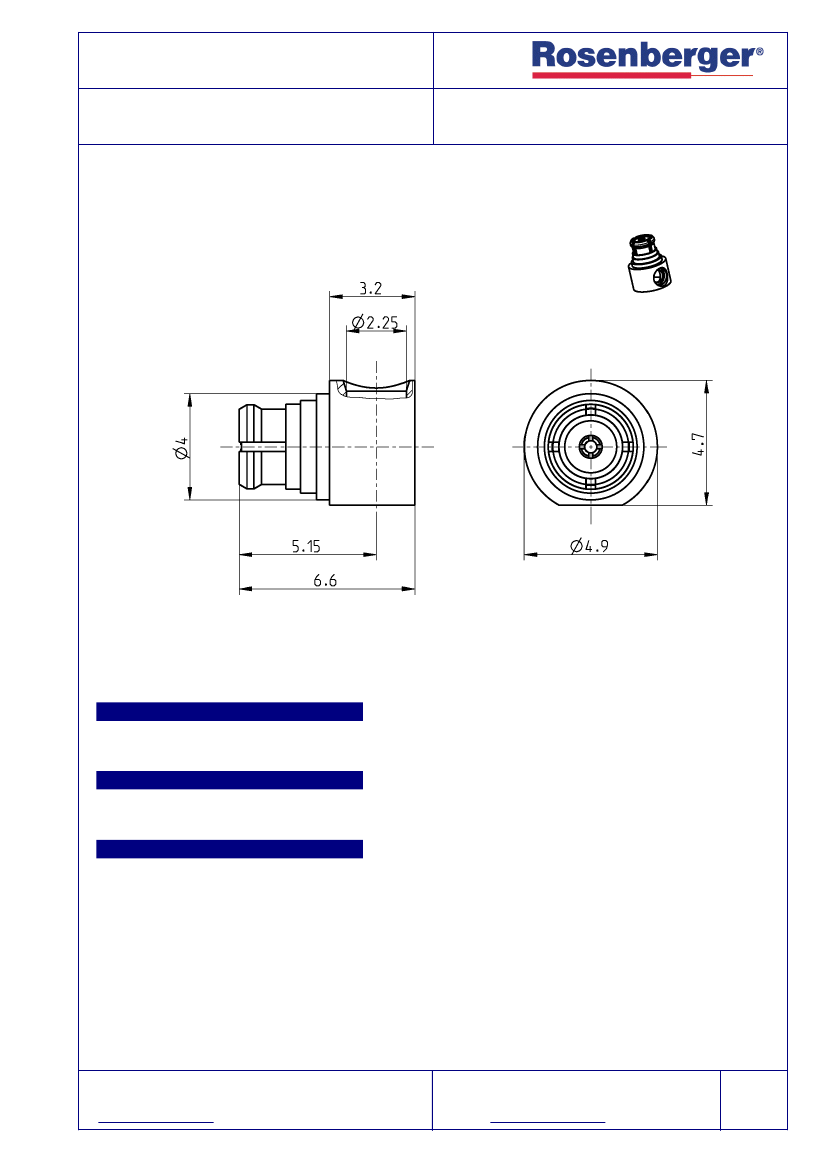

TECHNICAL DATA SHEET
SMP
RIGHT ANGLE JACK
19K202-271E4
All dimensions are in mm; tolerances acc. ISO 2768 m-H
Interface
According to
MIL-STD-348A, Fig. 326
Documents
Assembly instruction
19 E8
Material and plating
Connector parts
Center contact
Outer contact
Dielectric
Material
Plating
Beryllium copper Gold, min. 0.8 m, over chemical nickel
Beryllium copper Gold, min. 0.8 m, over chemical nickel
PTFE
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
